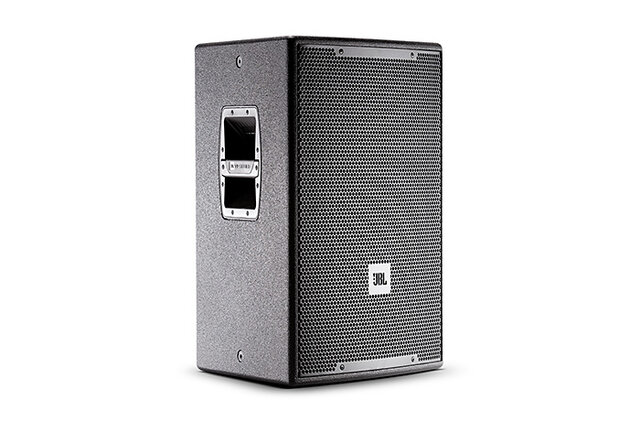

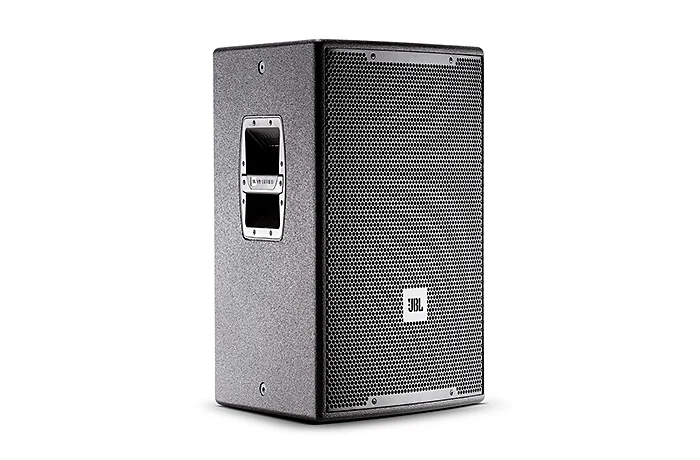

Powered 15" 2-way Integrated Loudspeaker System
The VP7215/95DPC is a powered 15" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.
Grandes images
Caractéristiques
- Compact Powered bi-amplified
full-range loudspeaker with JBL
DrivePack® technology for portable
or installed use - 1750 watts peak output power, 875 watts continuous
- Optimized for both portable/rental or permanent-venue use
- 15-inch Differential Drive® lowfrequency driver for extended lowfrequency output
- Robust powder-coated die cast aluminum handles, designed for strength and comfort
- Integrated 35 mm stand mount
Téléchargements
Documents
| Taille | |
VP Series Brochure
mis à jour : avr. 2026
|
2,73 Mo |
|
VP7215/95DPC Spec Sheet
mis à jour : avr. 2026
|
300 ko |
Specifications
| Taille | |
|
|
300 ko |
Brochures
| Taille | |
|
|
2,73 Mo |
CAD Drawings
| Taille | |
|
|
75,2 ko |
|
|
373 ko |
|
|
10,8 ko |
Simulation Data
| Taille | |
|
|
21 Mo |
|
|
24 Mo |
Images
| Taille | |
|
|
631 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range | 45 Hz to 20 kHz (-10 dB) |
| Frequency Response | 60 Hz to 18 kHz ( ± 3 dB) |
| Coverage Pattern | 90° x 50° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 135 dB SPL 1m |
| Low Frequency Section | JBL 2265FF, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit |
| DPC1 Internal Amplification Output | 1750 Watts Peak |
| DPC1 Output (Continuous IEC shaped pink noise into rated load impedance): | 750LF/125HF Watts |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical |
| AC Power Oprating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement: | 6A per system at 120V, 3A |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 13 M10 Fittings, 35 mm pole mount socket |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 613 x 434 x 359 mm (24.1 x 17.1 x 14.1 in) |
| Net Weight | 24.7 kg (55 lb) |
