JBL Professional VP7215/95DPC

Gambar Lebih Besar

VP7215/95DPC adalah sistem loudspeaker terintegrasi bertenaga 2-way 15" dengan output daya puncak 1750 watt dan pemrosesan sinyal digital onboard.

Pengeras suara jangkauan penuh bi-amplified bertenaga kompak dengan teknologi JBL DrivePack® untuk penggunaan portabel
atau terpasang
Daya keluaran puncak 1750 watt, 875 watt berkelanjutan
Dioptimalkan untuk penggunaan portabel/sewa atau venue permanen
Driver frekuensi rendah Differential Drive® 15 inci untuk keluaran frekuensi rendah yang diperluas
Pegangan aluminium cor berpelapis bubuk kokoh, dirancang untuk kekuatan dan kenyamanan
Dudukan standar 35 mm terintegrasi

Dokumen

	Bahasa	Ukuran	Diunggah
VP Series Brochure diperbarui: Apr 2026		2,73 MB	Apr 2026
VP7215/95DPC Spec Sheet diperbarui: Apr 2026		300 KB	Apr 2026

Specifications

	Ukuran	Diunggah
VP7215/95DPC Spec Sheet diperbarui: Jul 2019	300 KB	Jul 2019

Brochures

	Ukuran	Diunggah
VP Series Brochure diperbarui: Jul 2019	2,73 MB	Jul 2019

CAD Drawings

Simulation Data

	Versi	Ukuran	Diunggah
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024		21 MB	Mei 2024
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023

Images

	Ukuran	Diunggah

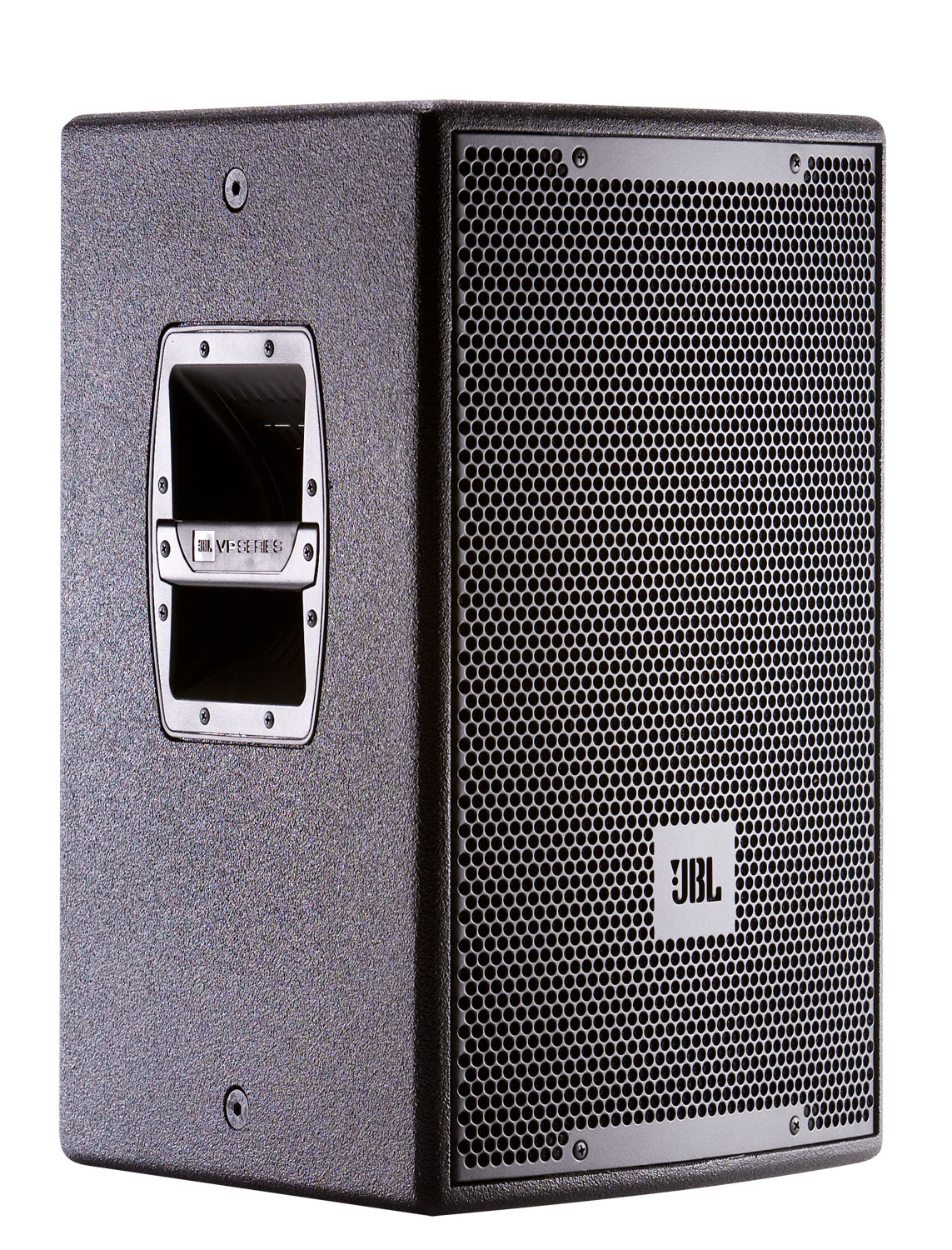

VP7212/95DPC Hi-res image diperbarui: Jul 2019	631 KB	Jul 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Frequency Range	45 Hz to 20 kHz (-10 dB)
Frequency Response	60 Hz to 18 kHz ( ± 3 dB)
Coverage Pattern	90° x 50°
Directivity Factor (Q)	12.6
Directivity Index (DI)	11 dB
Maximum Peak Output1	135 dB SPL 1m
Low Frequency Section	JBL 2265FF, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	2 x 2 ohms
High Frequency	JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DPC1 Internal Amplification Output	1750 Watts Peak
DPC1 Output (Continuous IEC shaped pink noise into rated load impedance):	750LF/125HF Watts
Audio Input Connector	XLR with loop-through
User Controls	80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical
AC Power Oprating Range	90-132 VAC/216-264 VAC, 50/60 Hz
AC Input Connector	Neutrik PowerCon
AC Loop-thru	Neutrik PowerCon
AC Current Requirement:	6A per system at 120V, 3A
Box Construction	5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System	13 M10 Fittings, 35 mm pole mount socket
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	613 x 434 x 359 mm (24.1 x 17.1 x 14.1 in)
Net Weight	24.7 kg (55 lb)
