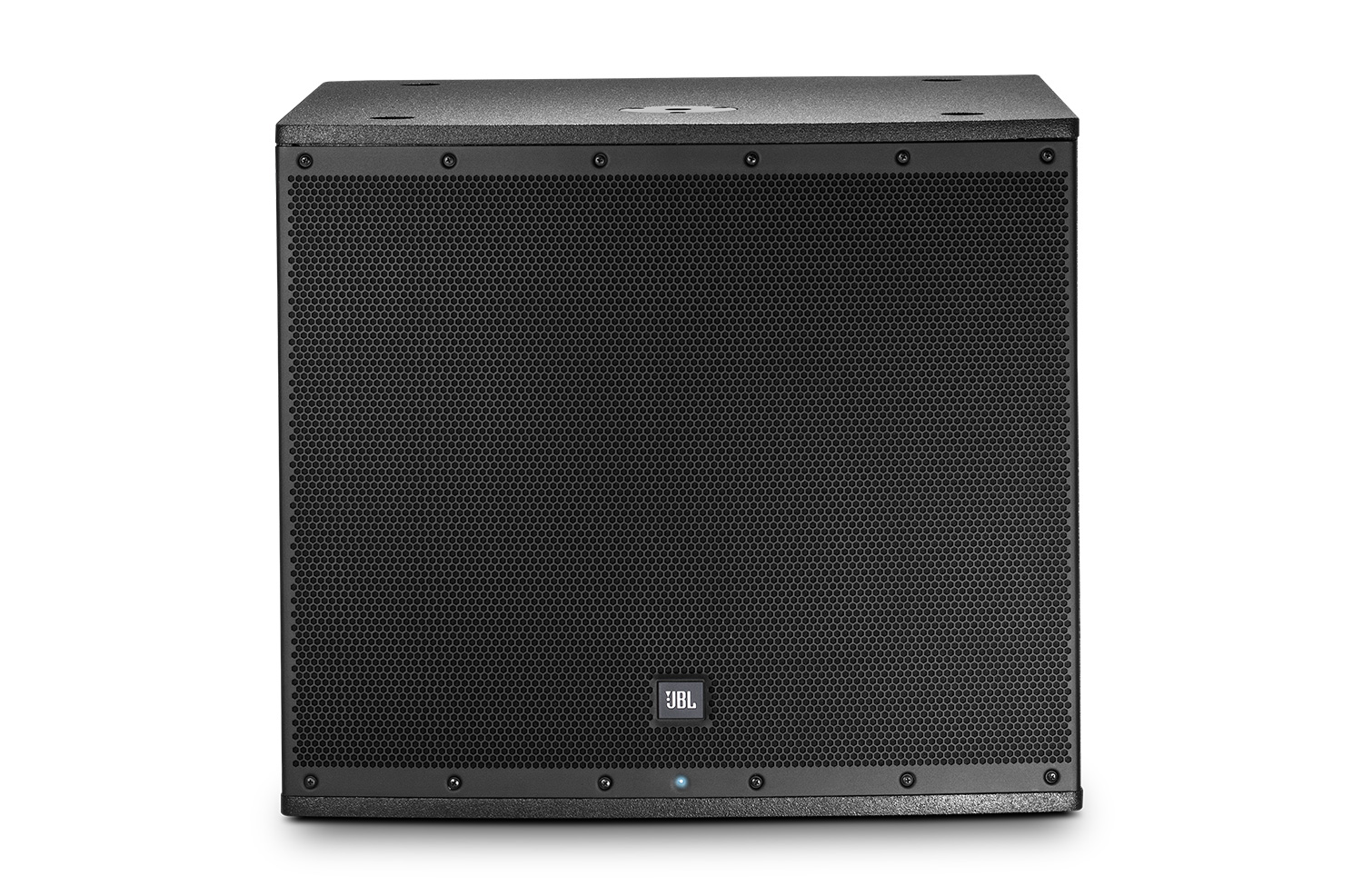

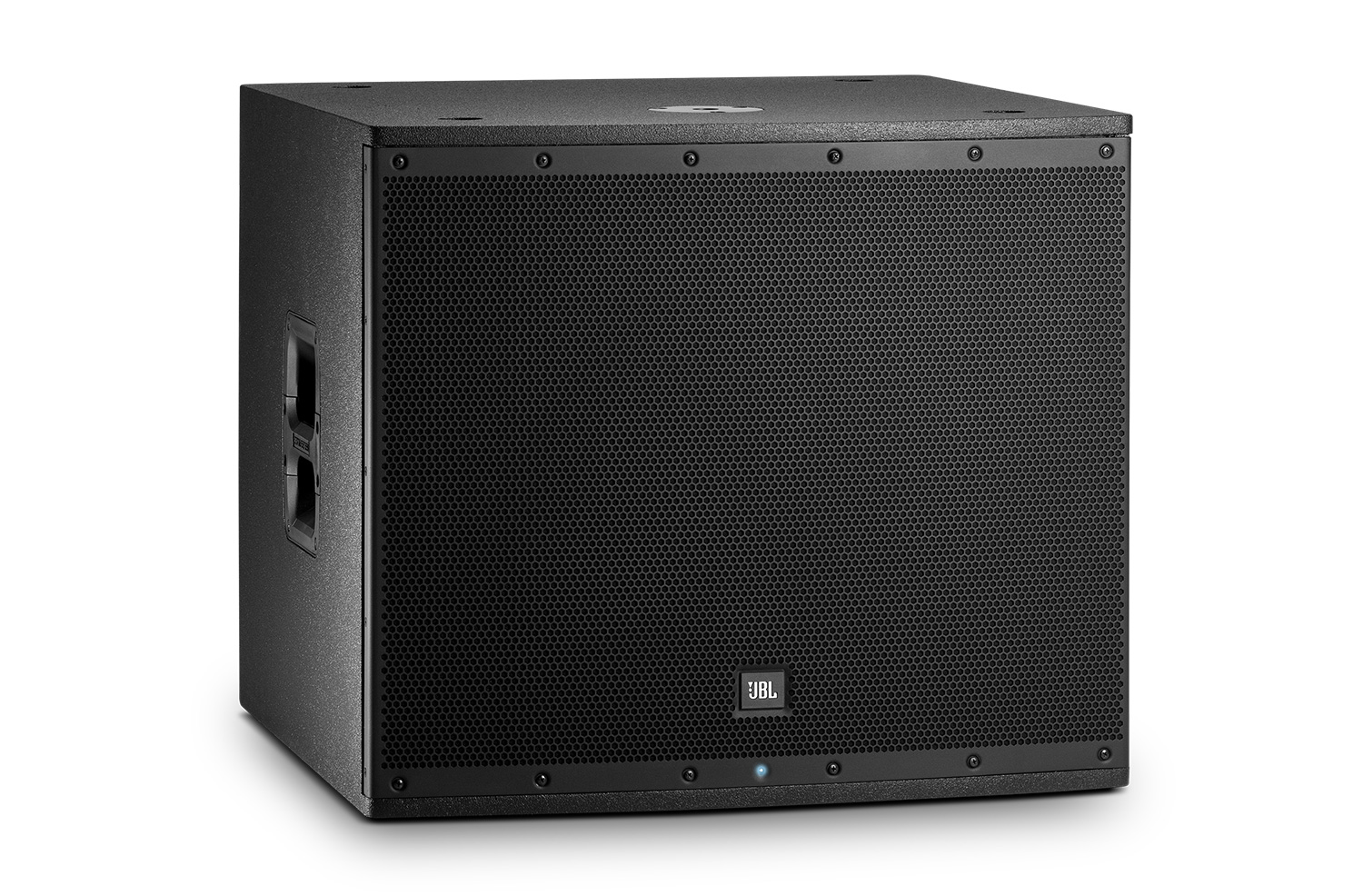

O EON618S é um subwoofer portátil amplificado da série EON600 da JBL Professional. Foi concebido para oferecer desempenho líder de classe numa variedade de aplicações, suportando sistemas EON600 e outras gamas completas. Um recinto leve e altamente funcional permite que o altifalante seja facilmente transportado e configurado onde quer que seja necessário reforço de baixas frequências.
| Tamanho | |
|
|
1000 KB |
| Tamanho | |
|
|
200 KB |
|
|
700 KB |
| Tamanho | |
|
|
|
|
|
| Tamanho | |
|
|
4 MB |
|
|
4 MB |
|
|
4 MB |
|
|
4 MB |
|
|
800 KB |
| Tamanho | |
|
|
400 KB |
|
|
400 KB |
|
|
400 KB |
|
|
300 KB |
|
|
400 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| System Type | Self powered 18” Subwoofer |
| Maximum SPL Output | 134 dB |
| Frequency Range (-10dB) | 31Hz –150Hz |
| Frequency Response (-3 dB) | 42.5Hz – 150Hz |
| System Power Rating | 1000W Peak, 500W Continuous |
| Input Impedance | 22k (balanced) |
| Line Input Gain | 0 to 36 dBu |
| Line | +14dBu |
| LED indicators | Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange) |
| Cooling | Passive |
| AC power input | 100-120VAC 50/60Hz; 230-240VAC 50/60Hz |
| AC Power Consumption (120V~) | 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max) |

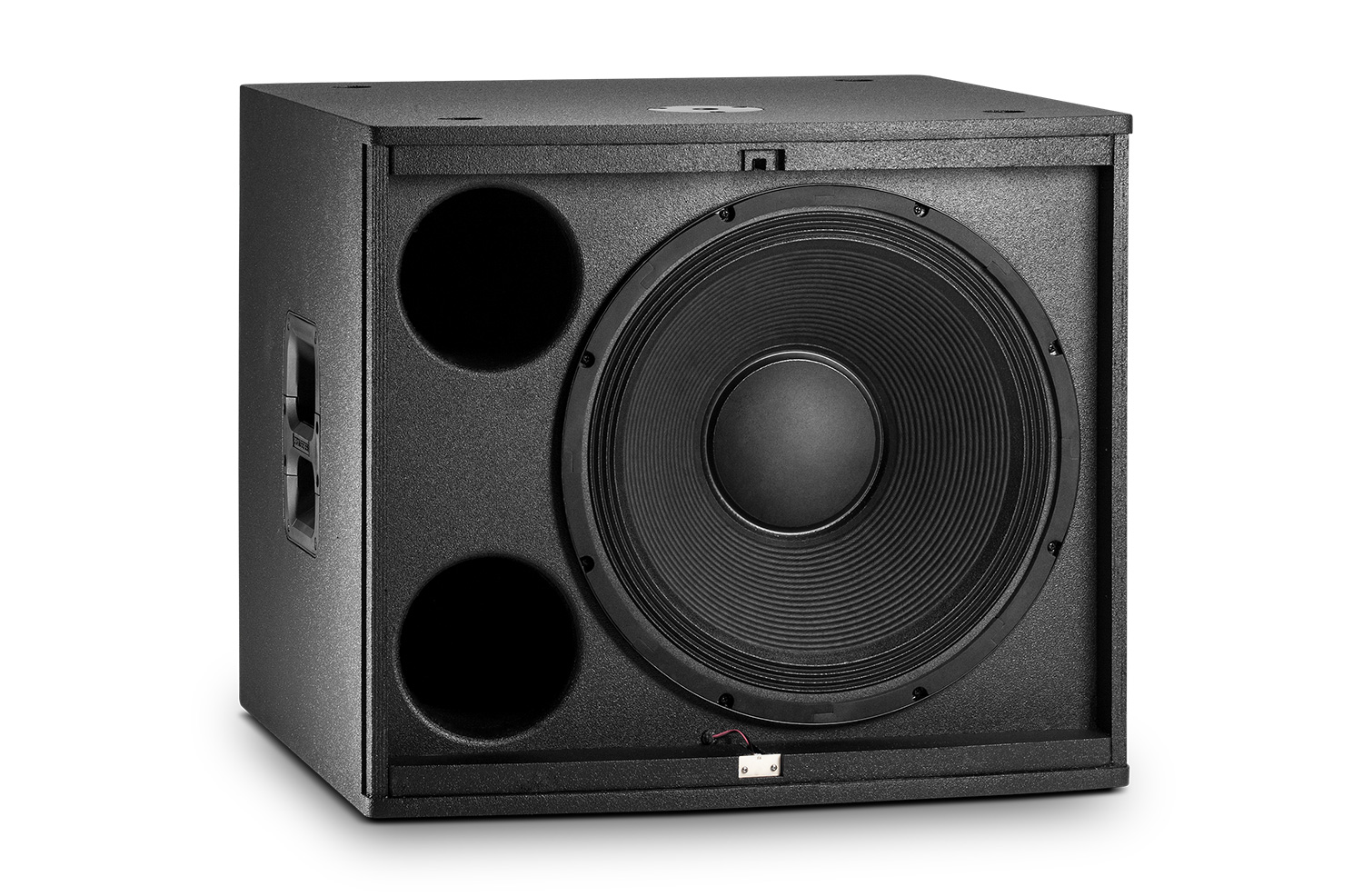

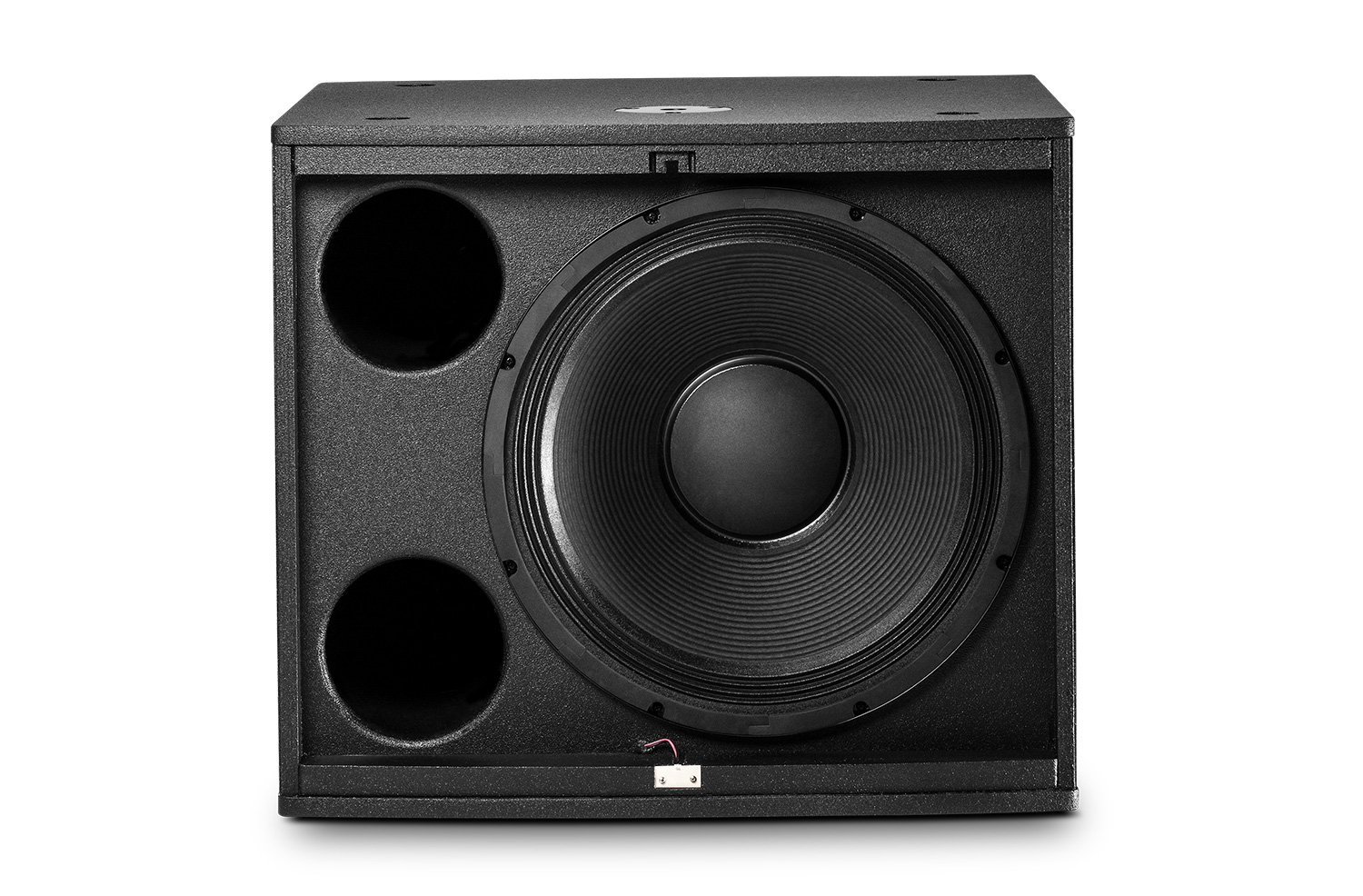

| LF Driver | 1 x JBL 618H 457mm (18”) woofer with 2” voice coil |
| Crossover Frequency | Selectable; 80 Hz, 100 hz, or 120 Hz |
| Material | Duraflex coated wooden enclosure |
| Suspension/Mounting | M20 Threaded Pole Cup |
| Handles | 2 |
| Grille | Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 582mm x 668mm x 645mm (22.9in x 26.3in x 25.4in) |
| Weight | 72 lbs (35.5 kg) |
| Shipping Weight | 91 lbs (41.2 kg) |
| Shipping Dimensions (L x W x H) | 803mm x 768mm x 631mm (31.6" x 30.2" x 25.1") |
| Mic Inputs | 2 |
| Phantom Power | No |
| EQ | 3 Parametric EQs + Hi & Lo Shelf |
| Effects | DSP Presets |

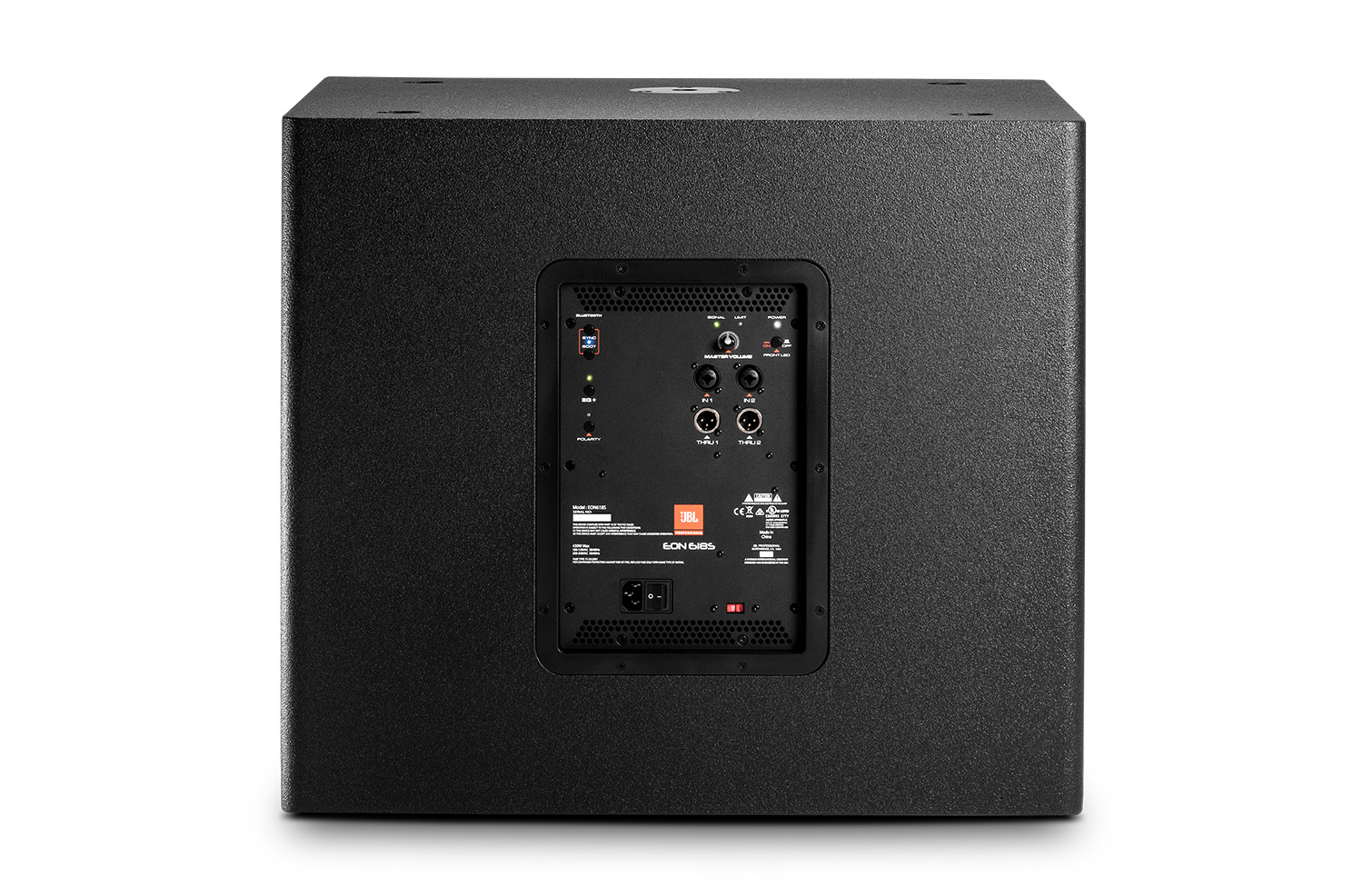

| Inputs | 2 x Balanced XLR-1/4” combination inputs |
| Outputs | 2 x male XLR loop thru out |
| Enclosure | Duraflex coated plywood |
Deluxe padded cover for EON618S. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
