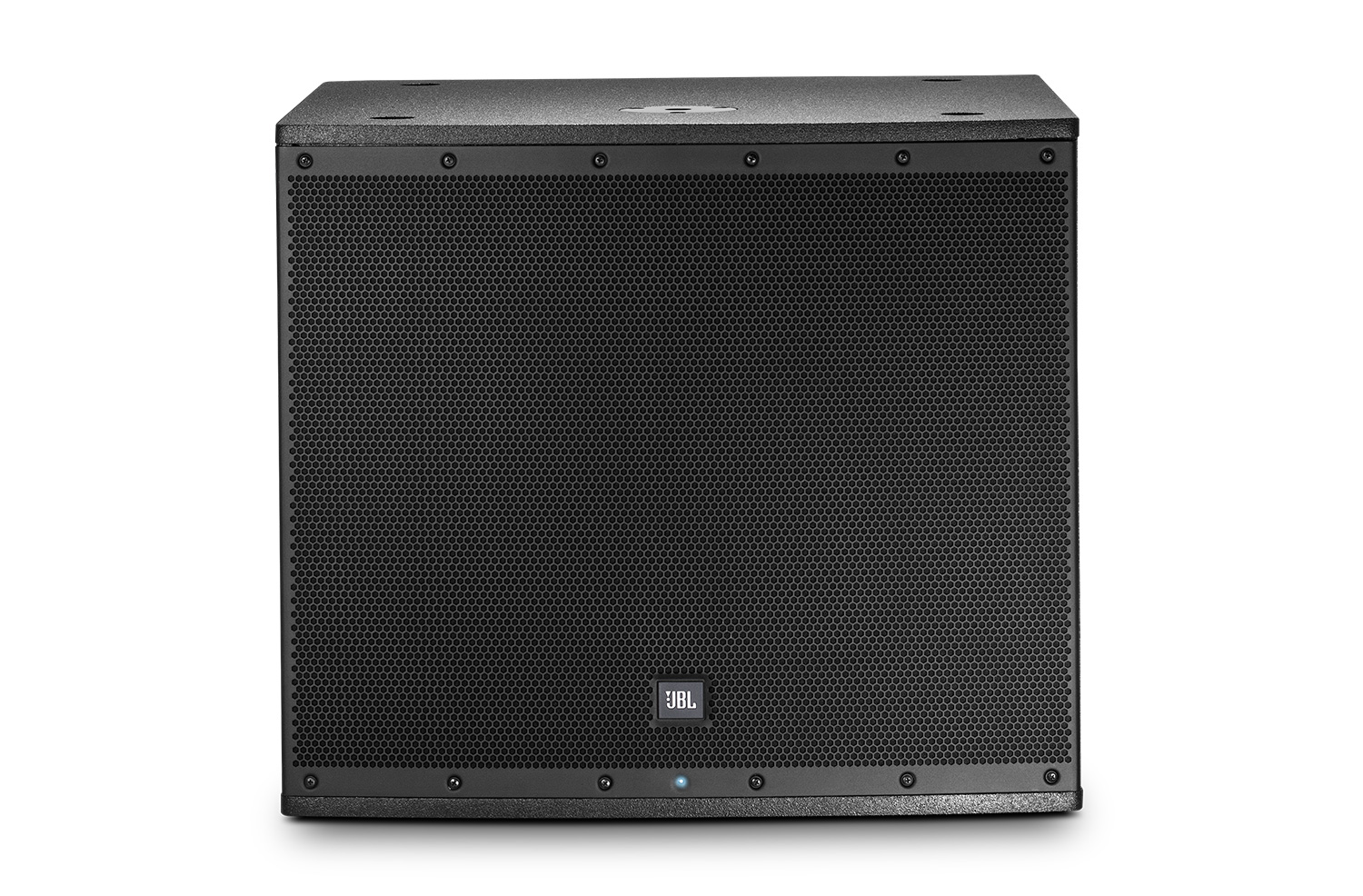

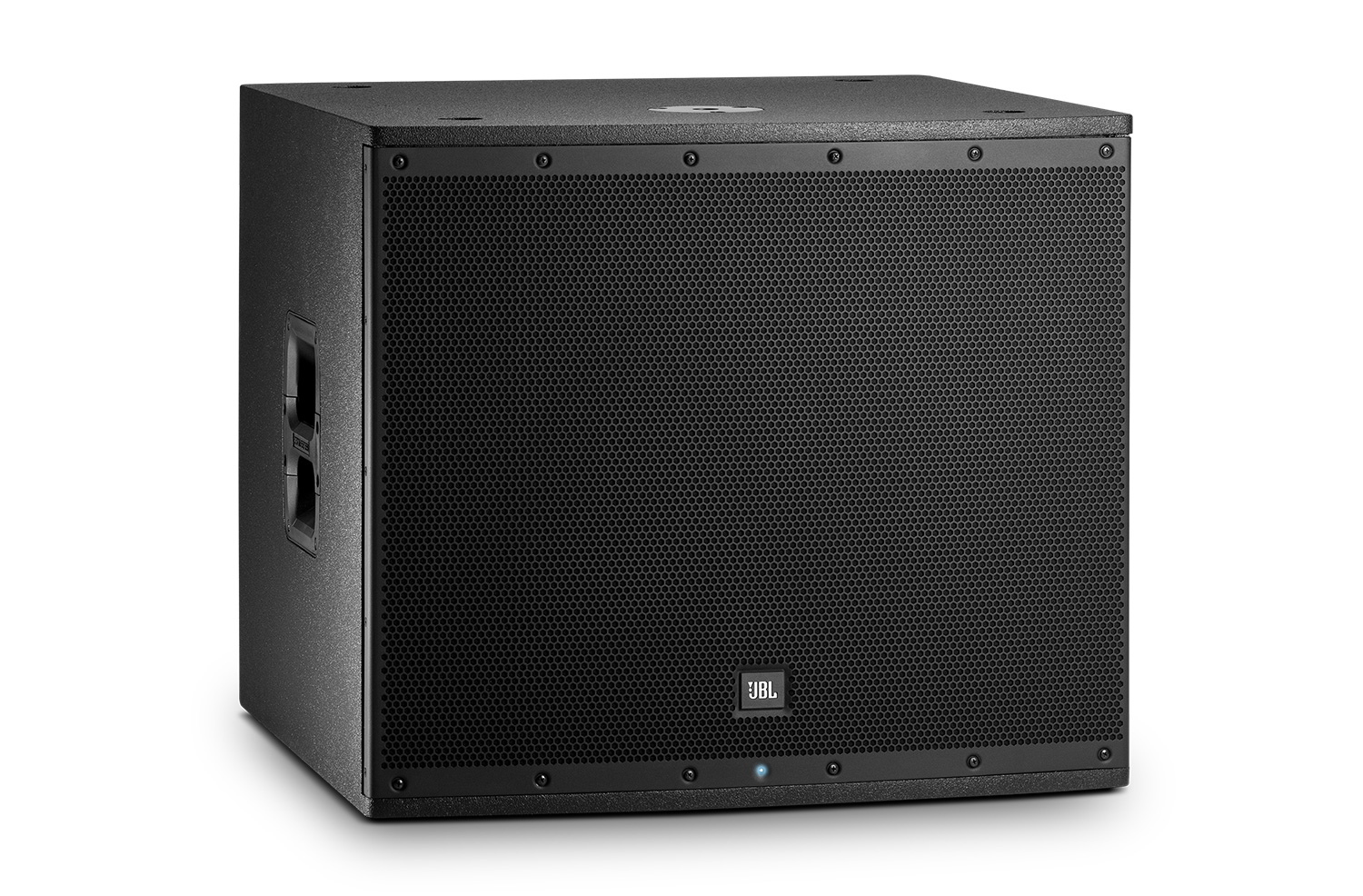

The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
| Tamanho | |
|
|
966 KB |
| Tamanho | |
|
|
154 KB |
|
|
699 KB |
| Tamanho | |
|
|
|
|
|
| Tamanho | |
|
|
3,85 MB |
|
|
3,52 MB |
|
|
3,52 MB |
|
|
3,52 MB |
|
|
829 KB |
| Tamanho | |
|
|
378 KB |
|
|
381 KB |
|
|
437 KB |
|
|
347 KB |
|
|
434 KB |
Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.
| TIPO DE SISTEMA | Self powered 18” Subwoofer |
| Maximum SPL Output | 134 dB |
| Frequency Range (-10dB) | 31Hz –150Hz |
| Resposta de frequência (-3dB) | 42.5Hz – 150Hz |
| System Power Rating | 1000W Peak, 500W Continuous |
| Impedância de Entrada | 22k (balanced) |
| Line Input Gain | 0 to 36 dBu |
| Line | +14dBu |
| LED indicators | Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange) |
| Cooling | Passive |
| AC power input | 100-120VAC 50/60Hz; 230-240VAC 50/60Hz |
| AC Power Consumption (120V~) | 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max) |
| LF Driver | 1 x JBL 618H 457mm (18”) woofer with 2” voice coil |
| Frequência de Crossover | Selectable; 80 Hz, 100 hz, or 120 Hz |
| Material | Duraflex coated wooden enclosure |
| Suspension/Mounting | M20 Threaded Pole Cup |
| Handles | 2 |
| Grille | Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing |
| DIMENSÕES (AxLxP) | 582mm x 668mm x 645mm (22.9in x 26.3in x 25.4in) |
| Peso | 72 lbs (35.5 kg) |
| Peso de Envio | 91 lbs (41.2 kg) |
| Shipping Dimensions (L x W x H) | 803mm x 768mm x 631mm (31.6" x 30.2" x 25.1") |
| Mic Inputs | 2 |
| Phantom Power | No |
| EQ | 3 Parametric EQs + Hi & Lo Shelf |
| Efeitos | DSP Presets |
| Inputs | 2 x Balanced XLR-1/4” combination inputs |
| Outputs | 2 x male XLR loop thru out |
| Enclosure | Duraflex coated plywood |
Deluxe padded cover for EON618S. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
