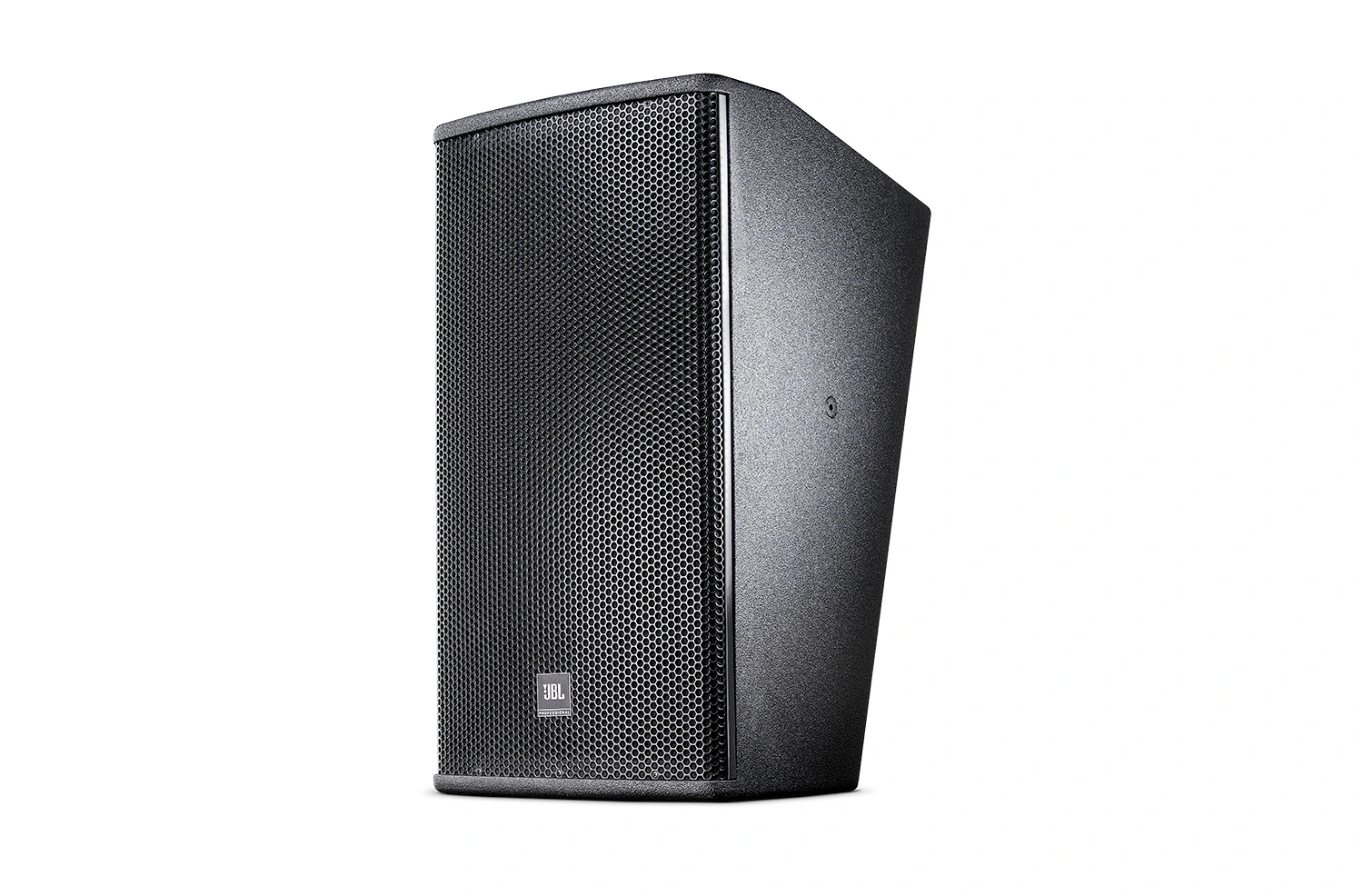

The 9320 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response. The two-way 9320's performance features position it as the ideal high power surround for multi-channel surround applications.
| Tamanho | |
|
|
200 KB |
| Tamanho | |
|
|
4 MB |
|
|
300 KB |
| Tamanho | |
|
|
100 KB |
|
|
30 KB |
|
|
300 KB |
| Tamanho | |
|
|
400 KB |
| Tamanho | |
|
|
40 KB |
|
|
40 KB |
|
|
40 KB |
|
|
6 KB |
|
|
6 KB |
|
|
6 KB |
|
|
6 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range (±3 dB) | 50 Hz - 19 kHz |
| Frequency Range (-10dB) | 35 Hz - 20 kHz |
| Power Handling (2Hr AES Rating) | 400 W |
| Sensitivity | 98dB |
| Maximum SPL (1m) | 124dB |
| Nominal Impedance | 8Ω |
| Horizontal Coverage Angle (-6dB) | 120° |
| Vertical Coverage Angle (-6dB) | 60° |
| Directivity Factor (Q) | 6.3 averaged 800 Hz to 10 kHz |
| Directivity Index (DI) | 8.4 dB averaged 800 Hz to 10 kHz |
| Crossover Frequency | 1.9 kHz |
| Polarity | EIA (Positive voltage to RED terminal gives forward cone motion) |
| Low Freq Transducer Nominal | 300 mm (12") |
| High Freq Transducer Nominal | 38 mm (1.5" voice coil) |
| Downward Firing Angle | 15° for enclosure face |
| Enclosure Material | Birch multi-ply |
| Grille Color | Black |
| Input Connectors | NL4 Neutric Speakon and barrier strip |
| Dimensions (H x W x D) | 638.3 mm x 368.3 mm x 416.6 mm 26.9 in x 14.5 in x 16.4 in |
| Net Weight (each) | 38.5 lbs (17.5 kg) |

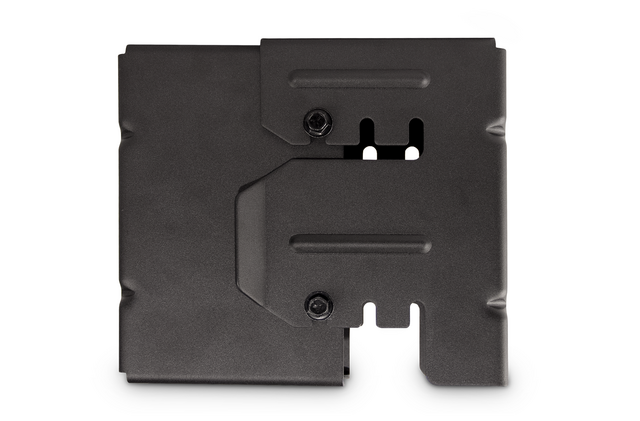

The 2520 Quick Mount Surround Bracket is a new loudspeaker accessory which should be used for wall mounting applications when installing 9300 Series Surrounds. Specific models include: 9300, 9310, 9320, and 9350. The 2520 bracket is not recommended for ceiling mount applications
2520 Bracket Hi Res PNG
[2 MB]
2520 Spec Sheet
[100 KB]
2520 2D CAD
[200 KB]
2520 3D CAD
[500 KB]
2520 2D CAD PDF
[136 Bytes]
2520 Bracket Spec Sheet
[100 KB]
