Sistema de Alto-falante Integrado 2 Vias 12 pol. Amplificado

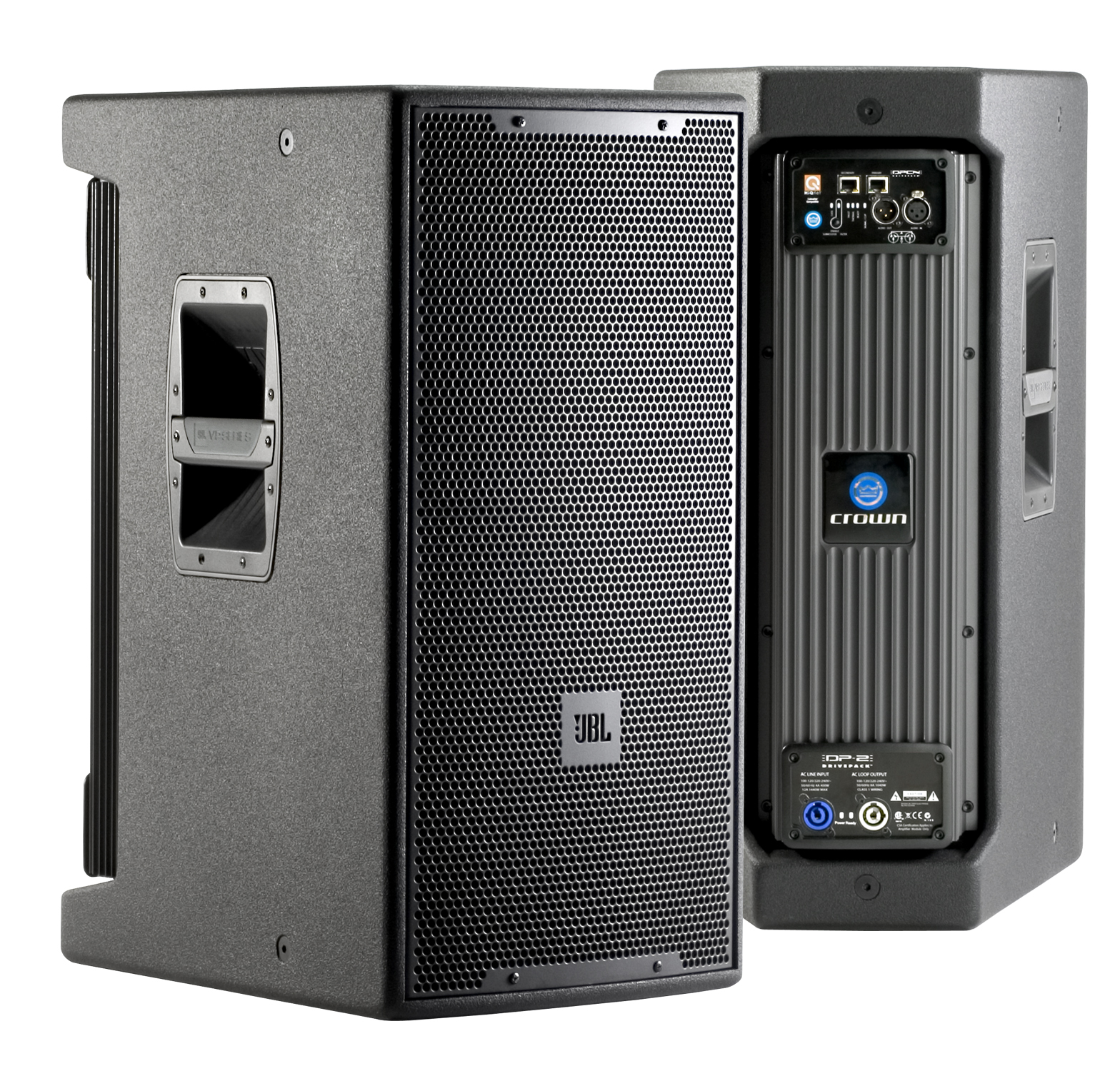

O VP7212/64DPAN é um sistema de alto-falante integrado 2 vias 12" amplificado com 2200 watts de potência de pico, 1100 watts contínuos e processamento digital de sinal integrado.
Imagens Grandes
Recursos
- Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
- 2200 Watts peak output power, 1100 Watts continuous.
- HiQnet compatible; network control.
- 12-inch Differential Drive low-frequency driver for extended low-frequency output .
- 60° x 40°coverage.
- Stylized and ergonomically designed powder-coated die cast aluminum handles.
- Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
Downloads
Documentos
| Tamanho | |
VP Series Brochure
atualizado: abr 2026
|
2,73 MB |
|
DPDA Input Module Spec Sheet
atualizado: abr 2026
|
475 KB |
|
VP7212/64DP Spec Sheet
atualizado: abr 2026
|
770 KB |
Specifications
| Tamanho | |
|
|
475 KB |
|
|
5,85 MB |
|
|
770 KB |
Manuals
| Tamanho | |
|
|
1,54 MB |
Brochures
| Tamanho | |
|
|
2,73 MB |
CAD Drawings
| Tamanho | |
|
|
2,54 MB |
|
|
67,2 KB |
|
|
234 KB |
|
|
53,8 KB |
Compliances
| Tamanho | |
|
|
93,3 KB |
Simulation Data
| Tamanho | |
|
|
21 MB |
|
|
24 MB |
Ease Data
| Tamanho | |
|
|
261 KB |
Images
| Tamanho | |
|
|
1,37 MB |
Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.
Peças e Serviços
Especificações
| Frequency Range | 47 Hz to 20 kHz (-10 dB) |
| Resposta de Frequência | 63 Hz to 18 kHz ( ± 3 dB) |
| PADRÃO DE COBERTURA | 60° x 40° rotatable waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Maximum Peak Output1 | 136 dB SPL 1m |
| Low Frequency Section | JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| High Frequency | JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit |
| DP2 Internal Amplification Output (at nominal load) | 2200 Watts Peak, 1100 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/350HF Watts |
| DP2 Output Section | 2-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Oprating Range | Auto Select 100-120VAC or 200-240VAC., 50/60Hz |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement: | 6A per system at 115V, 3A per system at 230V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 6 standard air-cargo 3 in. track and 14 M10 fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| DIMENSÕES (AxLxP) | 701.8 x 383.8 x 523.5 mm(27.63 x 15.11 x 20.61 in.) |
| PESO LÍQUIDO | 35.4 kg (78 lb) |
