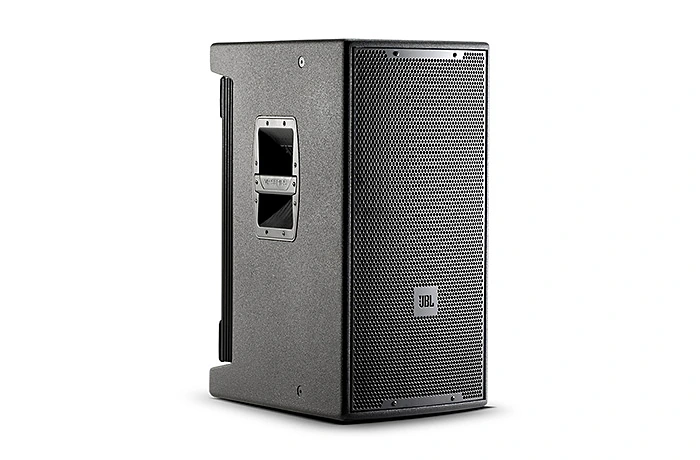

VP7212/64DP (停产)

Powered 12 in. 2-way Integrated Loudspeaker System

较大的图像

Powered 12 in. 2-way Integrated Loudspeaker System

The VP7212/64DPAN is a powered 12" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.

特点

  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
  • 2200 Watts peak output power, 1100 Watts continuous.
  • HiQnet compatible; network control.
  • 12-inch Differential Drive low-frequency driver for extended low-frequency output .
  • 60° x 40°coverage.
  • Stylized and ergonomically designed powder-coated die cast aluminum handles.
  • Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

下载

  Version Language Size Uploaded
VP Series Brochure
en updated: 6月18日
  en  2.7 MB 6月18日
DPDA Input Module Spec Sheet
en updated: 6月18日
  en  475.0 KB 6月18日
VP7212/64DP Spec Sheet
en updated: 6月18日
  en  770.4 KB 6月18日
Specifications
DPDA Input Module Spec Sheet
updated: 7月08日
    475.0 KB 7月08日
VP DPDA Spec Sheet
updated: 7月08日
    5.9 MB 7月08日
VP7212/64DP Spec Sheet
updated: 7月08日
    770.4 KB 7月08日
Manuals
VP User's Guide
updated: 10月18日
    1.5 MB 10月18日
Brochures
VP Series Brochure
updated: 7月08日
    2.7 MB 7月08日
Installed Sound Full Line 2015 Catalog
updated: 10月22日
    2.6 MB 10月22日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
CAD Drawings
VP Series
updated: 10月18日
    2.5 MB 10月18日
VP7212/64DP 3D DXF
updated: 7月08日
    67.2 KB 7月08日
VP7212/64DP/95DP 2D DXF
updated: 10月09日
    234.2 KB 10月09日
VP7212/64DP/95DP 2D PDF
updated: 10月09日
    53.8 KB 10月09日
Compliances
VP Series Declaration of Conformity
updated: 10月18日
    93.3 KB 10月18日
Ease Data
VP Series Ease Files
updated: 10月18日
    261.0 KB 10月18日
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日
Images
VP7212 photo
updated: 7月08日
    1.4 MB 7月08日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 47 Hz to 20 kHz (-10 dB)

频率响应

63 Hz to 18 kHz ( ± 3 dB)
覆盖范围 60° x 40° rotatable waveguide
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Maximum Peak Output1 136 dB SPL 1m
Low Frequency Section JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
High Frequency JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DP2 Internal Amplification Output (at nominal load) 2200 Watts Peak, 1100 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/350HF Watts
DP2 Output Section 2-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Oprating Range Auto Select 100-120VAC or 200-240VAC., 50/60Hz
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement: 6A per system at 115V, 3A per system at 230V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 6 standard air-cargo 3 in. track and 14 M10 fittings
网罩 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions(H x W x D) 701.8 x 383.8 x 523.5 mm(27.63 x 15.11 x 20.61 in.)
净重量 35.4 kg (78 lb)
