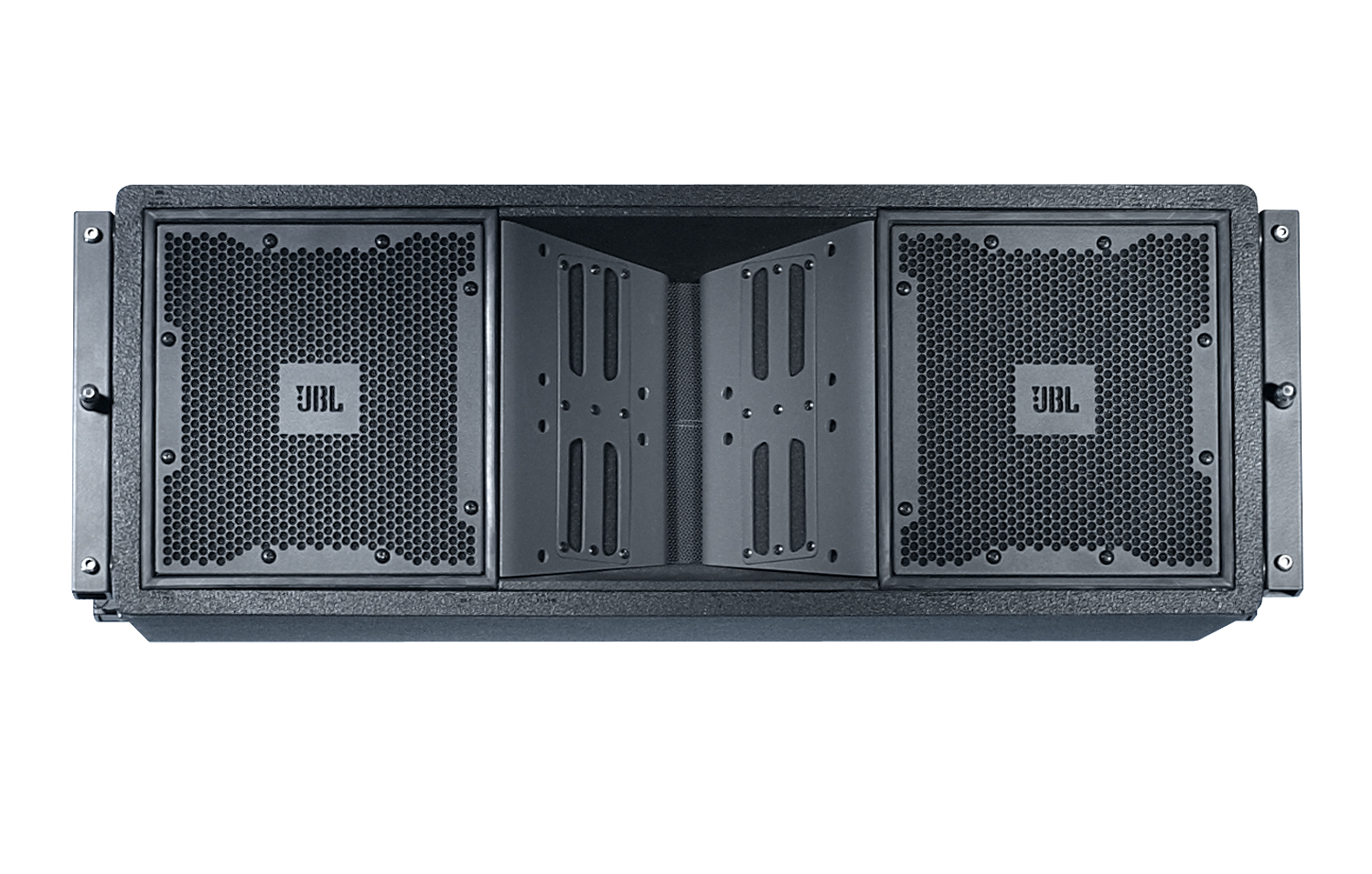

VT4887A (discontinued)

Compact Bi-Amplified 3-Way High Directivity Line Array Element

VT4887A
Larger Images

Compact Bi-Amplified 3-Way High Directivity Line Array Element

The VT4887A is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.



Features

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output.
  • Waveguide units couple to create precision HF vertical slot aperture.
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
  • Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight
    enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
  • Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
  • For use in stand-alone arrays or in combination with other VERTEC DP SERIES system products.


Downloads

  Version Language Size Uploaded
file type icon VT4887A Spec Sheet
en updated: 3월 2024
  en  925KB 3월 2024
Data Sheets
file type icon VT4887A Spec Sheet
updated: 10월 2020
    1MB 10월 2020
Brochures
file type icon VerTec Line Brochure
updated: 10월 2020
    2.09MB 10월 2020
CAD Drawings
file type icon VT4887A 3D DXF
updated: 10월 2020
    122KB 10월 2020
file type icon VT4887A 2D DXF
updated: 10월 2020
    1.12MB 10월 2020
file type icon VT4887A 2D PDF
updated: 10월 2020
    173KB 10월 2020
Compliances
file type icon VerTec Series Declaration of Conformity
updated: 10월 2019
    144KB 10월 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8월 2023
1.3.1     18MB 8월 2023
platform icon PerformanceManager
version 3.0.0, updated: 2월 2024
3.0.0     124MB 2월 2024
Speaker Tunings
file type icon DBX 4800 All Libraries
updated: 2월 2020
    3.46MB 2월 2020
file type icon Vertec All DSP Platforms
updated: 10월 2020
    96.3MB 10월 2020
file type icon VT4889/VT4887A All DSP Platforms
updated: 10월 2020
    17.8MB 10월 2020
file type icon VT4887A All DSP Platforms
updated: 10월 2020
    14.5MB 10월 2020
file type icon V4 DSP XTA4_VT4889_VT4887A
updated: 10월 2020
    1.88MB 10월 2020
file type icon V4 DSP XTA4_VT4887A
updated: 10월 2020
    1.88MB 10월 2020
file type icon V4 DSP XTA4_All_Libraries
updated: 10월 2020
    1.92MB 10월 2020
file type icon V4 DSP XTA_DP226_VT4889_VT4887A
updated: 10월 2020
    1.83MB 10월 2020
file type icon V4 DSP XTA_DP226_VT4887A
updated: 10월 2020
    1.83MB 10월 2020
file type icon V4 DSP XTA_DP226_All_Libraries
updated: 10월 2020
    1.89MB 10월 2020
file type icon V4 DSP Crown I-TECH HD VT4889 VT4887A
updated: 10월 2020
    1.68MB 10월 2020
file type icon V4 DSP Crown I-TECH HD VT4887A
updated: 10월 2020
    1.61MB 10월 2020
file type icon V4 DSP Crown_I-TECH_VT4889_VT4887A
updated: 10월 2020
    1.96MB 10월 2020
file type icon V4 DSP Crown_I-TECH_VT4887A
updated: 10월 2020
    1.76MB 10월 2020
file type icon V4 DSP BSS_Soundweb_London_VT4889_VT4887A
updated: 10월 2020
    6.1MB 10월 2020
file type icon BSS Soundweb London All Libraries
updated: 10월 2019
    35.1MB 10월 2019
file type icon V4 DSP BSS_FDS366T_VT4889_VT4887A
updated: 10월 2020
    887KB 10월 2020
file type icon V4 DSP BSS_FDS366T_VT4889_VT4887
updated: 10월 2020
    888KB 10월 2020
file type icon V4 DSP BSS_FDS366T_VT4887A
updated: 10월 2020
    886KB 10월 2020
file type icon BSS 366 All Libraries
updated: 10월 2020
    4.9MB 10월 2020
file type icon V4 DSP DLP_Lake Contour_VT4889_VT4887A
updated: 10월 2019
    822KB 10월 2019
file type icon V4 DSP DLP_Lake Contour_VT4887A
updated: 10월 2019
    486KB 10월 2019
file type icon V4 DSP DLP_Lake Contour_All_Libraries
updated: 10월 2019
    1.26MB 10월 2019
file type icon V4 DSP dbx_4800_VT4889_VT4887A
updated: 10월 2019
    954KB 10월 2019
file type icon V4 DSP dbx_4800_VT4887A
updated: 10월 2019
    954KB 10월 2019
file type icon V5 DPDA DrivePack VT4887A
updated: 10월 2019
    414KB 10월 2019
file type icon V5 DSP Crown I-TECH HD VT4887A
updated: 10월 2020
    1.07MB 10월 2020
file type icon V5 DSP Crown I-TECH HD V5 All Libraries
updated: 10월 2020
    2.97MB 10월 2020
file type icon V4 Crown I-TECH HD All Libraries
updated: 10월 2020
    532KB 10월 2020
file type icon V4 Crown I-Tech Library
updated: 10월 2020
    3.93MB 10월 2020
file type icon V5 DSP Crown IT4x3500HD VT4887A
updated: 10월 2020
    1.07MB 10월 2020
file type icon V5 DSP Crown IT4x3500HD All Libraries
updated: 10월 2020
    3.11MB 10월 2020
Helpful Links
file type icon AES Paper: Pressure Response of Line Source
updated: 10월 2020
    388KB 10월 2020
file type icon High Frequency Components for High Output Line Arrays
updated: 10월 2020
    2.94MB 10월 2020
file type icon AES Journal Article: Analysis of Line Arrays
updated: 10월 2020
    856KB 10월 2020
file type icon Directional Radiation Characteristics - Line Array
updated: 10월 2020
    1.12MB 10월 2020
file type icon AES Paper: J and Spiral Arrays
updated: 10월 2020
    324KB 10월 2020
file type icon Considerations for Deployment of Line Arrays
updated: 10월 2020
    518KB 10월 2020
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: 12월 2020
3.0    1.19MB 12월 2020
User Guides
file type icon VerTec DP Compact User’s Guide
updated: 10월 2020
    1.91MB 10월 2020
Accessories
file type icon VT Compact Array Frame and Adapter CAD
updated: 10월 2020
    7.3MB 10월 2020
Images
file type icon VT4887 photo
updated: 10월 2020
    635KB 10월 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 55 Hz - 22 kHz (-10dB)
Frequency Response 67 Hz - 20 kHz (± 3 dB)
Continuous Power Rating 1000W LF, 225W MF/HF
Sensitivity 97 dB LF, 101 dB MF/HF (2.83v/m)
Nominal Impedances 8 ohm LF, 8 ohm MF/HF
Horizontal Coverage 100 degrees nominal, 500Hz - 16kHz(-6dB)
Dimensions (w x h x d) 787 mm x 281 mm x 415 mm(31" x 11" x 16.3")
Weight 30.4 kg (67 lb)
