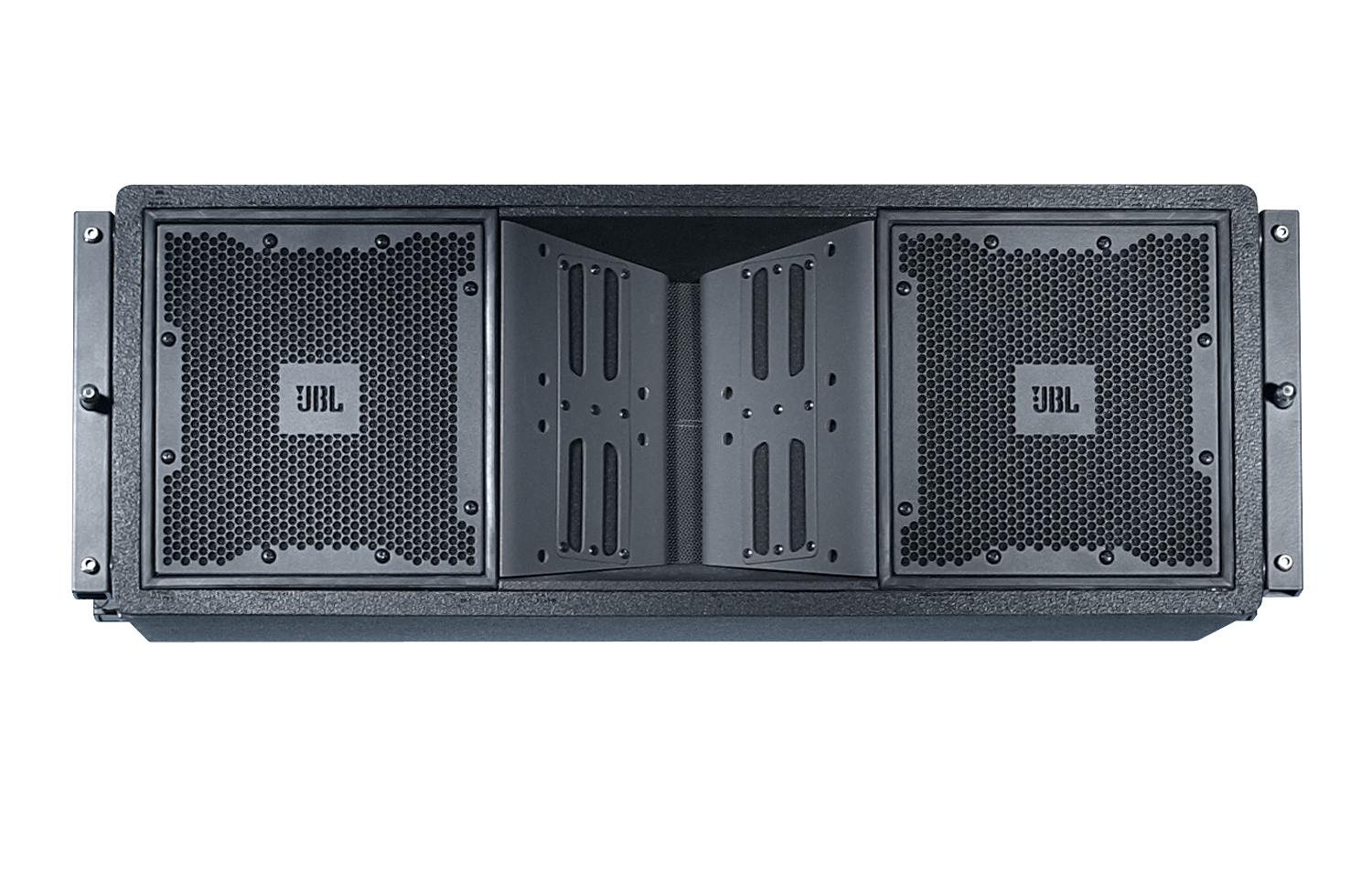

Compact Bi-Amplified 3-Way High Directivity Line Array Element
The VT4887A is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output.
- Waveguide units couple to create precision HF vertical slot aperture.
- Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight
enclosure construction. - Rugged DuraFlex™ exterior finish; weatherized components.
- Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
- For use in stand-alone arrays or in combination with other VERTEC DP SERIES system products.
Λήψεις
Έγγραφα
| Μέγεθος | |
VT4887A Spec Sheet
ενημέρωση: Απρ 2026
|
900 KB |
Data Sheets
| Μέγεθος | |
|
|
1 MB |
Brochures
| Μέγεθος | |
|
|
2 MB |
CAD Drawings
| Μέγεθος | |
|
|
100 KB |
|
|
1 MB |
|
|
200 KB |
Compliances
| Μέγεθος | |
|
|
100 KB |
Software
| Μέγεθος | |
|
|
100 MB |
|
|
20 MB |
Speaker Tunings
| Μέγεθος | |
|
|
3 MB |
|
|
100 MB |
|
|
20 MB |
|
|
10 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
6 MB |
|
|
40 MB |
|
|
900 KB |
|
|
900 KB |
|
|
900 KB |
|
|
5 MB |
|
|
800 KB |
|
|
500 KB |
|
|
1 MB |
|
|
1000 KB |
|
|
1000 KB |
|
|
400 KB |
|
|
1 MB |
|
|
3 MB |
|
|
500 KB |
|
|
4 MB |
|
|
1 MB |
|
|
3 MB |
Helpful Links
| Μέγεθος | |
|
|
400 KB |
|
|
3 MB |
|
|
900 KB |
|
|
1 MB |
|
|
300 KB |
|
|
500 KB |
Ease Data
| Μέγεθος | |
|
|
1 MB |
User Guides
| Μέγεθος | |
|
|
2 MB |
Accessories
| Μέγεθος | |
|
|
7 MB |
Images
| Μέγεθος | |
|
|
600 KB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
Ανταλλακτικά και σέρβις
Προδιαγραφές
| Frequency Range | 55 Hz - 22 kHz (-10dB) |
| Frequency Response | 67 Hz - 20 kHz (± 3 dB) |
| Continuous Power Rating | 1000W LF, 225W MF/HF |
| Sensitivity | 97 dB LF, 101 dB MF/HF (2.83v/m) |
| Nominal Impedances | 8 ohm LF, 8 ohm MF/HF |
| Horizontal Coverage | 100 degrees nominal, 500Hz - 16kHz(-6dB) |
| Dimensions (w x h x d) | 787 mm x 281 mm x 415 mm(31" x 11" x 16.3") |
| Weight | 30.4 kg (67 lb) |
