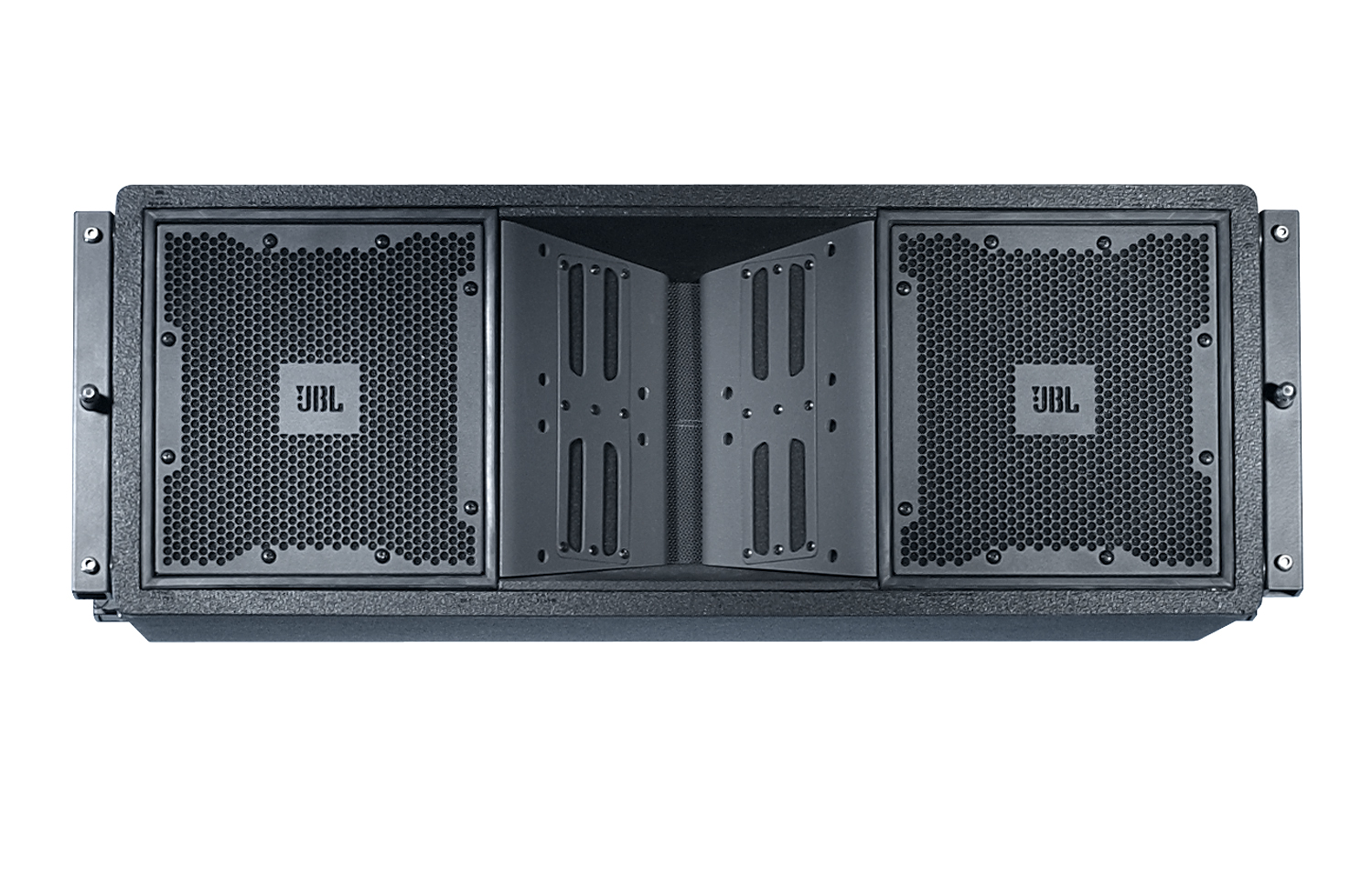

Compact Bi-Amplified 3-Way High Directivity Line Array Element
The VT4887A is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.
Larger Images
Features
- Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output.
- Waveguide units couple to create precision HF vertical slot aperture.
- Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight
enclosure construction. - Rugged DuraFlex™ exterior finish; weatherized components.
- Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
- For use in stand-alone arrays or in combination with other VERTEC DP SERIES system products.
Downloads
| Size | ||||
VT4887A Spec Sheet
updated: 13.03.2023
|
925 KB | |||
Data Sheets | ||||
|
VT4887A Spec Sheet
updated: 23.10.2020
|
1 MB | |||
Brochures | ||||
|
VerTec Line Brochure
updated: 22.10.2020
|
2,09 MB | |||
CAD Drawings | ||||
VT4887A 3D DXF
updated: 22.10.2020
|
122 KB | |||
|
VT4887A 2D DXF
updated: 22.10.2020
|
1,12 MB | |||
|
VT4887A 2D PDF
updated: 22.10.2020
|
173 KB | |||
Compliances | ||||
|
VerTec Series Declaration of Conformity
updated: 18.10.2019
|
144 KB | |||
Software | ||||
Vertec Line Array Calculator
version 1.3.1,
updated: 23.01.2020
|
18 MB | |||
|
PerformanceManager
version 2.9.1.5,
updated: 02.12.2022
|
117 MB | |||
Speaker Tunings | ||||
|
DBX 4800 All Libraries
updated: 24.02.2020
|
3,46 MB | |||
|
Vertec All DSP Platforms
updated: 22.10.2020
|
96,3 MB | |||
|
VT4889/VT4887A All DSP Platforms
updated: 22.10.2020
|
17,8 MB | |||
|
VT4887A All DSP Platforms
updated: 22.10.2020
|
14,5 MB | |||
|
V4 DSP XTA4_VT4889_VT4887A
updated: 05.10.2020
|
1,88 MB | |||
|
V4 DSP XTA4_VT4887A
updated: 05.10.2020
|
1,88 MB | |||
|
V4 DSP XTA4_All_Libraries
updated: 05.10.2020
|
1,92 MB | |||
|
V4 DSP XTA_DP226_VT4889_VT4887A
updated: 05.10.2020
|
1,83 MB | |||
|
V4 DSP XTA_DP226_VT4887A
updated: 05.10.2020
|
1,83 MB | |||
|
V4 DSP XTA_DP226_All_Libraries
updated: 05.10.2020
|
1,89 MB | |||
|
V4 DSP Crown I-TECH HD VT4889 VT4887A
updated: 22.10.2020
|
1,68 MB | |||
|
V4 DSP Crown I-TECH HD VT4887A
updated: 22.10.2020
|
1,61 MB | |||
|
V4 DSP Crown_I-TECH_VT4889_VT4887A
updated: 22.10.2020
|
1,96 MB | |||
|
V4 DSP Crown_I-TECH_VT4887A
updated: 22.10.2020
|
1,76 MB | |||
|
V4 DSP BSS_Soundweb_London_VT4889_VT4887A
updated: 22.10.2020
|
6,1 MB | |||
|
BSS Soundweb London All Libraries
updated: 31.10.2019
|
35,1 MB | |||
|
V4 DSP BSS_FDS366T_VT4889_VT4887A
updated: 22.10.2020
|
887 KB | |||
|
V4 DSP BSS_FDS366T_VT4889_VT4887
updated: 22.10.2020
|
888 KB | |||
|
V4 DSP BSS_FDS366T_VT4887A
updated: 22.10.2020
|
886 KB | |||
|
BSS 366 All Libraries
updated: 23.10.2020
|
4,9 MB | |||
|
V4 DSP DLP_Lake Contour_VT4889_VT4887A
updated: 18.10.2019
|
822 KB | |||
|
V4 DSP DLP_Lake Contour_VT4887A
updated: 18.10.2019
|
486 KB | |||
|
V4 DSP DLP_Lake Contour_All_Libraries
updated: 18.10.2019
|
1,26 MB | |||
|
V4 DSP dbx_4800_VT4889_VT4887A
updated: 18.10.2019
|
954 KB | |||
|
V4 DSP dbx_4800_VT4887A
updated: 18.10.2019
|
954 KB | |||
|
V5 DPDA DrivePack VT4887A
updated: 18.10.2019
|
414 KB | |||
|
V5 DSP Crown I-TECH HD VT4887A
updated: 22.10.2020
|
1,07 MB | |||
|
V5 DSP Crown I-TECH HD V5 All Libraries
updated: 22.10.2020
|
2,97 MB | |||
|
V4 Crown I-TECH HD All Libraries
updated: 22.10.2020
|
532 KB | |||
|
V4 Crown I-Tech Library
updated: 22.10.2020
|
3,93 MB | |||
|
V5 DSP Crown IT4x3500HD VT4887A
updated: 22.10.2020
|
1,07 MB | |||
|
V5 DSP Crown IT4x3500HD All Libraries
updated: 22.10.2020
|
3,11 MB | |||
Helpful Links | ||||
|
AES Paper: Pressure Response of Line Source
updated: 22.10.2020
|
388 KB | |||
|
High Frequency Components for High Output Line Arrays
updated: 22.10.2020
|
2,94 MB | |||
|
AES Journal Article: Analysis of Line Arrays
updated: 22.10.2020
|
856 KB | |||
|
Directional Radiation Characteristics - Line Array
updated: 22.10.2020
|
1,12 MB | |||
|
AES Paper: J and Spiral Arrays
updated: 22.10.2020
|
324 KB | |||
|
Considerations for Deployment of Line Arrays
updated: 22.10.2020
|
518 KB | |||
Ease Data | ||||
|
VerTec EASE DLL
version 3.0,
updated: 04.12.2020
|
1,19 MB | |||
User Guides | ||||
|
VerTec DP Compact User’s Guide
updated: 22.10.2020
|
1,91 MB | |||
Accessories | ||||
|
VT Compact Array Frame and Adapter CAD
updated: 22.10.2020
|
7,3 MB | |||
Images | ||||
|
VT4887 photo
updated: 22.10.2020
|
635 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 55 Hz - 22 kHz (-10dB) |
| Frequency Response | 67 Hz - 20 kHz (± 3 dB) |
| Continuous Power Rating | 1000W LF, 225W MF/HF |
| Sensitivity | 97 dB LF, 101 dB MF/HF (2.83v/m) |
| Nominal Impedances | 8 ohm LF, 8 ohm MF/HF |
| Horizontal Coverage | 100 degrees nominal, 500Hz - 16kHz(-6dB) |
| Dimensions (w x h x d) | 787 mm x 281 mm x 415 mm(31" x 11" x 16.3") |
| Weight | 30.4 kg (67 lb) |
