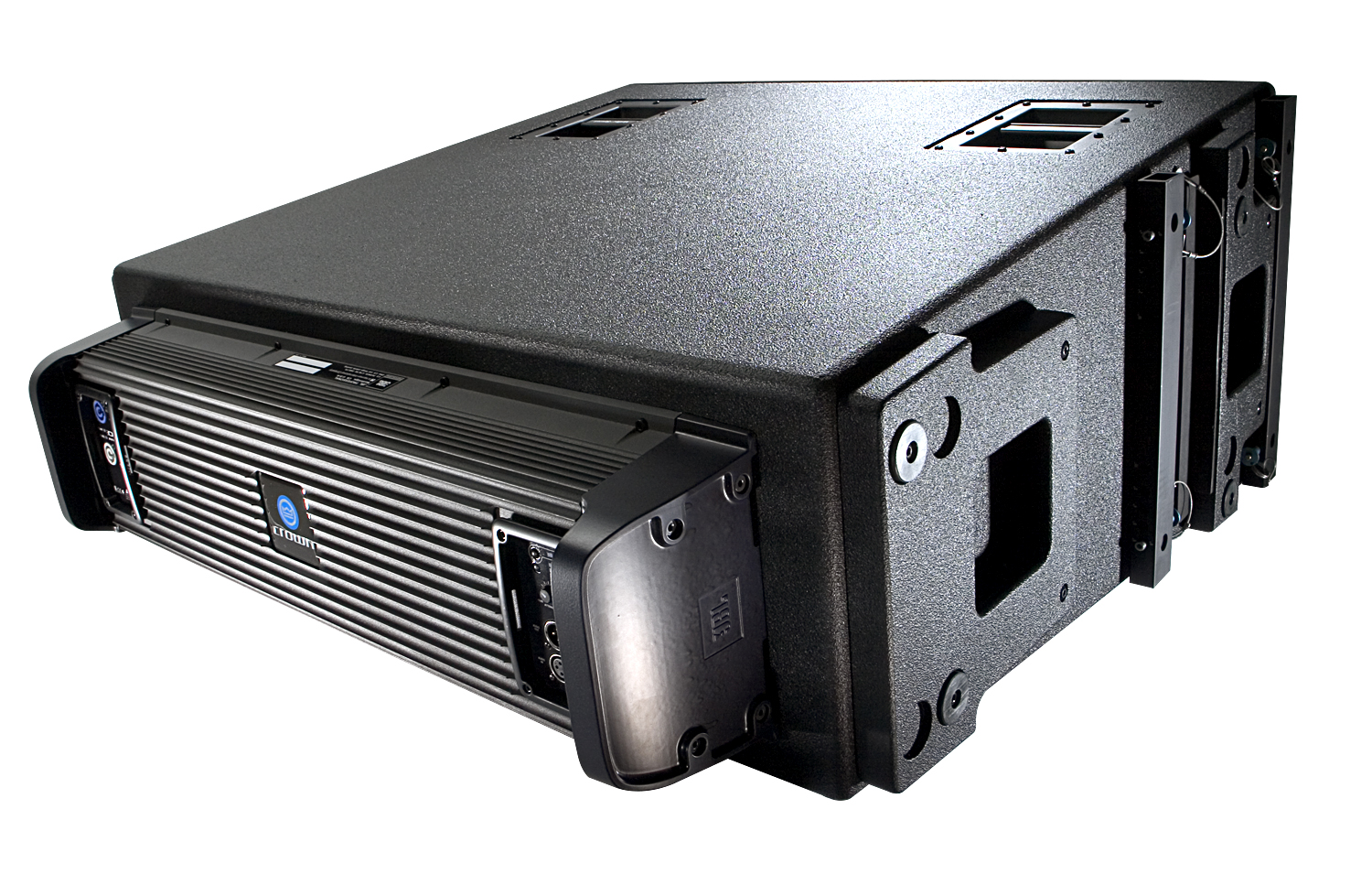

VT4882DP-DA, VT4882DP (discontinued)

Powered Midsize Arrayable 2-15"Subwoofer

VT4882DP-DA, VT4882DP
Larger Images

Powered Midsize Arrayable 2-15" Subwoofer

The powered VT4882DP Dual 15" Subwoofer is designed to deliver high quality sound reinforcement of sub-low frequencies for live music and a variety of other applications. Typical uses include concert audio and multi-media presentations of all types. Ideal companion to VT4888 or VT4888DP midsize three-way systems.


  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
  • JBL DrivePack® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz
  • Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight
    enclosure construction
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable
    hanging arrays.


  Version Language Size Uploaded
file type icon VT4882DPDA Spec Sheet
updated: 7월 2019
    1020KB 7월 2019
file type icon DPDA Input Module Spec Sheet
updated: 7월 2019
    475KB 7월 2019
file type icon VT4882DP Spec Sheet
updated: 7월 2019
    637KB 7월 2019
file type icon VerTec Line Brochure
updated: 10월 2020
    2.09MB 10월 2020
CAD Drawings
file type icon VT4882DP 3D DXF
updated: 7월 2019
    247KB 7월 2019
file type icon VT4882DP 2D DXF
updated: 7월 2019
    1.46MB 7월 2019
file type icon VT4882DP 2D PDF
updated: 7월 2019
    139KB 7월 2019
file type icon VerTec Series (Powered) Declaration of Conformity
updated: 10월 2019
    89.4KB 10월 2019
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8월 2023
1.3.1     18MB 8월 2023
platform icon PerformanceManager
version 3.0.0, updated: 2월 2024
3.0.0     124MB 2월 2024
Speaker Tunings
file type icon VT4882DPDA V4Preset
updated: 10월 2019
    31.9KB 10월 2019
file type icon V4 DSP_DPCN_VT4882DP
updated: 10월 2019
    55.6KB 10월 2019
file type icon V4 DSP DPAN_VT4882DP
updated: 10월 2019
    52.9KB 10월 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: 10월 2020
    680KB 10월 2020
file type icon VT Midsize Array Frame and Adapter CAD
updated: 10월 2020
    4.04MB 10월 2020
User Guides
file type icon VerTec DP Midsize User’s Guide
updated: 10월 2020
    2.13MB 10월 2020
file type icon VT4882DP photo
updated: 7월 2019
    910KB 7월 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range 28 Hz - 120 Hz (-10 dB)
Frequency Response 32 Hz - 110 Hz (±3 dB)
Power Rating 3600W Peak 1800W Continuous
Maximum Peak Output 133 dB SPL, 1m
Bandpass Nominal Impedance 2 x 8 ohms
Dimensions (w x h x d) 1013 x 457 x 1011mm (39.9 x 18 x 39.8 in)
Net Weight 69.9 kg (154 lb)
