VT4882DP-DA, VT4882DP (停产)

Powered Midsize Arrayable 2-15"Subwoofer

VT4882DP-DA, VT4882DP
较大的图像

Powered Midsize Arrayable 2-15" Subwoofer

The powered VT4882DP Dual 15" Subwoofer is designed to deliver high quality sound reinforcement of sub-low frequencies for live music and a variety of other applications. Typical uses include concert audio and multi-media presentations of all types. Ideal companion to VT4888 or VT4888DP midsize three-way systems.

特点

  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
  • JBL DrivePack® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz
  • Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight
    enclosure construction
  • Rugged DuraFlex™ exterior finish; weatherized components.
  • Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable
    hanging arrays.

下载

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: 12月 2023
  en  475.0 KB 12月 2023
file type icon VT4882DPDA Spec Sheet
en updated: 12月 2023
  en  1021.9 KB 12月 2023
file type icon VT4882DP Spec Sheet
en updated: 12月 2023
  en  637.2 KB 12月 2023
file type icon VT DP Midsize Product User's Guide
en updated: 12月 2023
  en  2.1 MB 12月 2023
Specifications
file type icon VT4882DPDA Spec Sheet
updated: 7月 2019
    1021.9 KB 7月 2019
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475.0 KB 7月 2019
file type icon VT4882DP Spec Sheet
updated: 7月 2019
    637.2 KB 7月 2019
Brochures
file type icon VerTec Line Brochure
updated: 10月 2020
    2.1 MB 10月 2020
CAD Drawings
file type icon VT4882DP 3D DXF
updated: 7月 2019
    247.4 KB 7月 2019
file type icon VT4882DP 2D DXF
updated: 7月 2019
    1.5 MB 7月 2019
file type icon VT4882DP 2D PDF
updated: 7月 2019
    139.3 KB 7月 2019
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: 10月 2019
    89.4 KB 10月 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8月 2023
1.3.1     18.0 MB 8月 2023
platform icon PerformanceManager
version 2.9.1.5, updated: 8月 2023
2.9.1.5     117.2 MB 8月 2023
Speaker Tunings
file type icon VT4882DPDA V4Preset
updated: 10月 2019
    31.9 KB 10月 2019
file type icon V4 DSP_DPCN_VT4882DP
updated: 10月 2019
    55.6 KB 10月 2019
file type icon V4 DSP DPAN_VT4882DP
updated: 10月 2019
    52.9 KB 10月 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: 10月 2020
    679.7 KB 10月 2020
Accessories
file type icon VT Midsize Array Frame and Adapter CAD
updated: 10月 2020
    4.0 MB 10月 2020
User Guides
file type icon VerTec DP Midsize User’s Guide
updated: 10月 2020
    2.1 MB 10月 2020
Images

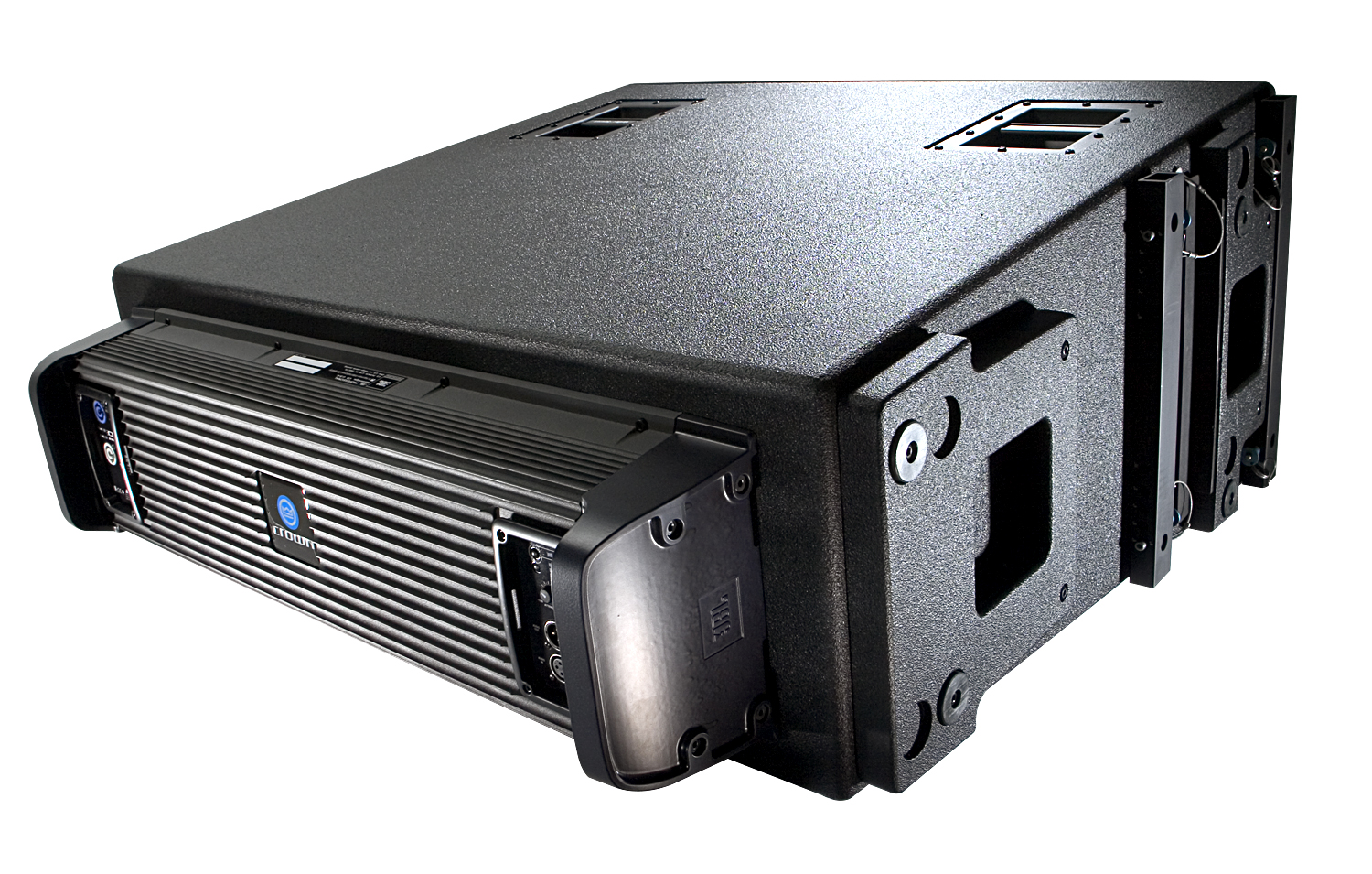

file type icon VT4882DP photo
updated: 7月 2019
    910.0 KB 7月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 28 Hz - 120 Hz (-10 dB)

频率响应

 32 Hz - 110 Hz (±3 dB)
额定功率 3600W Peak 1800W Continuous
Maximum Peak Output 133 dB SPL, 1m
Bandpass Nominal Impedance 2 x 8 ohms
尺寸（W × H × D） 1013 x 457 x 1011mm (39.9 x 18 x 39.8 in)
净重量 69.9 kg (154 lb)
