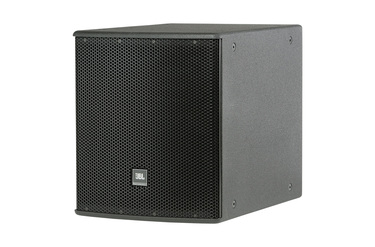

JBL Professional ASB6115

큰 이미지

고출력 콤팩트 15인치 서브우퍼

ASB6115는 JBL의 2265H-1 Differential Drive® 듀얼 보이스 코일 듀얼 갭 15" 우퍼를 탑재한 고출력, 경량 전면 로드 통풍식 서브우퍼 인클로저입니다. 이 우퍼는 네오디뮴 자석과 극도로 견고한 콘으로 극히 오랜 수명을 자랑합니다.

특징

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.)

다운로드

Specifications

	크기	업로드 날짜
ASB6115 Spec Sheet 업데이트: 2020년 12월	485KB	2020년 12월

Manuals

	버전	언어	크기	업로드 날짜
Weather Resistant Configurations 버전 A, 업데이트: 2023년 5월	A		86.1KB	2023년 5월
AE/PD Connector Pinout Guide 업데이트: 2019년 10월			8.25KB	2019년 10월

Brochures

	크기	업로드 날짜
AE Series Brochure 업데이트: 2020년 10월	4.05MB	2020년 10월
AM Brochure 업데이트: 2020년 10월	1.54MB	2020년 10월

CAD Drawings

	버전	크기	업로드 날짜
AE Series - Revit/BIM Files 버전 11.0, 업데이트: 2024년 7월	11.0	730KB	2024년 7월
AE Series - Customer Drawings 버전 2.0, 업데이트: 2024년 5월	2.0	2.69MB	2024년 5월
AE Series - WR Models Customer Drawings 버전 3.0, 업데이트: 2026년 4월	3.0	3.8MB	2026년 4월

Compliances

	크기	업로드 날짜
AE Series ASB - Declaration of Conformity 업데이트: 2024년 7월	93.5KB	2024년 7월

Preset Libraries

	크기	업로드 날짜
AE Series DCi Series Preset Library 업데이트: 2024년 5월	471KB	2024년 5월

Application Guides

	언어	크기	업로드 날짜
Directional Bass Using 3-Element Arrays 업데이트: 2021년 8월		570KB	2021년 8월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Frequency Range (-10dB)	32 Hz - 1 kHz
Frequency Response (±3 dB)	42 Hz - 1 kHz
Transducer Power Rating (AES)	800 W (3200 W peak), 2 hrs.
System Power Rating	675 W (2700 W peak), 100 hrs.
Maximum SPL (1m)	35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight (each)	20.6 kg (45.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
