JBL Professional Control 88M

រូបភាពធំជាង

Two-Way 8 inch (200mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

លក្ខណៈពិសេស

Components:
• 8” highly weather-resistant driver
• 1” soft-dome highly weather-resistant tweeter
120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
Tough polyethylene highly weather resistant enclosure
Fully isolated center chamber for wiring protection
High fidelity sound character with broad frequency range of 47Hz - 16kHz

ការទាញយក

Specifications

	ទំហំ	បានផ្ទុកឡើង
Control 88M Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	2.36 MB	មេសា 2019

Brochures

	កំណែ	ភាសា	ទំហំ	បានផ្ទុកឡើង
Control Contractor Brochure (2025) កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026	A		23 MB	មិនា 2026
Control Contractor Brochure (2024) កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2024	D		14 MB	កុម្ភៈ 2024
Control Contractor Brochure (2026) បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026			21 MB	មិនា 2026

CAD Drawings

	កំណែ	ទំហំ	បានផ្ទុកឡើង
Control 88M Drawing កំណែ 3, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2024	3	2.28 MB	មិនា 2024

Compliances

	ទំហំ	បានផ្ទុកឡើង
JBL Control Series Passive Speakers DoC បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2019	179 KB	ធ្នូ 2019
Control 80 Series - Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	139 KB	តុលា 2019

Install Guides

	កំណែ	ទំហំ	បានផ្ទុកឡើង
Control 80 Series Landscape Speakers Install Guide កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2022	B	8.95 MB	កក្កដា 2022

CLF Files

	ទំហំ	បានផ្ទុកឡើង
Control 85M & 88M CLF Files បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	239 KB	តុលា 2020

Speaker Tunings

	កំណែ	ទំហំ	បានផ្ទុកឡើង
Commercial, CBT, and AWC Tunings 220616 កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023	A	557 KB	ឧសភា 2023

Images

	ទំហំ	បានផ្ទុកឡើង

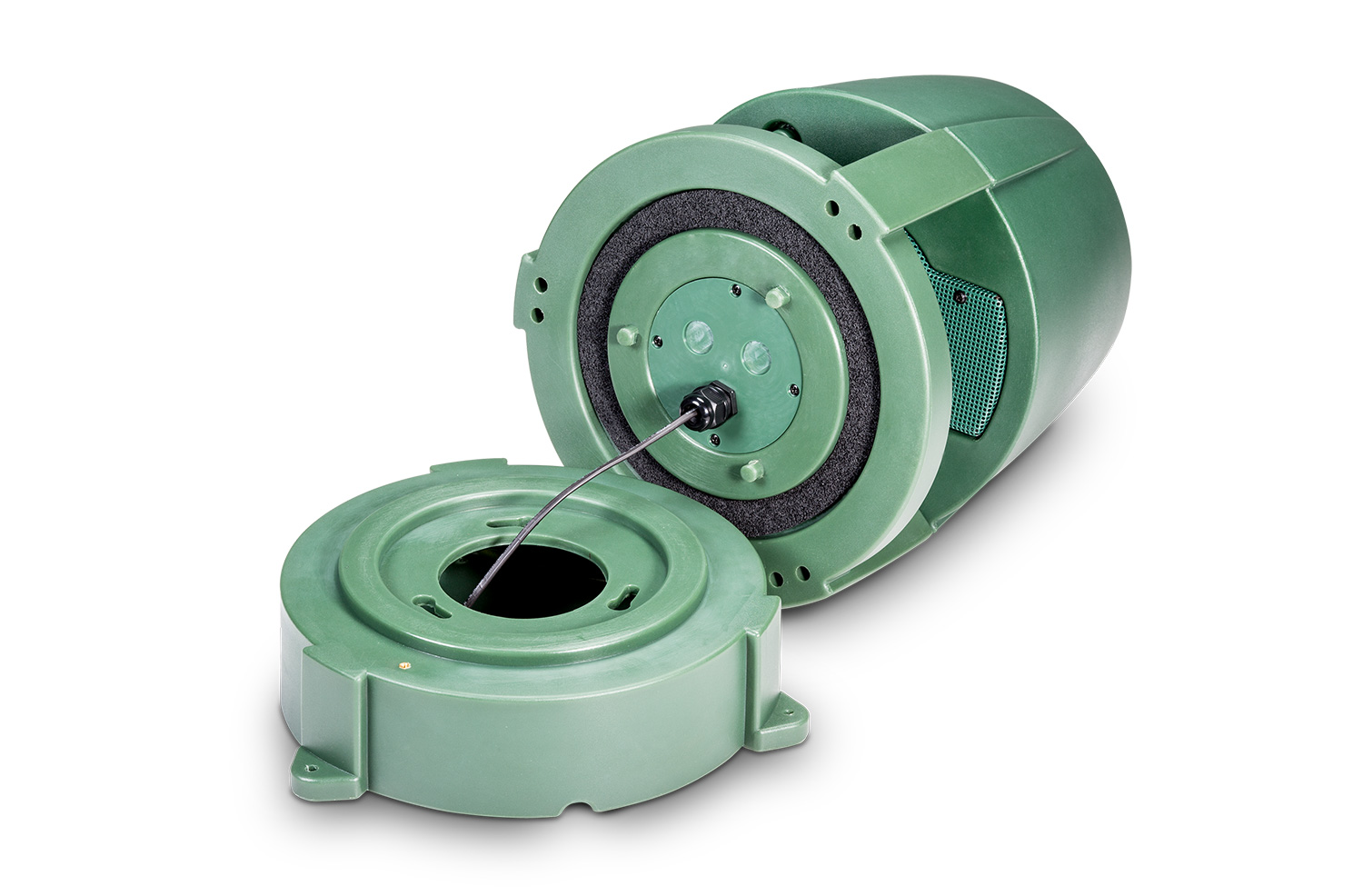

Control 88M Open បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	220 KB	មេសា 2019

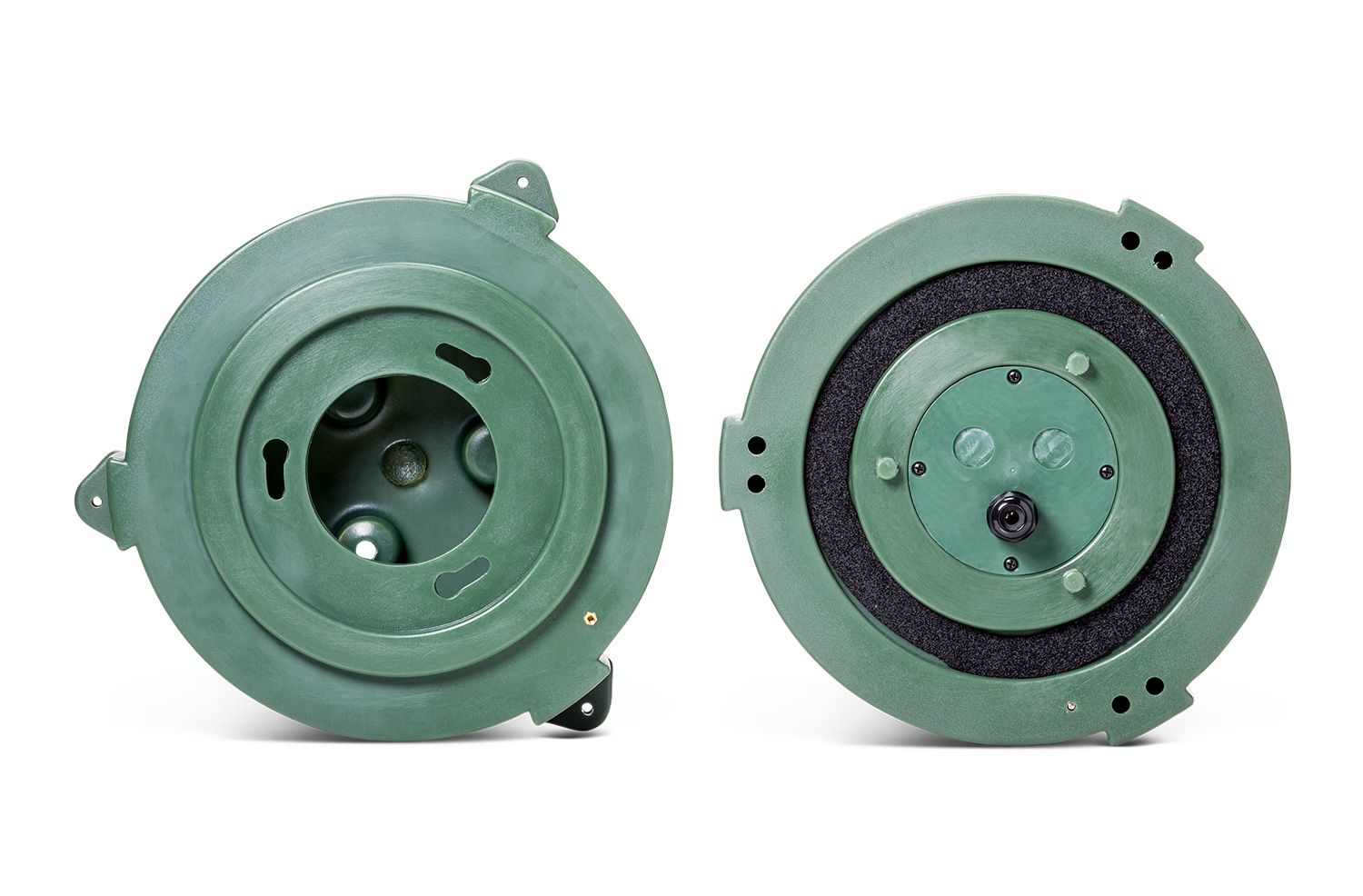

Control 88M Bottom បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	288 KB	មេសា 2019

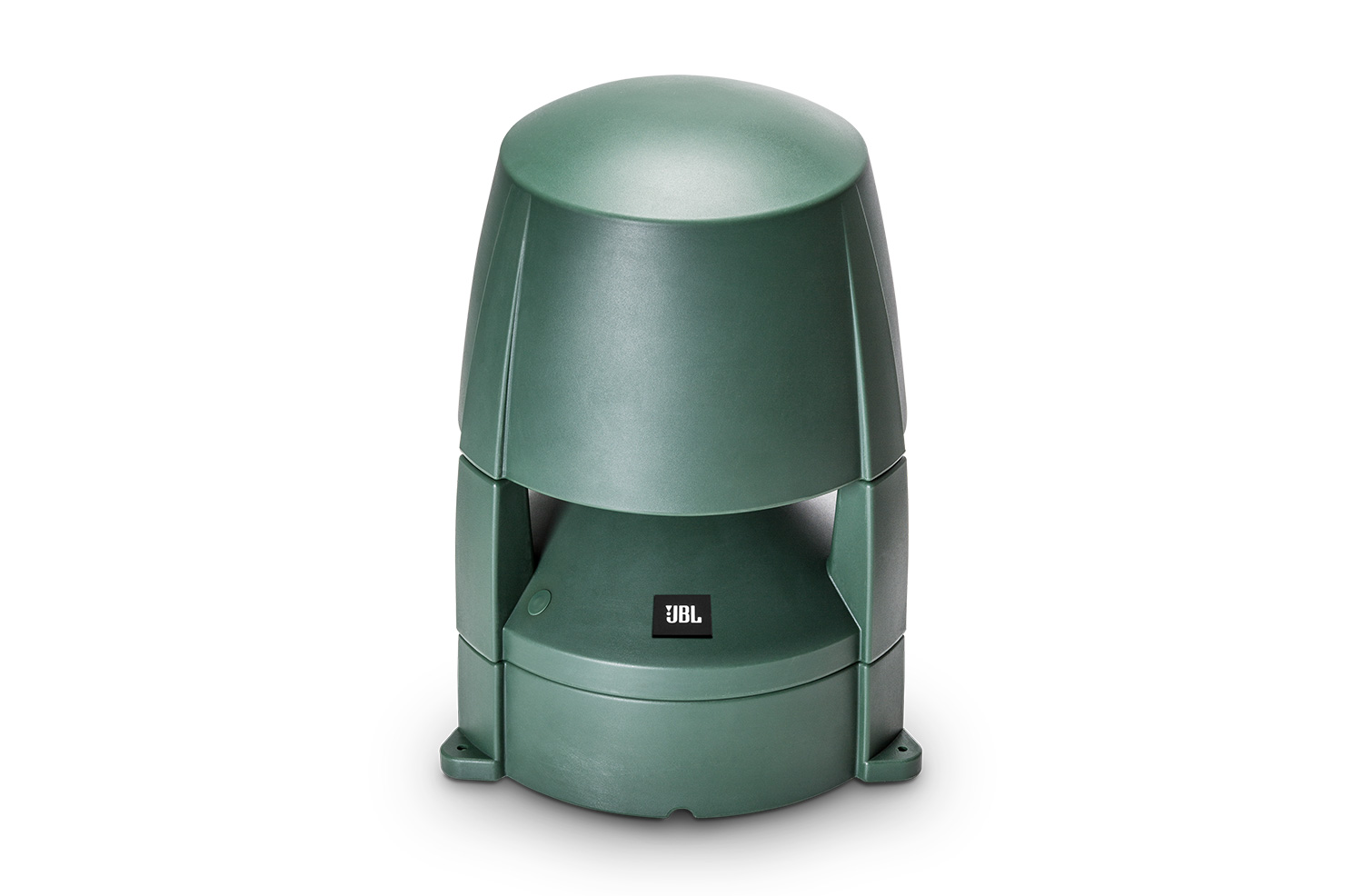

control 88M Angle បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	136 KB	មេសា 2019

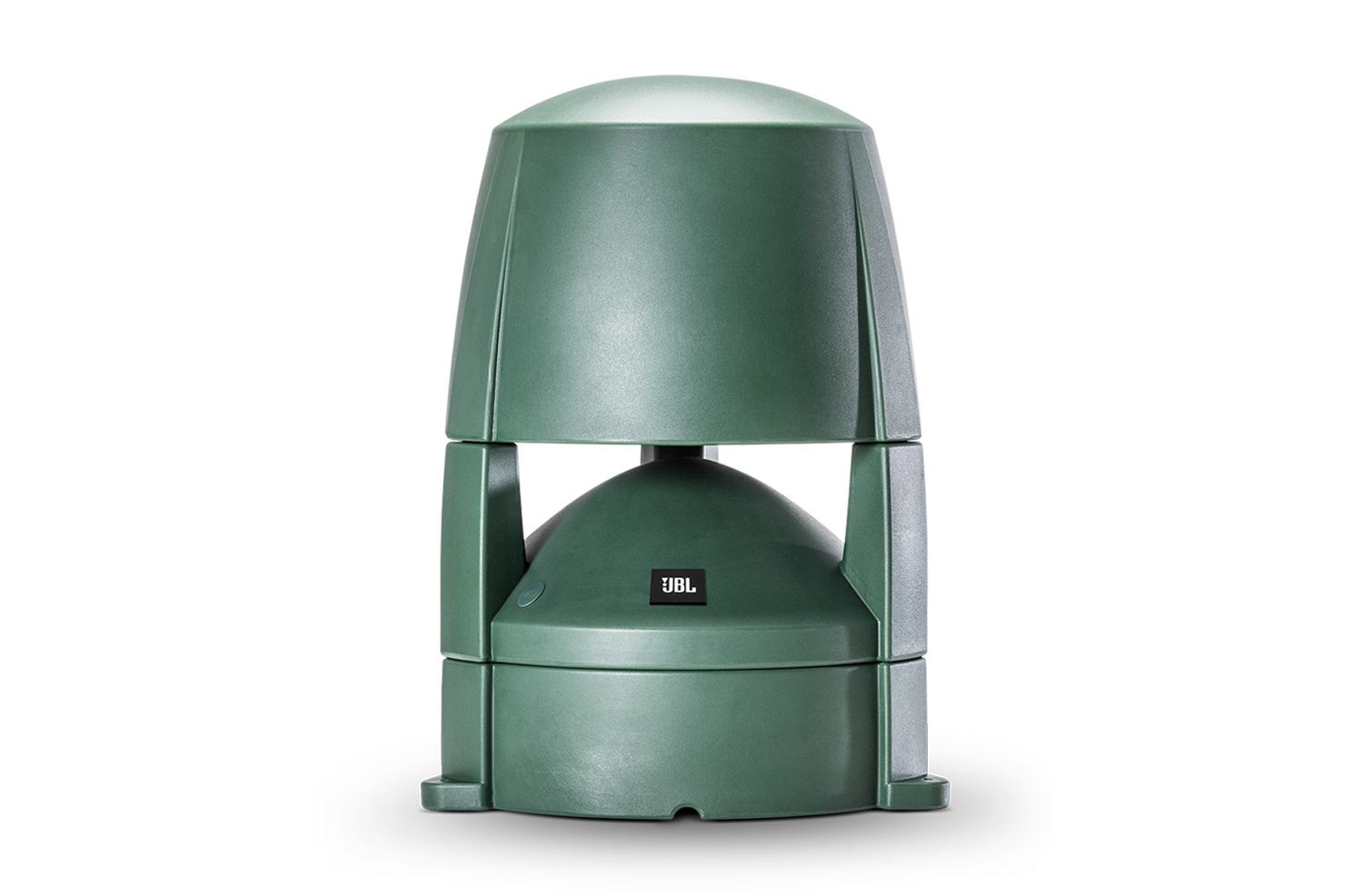

control 88M Front បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	150 KB	មេសា 2019

Ease Data

	ទំហំ	បានផ្ទុកឡើង
Control 88M EASE/GLL File បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	431 KB	មេសា 2019

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB)	47 Hz – 16 kHz
Power Rating	240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB)	60Hz - 15 kHz
Maximum Input Voltage	28.0 V
Sensitivity	87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern	360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q)	2.1
Directivity Index (DI)	3.2 dB
Maximum SPL (1m)	108 dB
Impedance	8Ω (at 8Ω setting)
Minimum Impedance	6.6Ω at 9.5kHz
Insertion Loss	<0.5 dB at any tap setting
Thru Setting	8Ω nominal
Crossover Type	2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass	45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers	LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround. HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure	LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille	Powder coated stainless steel.
Outdoor Capability	IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency	UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors	Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring	Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors	Hunter Green, RAL6018
Dimensions (H x W x D)	524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each)	7.8 kg (17 lb)
Shipping Weight	10.5 kg (23 lb)
Included Accessories	(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
