Control 88M

Two-Way 8 inch (200mm) Coaxial Mushroom Landscape Speaker

较大的图像

Two-Way 8 inch (200mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

特点

  • Components:
    • 8” highly weather-resistant driver
    • 1” soft-dome highly weather-resistant tweeter
  • 120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
  • Tough polyethylene highly weather resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with broad frequency range of 47Hz - 16kHz

下载

  Version Language Size Uploaded
Specifications
Control 88M Spec Sheet
updated: 4月29日
    2.4 MB 4月29日
CAD Drawings
Control 88M Drawing
version 2, updated: 4月06日
  2.3 MB 4月06日
Compliances
JBL Control Series Passive Speakers DoC
updated: 12月17日
    179.3 KB 12月17日
Control 80 Series - Declaration of Conformity
updated: 10月18日
    139.3 KB 10月18日
Clf Files
Control 85M & 88M CLF Files
updated: 11月04日
    239.4 KB 11月04日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日
Images

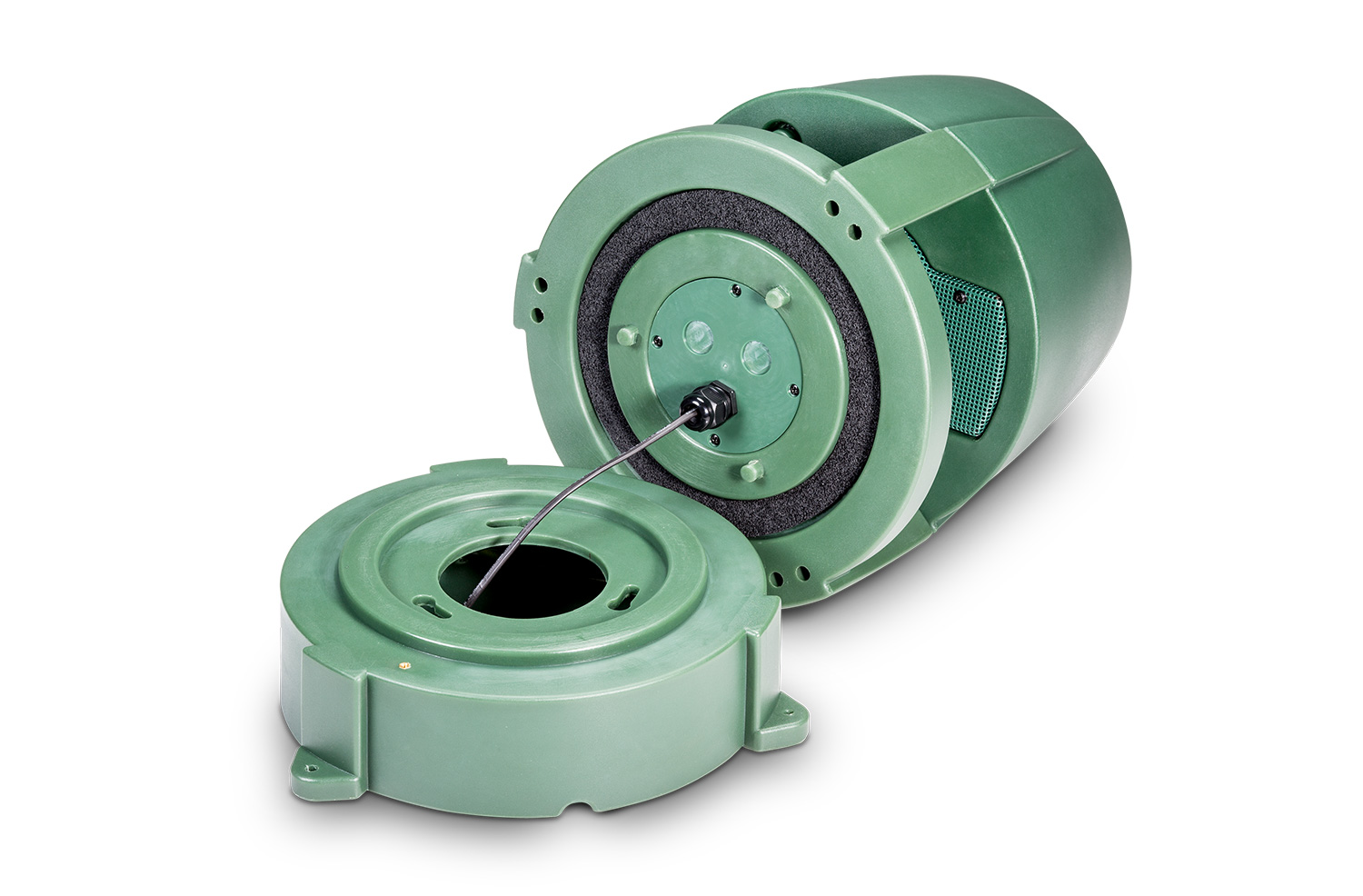

Control 88M Open
updated: 4月29日
    219.6 KB 4月29日

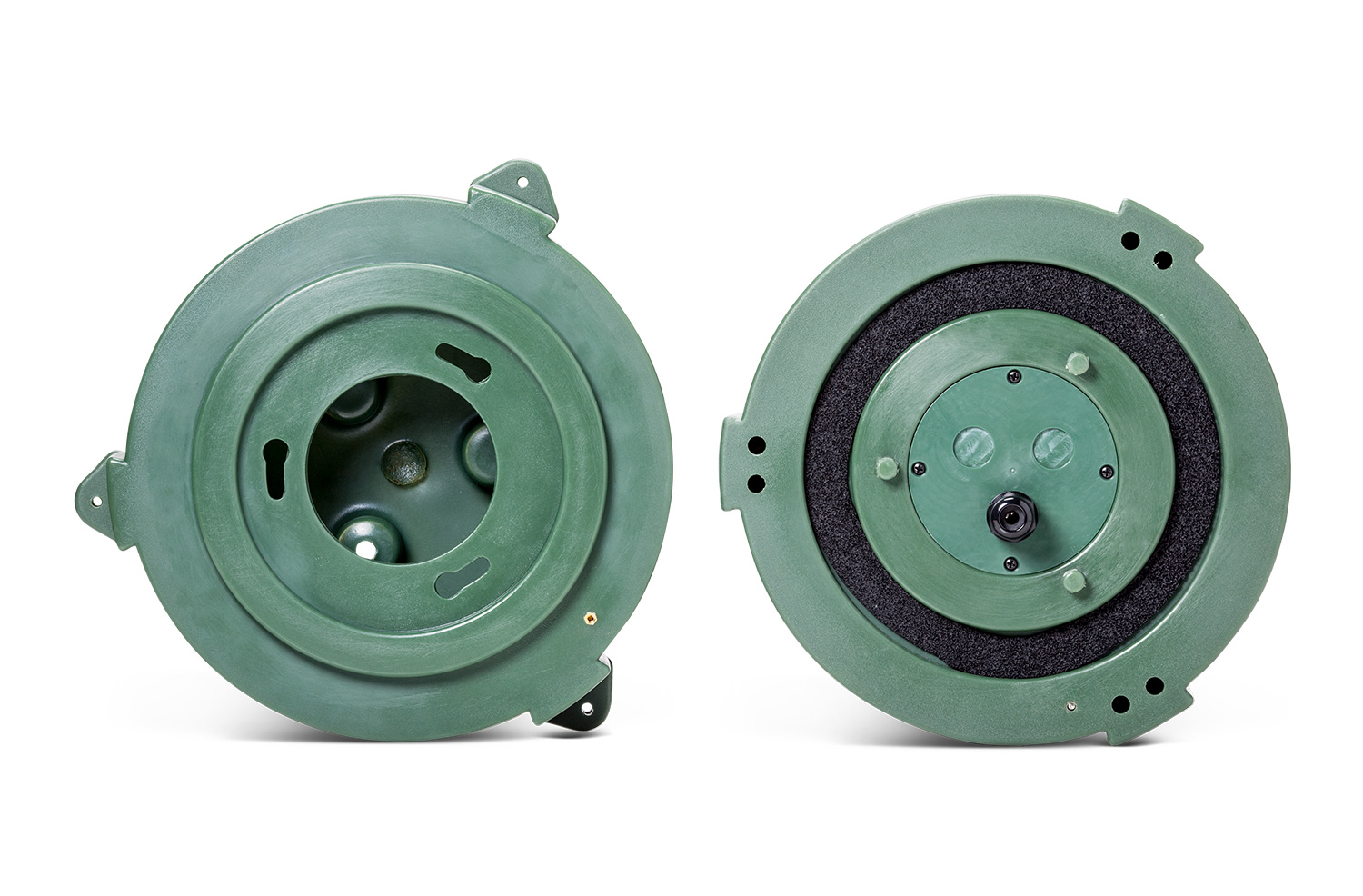

Control 88M Bottom
updated: 4月29日
    287.9 KB 4月29日

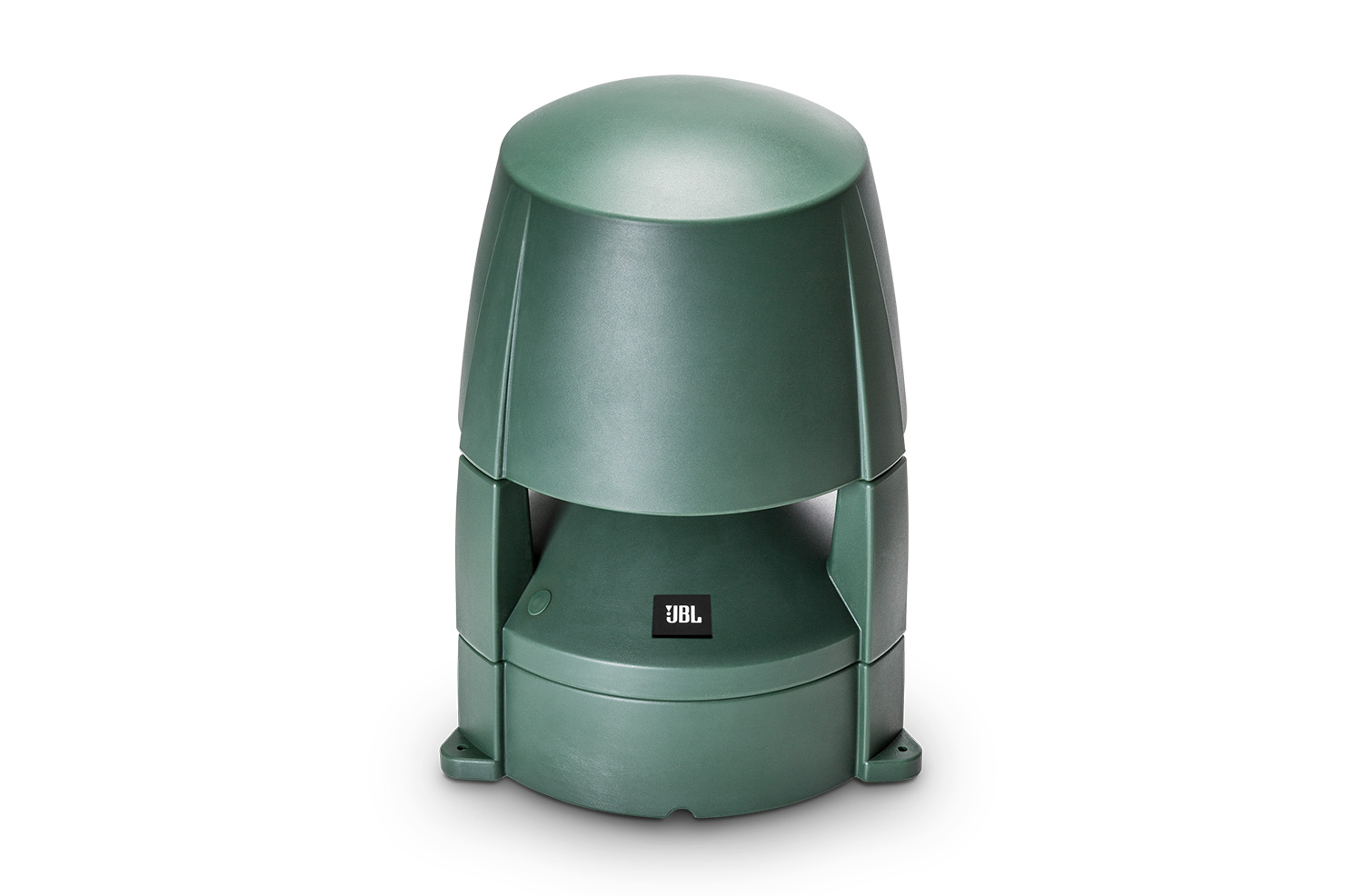

control 88M Angle
updated: 4月29日
    135.8 KB 4月29日

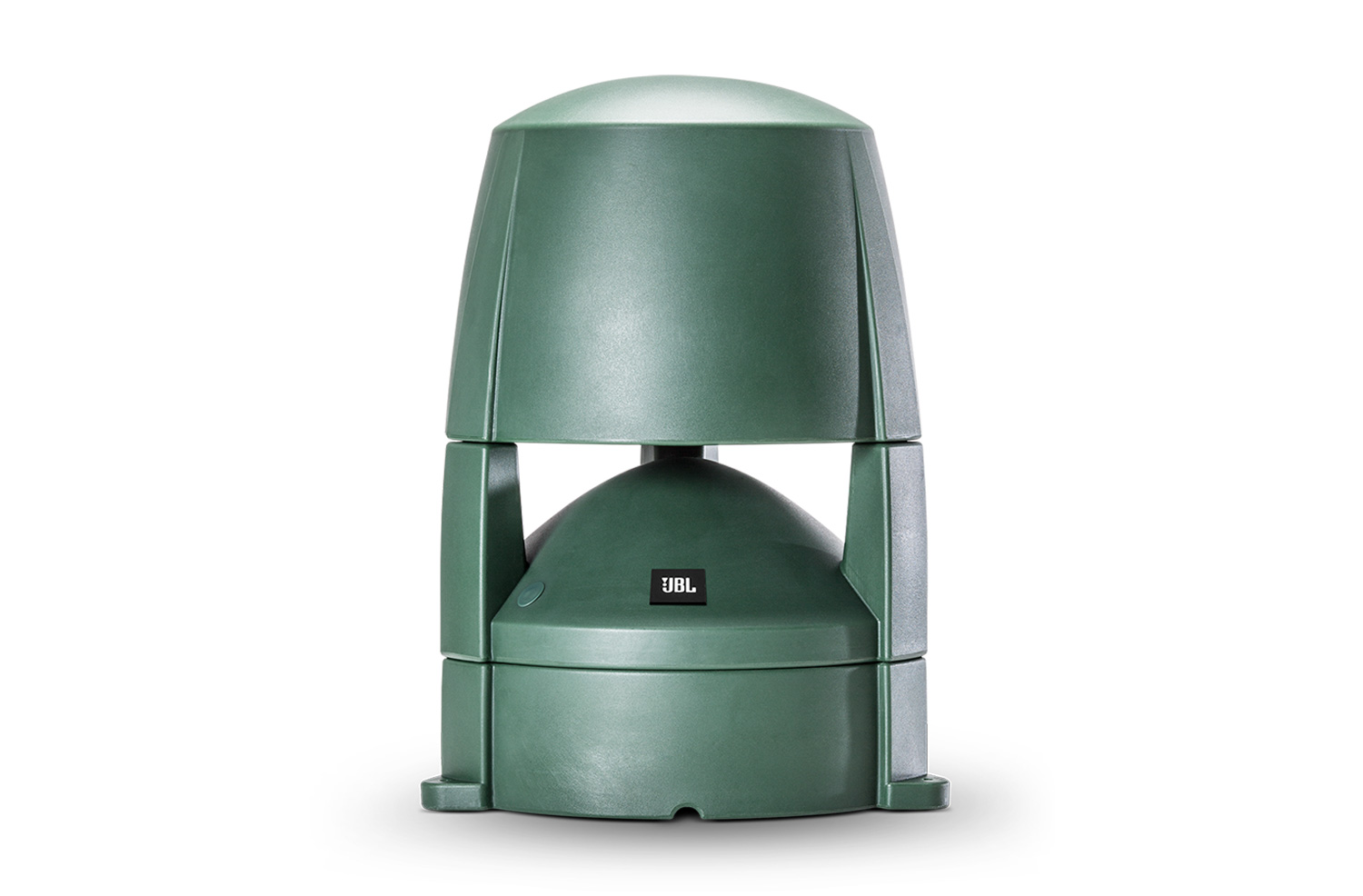

control 88M Front
updated: 4月29日
    149.9 KB 4月29日
Ease Data
Control 88M EASE/GLL File
updated: 4月29日
    431.5 KB 4月29日
Install Guides
Control 80 Series Landscape Speakers Install Guide
updated: 4月29日
    5.4 MB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 47 Hz – 16 kHz
额定功率 240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
变压器抽头 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB) 60Hz - 15 kHz
Maximum Input Voltage 28.0 V

灵敏度

87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
覆盖角度 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).
Directivity Factor (Q) 2.1
Directivity Index (DI) 3.2 dB
Maximum SPL (1m) 108 dB
阻抗 8Ω (at 8Ω setting)
Minimum Impedance 6.6Ω at 9.5kHz

插入损耗

<0.5 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
建议的保护高通 45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround.
HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
网罩 Powder coated stainless steel.
Outdoor Capability IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
输入连接器 Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors Hunter Green, RAL6018
尺寸(高 x 宽 x 厚) 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each) 7.8 kg (17 lb)

运输重量

10.5 kg (23 lb)

随附配件

(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
