Control 88M

Two-Way 8 inch (200mm) Coaxial Mushroom Landscape Speaker

Control 88M
Larger Images

Two-Way 8 inch (200mm) Coaxial Mushroom Landscape Speaker

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.

Features

  • Components:
    • 8” highly weather-resistant driver
    • 1” soft-dome highly weather-resistant tweeter
  • 120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
  • Tough polyethylene highly weather resistant enclosure
  • Fully isolated center chamber for wiring protection
  • High fidelity sound character with broad frequency range of 47Hz - 16kHz

Downloads

  Version Language Size Uploaded
Specifications
file type icon Control 88M Spec Sheet
updated: Apr 2019
    2,36 MB Apr 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: Mär 2024
en  14,2 MB Mär 2024
CAD Drawings
file type icon Control 88M Drawing
version 3, updated: Mär 2024
  2,28 MB Mär 2024
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: Dez 2019
    179 KB Dez 2019
file type icon Control 80 Series - Declaration of Conformity
updated: Okt 2019
    139 KB Okt 2019
Install Guides
file type icon Control 80 Series Landscape Speakers Install Guide
version B, updated: Jul 2022
  8,95 MB Jul 2022
CLF Files
file type icon Control 85M & 88M CLF Files
updated: Okt 2020
    239 KB Okt 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mai 2023
  557 KB Mai 2023
Images

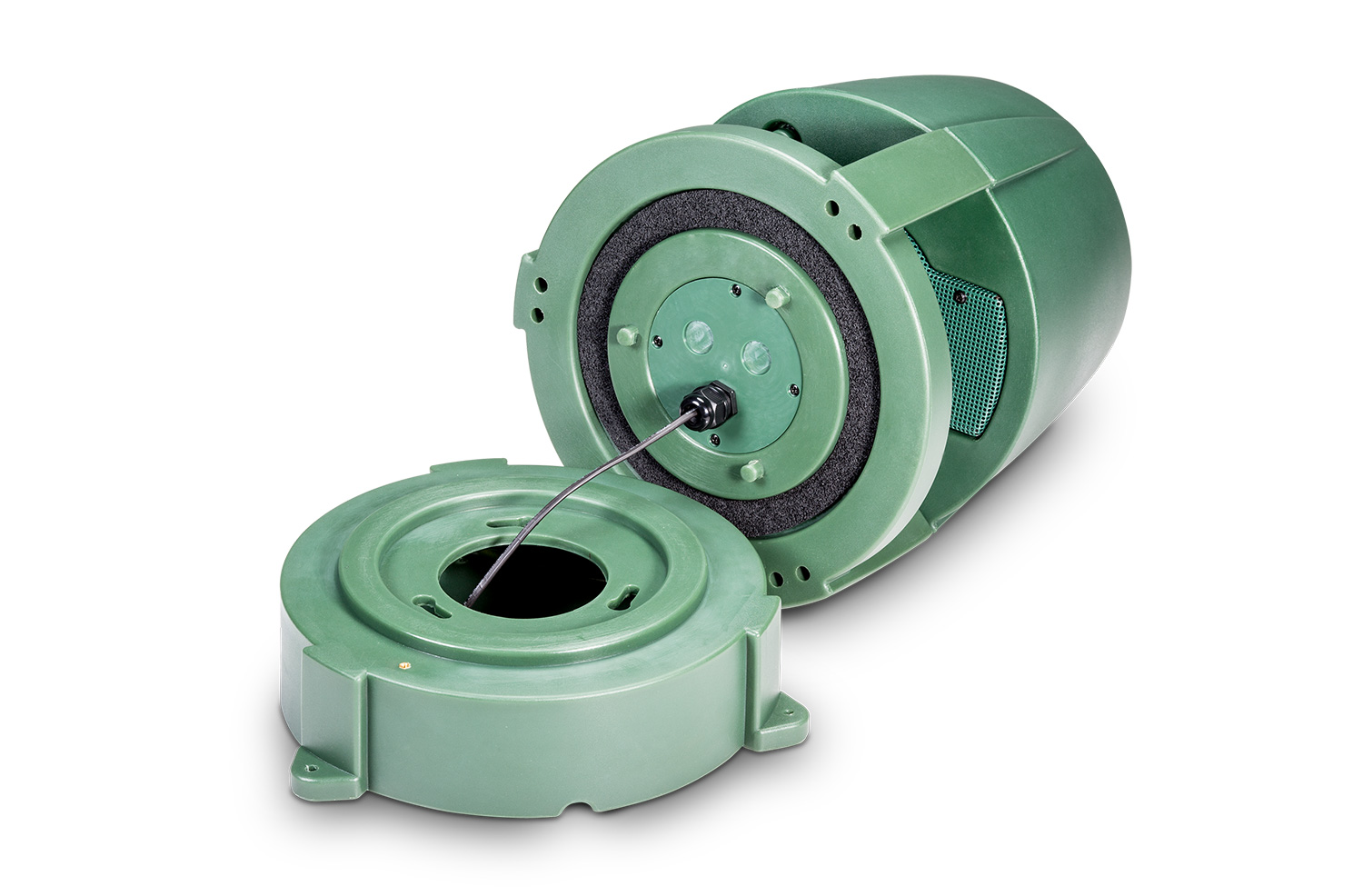

file type icon Control 88M Open
updated: Apr 2019
    220 KB Apr 2019

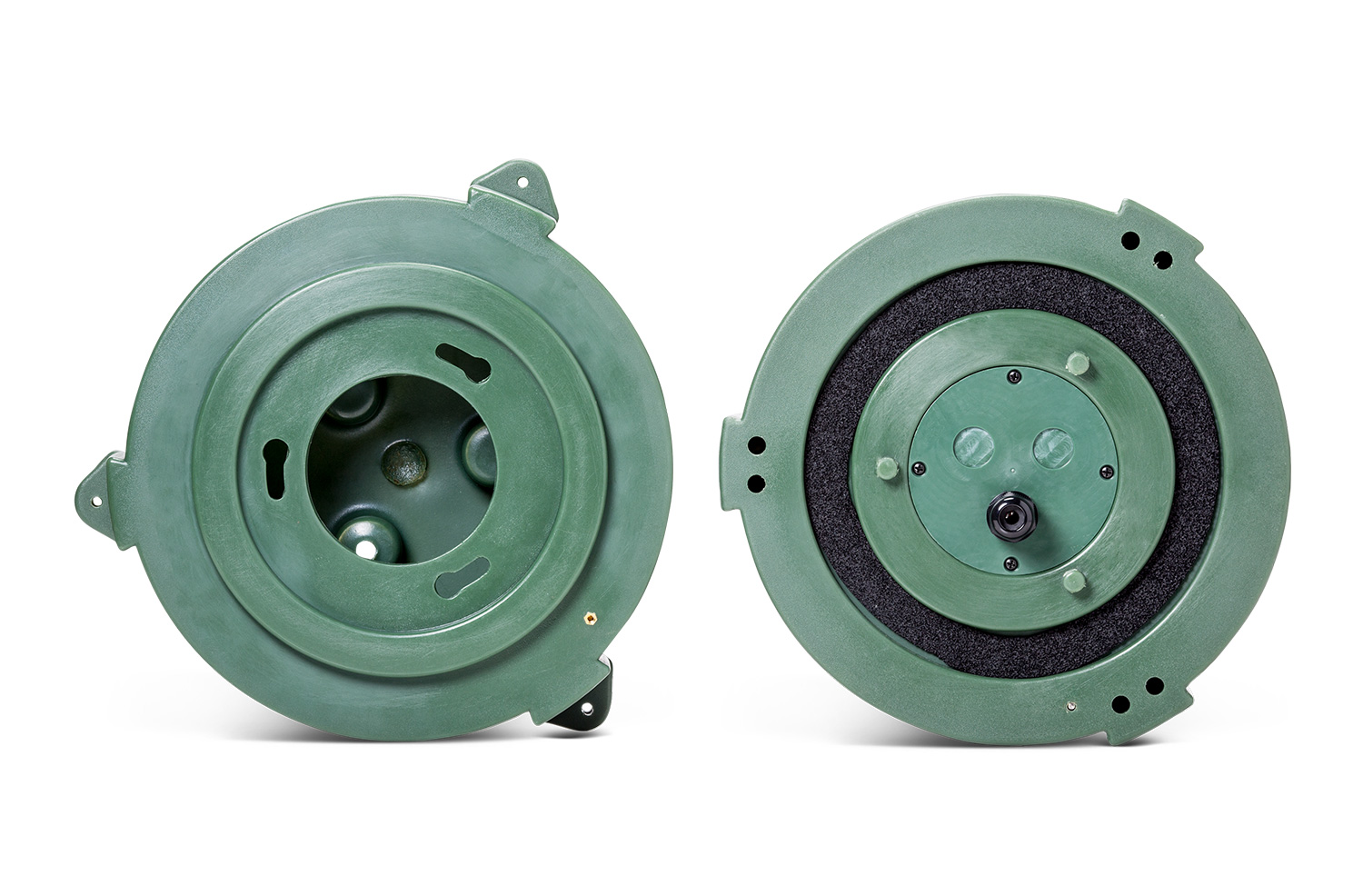

file type icon Control 88M Bottom
updated: Apr 2019
    288 KB Apr 2019

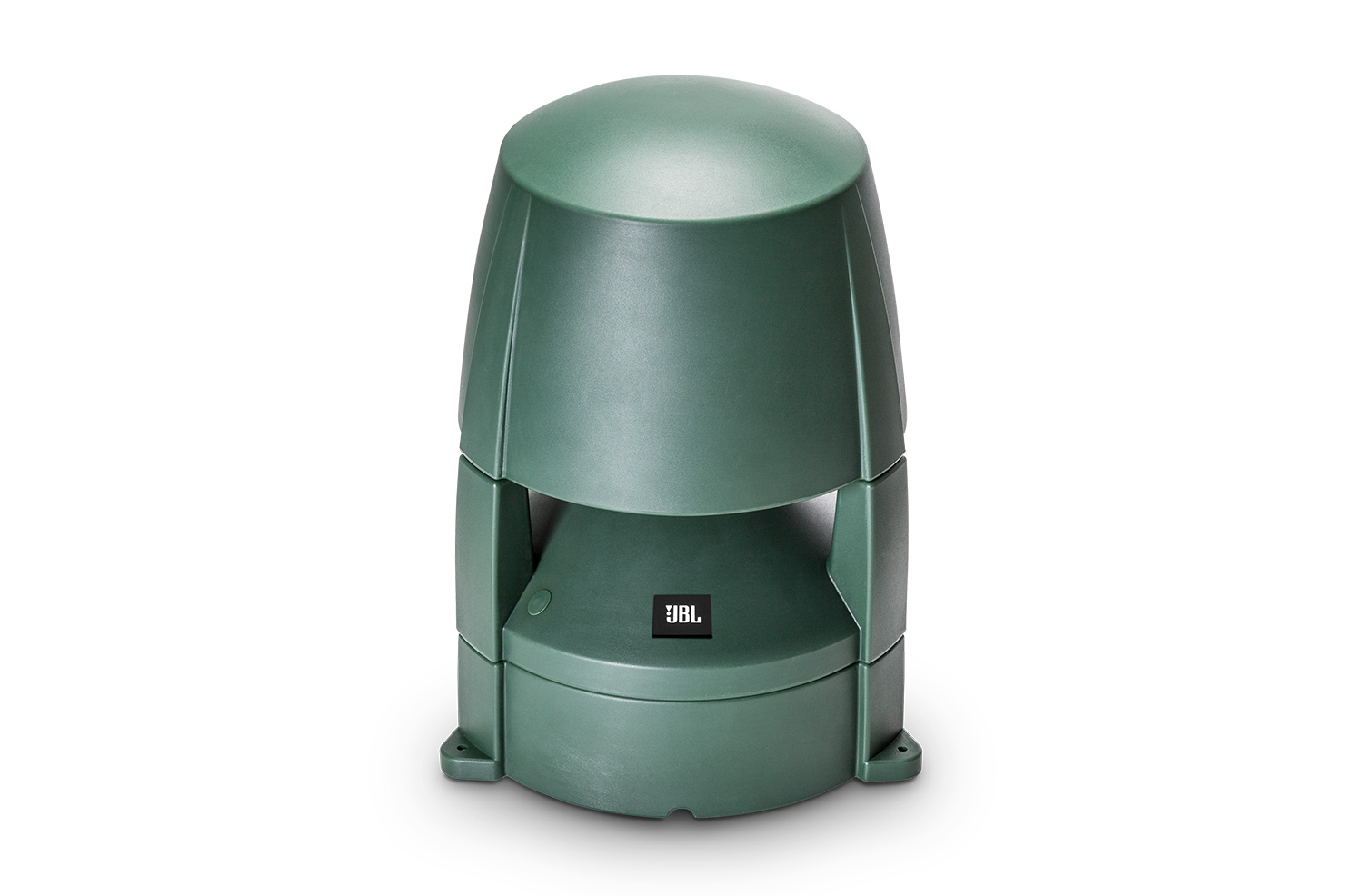

file type icon control 88M Angle
updated: Apr 2019
    136 KB Apr 2019

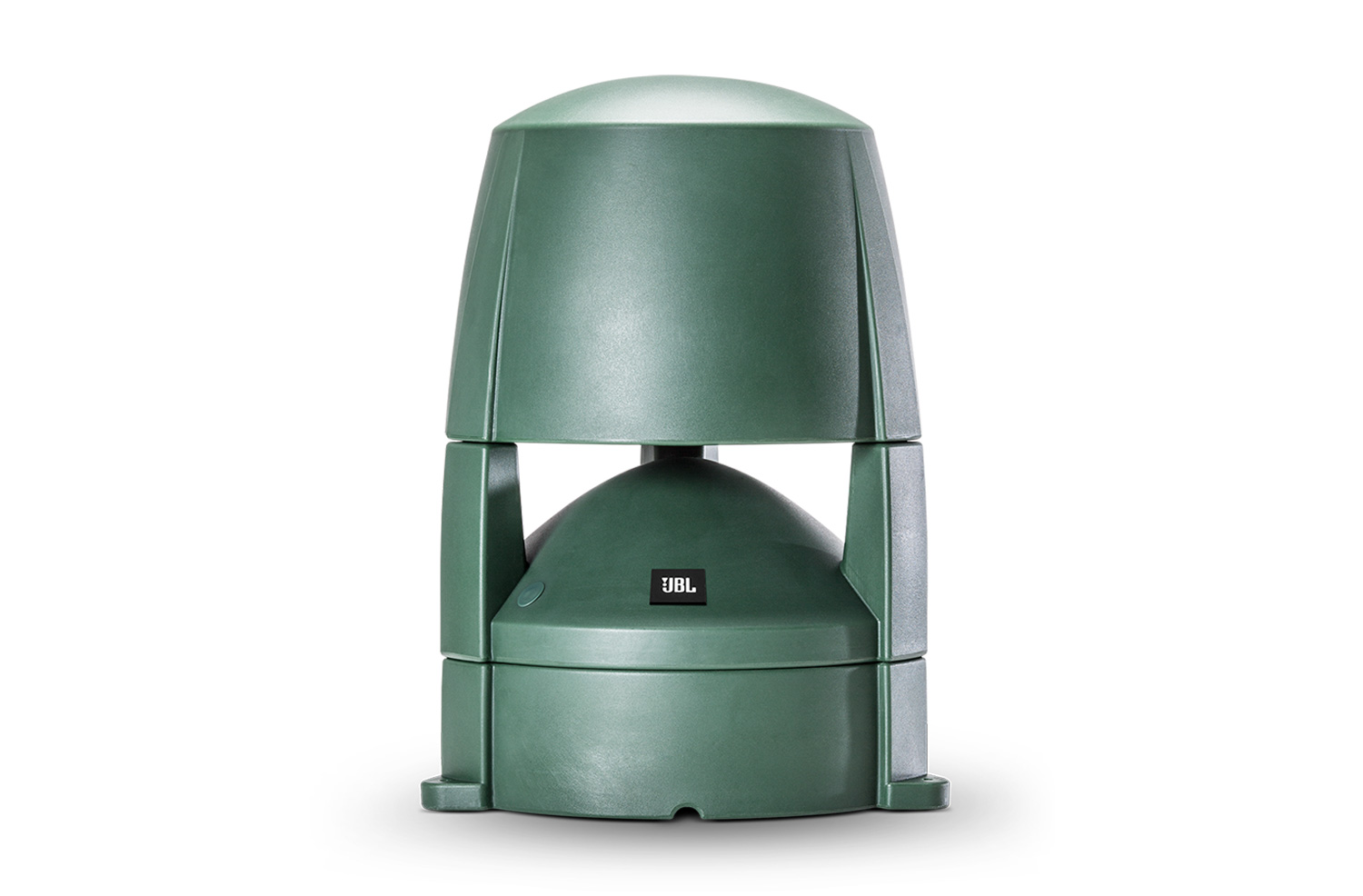

file type icon control 88M Front
updated: Apr 2019
    150 KB Apr 2019
Ease Data
file type icon Control 88M EASE/GLL File
updated: Apr 2019
    431 KB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 47 Hz – 16 kHz
Power Rating 240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
Transformer Taps 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB) 60Hz - 15 kHz
Maximum Input Voltage 28.0 V
Sensitivity 87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q) 2.1
Directivity Index (DI) 3.2 dB
Maximum SPL (1m) 108 dB
Impedance 8Ω (at 8Ω setting)
Minimum Impedance 6.6Ω at 9.5kHz
Insertion Loss <0.5 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround.
HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors Hunter Green, RAL6018
Dimensions (H x W x D) 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each) 7.8 kg (17 lb)
Shipping Weight 10.5 kg (23 lb)
Included Accessories (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
