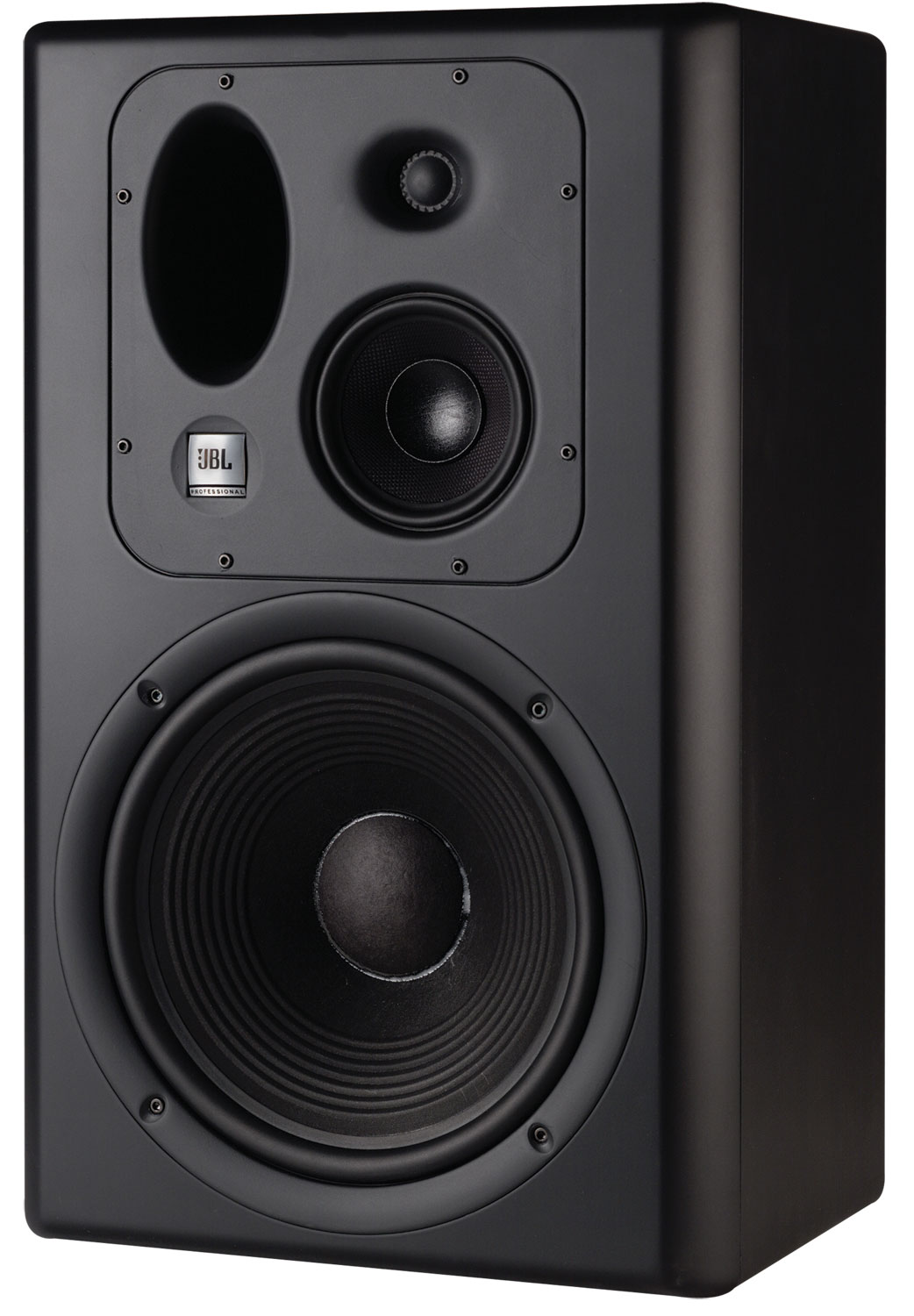

JBL Professional LSR6332

Immagini più grandi

Linear Spatial Reference Studio Monitor System

The LSR6332 incorporates a 12" Differential Drive® dual coil woofer, 5" Kevlar™ midrange speaker and 1" titanium composite tweeter. THX® pm3 Approved.

Caratteristiche
- Advanced Linear Spatial Reference design ensures flatter response at the mix position.
- Differential Drive® technology with dynamic braking for extended low frequency response and low
  power compression.
- Neodymium midrange with 2" voice coil and Kevlar™ cone material for extended frequency response
  and low distortion.
- Titanium composite high frequency transducer with elliptical oblate spheroidal waveguide and damped polepiece.
- High-Density baffle for low enclosure resonance and stable inertial ground
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Magnetically shielded for use near video monitors.
- Reinforced enclosure and convenient mounting points allow mounted installation.
- Midrange/high frequency sub-baffle may be rotated by user for horizontal or vertical orientation.
- Available as mirror image left and right models.

Download

Specifications

	Dimensione	Caricato
LSR6332 Spec Sheet aggiornato: apr 2019	651 KB	apr 2019

Brochures

	Dimensione	Caricato
LSR 6300 Brochure aggiornato: ott 2020	5,89 MB	ott 2020
Recording & Broadcast Full Line Catalog aggiornato: ott 2020	1,81 MB	ott 2020

Tech Notes

	Dimensione	Caricato
Tech Note: The New JBL LSR6300 Series Studio Monitors aggiornato: ott 2019	627 KB	ott 2019

Simulation Data

	Dimensione	Caricato
Ease SPK/DLL Files - Full JBL Pro Line aggiornato: mag 2024	21 MB	mag 2024

Helpful Links

	Dimensione	Caricato
RMC White Paper aggiornato: ott 2020	189 KB	ott 2020
RMC Graph Paper aggiornato: ott 2020	60 KB	ott 2020

User Guides

	Dimensione	Caricato
RMC User Guide aggiornato: ott 2020	2,58 MB	ott 2020

Install Guides

	Dimensione	Caricato
R&B Mounting Brackets aggiornato: ott 2020	26,2 KB	ott 2020

Images

	Dimensione	Caricato
LSR6332 Left Angle aggiornato: apr 2019	143 KB	apr 2019

Owner's Manuals

	Dimensione	Caricato
LSR6300 Manual aggiornato: ott 2020	815 KB	ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza
- Liste delle parti
- Risorse per i Partner di Assistenza Autorizzati

Specifiche

Input Impedance	4 ohm (Nominal)
Anechoic Sensitivity	93 dB/2.83 V/1 m (90 dB/ 1 W/ 1 m)
Frequency Response	+1. -1.5 dB (60 Hz – 22 kHz)
Low Frequency Extension	-3 dB: 54 Hz-10 dB: 35 Hz
Enclosure Resonance Frequency	33 Hz
Long Term Maximum Power (IEC265-5)	200 W continuous average; 800 W peak
Recommended Amplifier Power	150 W - 1000 W (rating into 4-ohm load)
High Frequency Control	0 dB, -1 dB (2.5 to 20 kHz)
Distortion, 96 dB SPL, 1 m	2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (120 Hz to 20 kHz): <0.5%3rd Harmonic (120 Hz to 20 kHz): <0.4%
Distortion, 102 dB SPL, 1 m	2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (80 Hz to 20kHz): <1%3rd Harmonic (80 Hz to 20kHz): <1%(<0.4%, 250 Hz - 20 kHz)
Power Nonlinearity	30 W (20 Hz to 20 kHz): <0.4 dB100 W (20 Hz to 20 kHz): <1.0 dB
Low-Mid Frequency Crossover	4th Order Acoustic Linkwitz-Riley: 250 Hz
Mid-High Frequency Crossover	4th Order Acoustic Linkwitz-Riley: 2.2 kHz
