CBT 100LA-LS

Line Array Column Loudspeaker with with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification

CBT 100LA-LS
Immagini più grandi

Line Array Column Loudspeaker with with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 100LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. This loudspeaker is EN 54-24 Compliant for life safety applications.





Caratteristiche

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover)
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.


Download

Specifications
  Dimensione Caricato
file type icon CBT100LA-LS Spec Sheet
aggiornato: mar 2026
7,33 MB mar 2026
Brochures
  Lingua Dimensione Caricato
file type icon CBT Brochure
aggiornato: ott 2020
  973 KB ott 2020
file type icon Loudspeakers for Sports Facilities
en aggiornato: lug 2024
en  5,71 MB lug 2024
CAD Drawings
  Dimensione Caricato
file type icon CBT 50LA-1/100LA-1 Wall Bracket - DWG
aggiornato: mar 2025
3,63 MB mar 2025
file type icon CBT 3D DXF Drawings
aggiornato: ott 2020
8,14 MB ott 2020
file type icon CBT 50LA-1/100LA-1 Wall Bracket PDF
aggiornato: ott 2020
33,2 KB ott 2020
file type icon CBT 2D DXF/PDF Drawing
aggiornato: ott 2020
1,23 MB ott 2020
Compliances
  Dimensione Caricato
file type icon CBT Series Declaration of Conformity
aggiornato: ott 2019
148 KB ott 2019
Software
  Versione Dimensione Caricato
download icon for CBT Calculator CBT Calculator
versione 1.3.0.1, rilasciato: ago 2023
1.3.0.1   3,66 MB ago 2023
Tech Notes
  Dimensione Caricato
file type icon Tech Note: Volume 1, #35
aggiornato: ott 2020
2,23 MB ott 2020
Install Guides
  Dimensione Caricato
file type icon MTC-CBT-FMx Flush-Mount Wall Brackets for CBT Speakers
aggiornato: feb 2026
440 KB feb 2026
file type icon CBT 50LA-1/100LA-1 Bracket Installation Guide
aggiornato: ott 2020
277 KB ott 2020
file type icon CBT Stand-Mount Bracket Guide
aggiornato: ott 2020
476 KB ott 2020
file type icon CBT Quick Start Guide
aggiornato: ott 2020
1,15 MB ott 2020
Speaker Tunings
  Versione Dimensione Caricato
file type icon Commercial, CBT, and AWC Tunings 220616
versione A, aggiornato: mag 2023
A  557 KB mag 2023
Application Guides
  Lingua Dimensione Caricato
file type icon Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
en aggiornato: ott 2022
en  8,48 MB ott 2022
EASE Files
  Dimensione Caricato
file type icon CBT 50, 100 and 200 GLL Files
aggiornato: mag 2024
8,41 MB mag 2024
Safety Sheets
  Dimensione Caricato
file type icon CBT100LA-LS EN54 Certificate
aggiornato: nov 2025
241 KB nov 2025
Images
  Dimensione Caricato

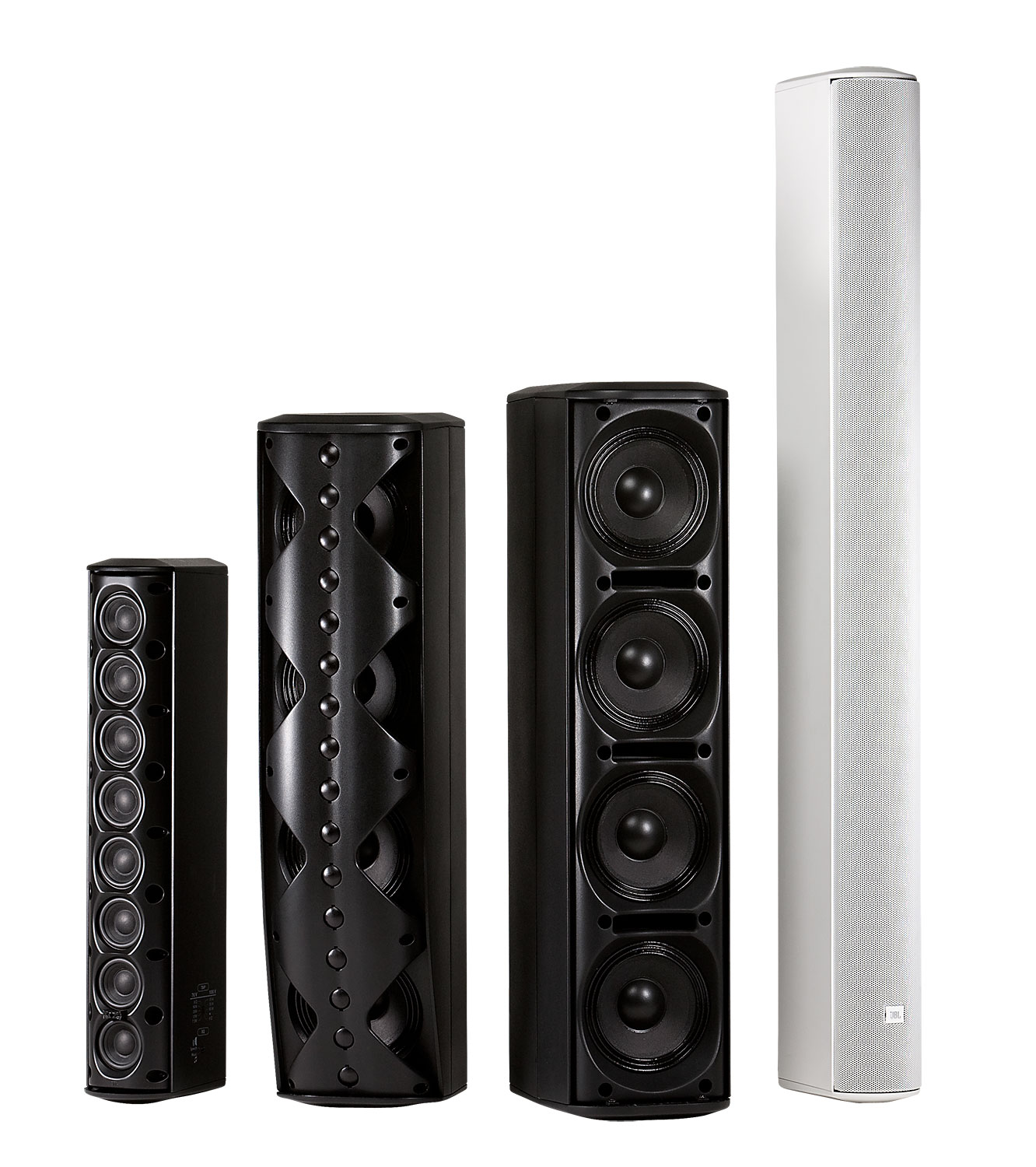

file type icon CBT Family Hi-Res Image
aggiornato: ott 2019
237 KB ott 2019
Information documents
  Dimensione Caricato
file type icon CBT Cabinet Painting Instructions
aggiornato: ott 2019
17,2 KB ott 2019
FAQs
  Dimensione Caricato
file type icon CBT Frequently Asked Questions
aggiornato: ott 2020
193 KB ott 2020
Accessories
  Dimensione Caricato
file type icon CBT Suspension Bracket
aggiornato: ott 2020
305 KB ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Drivers Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10dB) 120 Hz – 20 kHz
Coverage Angle

In Music Voicing, Broad Vertical Switch Settings:

Frequency (kHz)Horizontal Coverage°Vertical Coverage°
0.5 kHz360°59°
1 kHz247°41°
2 kHz194°32°
4 kHz135°72°

In Speech Voicing, Broad Vertical Switch Settings:

Frequency (kHz)Horizontal Coverage°Vertical Coverage°
0.5 kHz360°66°
1 kHz246°41°
2 kHz185°32°
4 kHz140°37°

In Music Voicing, Narrow Vertical Switch Settings:

Frequency (kHz)Horizontal Coverage°Vertical Coverage°
0.5 kHz360°59°
1 kHz248°37°
2 kHz185°24°
4 kHz132°17°

In Speech Voicing, Narrow Vertical Switch Settings:

Frequency (kHz)Horizontal Coverage°Vertical Coverage°
0.5 kHz360°59°
1 kHz245°43°
2 kHz179°24°
4 kHz135°17°
Sensitivity (2.83V @ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz)             (music mode) 90 dB (300 Hz - 18 kHz)
EN54 Sensitivity (@ 4m) 76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
Nominal Impedance 5Ω (in Thru mode)
15w@70v; 30w@100v Tap = 292Ω
30w@70v; 60w@100v Tap = 148Ω
60w@70v; 120w@100v Tap = 78Ω
120w@70v; N/C@100v Tap = 39Ω
Power Capacity 325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs
Maximum SPL (1m) Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak)            (music mode) 115 dB cont ave (121 peak)
EN54 Max SPL (@ 4m) 92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
Transformer Taps 120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
Reference Axis Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.
Enclosure Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or White (-WH)
Insert Points 18 M6 insert points on back panel.
Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight 7.2 kg (15.8 lb)
Safety Agency EN54-24:2008 certified, when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
Included Accessories Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover
Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
