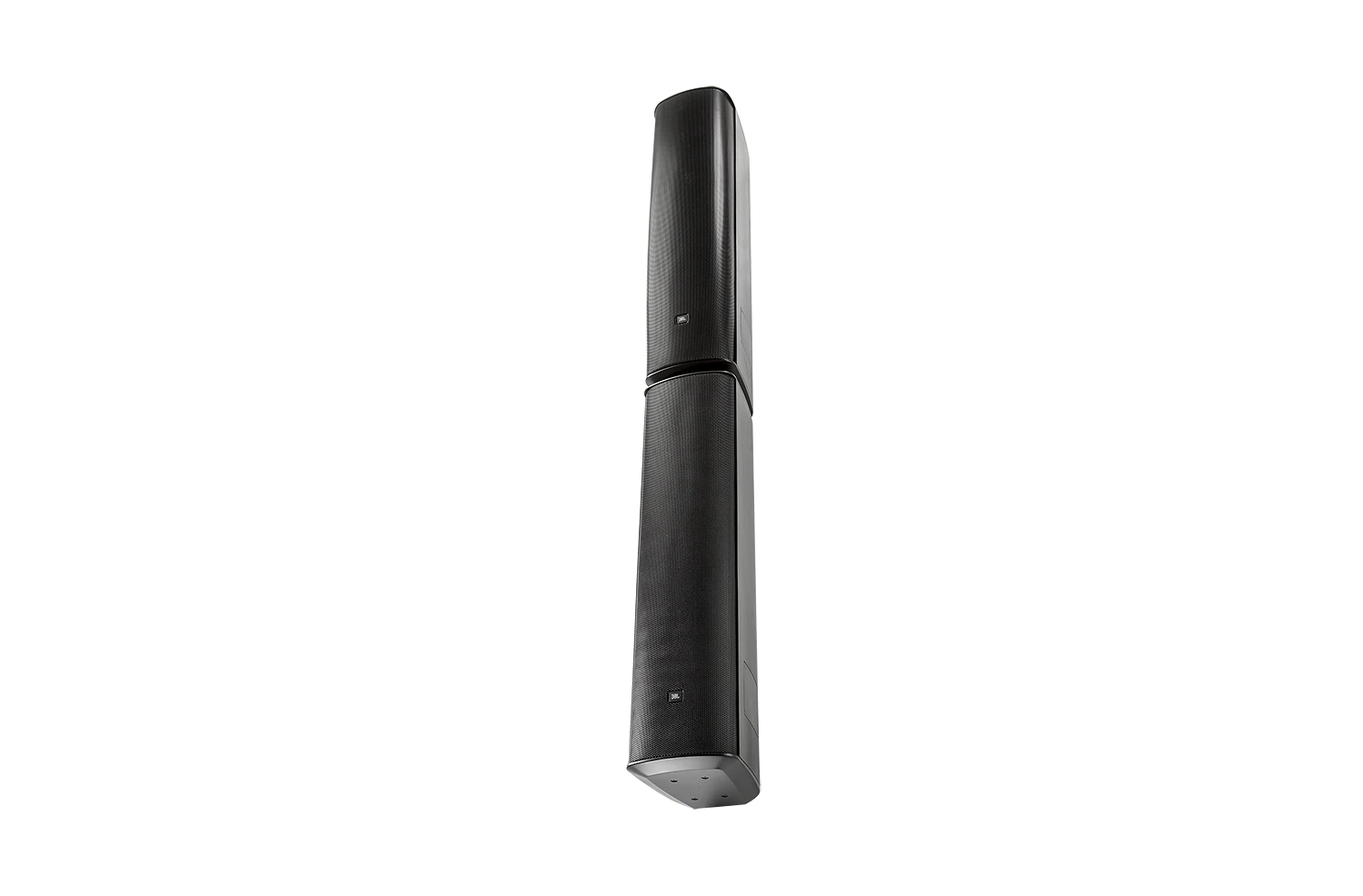

Quando collegato a un altoparlante a colonna CBT1000 line array, l'estensione CBT1000E fornisce una risposta ai bassi estesa, un controllo del pattern ampliato e livelli di uscita sonora aumentati. Il sistema array combinato offre la Constant Beamwidth Technology™, che rappresenta una svolta nella coerenza del controllo del pattern, utilizzando un complesso beamforming analogico e tapered di ampiezza per ottenere una copertura verticale superiore e consistente senza il raggio verticale stretto e i lobi fuori copertura tipici degli altoparlanti a colonna passivi.
Immagini più grandi
Caratteristiche
- Componenti: sei (6) driver LF ad alta escursione da 165 mm (6,5 pollici) (CBT1000E)
- Potenza gestibile di 1500 W (CBT1000E)
- Rete crossover integrata appositamente progettata per l'abbinamento con CBT1000 (CBT1000E)
- Piastra di accoppiamento inclusa (CBT1000E)
- Controllo del pattern esteso
- Componenti: ventiquattro (24) tweeter a cupola morbida extra-high-power da 25 mm (1 pollice) e dodici (12) driver LF ad alta escursione da 165 mm (6,5 pollici) (CBT1000+1000E)
- Potenza gestibile di 3000 W (CBT1000+1000E)
- La tecnologia Constant Beamwidth Technology ™ con brevetto in sospeso fornisce direttività costante fino alle frequenze più elevate e riduce il lobing fuori dalla copertura.
- La copertura del pattern verticale è regolabile individualmente attraverso una gamma di quattro (4) angoli "Pattern Up" e quattro (4) angoli di copertura "Pattern Down" per un totale di sedici (16) diverse combinazioni di copertura, il tutto senza l'uso di elaborazione DSP esterna (CBT1000)
- La guida d'onda orizzontale rastremata con brevetto in sospeso fornisce una dispersione orizzontale variabile continuamente (molto ampia per il tiro corto, più stretta per il tiro lungo) offrendo una copertura superiore negli angoli anteriori e posteriori della stanza (CBT1000)
- Copertura della stanza a sistema singolo ad alto SPL, con poco splash eccessivo e forte risposta dei bassi al di sotto di 38 Hz (CBT1000+1000E)
- La timbrica commutabile fornisce risposta piatta in modalità musica o picco di presenza di gamma media in modalità voce (CBT1000)
- Staffa murale girevole (pan)/inclinabile e piastra di accoppiamento incluse.
Download
Specifications
| Dimensione | |
|
|
3 MB |
|
|
2,22 MB |
Brochures
| Dimensione | |
|
|
5,71 MB |
aggiornato: lug 2024
CAD Drawings
| Dimensione | |
|
|
763 KB |
|
|
200 KB |
|
|
18 MB |
BIM Objects
| Dimensione | |
|
|
|
|
|
Compliances
| Dimensione | |
|
|
148 KB |
|
|
75,6 KB |
Software
| Dimensione | |
|
|
3,66 MB |
Simulation Data
| Dimensione | |
|
|
24 MB |
Application Guides
| Dimensione | |
|
|
8,48 MB |
Information documents
| Dimensione | |
|
|
17,2 KB |
Images
| Dimensione | |
|
|
237 KB |
FAQs
| Dimensione | |
|
|
295 KB |
|
|
295 KB |
Install Guides
| Dimensione | |
|
|
440 KB |
|
|
1,84 MB |
Quick Start Guides
| Dimensione | |
|
|
401 KB |
Ease Data
| Dimensione | |
|
|
5,76 MB |
Accessories
| Dimensione | |
|
|
305 KB |
Speaker Tunings
| Dimensione | |
|
|
134 KB |
|
|
557 KB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
Parti e assistenza
Specifiche
| Drivers | Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E) |
| Frequency Range (-10dB) | 38 Hz - 20 kHz |
| Coverage | Vertical (selectable via switch) |
| Sensitivity | 102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space)95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space) |
| Impedance | 4 ohms |
| Power Capacity | 1500W (6000W peak), 2 hrs 900W (3600W peak), 100 hrs |
| Maximum SPL (1m) | Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing: 131 dB continuous average pink noise 134 dB continuous program 137 dB Peak Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing: 127 dB continuous average pink noise 130 dB continuous program 133 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing: 128 dB continuous average pink noise 131 dB continuous program 134 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing: 124 |
| Coverage Angle | Vertical: Separate four top and four bottom selections, Horizontal: tapered 100° to 160° |
| Low Frequency Drivers | 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance. |
| High Frequency Drivers | 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance. |
| Enclosure | Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs). |
| Color | Black (RAL9004) or White (-WH) (RAL9016) |
| Insert Points | Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps. |
| Mounting | Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt – see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25°, 5.0°, 4.5°, 4°, 3.75°, 3.5°, 3.0°, 2.75°, 2.5°, 2.0°, 1.75°, and 1.25°. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount® and other compatible third–party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.) |
| Dimensions (H x W x D) | 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in) |
| Net Weight | (cabinet): 47.2 kg (104 lbs) |
| Included Accessories | Two-piece swivel (pan)/tilt wall bracket Coupler Plate |
| Optional Accessories | MTC-PC2 terminal panel cover CBT1K-ACC1 Accessory kit includes: MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points) |
