CBT 1000 + CBT 1000E System

CBT 1000E Purpose-Designed Extension for CBT 1000 Line Array Column Speaker

CBT 1000 + CBT 1000E System
Larger Images

When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Features

  • Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
  • 1500 Watt power handling (CBT1000E)
  • Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
  • Coupler plate included (CBT1000E)
  • Extended pattern control
  • Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
  • 3000 watt power handling (CBT1000+1000E)
  • Patent-pending Constant Beamwidth Technology ™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
  • Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000)
  • Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
  • Swivel (pan)/tilt wall bracket and coupler plate included.

Downloads

  Version Language Size Uploaded
Specifications
file type icon CBT 1000 Spec Sheet
updated: Jan 2020
    1,99 MB Jan 2020
file type icon CBT 1000E Spec Sheet
updated: Jan 2020
    3,25 MB Jan 2020
CAD Drawings
file type icon FM3 Flush-Mount Wall Bracket (accessory)
updated: Apr 2022
    200 KB Apr 2022
file type icon Stock CBT 1000 Wall Bracket (included)
updated: Apr 2022
    763 KB Apr 2022
file type icon CBT 1000 CAD Drawings
updated: Mai 2021
    18 MB Mai 2021
BIM Objects
file type icon CBT 1000E BIM Object
updated: Aug 2019
    Aug 2019
file type icon CBT 1000 BIM Object
updated: Aug 2019
    Aug 2019
Compliances
file type icon CBT Series Declaration of Conformity
updated: Okt 2019
    148 KB Okt 2019
file type icon CBT1000/1000E Declaration of Conformity
updated: Okt 2019
    75,6 KB Okt 2019
Software
platform icon CBT Calculator
version 1.3.0.1, updated: Aug 2023
1.3.0.1     3,66 MB Aug 2023
Application Guides
file type icon Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
en updated: Okt 2022
  en  8,48 MB Okt 2022
file type icon Loudspeakers for Sports Facilities
en updated: Mai 2021
  en  5,71 MB Mai 2021
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Mai 2023
12-10-21    24 MB Mai 2023
Information documents
file type icon CBT Cabinet Painting Instructions
updated: Okt 2019
    17,2 KB Okt 2019
Images

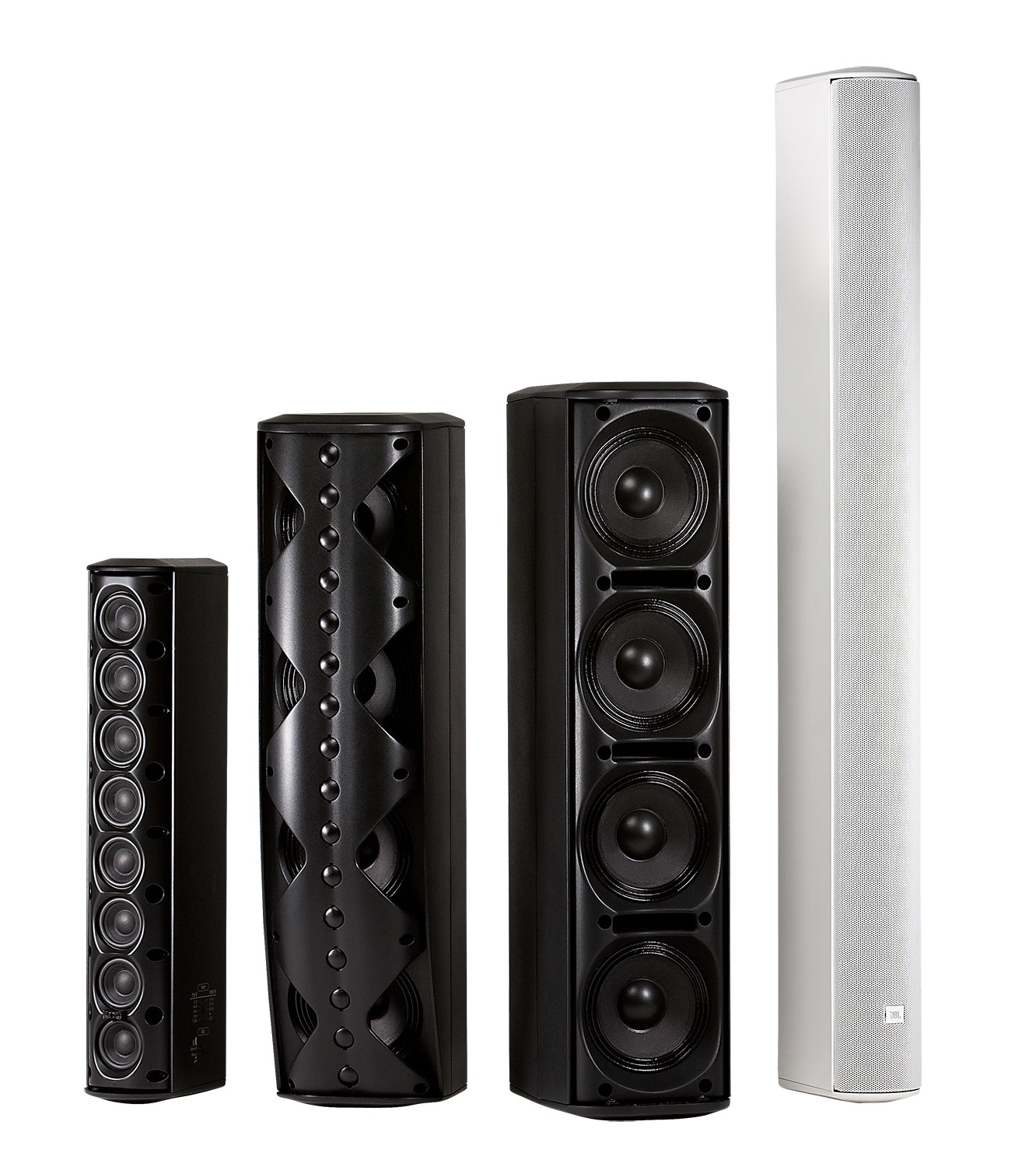

file type icon CBT Family Hi-Res Image
updated: Okt 2019
    237 KB Okt 2019
FAQs
file type icon CBT 1000/1000E FAQ
updated: Okt 2019
    295 KB Okt 2019
file type icon CBT 1000 & 1000E FAQ
updated: Okt 2020
    295 KB Okt 2020
Install Guides
file type icon MTC-CBT-FM1/FM2 Flush-Mount Wall Brackets for CBT Speakers
updated: Okt 2020
    297 KB Okt 2020
file type icon CBT 1000/1000E Bracket Installation Guide
updated: Okt 2020
    1,84 MB Okt 2020
file type icon CBT Flush-mount Bracket
updated: Okt 2020
    338 KB Okt 2020
Quick Start Guides
file type icon CBT 1000/1000E Quick Guide
updated: Dez 2020
    401 KB Dez 2020
Ease Data
file type icon CBT 1000 EASE File
updated: Okt 2020
    5,76 MB Okt 2020
Accessories
file type icon CBT Suspension Bracket
updated: Okt 2020
    305 KB Okt 2020
Speaker Tunings
file type icon CBT 1000 & 1000+E EQ Tunings
updated: Okt 2020
    134 KB Okt 2020
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mai 2023
  557 KB Mai 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Drivers Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
Frequency Range (-10dB) 38 Hz - 20 kHz
Coverage Vertical (selectable via switch)
Sensitivity 102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space)95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space)
Impedance 4 ohms
Power Rating 3000 W (12000 W peak), 2 hrs2000 W (8000 W peak), 100 hrs
Maximum SPL (1m) Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing:      131 dB continuous average pink noise      134 dB continuous program      137 dB Peak Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing:      127 dB continuous average pink noise      130 dB continuous program      133 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing:      128 dB continuous average pink noise      131 dB continuous program      134 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing:      124
Coverage Angle Vertical: Separate four top and four bottom selections, Horizontal: tapered 100° to 160°
Low Frequency Drivers 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance.
High Frequency Drivers 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance.
Enclosure Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs).
Color Black (RAL9004) or White (-WH) (RAL9016)
Insert Points Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps.
Mounting Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt – see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25°, 5.0°, 4.5°, 4°, 3.75°, 3.5°, 3.0°, 2.75°, 2.5°, 2.0°, 1.75°, and 1.25°. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount® and other compatible third–party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.)
Dimensions (H x W x D) 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in)
Net Weight (cabinet): 47.2 kg (104 lbs)
Included Accessories Two-piece swivel (pan)/tilt wall bracket Coupler Plate
Optional Accessories MTC-PC2 terminal panel cover
CBT1K-ACC1 Accessory kit includes:
  • 2 pcs MTC-CBT-FM3 flush-mount brackets
  • 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array – works in conjunction with CBT 1000E’s included
  • Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it)
MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points)
