Control 64P/T

Compact Full-Range Pendant Loudspeaker

Control 64P/T
Grandes images

Compact Full-Range Pendant Loudspeaker

The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.


  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
  • 8Ω and 70V/100V operation


  Version Language Size Uploaded
file type icon Control 64P/T Spec Sheet
updated: avr. 29, 2019
    696 ko avr. 29, 2019
CAD Drawings
file type icon C60 DXF Drawings
updated: nov. 16, 2022
    4,14 Mo nov. 16, 2022
BIM Objects
file type icon Control 64P/T BIM Object
updated: août 27, 2019
    août 27, 2019
file type icon Control 60 Series Declaration of Conformity
updated: oct. 18, 2019
    987 ko oct. 18, 2019
platform icon Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: sept. 23, 2021
3.6.2     805 ko sept. 23, 2021
Install Guides
file type icon Painting C60 Speakers
updated: avr. 21, 2021
    146 ko avr. 21, 2021
file type icon C60 Install Instructions
updated: avr. 29, 2019
    886 ko avr. 29, 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
updated: août 29, 2022
    557 ko août 29, 2022
file type icon C60 Panel Cover Instructions
updated: mai 04, 2021
    710 ko mai 04, 2021

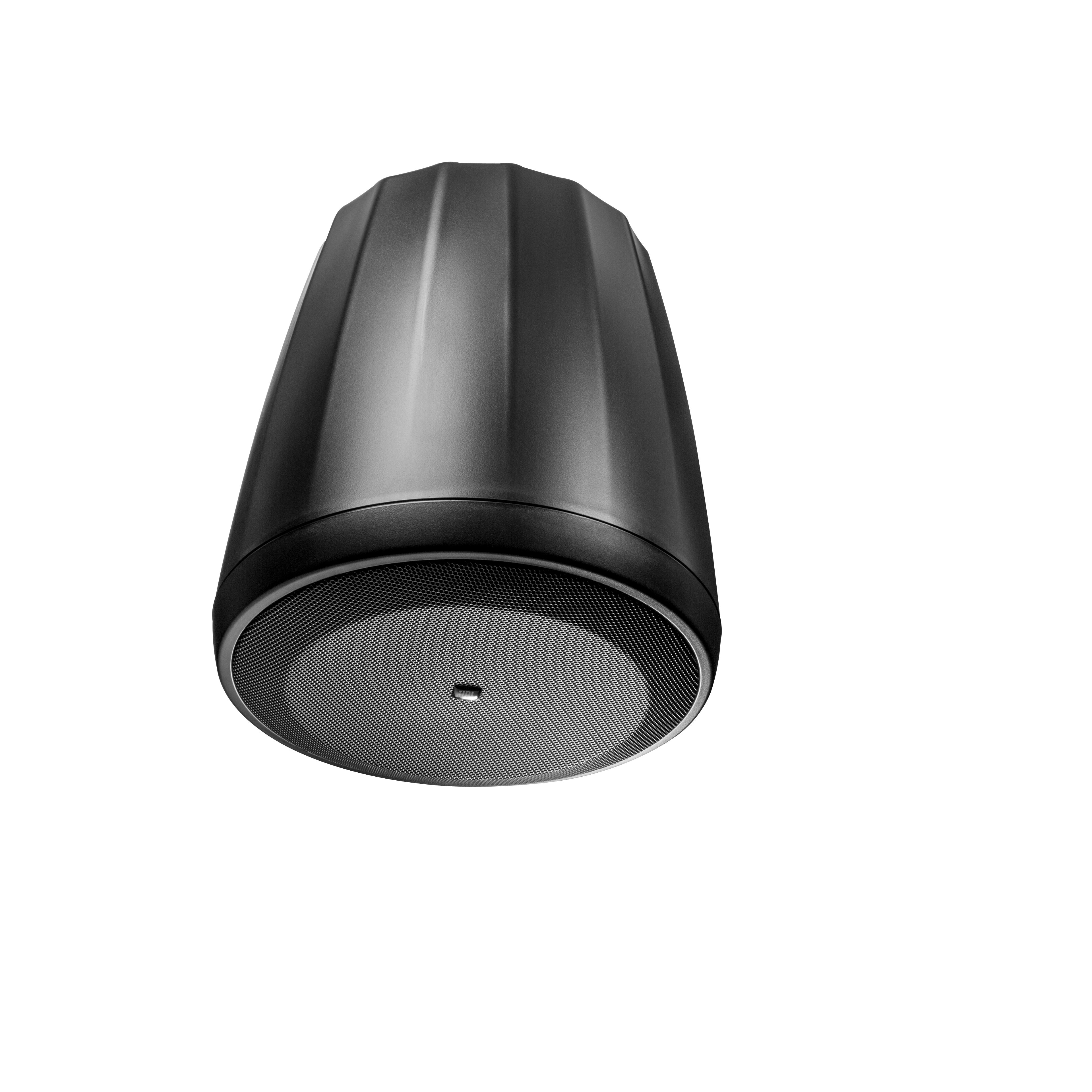

file type icon C64 Hi-Res Image Grill On
updated: avr. 29, 2019
    2,56 Mo avr. 29, 2019

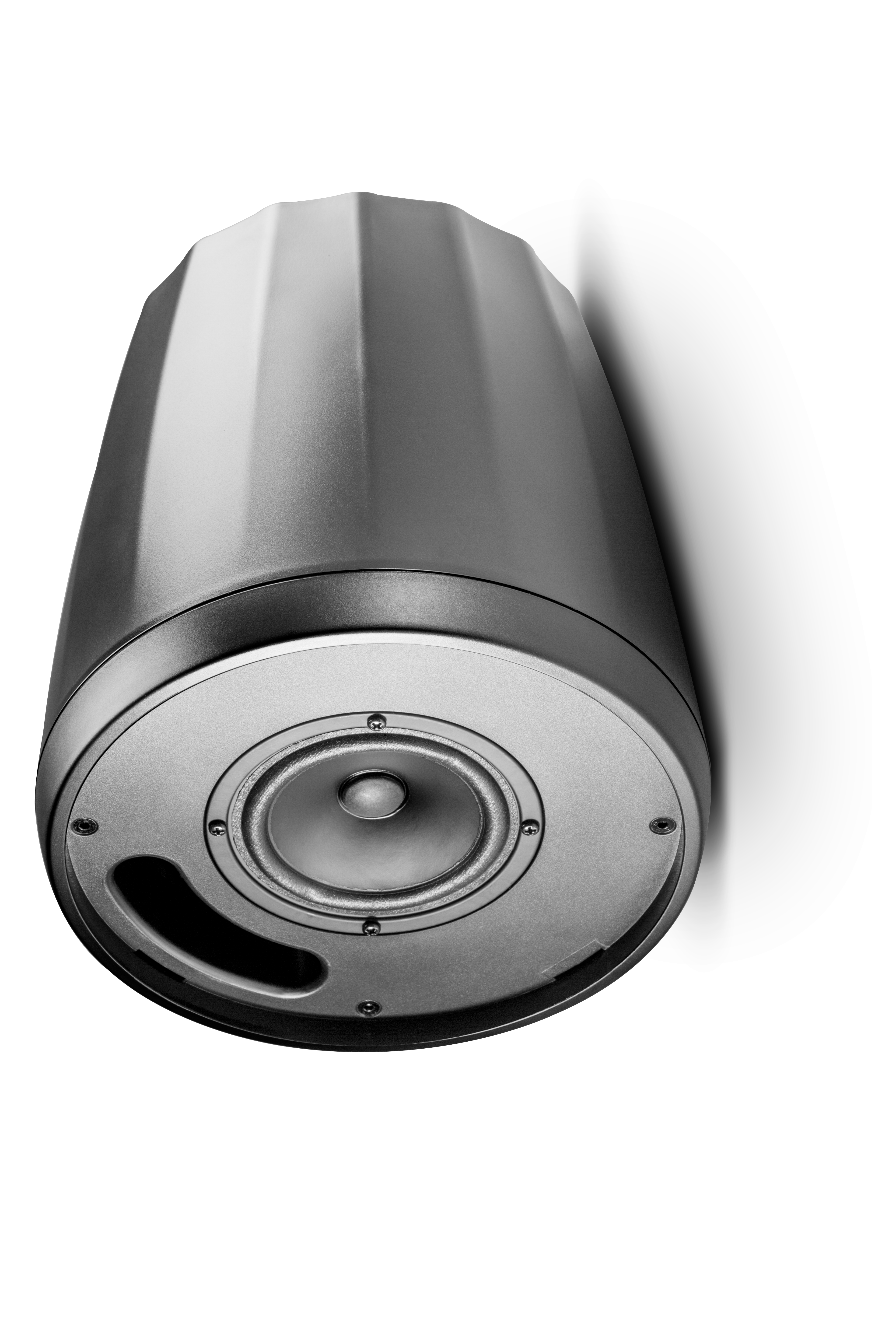

file type icon C64 Hi-Res Image Grill Off
updated: avr. 29, 2019
    6,58 Mo avr. 29, 2019
Ease Data
file type icon C60 Ease Files
version B, updated: jan. 25, 2023
  962 ko jan. 25, 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: jan. 25, 2023
    377 ko jan. 25, 2023
file type icon C60 Frequently Asked Questions
updated: sept. 27, 2022
    337 ko sept. 27, 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB) 65 Hz - 15 kHz
Frequency Response (±3 dB) 85Hz - 14 kHz
Power Rating 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity 88 dB Nominal
Coverage Angle 120° (averaged 1 kHz to 4 kHz)
Directivity Factor (Q) 6.2
Directivity Index (DI) 7.3dB (averaged 1kHz – 16kHz)
Maximum SPL (1m) 105 dB continuous pink noise, 111 dB peak
Transformer Taps 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
Transformer Insertion Loss 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Drivers 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (each) 2.35 kg (5.2 lbs)
Shipping Weight (pair) 6.07 kg (13.4 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable
