Control 64P/T

Compact Full-Range Pendant Loudspeaker

Control 64P/T
Larger Images

Compact Full-Range Pendant Loudspeaker

The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.


  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
  • 8Ω and 70V/100V operation


  Version Language Size Uploaded
file type icon Control 64P/T Spec Sheet
updated: Apr 2019
    696 KB Apr 2019
file type icon Control Contractor Brochure (2024)
en version D, updated: Feb 2024
en  14 MB Feb 2024
CAD Drawings
file type icon C60 DXF Drawings
updated: Nov 2022
    4,14 MB Nov 2022
BIM Objects
file type icon Control 64P/T BIM Object
updated: Aug 2019
    Aug 2019
file type icon Control 60 Series Declaration of Conformity
updated: Okt 2019
    987 KB Okt 2019
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Install Guides
file type icon Painting C60 Speakers
updated: Apr 2021
    146 KB Apr 2021
file type icon C60 Install Instructions
updated: Apr 2019
    886 KB Apr 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mai 2023
  557 KB Mai 2023
file type icon C60 Panel Cover Instructions
updated: Mai 2021
    710 KB Mai 2021
file type icon C64 Hi-Res Image Grill On
updated: Apr 2019
    2,56 MB Apr 2019

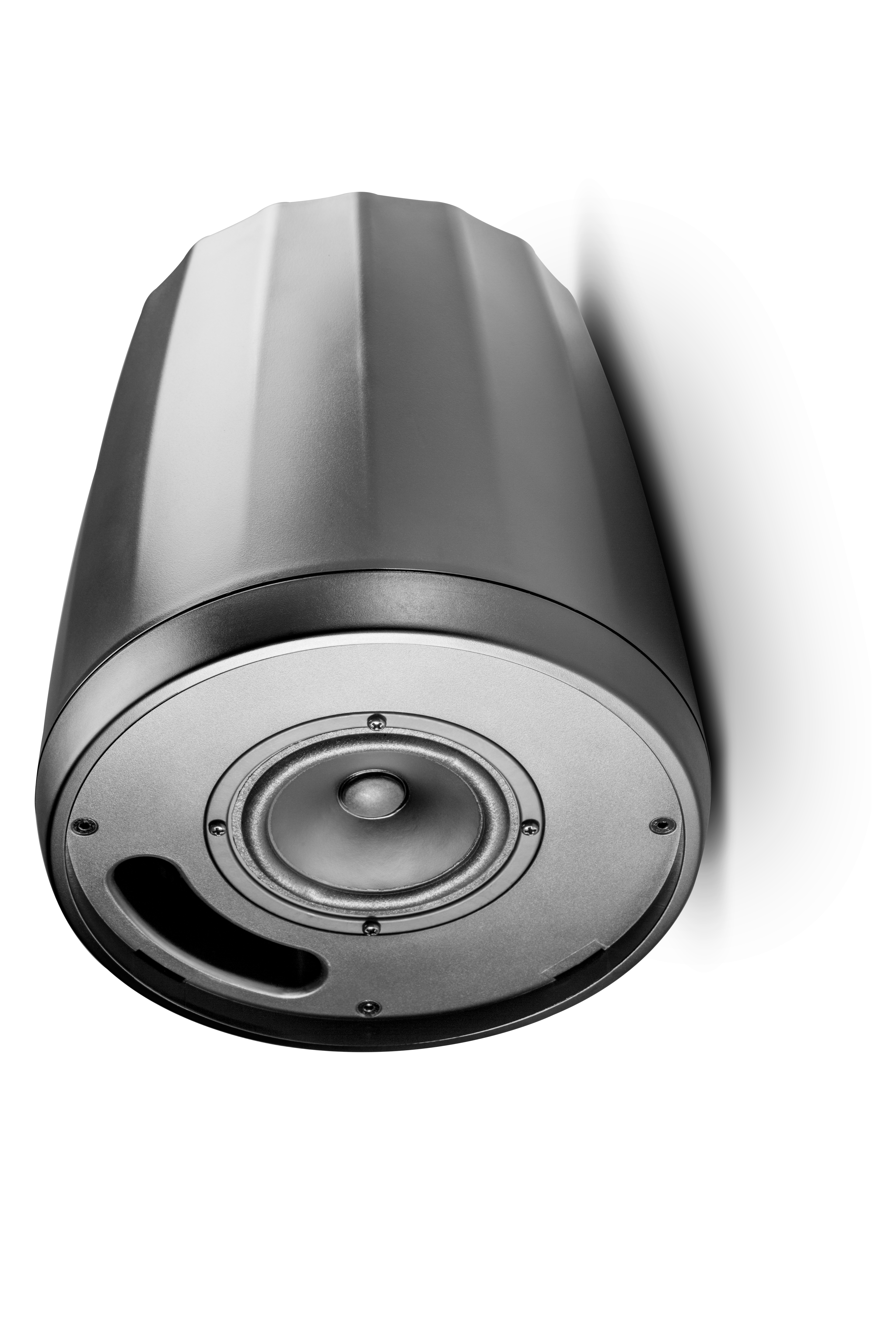

file type icon C64 Hi-Res Image Grill Off
updated: Apr 2019
    6,58 MB Apr 2019
Ease Data
file type icon C60 Ease Files
version B, updated: Jan 2023
  962 KB Jan 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: Jan 2023
    377 KB Jan 2023
file type icon C60 Frequently Asked Questions
updated: Sep 2022
    337 KB Sep 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 65 Hz - 15 kHz
Frequency Response (±3 dB) 85Hz - 14 kHz
Power Rating 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity 88 dB Nominal
Coverage Angle 120° conical
Directivity Factor (Q) 6.2
Directivity Index (DI) 7.3dB (averaged 1kHz – 16kHz)
Maximum SPL (1m) 105 dB continuous pink noise, 111 dB peak
Transformer Taps 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
Transformer Insertion Loss 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Drivers 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (each) 2.35 kg (5.2 lbs)
Shipping Weight (pair) 6.07 kg (13.4 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable
