| Frequency Range (-10dB) |
65 Hz - 15 kHz |
| Frequency Response (±3 dB) |
85Hz - 14 kHz |
| Power Rating |
100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs) |
| Maximum Input Voltage |
18.2 V RMS (2 hrs), 36.4 V peak |
| Nominal Sensitivity |
88 dB Nominal |
| Coverage Angle |
120° conical |
| Directivity Factor (Q) |
6.2 |
| Directivity Index (DI) |
7.3dB (averaged 1kHz – 16kHz) |
| Maximum SPL (1m) |
105 dB continuous pink noise, 111 dB peak |
| Impedance |
8Ω |
| Transformer Taps |
70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W |
| Transformer Insertion Loss |
0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W |
| Drivers |

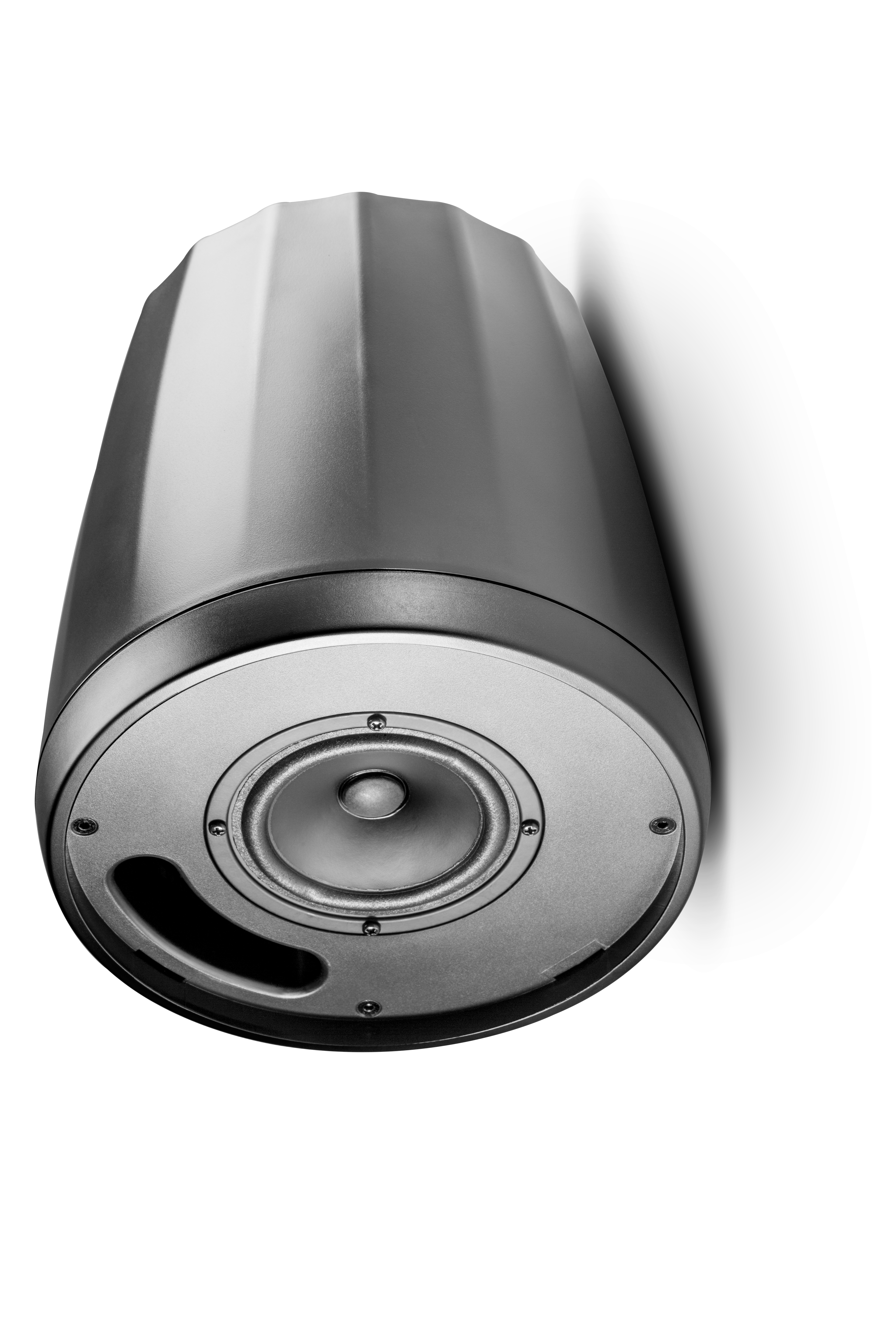

100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil |
| Enclosure |
High impact polystyrene |
| Grille |

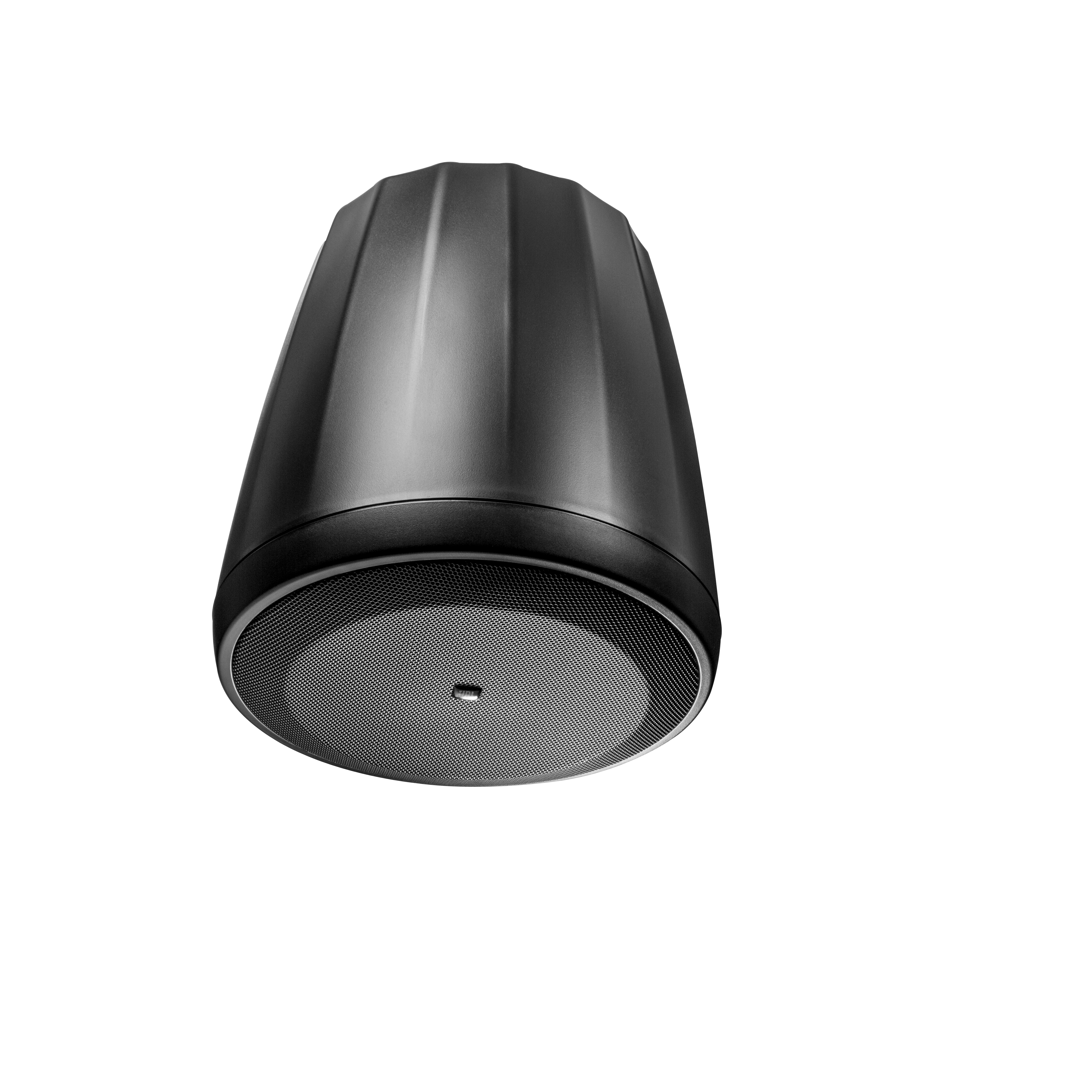

Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability |
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating. |
| Input Connectors |
Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension |
Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency |
Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) |
234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. |
| Net Weight (each) |
2.35 kg (5.2 lbs) |
| Shipping Weight (pair) |
6.07 kg (13.4 lbs) |
| Included Accessories |
Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
| Optional Accessories |
MTC-PC60 top panel / terminal cover |
| Colors |
Available in black or white (-WH). Paintable |
