SRX835P

Altavoz Activo de Fuente Puntual de 3 Vías de 15 Pulgadas

SRX835P
Imágenes más grandes

Altavoz Amplificado de 3 Vías de Fuente Puntual de 15 Pulgadas

La Serie SRX800 es la próxima generación de sistemas de altavoces amplificados de alto rendimiento que comprende tres modelos de rango completo y dos modelos de subwoofer con una amplia gama de características que posicionan la Serie SRX800 como la mejor de su clase entre todos los sistemas competitivos. El modelo de rango completo de 15" de tres vías, SRX835P, cuenta con legendarios controladores JBL, amplificación propietaria Crown de 2,000 vatios, tecnología Crown Front-End DriveCore, DSP configurable por el usuario de JBL de primera categoría, sintonizaciones V5 compatibles con sistemas de giras Vertec y VTX, y opciones de control de red HiQnet a través de aplicaciones iOS y Android. Basándose en la larga historia de JBL de tecnología innovadora y diseño de altavoces, la Serie SRX800 satisface las necesidades de empresas de giras, instalaciones y las aplicaciones de sonido en vivo más exigentes, asegurando que puedan desplegar una solución todo en uno sin compromisos que presenta el legendario sonido y rendimiento JBL, una amplia gama de opciones de configuración y compatibilidad con los sistemas de giras insignia de JBL.



Características

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Más detalles

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Descargas

Data Sheets
  Tamaño Subido
file type icon SRX835P Data Sheet
actualizado: abr 2019
1,86 MB abr 2019
Specifications
  Tamaño Subido
file type icon SRX835P Spec Sheet
actualizado: abr 2019
708 KB abr 2019
Manuals
  Tamaño Subido
file type icon SRX Connect Presets HelpGuide
actualizado: oct 2020
286 KB oct 2020
file type icon SRX Connect NormalView HelpGuide
actualizado: oct 2020
427 KB oct 2020
Brochures
  Versión Idioma Tamaño Subido
file type icon JBL 2025 PPA Brochure
en versión B, actualizado: ago 2025
en  8,45 MB ago 2025
Compliances
  Tamaño Subido
154 KB oct 2020
Software
  Tamaño Subido
file type icon Software Support
actualizado: abr 2019
114 KB abr 2019
Android download icon SRX Connect
publicado: ago 2023
ago 2023
Windows download icon HiQnet Audio Architect
publicado: nov 2020
nov 2020
iOS download icon SRX Connect
publicado: ago 2023
ago 2023
User Guides
  Tamaño Subido
file type icon SRX 812P/815P/835P QuickStart Guide
actualizado: nov 2020
1,75 MB nov 2020
file type icon SRX800 User Guide
actualizado: abr 2019
7,41 MB abr 2019
Images
  Tamaño Subido
file type icon SRX800 Driver
actualizado: abr 2019
158 KB abr 2019
file type icon SRX800 Handle
actualizado: abr 2019
208 KB abr 2019
file type icon SRX835P Back
actualizado: abr 2019
182 KB abr 2019

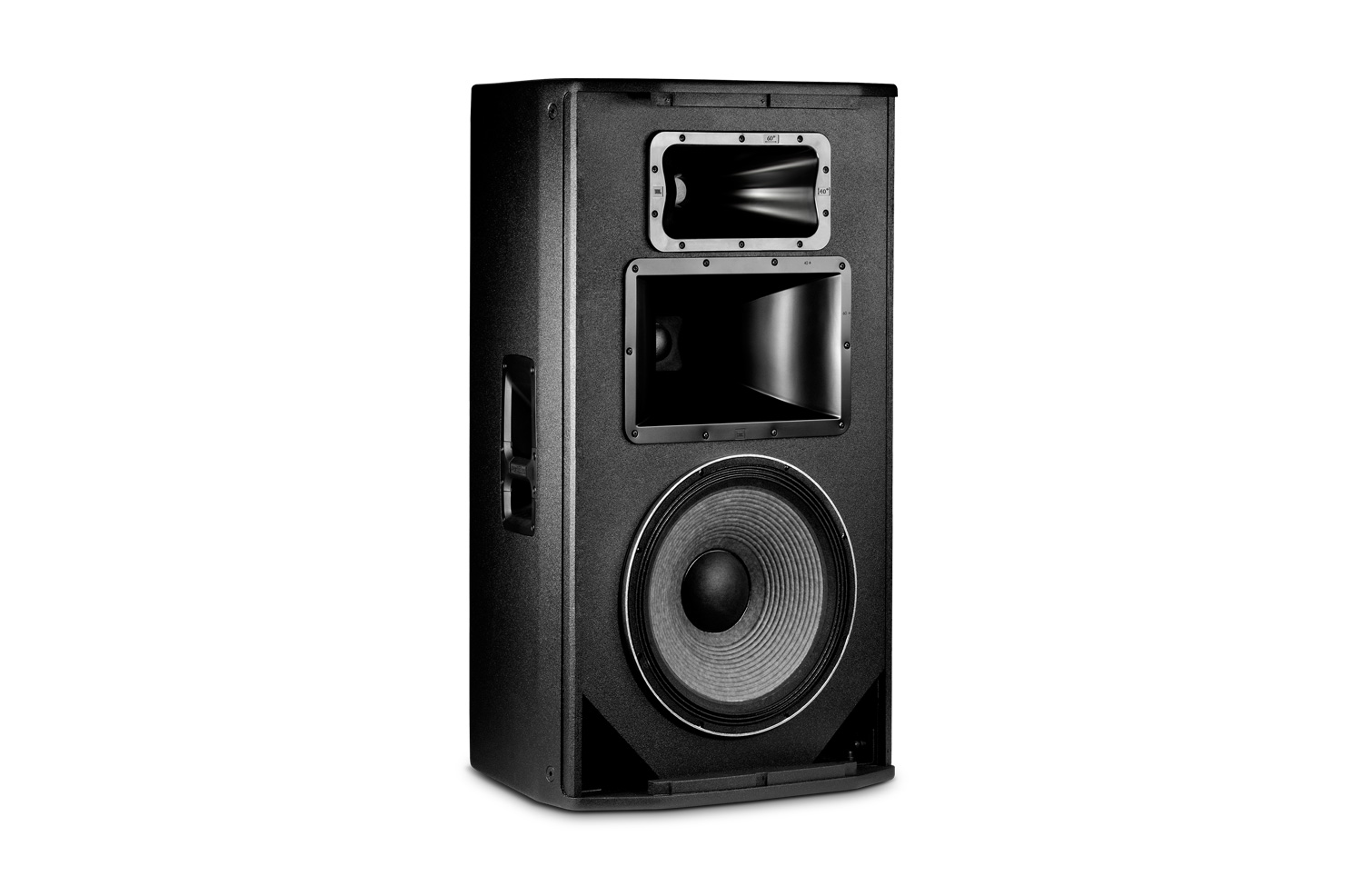

file type icon SRX835P Angle No-Grill
actualizado: abr 2019
164 KB abr 2019

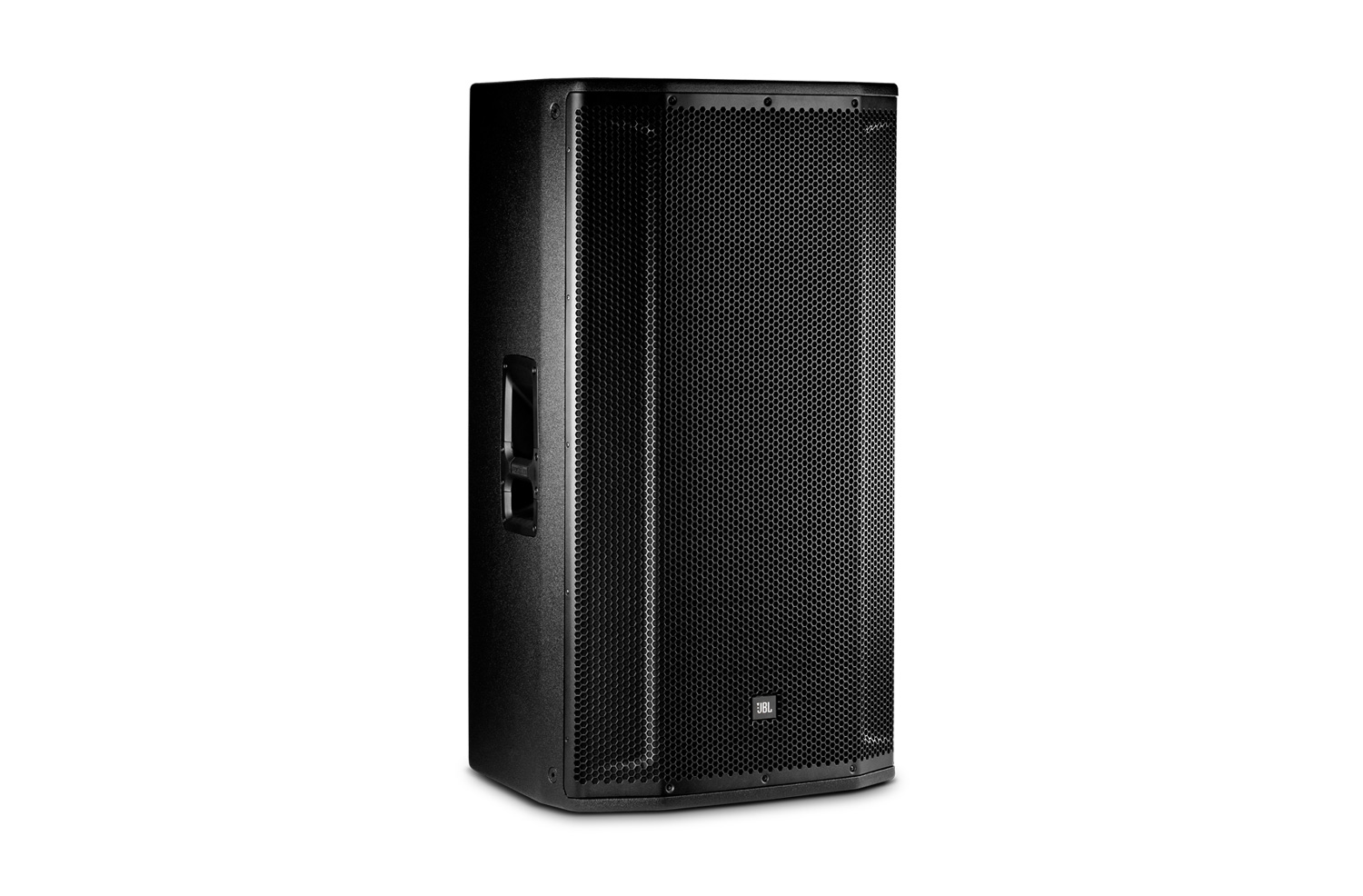

file type icon SRX835P Angle
actualizado: abr 2019
234 KB abr 2019

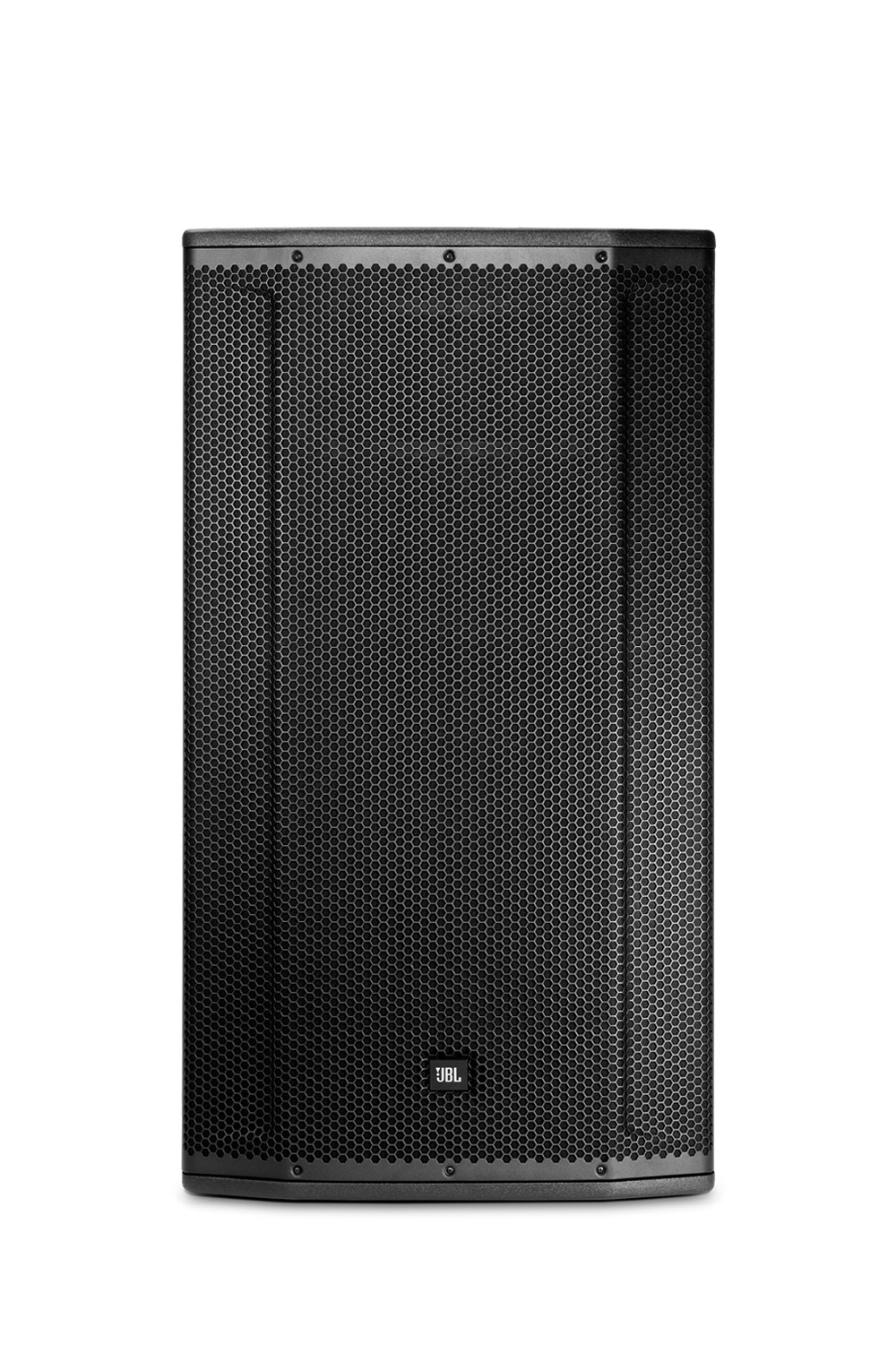

file type icon SRX835P Front
actualizado: abr 2019
401 KB abr 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

TIPO DE SISTEMA Self powered 15”, three-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10dB) 33 Hz - 21 kHz
RESPUESTA DE FRECUENCIA (±3 dB) 41 Hz - 20 kHz
Coverage Pattern 60° x 40°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Net Weight (each) 38.6 kg (85 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Impedancia nominal NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
MF Driver 1 x 2107H
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Single 36 mm pole socket, 12 x M10 suspension points

Accesorios

SRX835P-CVR-DLX | Deluxe padded cover for SRX835P
SRX835P-CVR-DLX Main photo
Imágenes más grandes
SRX835P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX835P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
