SRX835P

مكبر صوت مزود بالطاقة ثلاثي الاتجاهات بمصدر نقطة 15 بوصة

SRX835P
صور أكبر

سماعة مضبوطة تعمل بالطاقة بحجم 15 بوصة ثلاثية الاتجاهات

سلسلة SRX800 هي الجيل الجديد من أنظمة مكبرات الصوت المخصصة عالية الأداء وتتألف من ثلاثة طرازات كاملة المدى واثنين من الطرازات الفرعية، مع مجموعة من الميزات التي ترتقي بسلسلة SRX800 إلى الأفضل في فئتها من بين جميع الأنظمة التنافسية. تتميز مكبر الصوت الكامل 15 بوصة ثلاثي الاتجاهات، SRX835P، بسائقين أسطوريين من JBL، وتقنية تقوية خاصة Crown بقوة 2000 واط، وتكنولوجيا Crown Front-End DriveCore، وDSP من JBL القابل للتكوين من قبل المستخدم، وضبط V5 المتوافق مع أنظمة عرض Vertec وVTX، وخيارات التحكم عبر شبكة HiQnet من خلال تطبيقات iOS وAndroid. بالاستفادة من تاريخ JBL العريق في تكنولوجيا مكبرات الصوت وتصميمها، تلبي سلسلة SRX800 احتياجات دور الجولات، والتركيبات، وأكثر تطبيقات الصوت المباشرة تطلبًا، مما يضمن إمكانية نشر حل شامل بدون حل وسط يتميز بصوت وأداء أسطوريين من JBL، مع مجموعة واسعة من خيارات التكوين، والتوافق مع أنظمة الجولات الرائدة من JBL.



الميزات

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


مزيد من التفاصيل

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

التنزيلات

Data Sheets
  الحجم تاريخ التحميل
file type icon SRX835P Data Sheet
تم التحديث: أبريل 2019
1.86 MB أبريل 2019
Specifications
  الحجم تاريخ التحميل
file type icon SRX835P Spec Sheet
تم التحديث: أبريل 2019
708 KB أبريل 2019
Manuals
  الحجم تاريخ التحميل
file type icon SRX Connect Presets HelpGuide
تم التحديث: أكتوبر 2020
286 KB أكتوبر 2020
file type icon SRX Connect NormalView HelpGuide
تم التحديث: أكتوبر 2020
427 KB أكتوبر 2020
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon JBL 2025 PPA Brochure
en الإصدار B, تم التحديث: أغسطس 2025
en  8.45 MB أغسطس 2025
Compliances
  الحجم تاريخ التحميل
file type icon SRX800 Series Declaration of Conformity
تم التحديث: أكتوبر 2020
154 KB أكتوبر 2020
Software
  الحجم تاريخ التحميل
file type icon Software Support
تم التحديث: أبريل 2019
114 KB أبريل 2019
Android download icon SRX Connect
تاريخ الإصدار: أغسطس 2023
أغسطس 2023
Windows download icon HiQnet Audio Architect
تاريخ الإصدار: نوفمبر 2020
نوفمبر 2020
iOS download icon SRX Connect
تاريخ الإصدار: أغسطس 2023
أغسطس 2023
User Guides
  الحجم تاريخ التحميل
file type icon SRX 812P/815P/835P QuickStart Guide
تم التحديث: نوفمبر 2020
1.75 MB نوفمبر 2020
file type icon SRX800 User Guide
تم التحديث: أبريل 2019
7.41 MB أبريل 2019
Images
  الحجم تاريخ التحميل
file type icon SRX800 Driver
تم التحديث: أبريل 2019
158 KB أبريل 2019
file type icon SRX800 Handle
تم التحديث: أبريل 2019
208 KB أبريل 2019

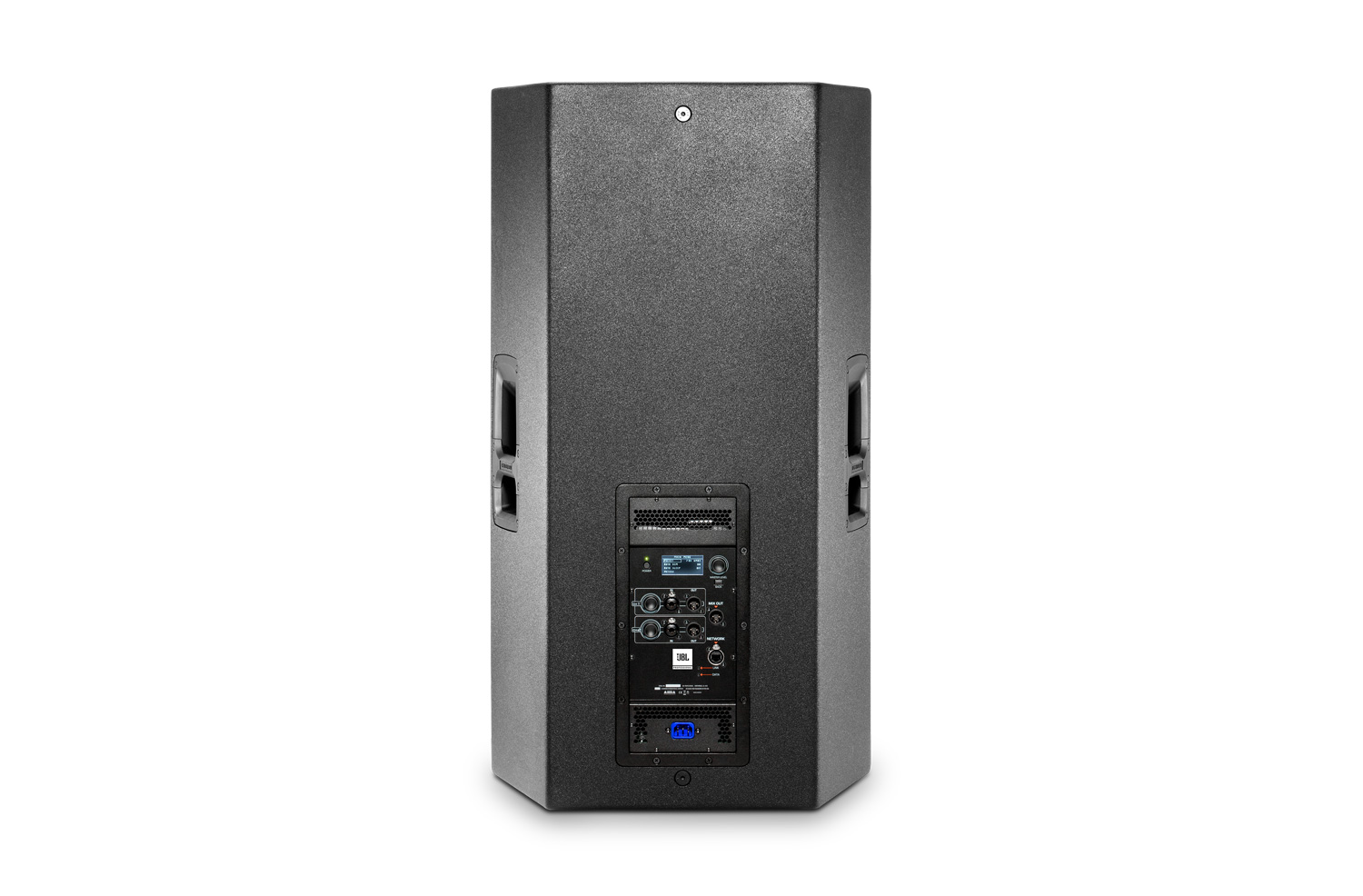

file type icon SRX835P Back
تم التحديث: أبريل 2019
182 KB أبريل 2019

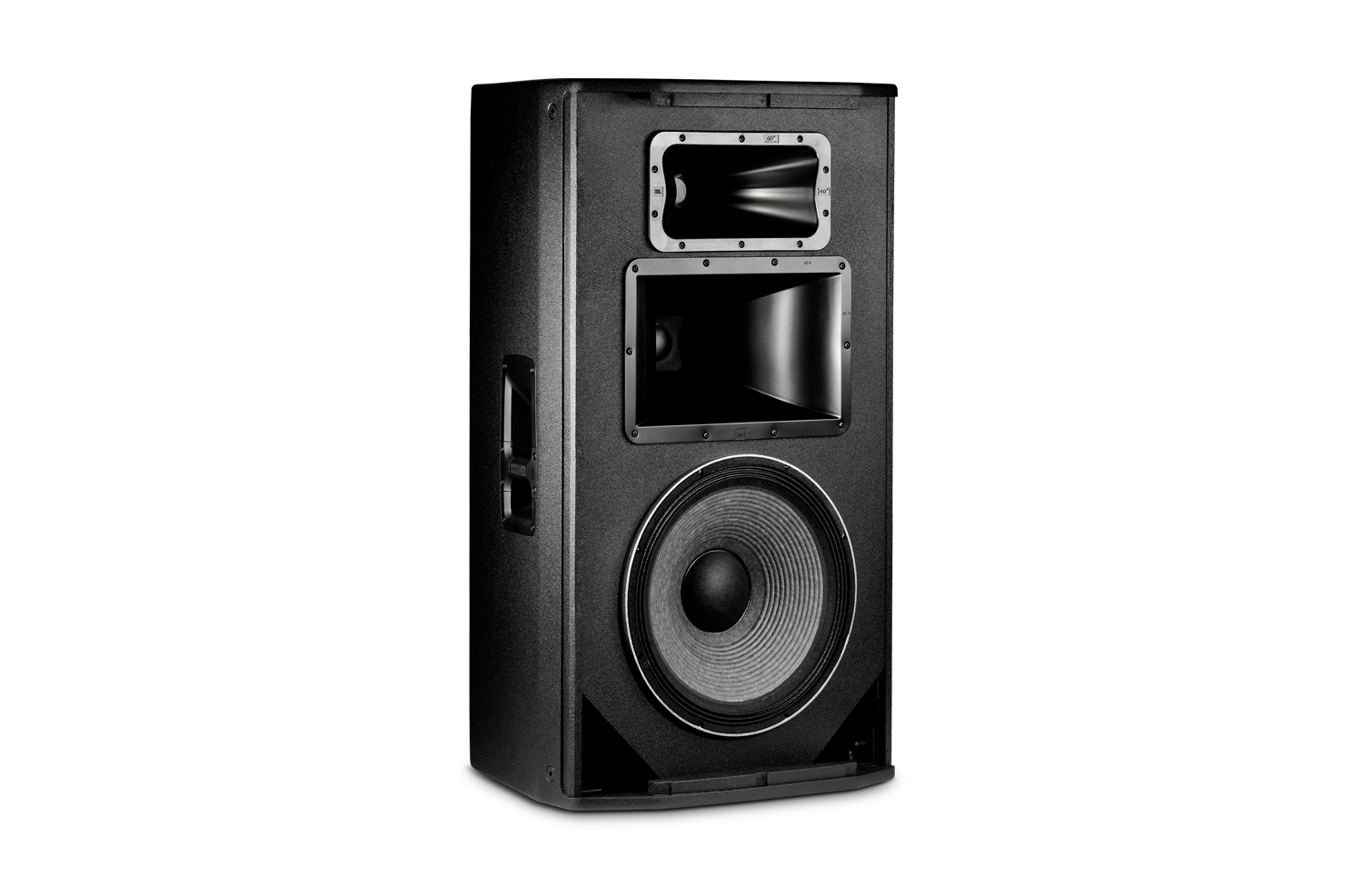

file type icon SRX835P Angle No-Grill
تم التحديث: أبريل 2019
164 KB أبريل 2019

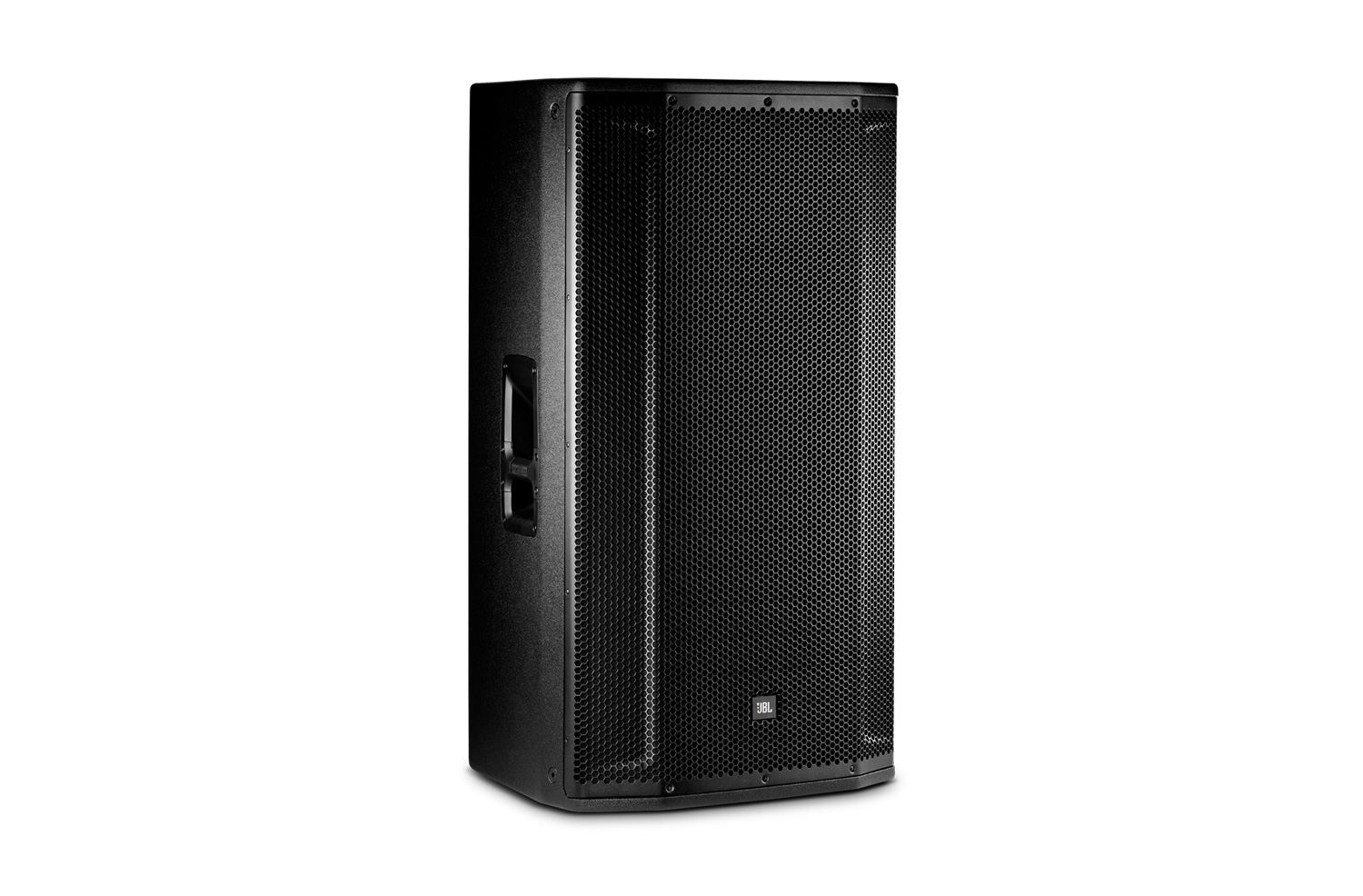

file type icon SRX835P Angle
تم التحديث: أبريل 2019
234 KB أبريل 2019

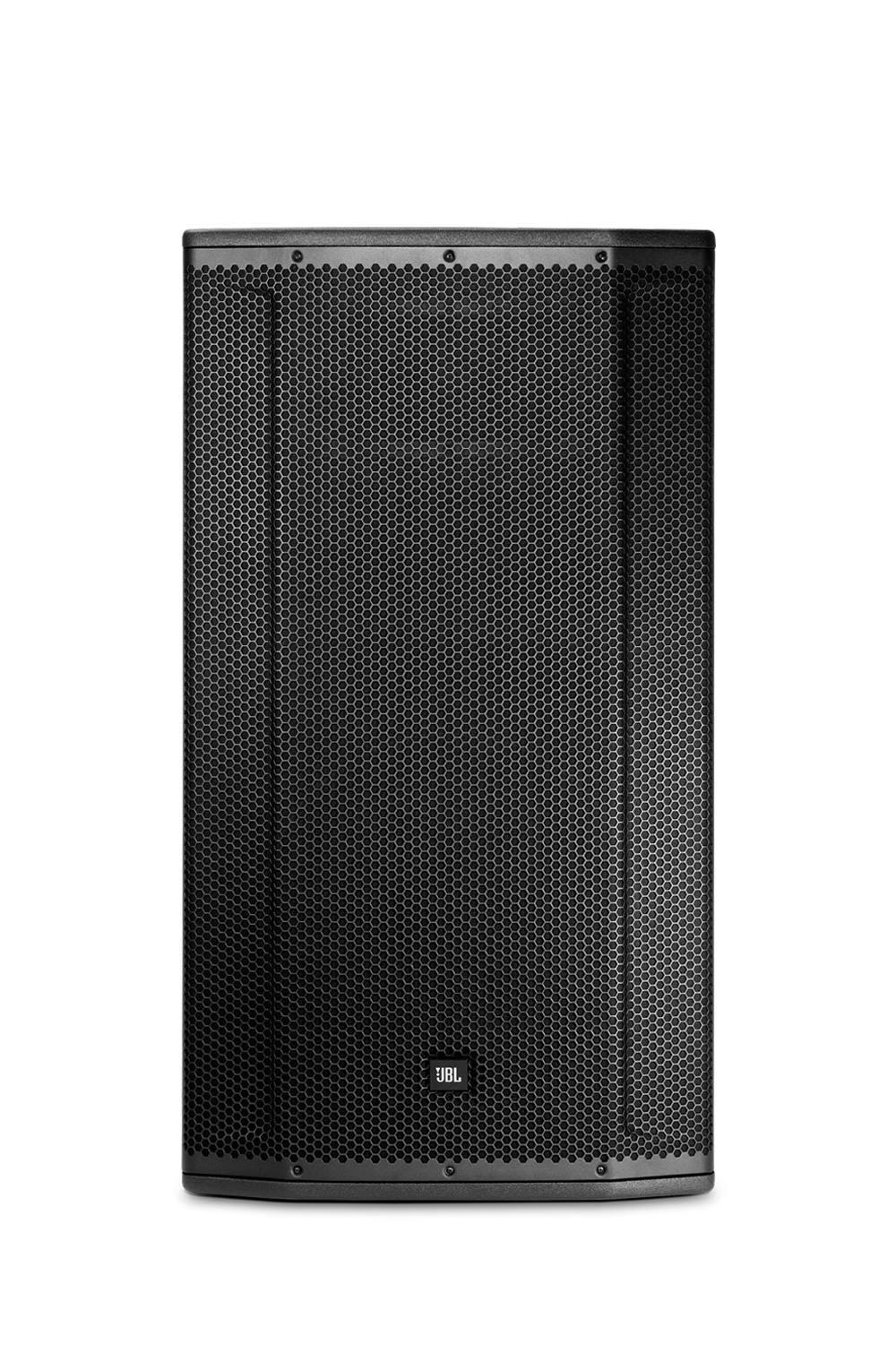

file type icon SRX835P Front
تم التحديث: أبريل 2019
401 KB أبريل 2019

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

System Type Self powered 15”, three-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10dB) 33 Hz - 21 kHz
Frequency Response (±3 dB) 41 Hz - 20 kHz
Coverage Pattern 60° x 40°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Net Weight (each) 38.6 kg (85 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
MF Driver 1 x 2107H
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Single 36 mm pole socket, 12 x M10 suspension points

الملحقات

SRX835P-CVR-DLX | Deluxe padded cover for SRX835P
SRX835P-CVR-DLX Main photo
صور أكبر
SRX835P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX835P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
