PD525S

High Output, Dual 15" Low-Frequency Subwoofer Loudspeaker

PD525S
Larger Images

High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker

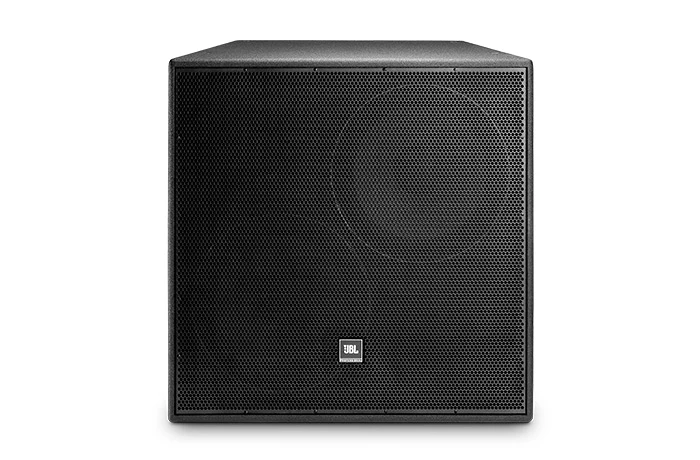

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.



Features

  • Two high power 380 mm (15 in) low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure dimensions compatible with all PD500 Series models

Applications

  • Sports Facilities
  • Performance spaces
  • Auditoriums
  • Worship facilities

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.



Downloads

  Version Language Size Uploaded
Specifications
file type icon PD525S Spec Sheet
en updated: may 2023
  en  491 KB may 2023
Manuals
file type icon PD500 Series User Guide
en version V5.0, updated: may 2023
V5.0  en  698 KB may 2023
file type icon Weather Resistant Configurations
en version A, updated: may 2023
en  86,1 KB may 2023
Brochures
file type icon PD500 Series Brochure
en version B, updated: may 2023
en  8,93 MB may 2023
CAD Drawings
file type icon PD500 Drawings DXF & PDF
updated: oct 2019
    377 KB oct 2019
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: may 2021
  en  5,71 MB may 2021
Declaration of Conformities
file type icon PD500 Series EU Declaration of Conformity
en updated: may 2023
  en  139 KB may 2023
Safety Sheets
file type icon PD500 Series EN54 Certificate
updated: oct 2020
    373 KB oct 2020
Simulation Data
file type icon PD500 Series EASE GLL Files
updated: may 2023
    606 KB may 2023
file type icon PD500 Series CLF Files
updated: may 2023
    459 KB may 2023
Preset Libraries
file type icon PD500 Series Speaker Presets
updated: may 2023
    317 KB may 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 28 Hz to 3.8kHz
Frequency Response (±3 dB) 40 Hz to 1.1kHz
Transducer Power Ratings (AES) 2000 W (8000 W peak) 2 hrs
System Power Rating 1000 W, 100 hrs
Sensitivity 102 dB (avg 40-1kHz)
Maximum SPL (1m) 135 dB cont (141 dB peak)
Input Modes Drivers Parallel/Drivers Discrete
Nominal Impedance 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete drive mode
LF Driver 2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive® drivers with 75 mm (3 in) voice coils.
Enclosure Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, acoustically transparent backing
Input Connectors CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
Nominal LF Driver Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete drive mode
Dimensions (H x W x D in vertical orientation) 782 mm x 783 mm x 670 mm
30.8 in x 30.8 in x 26.4 in
Net Weight (each)

53.4 kg (118 lb)
