JBL Professional LSR6332

Imágenes más grandes

Linear Spatial Reference Studio Monitor System

The LSR6332 incorporates a 12" Differential Drive® dual coil woofer, 5" Kevlar™ midrange speaker and 1" titanium composite tweeter. THX® pm3 Approved.

Características
- Advanced Linear Spatial Reference design ensures flatter response at the mix position.
- Differential Drive® technology with dynamic braking for extended low frequency response and low
  power compression.
- Neodymium midrange with 2" voice coil and Kevlar™ cone material for extended frequency response
  and low distortion.
- Titanium composite high frequency transducer with elliptical oblate spheroidal waveguide and damped polepiece.
- High-Density baffle for low enclosure resonance and stable inertial ground
- Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression.
- Magnetically shielded for use near video monitors.
- Reinforced enclosure and convenient mounting points allow mounted installation.
- Midrange/high frequency sub-baffle may be rotated by user for horizontal or vertical orientation.
- Available as mirror image left and right models.

Descargas

Specifications

	Tamaño	Subido
LSR6332 Spec Sheet actualizado: abr 2019	651 KB	abr 2019

Brochures

	Tamaño	Subido
LSR 6300 Brochure actualizado: oct 2020	5,89 MB	oct 2020
Recording & Broadcast Full Line Catalog actualizado: oct 2020	1,81 MB	oct 2020

Tech Notes

	Tamaño	Subido
Tech Note: The New JBL LSR6300 Series Studio Monitors actualizado: oct 2019	627 KB	oct 2019

Simulation Data

	Tamaño	Subido
Ease SPK/DLL Files - Full JBL Pro Line actualizado: may 2024	21 MB	may 2024

Helpful Links

	Tamaño	Subido
RMC White Paper actualizado: oct 2020	189 KB	oct 2020
RMC Graph Paper actualizado: oct 2020	60 KB	oct 2020

User Guides

	Tamaño	Subido
RMC User Guide actualizado: oct 2020	2,58 MB	oct 2020

Install Guides

	Tamaño	Subido
R&B Mounting Brackets actualizado: oct 2020	26,2 KB	oct 2020

Images

	Tamaño	Subido

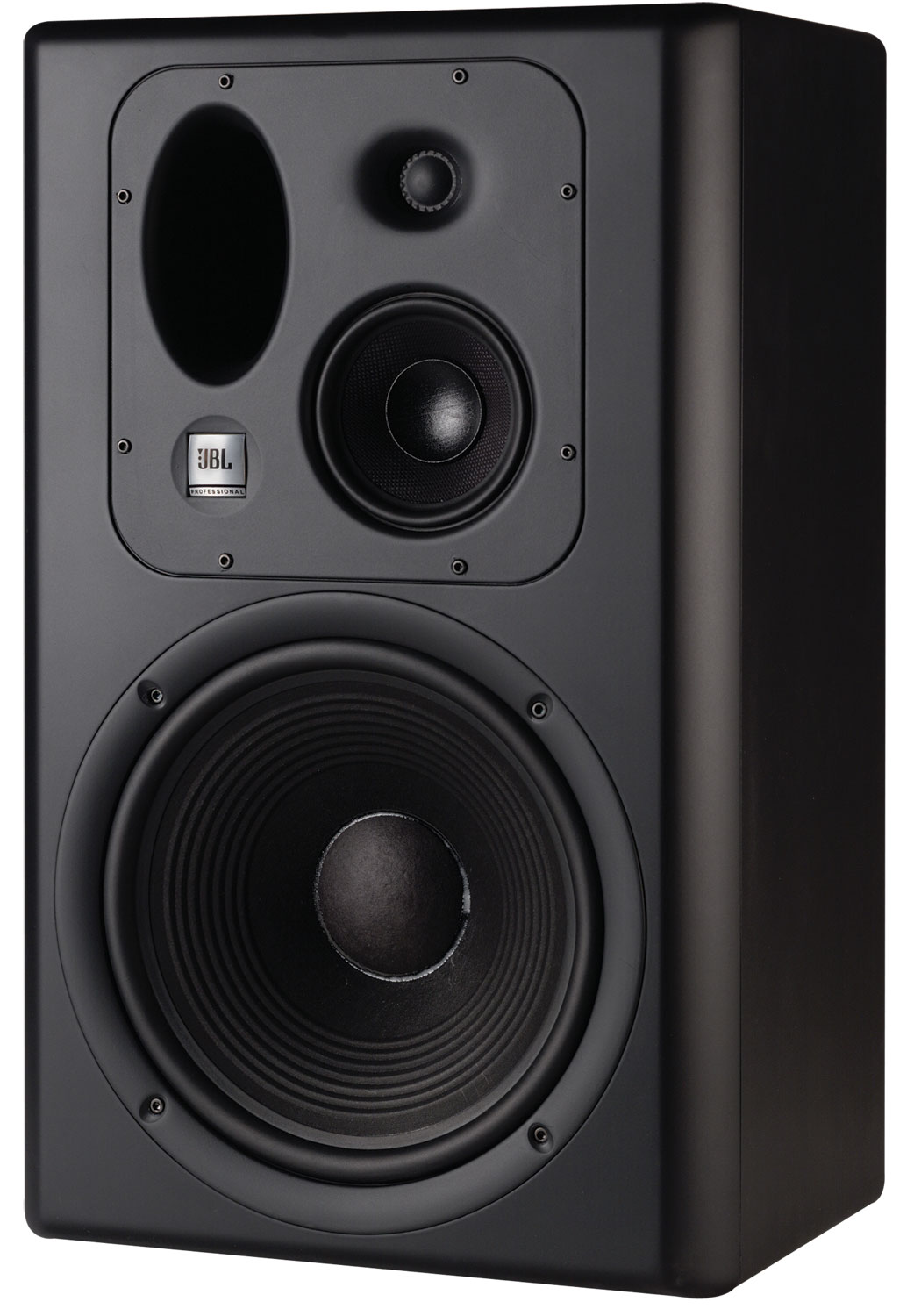

LSR6332 Left Angle actualizado: abr 2019	143 KB	abr 2019

Owner's Manuals

	Tamaño	Subido
LSR6300 Manual actualizado: oct 2020	815 KB	oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio
- Listas de piezas
- Recursos para Socios de Servicio Autorizados

Especificaciones

Input Impedance	4 ohm (Nominal)
Anechoic Sensitivity	93 dB/2.83 V/1 m (90 dB/ 1 W/ 1 m)
Respuesta de frecuencia	+1. -1.5 dB (60 Hz – 22 kHz)
Low Frequency Extension	-3 dB: 54 Hz-10 dB: 35 Hz
Enclosure Resonance Frequency	33 Hz
Long Term Maximum Power (IEC265-5)	200 W continuous average; 800 W peak
Recommended Amplifier Power	150 W - 1000 W (rating into 4-ohm load)
High Frequency Control	0 dB, -1 dB (2.5 to 20 kHz)
Distortion, 96 dB SPL, 1 m	2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (120 Hz to 20 kHz): <0.5%3rd Harmonic (120 Hz to 20 kHz): <0.4%
Distortion, 102 dB SPL, 1 m	2nd Harmonic (below 120 Hz): <1.5%3rd Harmonic (below 120 Hz): <1%2nd Harmonic (80 Hz to 20kHz): <1%3rd Harmonic (80 Hz to 20kHz): <1%(<0.4%, 250 Hz - 20 kHz)
Power Nonlinearity	30 W (20 Hz to 20 kHz): <0.4 dB100 W (20 Hz to 20 kHz): <1.0 dB
Low-Mid Frequency Crossover	4th Order Acoustic Linkwitz-Riley: 250 Hz
Mid-High Frequency Crossover	4th Order Acoustic Linkwitz-Riley: 2.2 kHz
