3733

Three-Way ScreenArray® Cinema Loudspeakers

3733
Imágenes más grandes

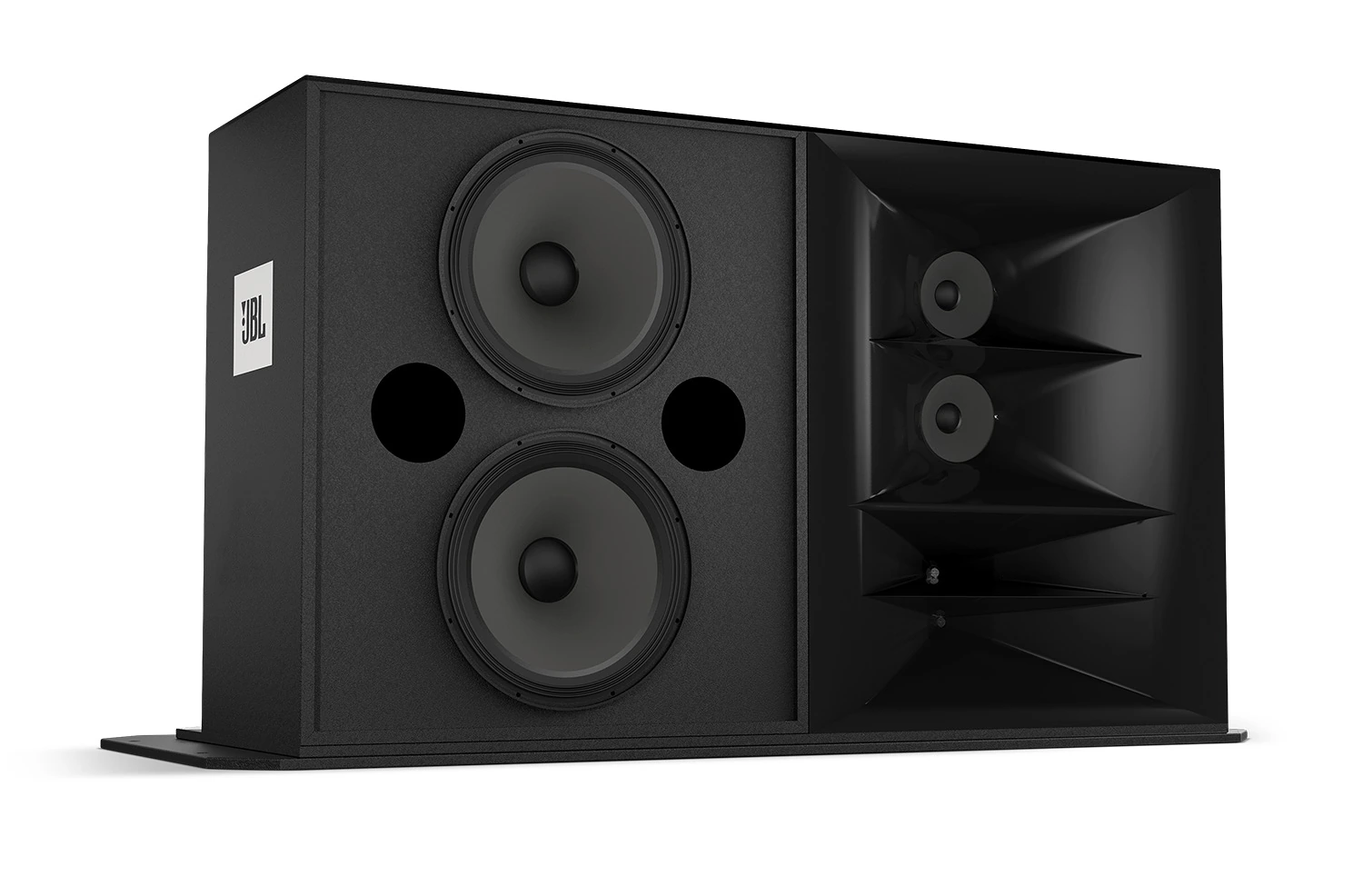

Three-Way ScreenArray® Cinema Loudspeakers

For critical sound reproduction in cinemas utilizing a solid screen. The 3733 uses the 4739 LF for increased low frequency output. The M/HF utilizes Dual Dissimilar Arraying technology to shape the coverage pattern for the optimal use. In addition the horn design improves the frequency response and lowers distortion at higher output. The 2415-XP high frequency drivers represent JBL’s latest HF compression driver, designed to achieve higher output with lower harmonic distortion.

Características

  • Three-way ScreenArray design for optimal performance for solid screen cinema.
  • 3733 is available only in bi-amp configuration
  • Design utilizes Dual Dissimilar Arraying technology to improve high frequency coverage and to shape the pattern for raked seating room design
  • The 2415-XP is JBL's next generation high-frequency compression driver
  • Advance waveguide design for improved frequency response and higher output with lower distortion
  • Used in conjunction with CRF2 reflector horns, which are used to reflect high frequency content off a solid screen
  • CRF2 includes the same HF driver as 3733 to maintain tonal quality

Descargas

Specifications
  Tamaño Subido
file type icon 3733 Spec Sheet
actualizado: oct 2020
108 KB oct 2020
CAD Drawings
  Tamaño Subido
file type icon 3733 M-HF (PDF)
actualizado: oct 2020
139 KB oct 2020
file type icon 3733 Complete Unit (PDF)
actualizado: oct 2020
150 KB oct 2020
file type icon 3733 MK (PDF)
actualizado: abr 2019
61,9 KB abr 2019
file type icon 3733 Drawings (DWG)
actualizado: abr 2019
1,33 MB abr 2019
file type icon 3733 Drawing M-HF (PDF)
actualizado: oct 2019
139 KB oct 2019
User Guides
  Tamaño Subido
373 KB abr 2019
Information documents
  Tamaño Subido
file type icon Samsung Harman Presentation
actualizado: oct 2020
9,22 MB oct 2020
Speaker Tunings
  Tamaño Subido
file type icon 3733 Presets
actualizado: oct 2020
5,9 KB oct 2020
Ease Data
  Tamaño Subido
file type icon 3733 EASE Data
actualizado: oct 2020
3,1 MB oct 2020

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

RESPUESTA DE FRECUENCIA (±3 dB) 40Hz - 19kHz
Frequency Range (-10dB) 30Hz - 20kHz
System Input Power Rating LF 800 watts, M/HF 300 watts
Horizontal Coverage Angle (-6dB) 100 degrees
Vertical Coverage Angle (-6dB) Asymetrical with Dual Dissimilar Arraying
PESO NETO 71.8 kg (158 lb)
Shipping Weight 86.7 kg (191 lb) Dimension (H x W x D) 1000 mm x 1648 mm
Dimensions (H x W x D) 1000 mm x 1648 mm x 450 mm (39.37 in x 64.88 in x 17.75 in)
Sensitivity 104dB @ 2.83V
Impedancia nominal 12Ω
Power Handling (2Hr AES Rating) 800W
Power Handling (100Hr AES Rating) 150 W
Net Weight (each) 158 lbs (71.8 kg)
