3733

Pengeras Suara Sinematik ScreenArray® Tiga Arah

3733
Gambar Lebih Besar

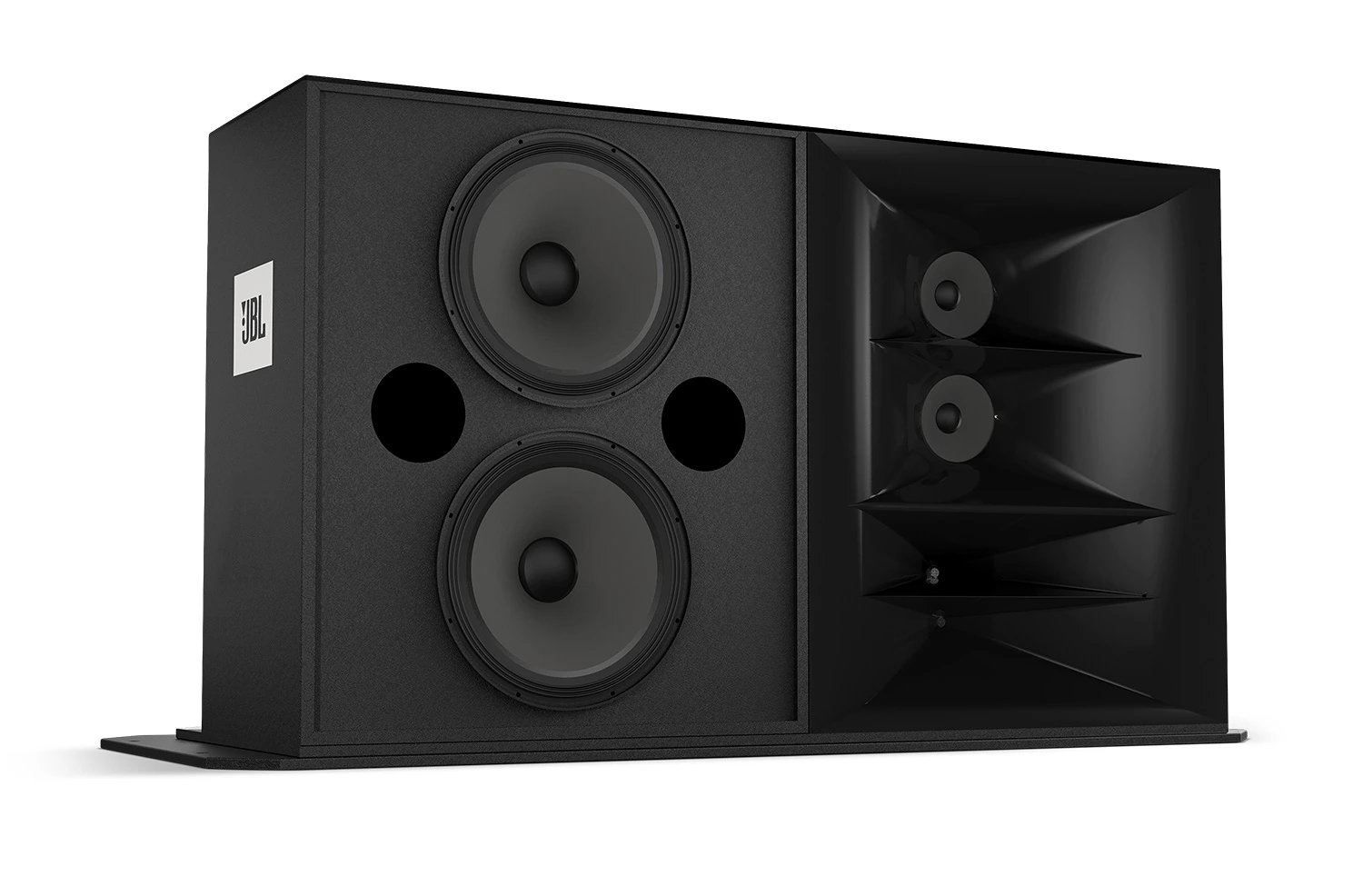

Three-Way ScreenArray® Cinema Loudspeakers

For critical sound reproduction in cinemas utilizing a solid screen. The 3733 uses the 4739 LF for increased low frequency output. The M/HF utilizes Dual Dissimilar Arraying technology to shape the coverage pattern for the optimal use. In addition the horn design improves the frequency response and lowers distortion at higher output. The 2415-XP high frequency drivers represent JBL’s latest HF compression driver, designed to achieve higher output with lower harmonic distortion.

Fitur

  • Three-way ScreenArray design for optimal performance for solid screen cinema.
  • 3733 is available only in bi-amp configuration
  • Design utilizes Dual Dissimilar Arraying technology to improve high frequency coverage and to shape the pattern for raked seating room design
  • The 2415-XP is JBL's next generation high-frequency compression driver
  • Advance waveguide design for improved frequency response and higher output with lower distortion
  • Used in conjunction with CRF2 reflector horns, which are used to reflect high frequency content off a solid screen
  • CRF2 includes the same HF driver as 3733 to maintain tonal quality

Unduhan

Specifications
  Ukuran Diunggah
file type icon 3733 Spec Sheet
diperbarui: Okt 2020
108 KB Okt 2020
CAD Drawings
  Ukuran Diunggah
file type icon 3733 M-HF (PDF)
diperbarui: Okt 2020
139 KB Okt 2020
file type icon 3733 Complete Unit (PDF)
diperbarui: Okt 2020
150 KB Okt 2020
file type icon 3733 MK (PDF)
diperbarui: Apr 2019
61,9 KB Apr 2019
file type icon 3733 Drawings (DWG)
diperbarui: Apr 2019
1,33 MB Apr 2019
file type icon 3733 Drawing M-HF (PDF)
diperbarui: Okt 2019
139 KB Okt 2019
User Guides
  Ukuran Diunggah
373 KB Apr 2019
Information documents
  Ukuran Diunggah
file type icon Samsung Harman Presentation
diperbarui: Okt 2020
9,22 MB Okt 2020
Speaker Tunings
  Ukuran Diunggah
file type icon 3733 Presets
diperbarui: Okt 2020
5,9 KB Okt 2020
Ease Data
  Ukuran Diunggah
file type icon 3733 EASE Data
diperbarui: Okt 2020
3,1 MB Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Response (±3 dB) 40Hz - 19kHz
Frequency Range (-10dB) 30Hz - 20kHz
System Input Power Rating LF 800 watts, M/HF 300 watts
Horizontal Coverage Angle (-6dB) 100 degrees
Vertical Coverage Angle (-6dB) Asymetrical with Dual Dissimilar Arraying
Net Weight 71.8 kg (158 lb)
Shipping Weight 86.7 kg (191 lb) Dimension (H x W x D) 1000 mm x 1648 mm
Dimensions (H x W x D) 1000 mm x 1648 mm x 450 mm (39.37 in x 64.88 in x 17.75 in)
Sensitivity 104dB @ 2.83V
Nominal Impedance 12Ω
Power Handling (2Hr AES Rating) 800W
Power Handling (100Hr AES Rating) 150 W
Net Weight (each) 158 lbs (71.8 kg)
