SRX835

15-inch 3-Way Point-Source Passive Speaker

SRX835
Larger Images

15-inch 3-Way Point-Source Passive Speaker

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Features

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Technology

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Downloads

Specifications
  Version Size Uploaded
file type icon SRX835 Spec Sheet
version 11_11_19, updated: Dec 2019
11_11_19  661 KB Dec 2019
Brochures
  Version Language Size Uploaded
file type icon JBL 2025 PPA Brochure
en version B, updated: Aug 2025
en  8.45 MB Aug 2025
Compliances
  Size Uploaded
139 KB Oct 2020
Software
  Size Uploaded
Android download icon SRX Connect
released: Aug 2023
Aug 2023
Windows download icon HiQnet Audio Architect
released: Nov 2020
Nov 2020
iOS download icon SRX Connect
released: Aug 2023
Aug 2023
Images
  Size Uploaded

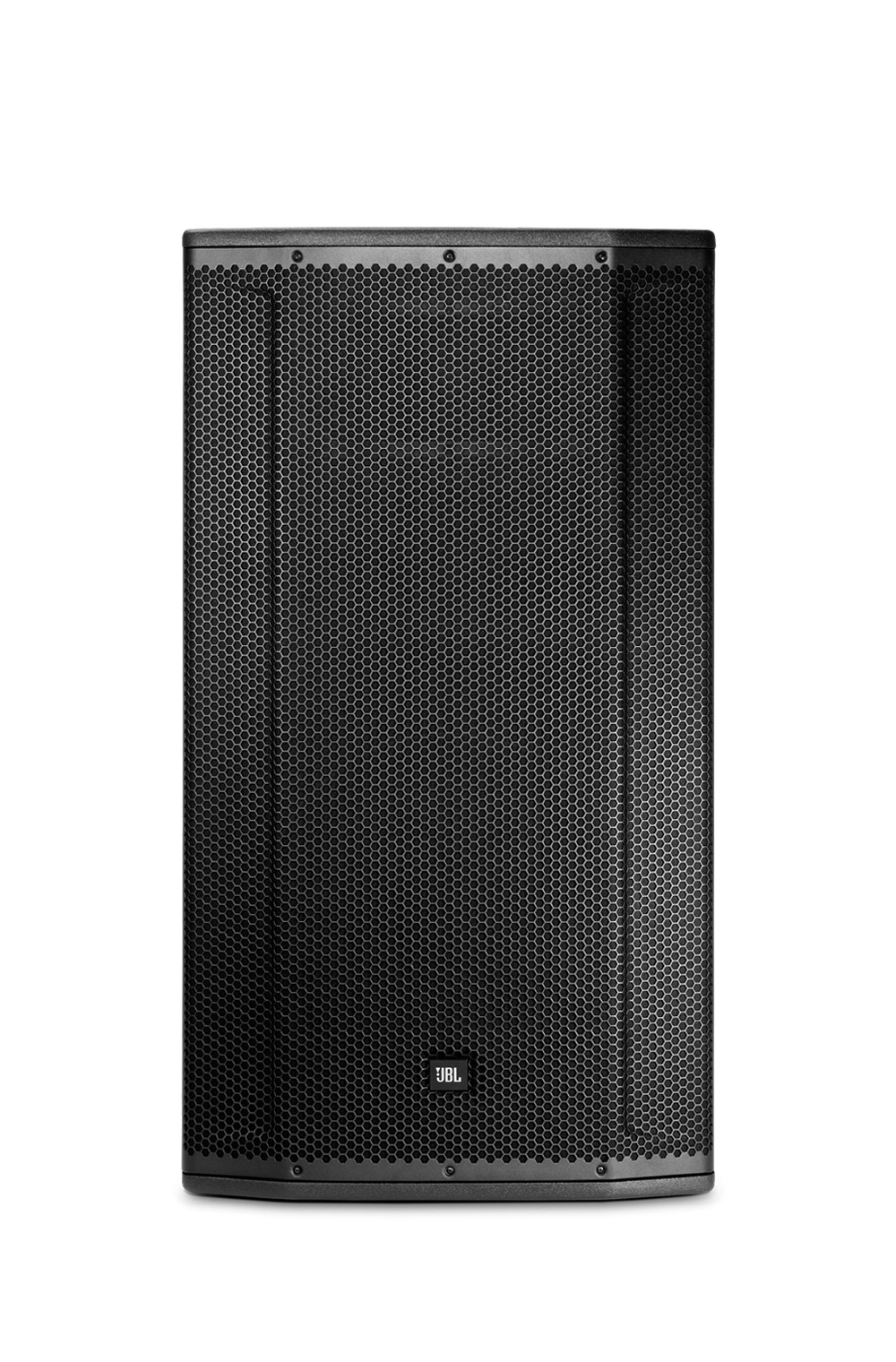

file type icon SRX835 Front
updated: Jul 2019
401 KB Jul 2019
file type icon SRX800 Driver
updated: Apr 2019
158 KB Apr 2019
file type icon SRX800 Handle
updated: Apr 2019
208 KB Apr 2019

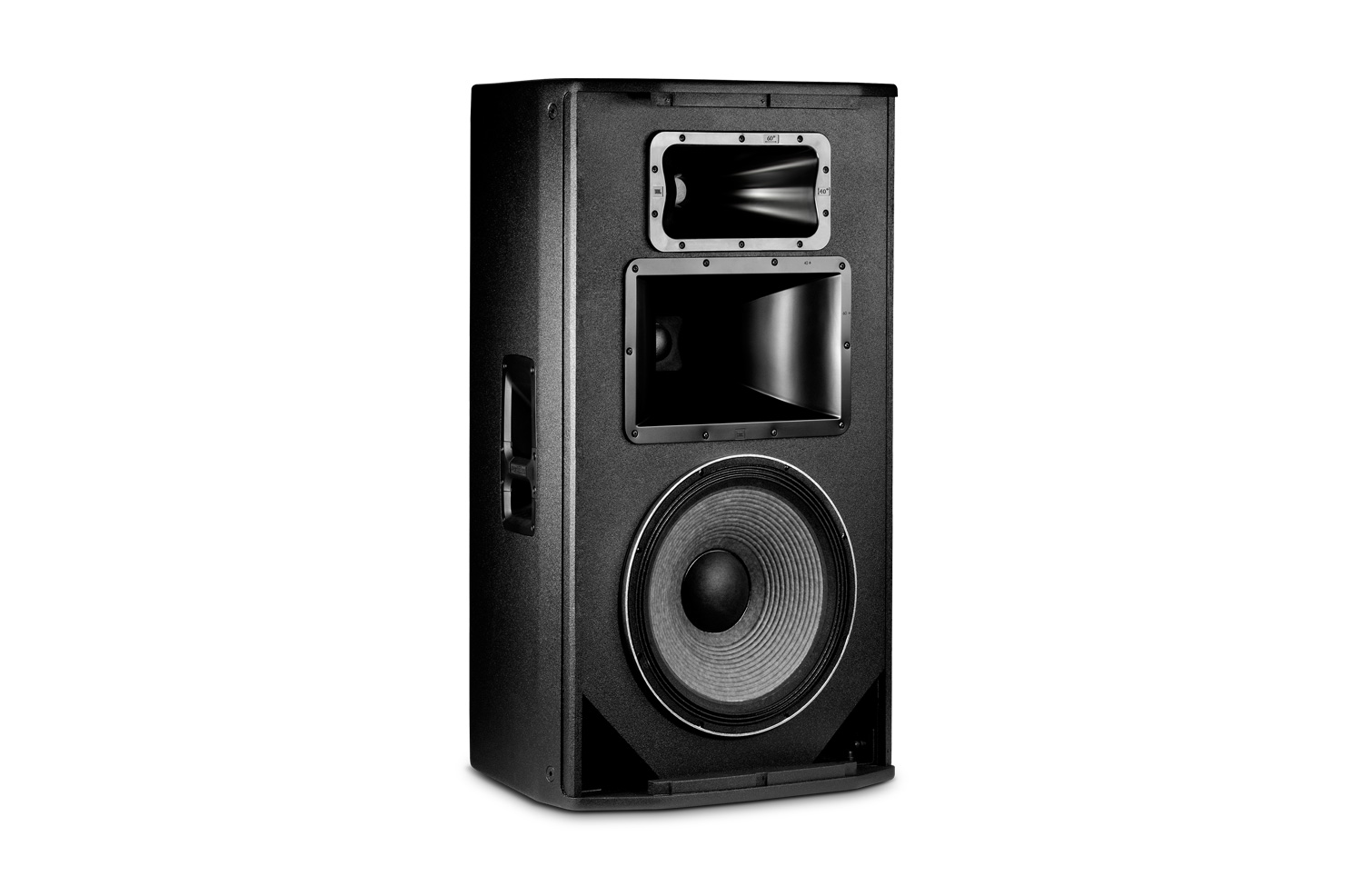

file type icon SRX835 Angle No-Grill
updated: Jul 2019
164 KB Jul 2019

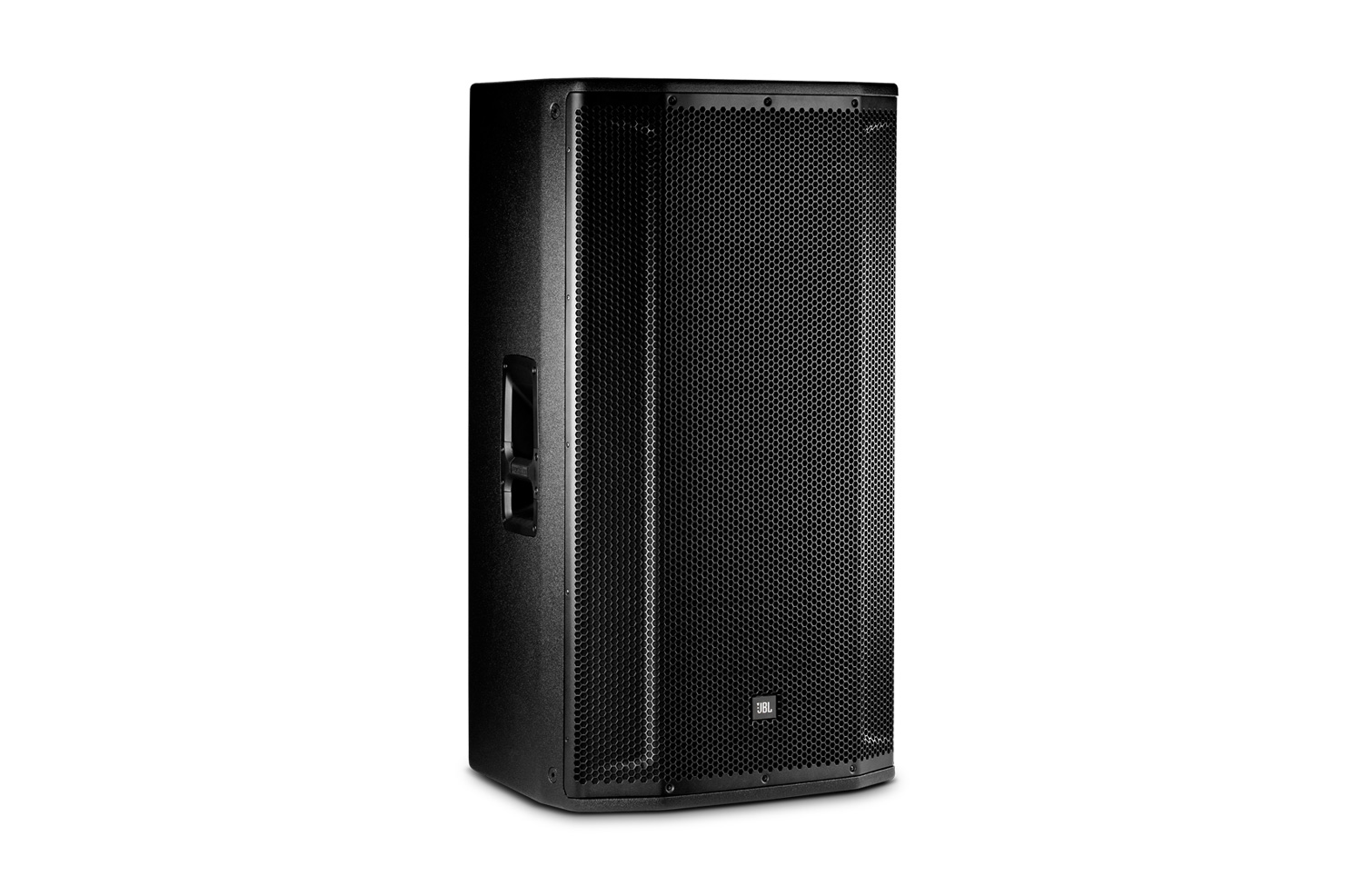

file type icon SRX835 Angle
updated: Jul 2019
234 KB Jul 2019
Speaker Tunings
  Size Uploaded
23.7 KB Oct 2020
41.3 KB Oct 2020
7.79 KB Oct 2020
7.75 KB Oct 2020
file type icon SRX835 Biamp.XTi2
updated: Oct 2020
1 KB Oct 2020
14.1 KB Oct 2020
2.69 MB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

System Type Passive 15”, three-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 32hz - 20khz
Frequency Response (-3 dB) 43Hz - 20Hz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275F
MF Driver 2107H
HF Driver 2432H
Coverage Pattern 60 x 40
Crossover Frequency 330hz & 2.4khz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Weight 95.0 lbs (43.1kg)
