SRX835

15-inch 3-Way Point-Source Passive Speaker

Gambar Lebih Besar

15-inch 3-Way Point-Source Passive Speaker

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Fitur

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Keterangan Lebih Lanjut

DESAIN YANG BERTUJUAN

Setiap detail dalam Seri SRX800 dirancang dengan sengaja dan dipikirkan dengan matang dengan mempertimbangkan sepenuhnya penggunaan yang dimaksudkan. Pegangan yang dirancang secara ergonomis mendukung genggaman yang mudah dan tidak melelahkan untuk penanganan yang lancar. Titik suspensi M10, kaki yang terindeks, dan pemasangan tiang/tripod mendukung berbagai konfigurasi yang luas dan fleksibel.

TEKNOLOGI TRANSDUSER

Driver ferrit Teknologi Differential Drive® bermerek paten JBL menggabungkan kumparan suara 3" dengan magnet ferrit bermassa rendah untuk mengurangi berat, meningkatkan penanganan daya, distorsi yang luar biasa rendah dan respons frekuensi rendah yang diperpanjang. JBL 2432H adalah satu-satunya driver kompresi kumparan suara 3" neodimium di kelasnya, memberikan tingkat daya yang sangat tinggi dan suara yang halus dan jernih.

Unduhan

Specifications
  Versi Ukuran Diunggah
file type icon SRX835 Spec Sheet
versi 11_11_19, diperbarui: Des 2019
11_11_19  661 KB Des 2019
Brochures
  Versi Bahasa Ukuran Diunggah
file type icon JBL 2025 PPA Brochure
en versi B, diperbarui: Agu 2025
en  8,45 MB Agu 2025
Compliances
  Ukuran Diunggah
file type icon SRX800 Passive Series Compliance
diperbarui: Okt 2020
139 KB Okt 2020
Software
  Ukuran Diunggah
Android download icon SRX Connect
dirilis: Agu 2023
Agu 2023
Windows download icon HiQnet Audio Architect
dirilis: Nov 2020
Nov 2020
iOS download icon SRX Connect
dirilis: Agu 2023
Agu 2023
Images
  Ukuran Diunggah

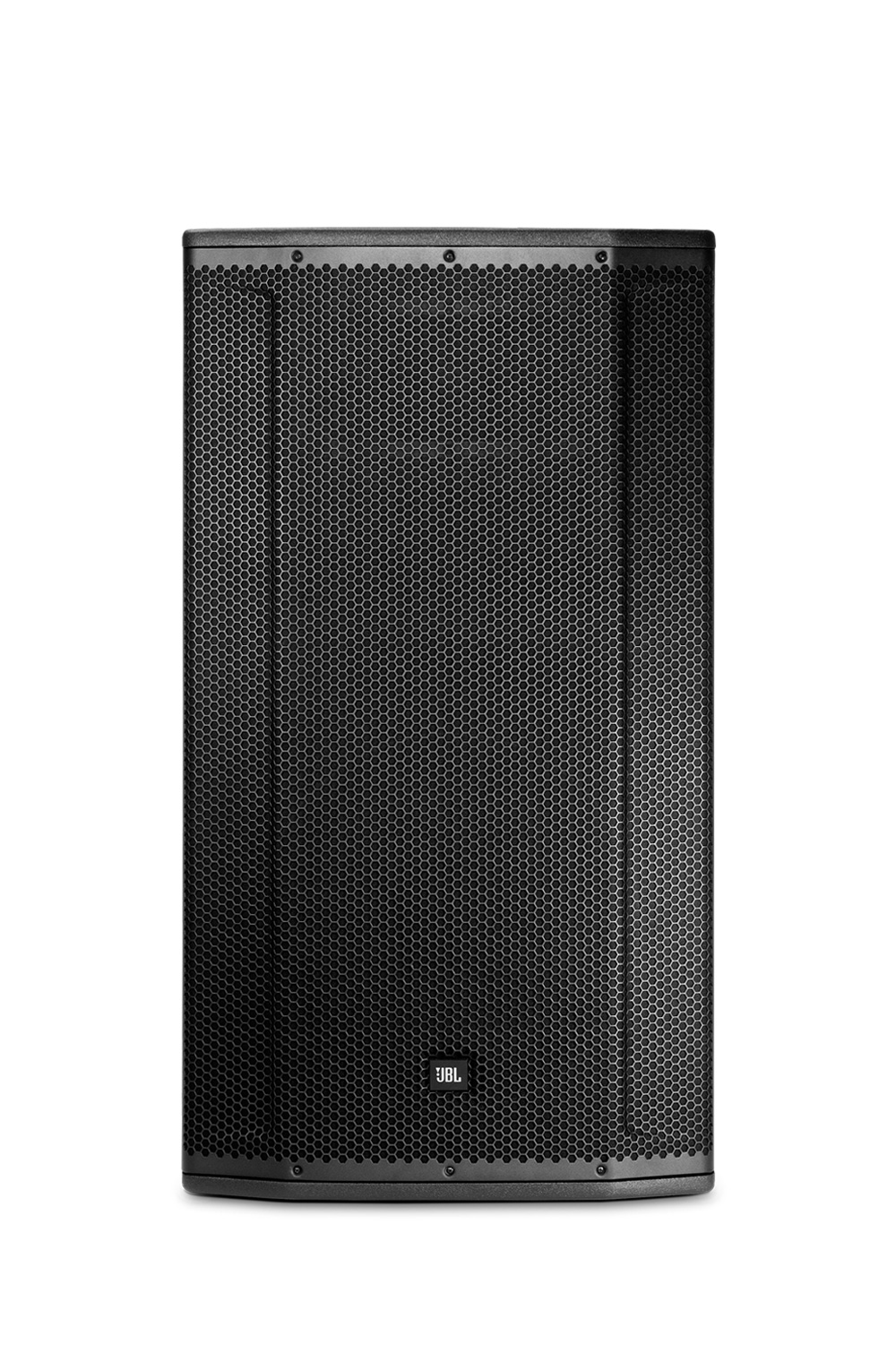

file type icon SRX835 Front
diperbarui: Jul 2019
401 KB Jul 2019
file type icon SRX800 Driver
diperbarui: Apr 2019
158 KB Apr 2019
file type icon SRX800 Handle
diperbarui: Apr 2019
208 KB Apr 2019

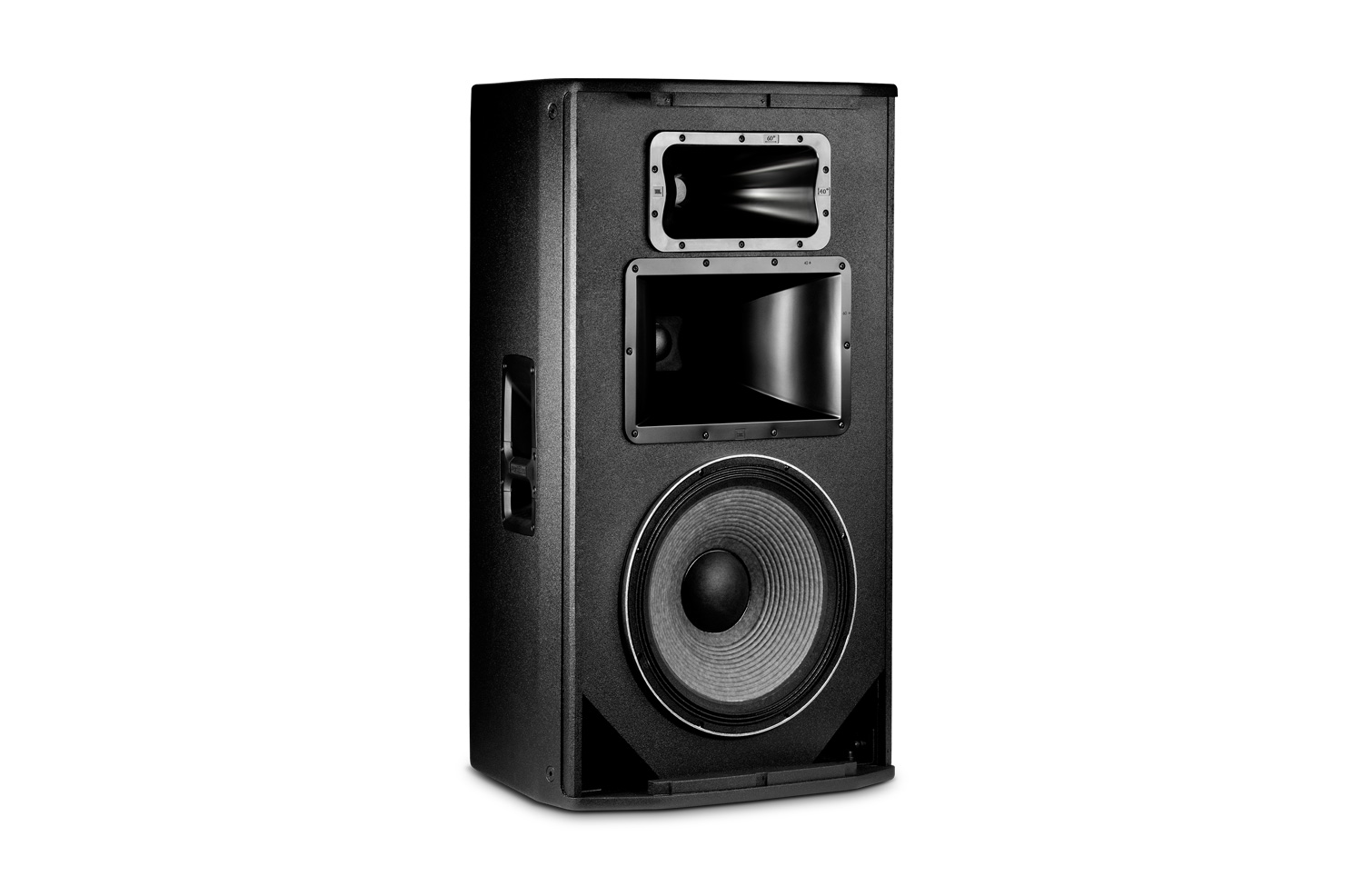

file type icon SRX835 Angle No-Grill
diperbarui: Jul 2019
164 KB Jul 2019

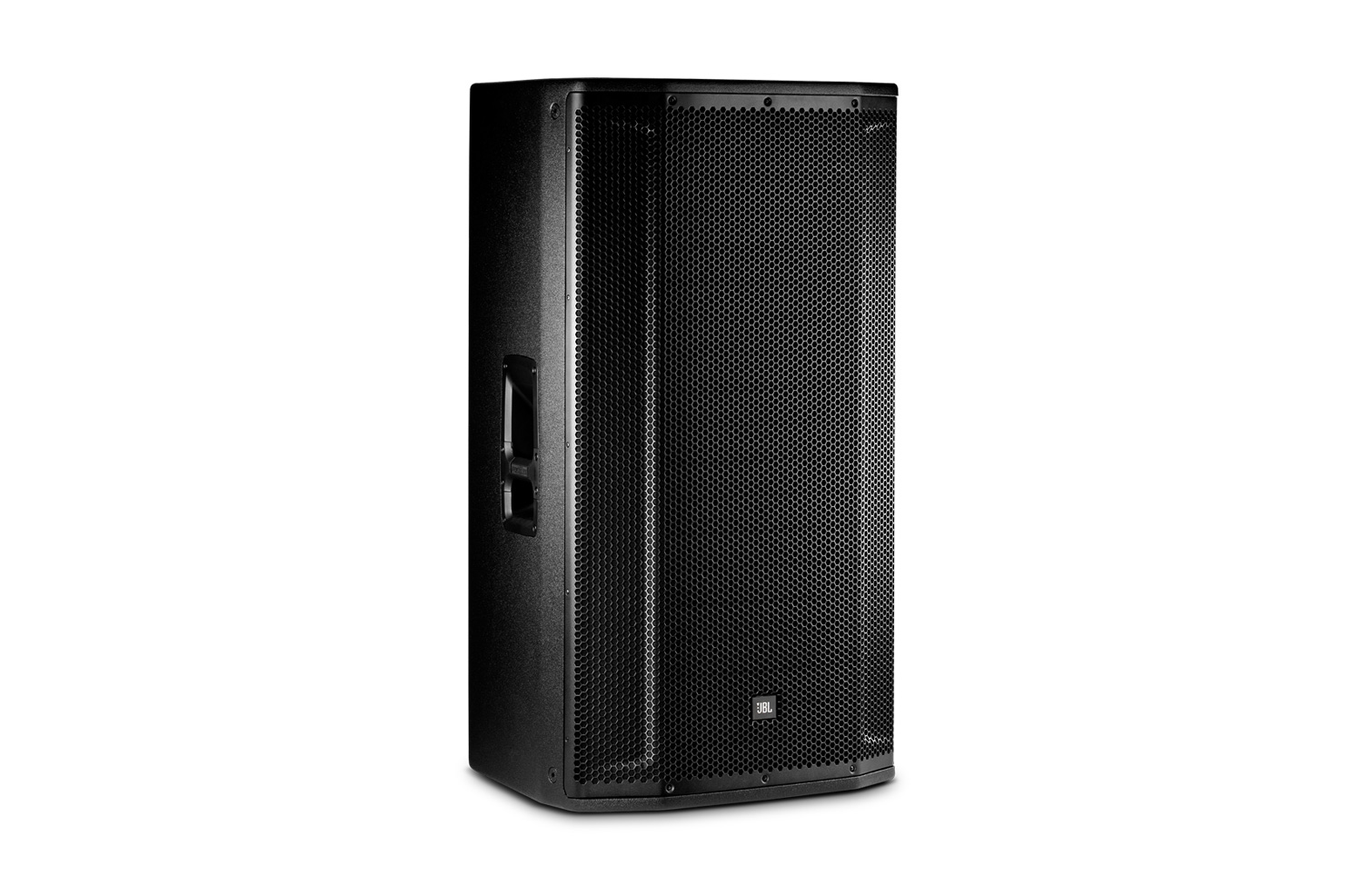

file type icon SRX835 Angle
diperbarui: Jul 2019
234 KB Jul 2019
Speaker Tunings
  Ukuran Diunggah
file type icon SRX800 Passive I-Tech HD Tunings
diperbarui: Okt 2020
23,7 KB Okt 2020
41,3 KB Okt 2020
7,79 KB Okt 2020
7,75 KB Okt 2020
file type icon SRX835 Biamp.XTi2
diperbarui: Okt 2020
1 KB Okt 2020
file type icon SRX835 Biamp Tunings.DCi Series
diperbarui: Okt 2020
14,1 KB Okt 2020
file type icon SRX Passive Bi-amp tunings Table
diperbarui: Okt 2020
2,69 MB Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

System Type Passive 15”, three-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 32hz - 20khz
Frequency Response (-3 dB) 43Hz - 20Hz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver JBL 2275F
MF Driver JBL 2107H
HF Driver JBL 2432H
Coverage Pattern 60 x 40
Crossover Frequency 330hz & 2.4khz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Weight 95.0 lbs (43.1kg)

Aksesori

SRX835P-CVR-DLX | Deluxe padded cover for SRX835P
SRX835P-CVR-DLX Main photo
Gambar Lebih Besar
SRX835P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX835P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Gambar Lebih Besar
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

Dokumentasi
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Gambar Lebih Besar
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm

Dokumentasi
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Gambar Lebih Besar
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

Dokumentasi
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Gambar Lebih Besar
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900

Dokumentasi
