PRX825
Discontinued

Dual 15” Two-Way Full-Range Main System with Wi-Fi

PRX825
Larger Images

Dual 15” Two-Way Full-Range Main System with Wi-Fi

The JBL PRX825 is a full-range speaker designed for main system applications. Featuring a dual 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX825 delivers incredible volume in a lightweight and compact form factor.



Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Digital limiters and filters including crossover, component optimization, and tunings
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Integrated 12 x M10 Suspension Points
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • The PRX825 is a two-way sound reinforcement loudspeaker with dual 15” woofers handling the low end. Because of the second 15” woofer, the PRX825 is an ideal solution when space for set-up or transport is limited, but low frequency performance is vital to the success of a gig. On top of this, coupling the system with a subwoofer creates a very high volume sound reinforcement solution, perfect for regional tour companies and AV Rental companies looking for a scalable, easy to deploy audio solution. Although the PRX825 can be paired with any subwoofer, the crossover matching with the PRX815XLF or PRX818XLF will deliver optimized frequency response down to the bottom of the sonic range.
  • For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.
  • The PRX825 features remote Wi-Fi control of onboard DSP EQ parameters. The PRX825 is capable of delivering a very high level of performance over a wide bandwidth. The PRX825 is comprised of two 380 mm (15 in) 275 Differential Drive® woofers, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, powering component protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization. Additionally, the app allows users to control 8 PEQs, 50ms of delay, gain staging, and other options to optimize the performance of their system.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.


Downloads

Data Sheets
  Version Size Uploaded
file type icon PRX825 Sell Sheet
updated: Oct 2020
  740 KB Oct 2020
file type icon PRX825 Spec Sheet
version 2, updated: Oct 2020
2  2.27 MB Oct 2020
Manuals
  Size Uploaded
file type icon PRX800 Quick Start Guide
updated: Oct 2020
1.3 MB Oct 2020
Compliances
  Size Uploaded
file type icon PRX800 Compliance
updated: Oct 2020
143 KB Oct 2020
Software
  Size Uploaded
iOS download icon PRX Connect - iOS
released: Dec 2023
Dec 2023
Android download icon PRX Connect - Android
released: Nov 2020
Nov 2020
User Guides
  Size Uploaded
file type icon PRX800 User Guide
updated: Oct 2020
1.79 MB Oct 2020
Hi Res Images
  Size Uploaded

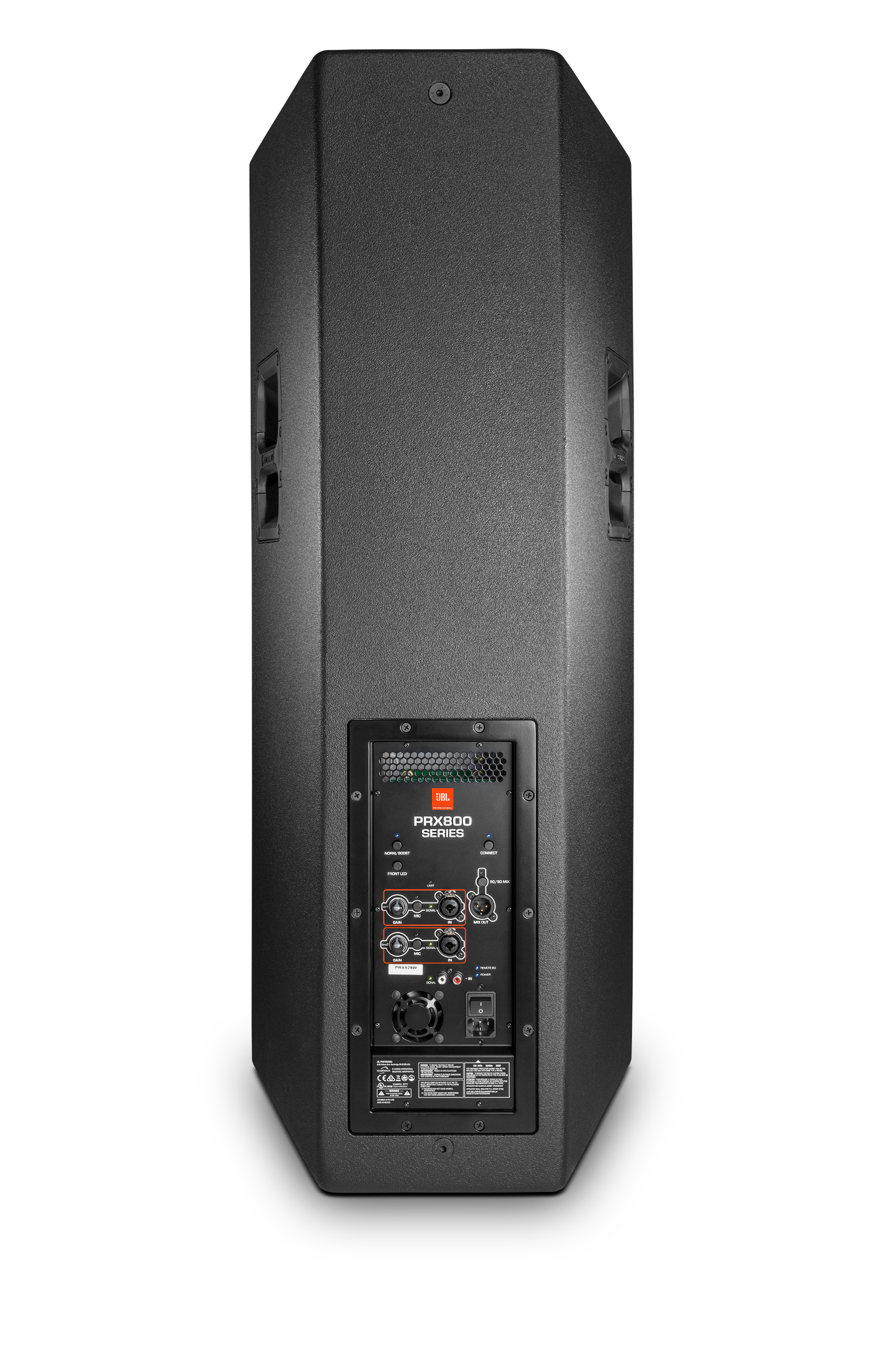

file type icon PRX825 Back
updated: Oct 2020
1.87 MB Oct 2020

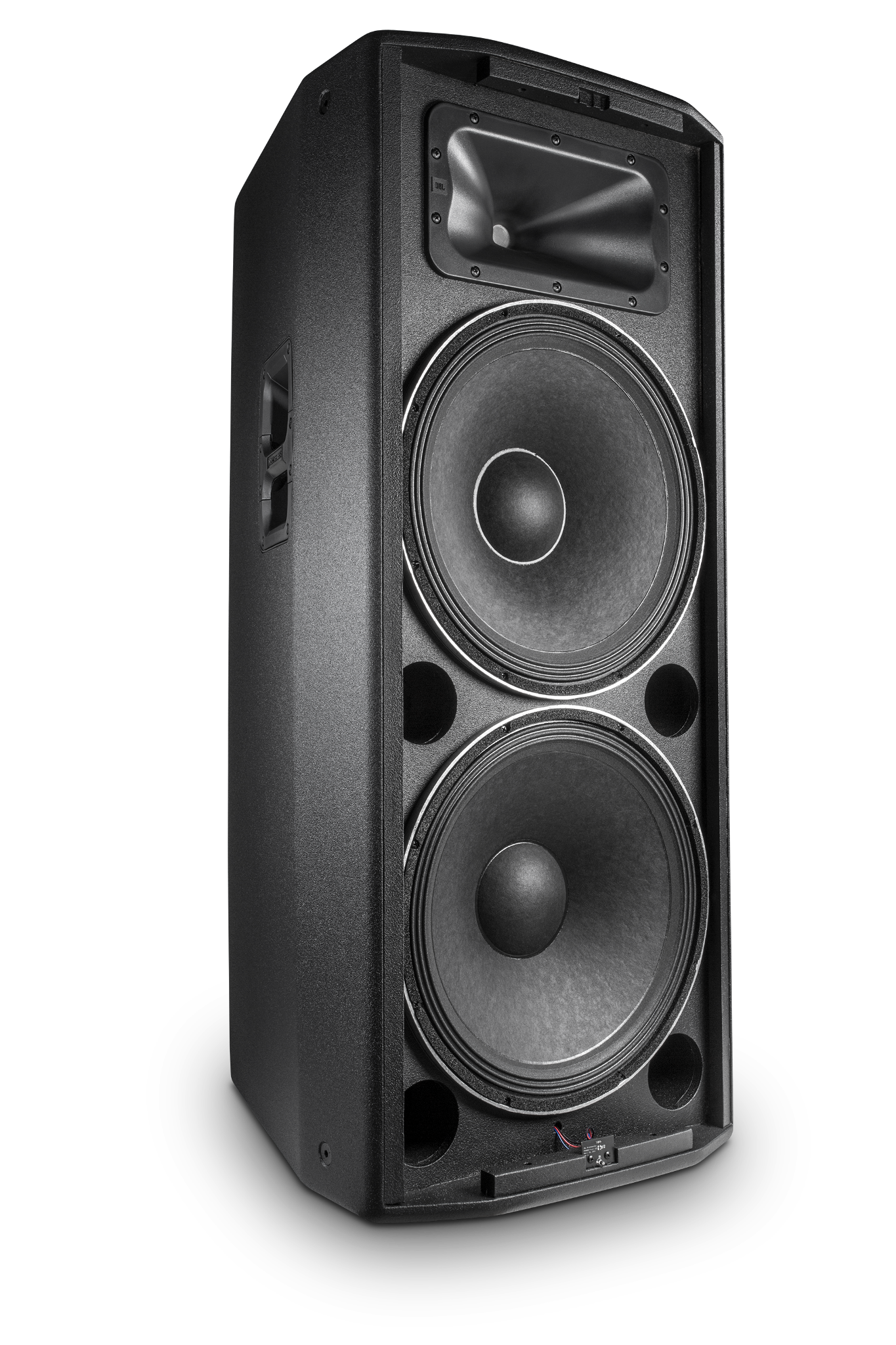

file type icon PRX825 Front No Grille
updated: Oct 2020
2.63 MB Oct 2020
file type icon PRX825 Front
updated: Oct 2020
6.26 MB Oct 2020
Install Guides
  Size Uploaded
file type icon PRX800 WiFi Setup Guide
updated: Oct 2020
445 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

System Type Self Powered Dual 15”, two-way, bass-reflex
Maximum SPL Output 138 dB peak
Frequency Range (-10dB) Normal: 42 Hz – 18.5 kHz Boost: 40 Hz – 18.5 kHz
Frequency Response (±3 dB) Normal: 49 Hz – 17 kHz Boost: 46 Hz – 17 kHz
Inputs 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 2.4 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 2 x JBL 275 (15 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.4 dB
Directivity Factor (Q) 11
Enclosure Trapezoidal, 18 mm, Duraflex coated plywood
Suspension / Mounting 8 x M10 Suspension Points, 1 x M10 pull back point
Transport 2x integrated handles with injection molded backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 1061mm x 446mm x 539mm (41.8in x 17.5in x 21.2in)
Net Weight 35.83 kg (79.0 lb)
Gross Weight 43.0 kg (95.0 lb)
Mic Inputs 2
Phantom Power No
Effects 25 parametric EQ's and speaker delay
Outputs 1 x XLR (mix out)

Accessories

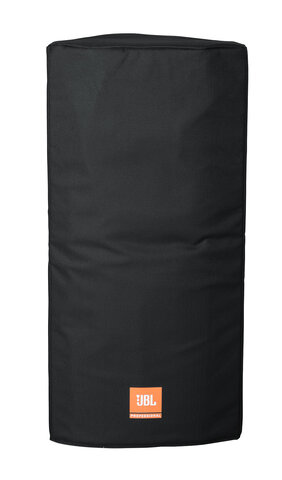

PRX825W-CVR | Deluxe Padded Protective Cover for PRX825W or PRX725
