PRX825

Dual 15” Two-Way Full-Range Main System with Wi-Fi

添加到购物车
PRX825
较大的图像

Dual 15” Two-Way Full-Range Main System with Wi-Fi

The JBL PRX825 is a full-range speaker designed for main system applications. Featuring a dual 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX825 delivers incredible volume in a lightweight and compact form factor.



特点

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Digital limiters and filters including crossover, component optimization, and tunings
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Integrated 12 x M10 Suspension Points
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • The PRX825 is a two-way sound reinforcement loudspeaker with dual 15” woofers handling the low end. Because of the second 15” woofer, the PRX825 is an ideal solution when space for set-up or transport is limited, but low frequency performance is vital to the success of a gig. On top of this, coupling the system with a subwoofer creates a very high volume sound reinforcement solution, perfect for regional tour companies and AV Rental companies looking for a scalable, easy to deploy audio solution. Although the PRX825 can be paired with any subwoofer, the crossover matching with the PRX815XLF or PRX818XLF will deliver optimized frequency response down to the bottom of the sonic range.
  • For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.
  • The PRX825 features remote Wi-Fi control of onboard DSP EQ parameters. The PRX825 is capable of delivering a very high level of performance over a wide bandwidth. The PRX825 is comprised of two 380 mm (15 in) 275 Differential Drive® woofers, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, powering component protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization. Additionally, the app allows users to control 8 PEQs, 50ms of delay, gain staging, and other options to optimize the performance of their system.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.


下载

  Version Language Size Uploaded
Data Sheets
file type icon PRX825 Sell Sheet
updated: 10月 2020
    740.3 KB 10月 2020
file type icon PRX825 Spec Sheet
version 2, updated: 10月 2020
2    2.3 MB 10月 2020
Manuals
file type icon PRX800 Quick Start Guide
updated: 10月 2020
    1.3 MB 10月 2020
Compliances
file type icon PRX800 Compliance
updated: 10月 2020
    143.4 KB 10月 2020
Software
platform icon PRX Connect - iOS
updated: 11月 2020
    11月 2020
platform icon PRX Connect - Android
updated: 11月 2020
    11月 2020
User Guides
file type icon PRX800 User Guide
updated: 10月 2020
    1.8 MB 10月 2020
HI-RES IMAGEs

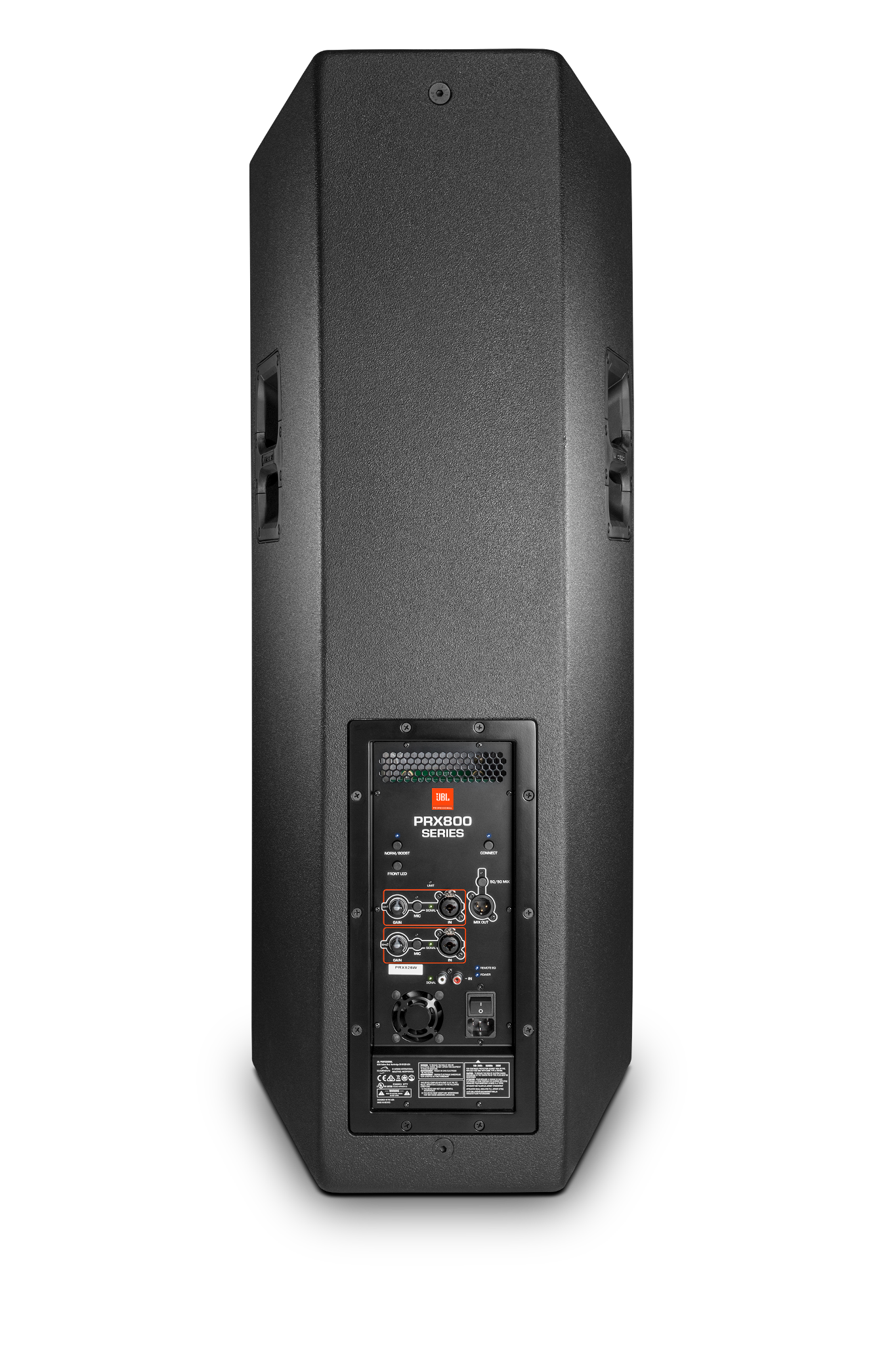

file type icon PRX825 Back
updated: 10月 2020
    1.9 MB 10月 2020

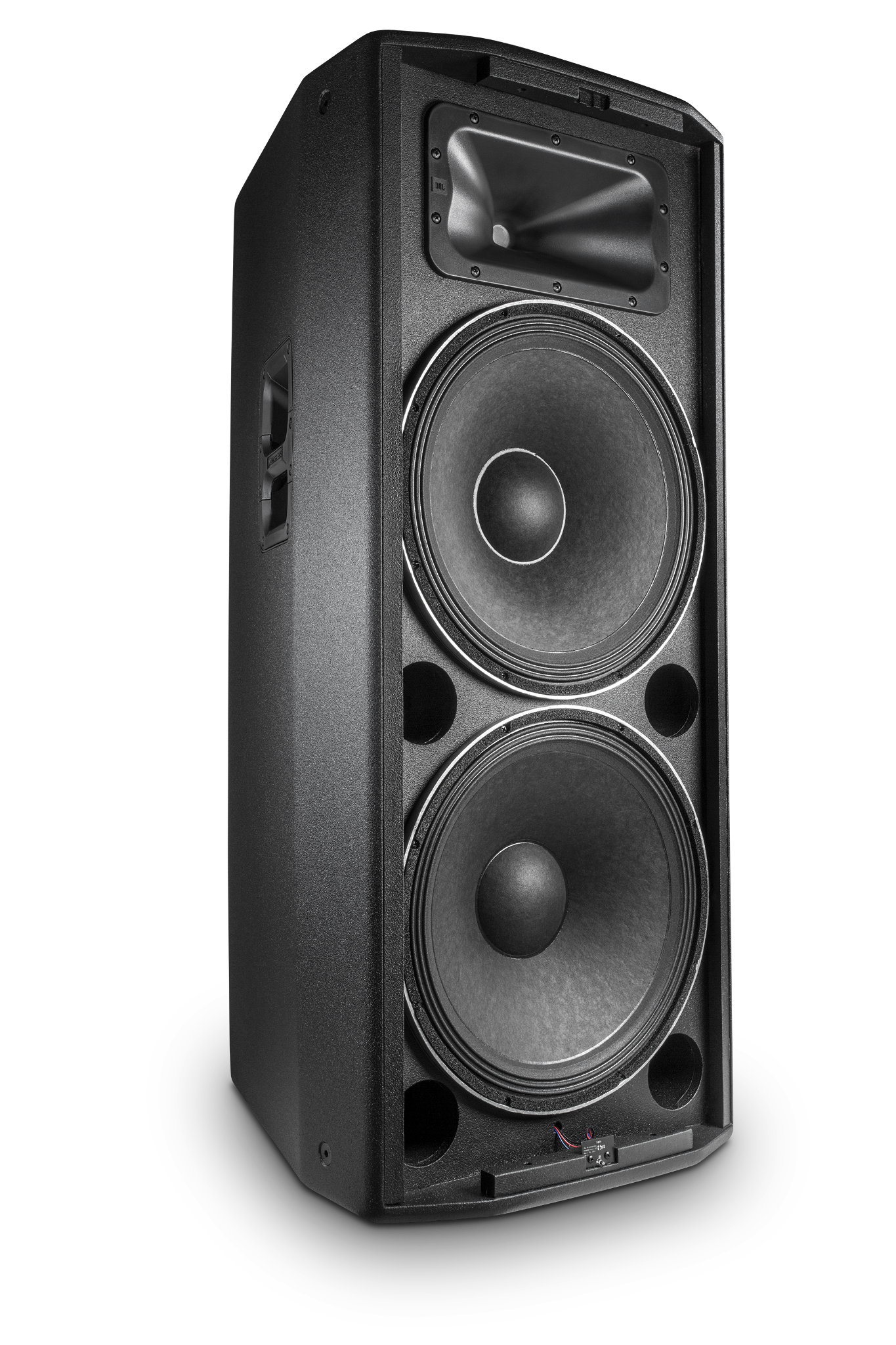

file type icon PRX825 Front No Grille
updated: 10月 2020
    2.6 MB 10月 2020
file type icon PRX825 Front
updated: 10月 2020
    6.3 MB 10月 2020
Install Guides
file type icon PRX800 WiFi Setup Guide
updated: 10月 2020
    445.1 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 Self Powered Dual 15”, two-way, bass-reflex
Maximum SPL Output 138 dB peak
频率范围 (-10dB) Normal: 42 Hz – 18.5 kHz Boost: 40 Hz – 18.5 kHz
Frequency Response (±3 dB) Normal: 49 Hz – 17 kHz Boost: 46 Hz – 17 kHz
输入通道 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

输入阻抗

 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
分频点 2.4 kHz
Design Highly efficient Class-D amplifier
额定功率 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
低频驱动单元 2 x JBL 275 (15 in) woofer
HF 驱动程序 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
覆盖范围 90° x 50° nominal
Directivity Index (DI) 10.4 dB
Directivity Factor (Q) 11
Enclosure Trapezoidal, 18 mm, Duraflex coated plywood
Suspension / Mounting 8 x M10 Suspension Points, 1 x M10 pull back point
Transport 2x integrated handles with injection molded backing cup
外观颜色 Obsidian DuraFlex™ finish
网罩 Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
尺寸（高 x 宽 x 厚） 1061mm x 446mm x 539mm (41.8in x 17.5in x 21.2in)
净重量 35.83 kg (79.0 lb)
Gross Weight 43.0 kg (95.0 lb)
麦克风输入 2
幻象电源 No

效果器

 25 parametric EQ's and speaker delay
输出 1 x XLR (mix out)

accessories

PRX825W-CVR | Deluxe Padded Protective Cover for PRX825W or PRX725
PRX825W-CVR Main photo
较大的图像

Deluxe padded cover for PRX825W or PRX725. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
