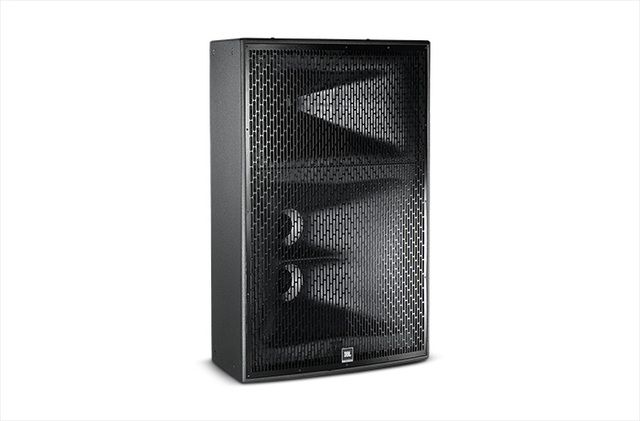

JBL Professional MD2

Larger Images

Bi-Amplified, High Power Loudspeaker System

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD2 is a mid-high module utilizing two of JBL’s eight inch 2169H Differential Drive® transducers for mid-band reproduction and the 2453H-SL for high-frequencies, the MD2 handles frequencies from 300 Hz to 20 kHz. The MD2 is intended to be used in conjunction with the MD1 super tweeter, MD3 low-frequency system, and MD7 ultra high-output subwoofer system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity, and breathtaking purity.

Features

Dual JBL 2169H 8" Neodymium Differential Drive® mid-range drivers
Large format JBL 2453H-SL
4" damped titanium diaphragm compression driver
Low Distortion
High Fidelity

Applications

Sophisticated dance clubs
Anywhere high energy dance music is required

Downloads

Documents

	Language	Size	Uploaded
Marquis Dance Brochure updated: Apr 2026		538 KB	Apr 2026
MD2 Spec Sheet updated: Apr 2026		857 KB	Apr 2026

Data Sheets

	Size	Uploaded
MD2 Spec Sheet updated: Oct 2019	857 KB	Oct 2019

Specifications

	Size	Uploaded
Marquis Dance Club Series Spec Sheets updated: Jul 2019	3.97 MB	Jul 2019

Brochures

	Size	Uploaded
Marquis Dance Club Series Brochure updated: Jul 2019	538 KB	Jul 2019

CAD Drawings

	Size	Uploaded
Marquis Dance Series Customer Drawings PDF updated: Oct 2019	205 KB	Oct 2019
Marquis Dance Series 3D DXF Drawings updated: Oct 2019	10.4 MB	Oct 2019
Marquis Dance Series 2D DXF Drawings updated: Oct 2019	612 KB	Oct 2019

Compliances

	Size	Uploaded
Marquis Dance Club Series Declaration of Conformity updated: Oct 2019	144 KB	Oct 2019

Speaker Tunings

	Size	Uploaded
Marquis Dance Club Series Tunings updated: Oct 2019	1.47 MB	Oct 2019

Images

	Size	Uploaded

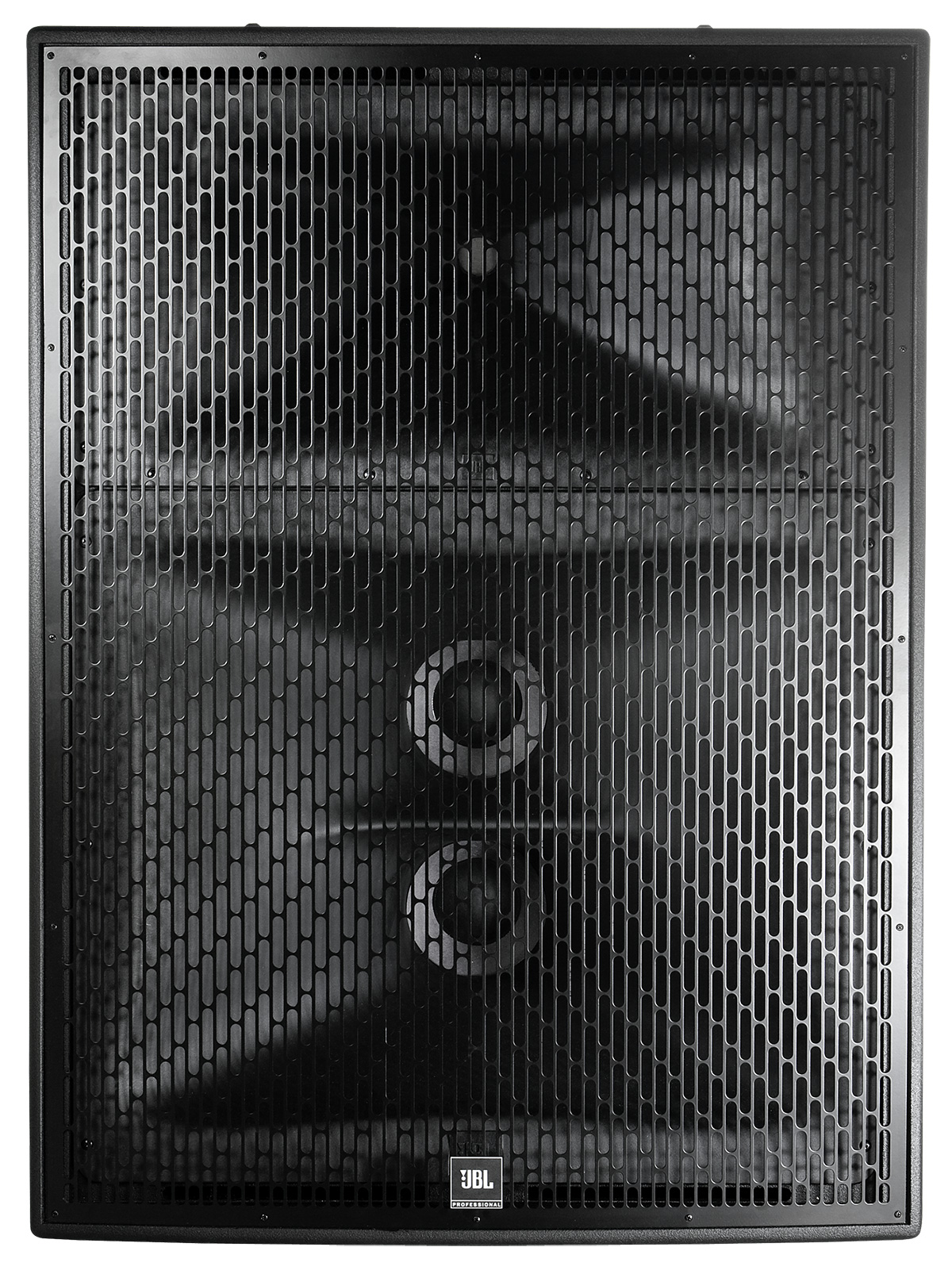

MD2 Hi-Res Image 2 updated: Jul 2019	711 KB	Jul 2019

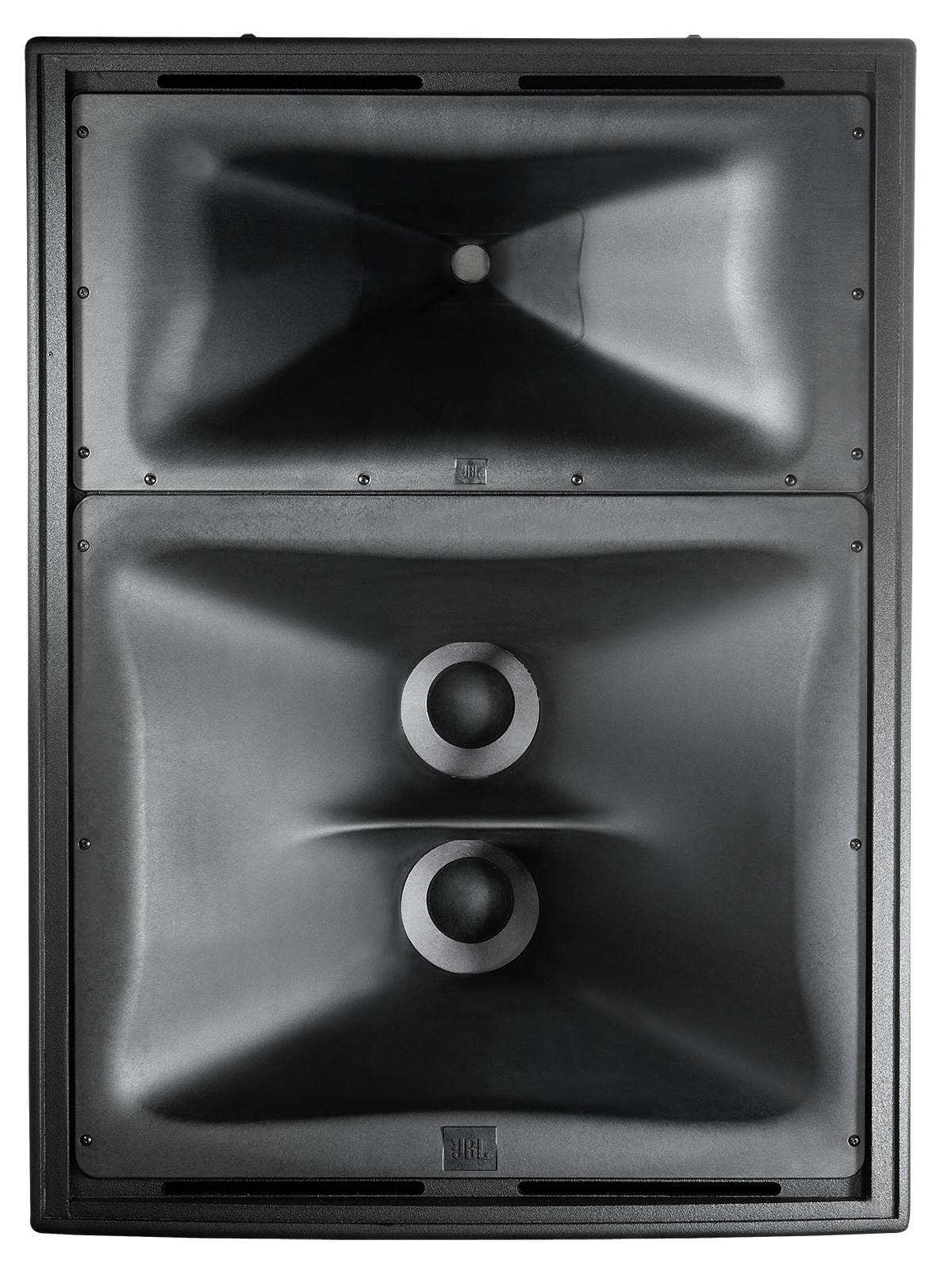

MD2 Hi-res image updated: Jul 2019	534 KB	Jul 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB)	270 Hz – 20 kHz
Power Rating	MF: 700 W HF: 100 W
Coverage Pattern	Hor. 90° (-6 dB)Vert. 20° up, 30° down (-6 dB)
Frequency Response (±3 dB)	320 Hz – 20 kHz
Maximum SPL (1m)	MF: 137 dB continuous (143 dB peak)HF: 133 dB continuous (139 dB peak)
Directivity Factor (Q)	10
Directivity Index (dB)	10
Crossover Frequencies	300 Hz, 1.5 kHz
Mid Frequency Driver	2 x 2169H, 200 mm (8 in) Differential Drive® Neodymium magnet with dual 76 mm (3 in) dual voice coil
HF Driver	1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and Neodymium magnet.
Nominal Impedance	MF: 4 ohms; HF: 8 ohms
Sensitivity	MF: 112 dB SPL, 2.83V (2W) @ 1m (3.3 ft)HF: 113 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
Enclosure	Trapezoidal cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	20 x M10 threaded hardware points (5 top, 5 bottom, 4 each side and 2 on the back)
Finish	Black DuraFlex™ finish.
Grille	Powder coated 14 gauge perforated steel.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. NL4 in parallel with barrier strip.
Dimensions (H x W x D)	1143 mm x 844.8 mm x 508.5 mm (45 in x 33.3 x 20 in)
Weight	52.2 kg (115 lb)
