Control 65 P/T

Compact Full-RangePendant Speaker

Control 65 P/T
Larger Images

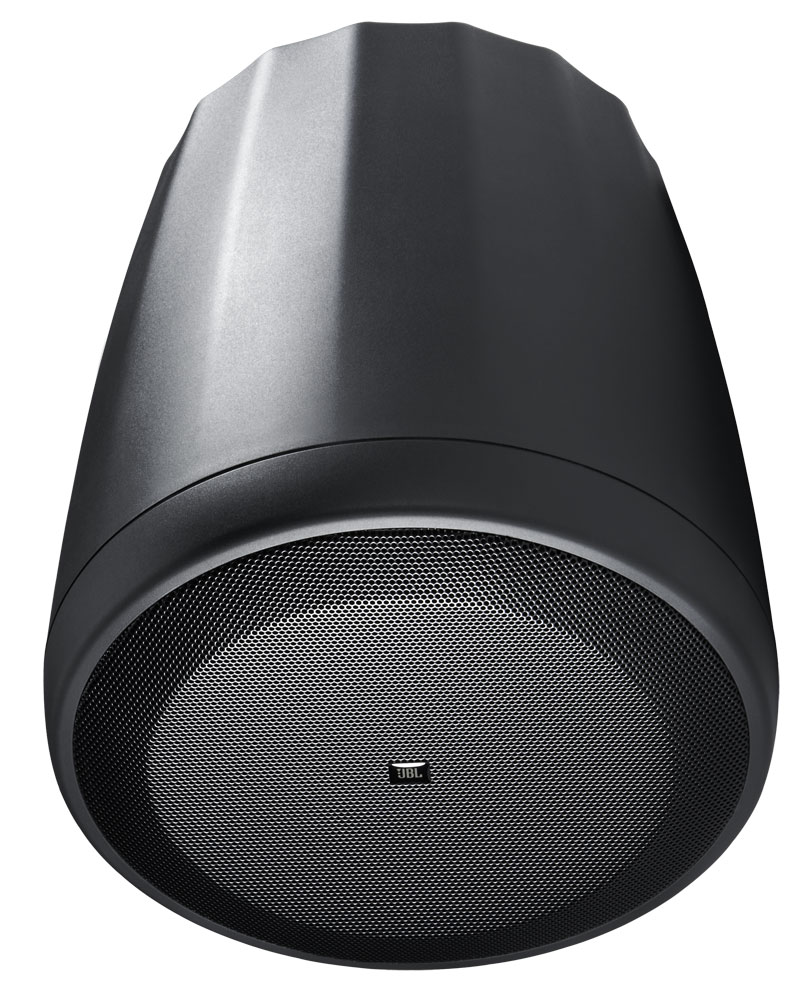

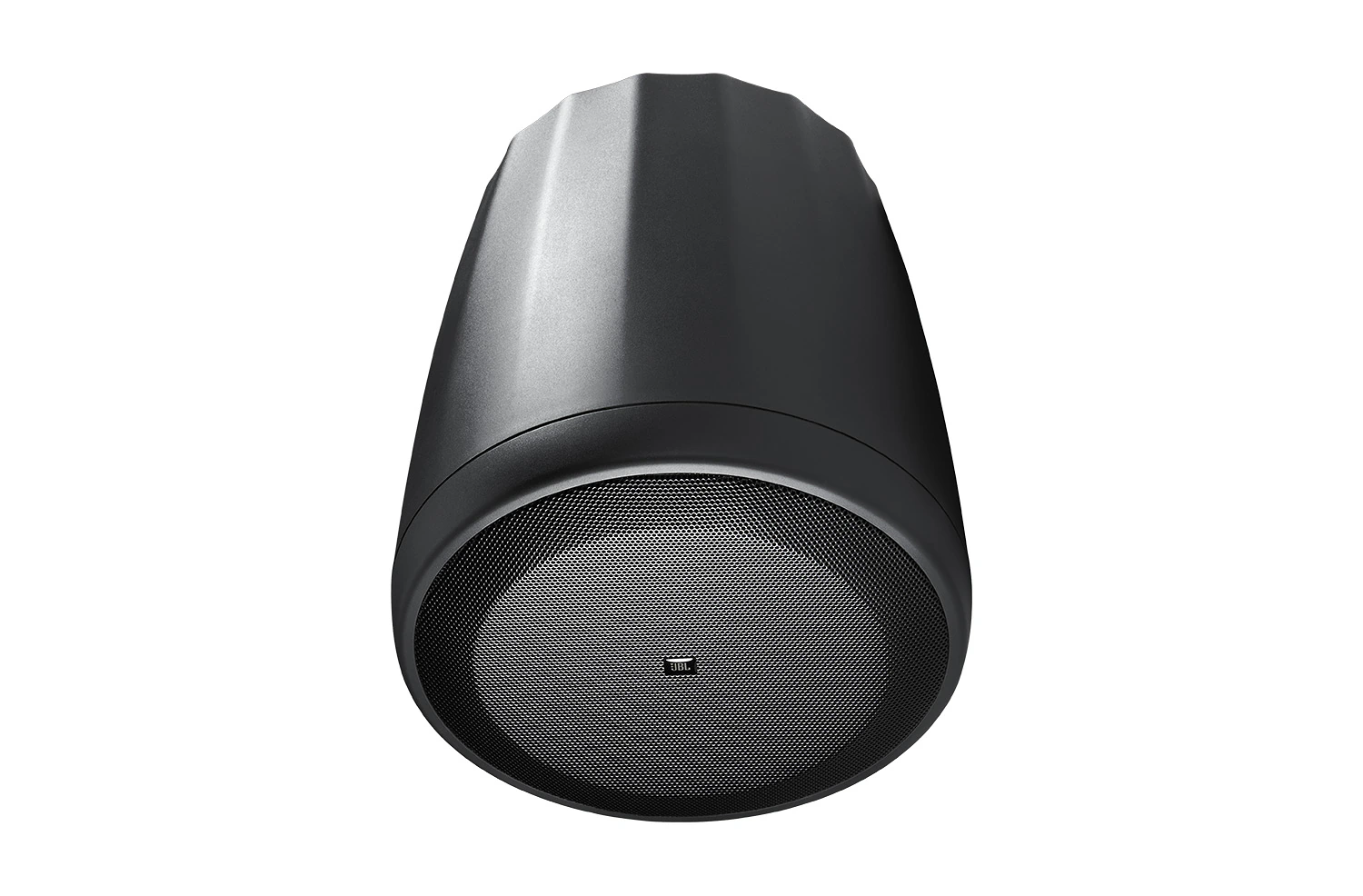

Compact Full-Range Pendant Speaker

Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

Features

  • RBI Radiation Boundary Integrator Technology
  • 120° conical coverage
  • 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Downloads

  Version Language Size Uploaded
Specifications
file type icon Control 65PT Spec Sheet
updated: Apr 2019
    1010 KB Apr 2019
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
file type icon Control Contractor Brochure (2023)
en version B, updated: Jun 2023
en  8.18 MB Jun 2023
file type icon C60 Introductory Sheet
updated: Oct 2019
    267 KB Oct 2019
CAD Drawings
file type icon C60 DXF Drawings
updated: Nov 2022
    4.14 MB Nov 2022
Compliances
file type icon Control 60 Series Declaration of Conformity
updated: Oct 2019
    987 KB Oct 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1.07 MB Nov 2023
Install Guides
file type icon Painting C60 Speakers
updated: Apr 2021
    146 KB Apr 2021
file type icon C60 Install Instructions
updated: Apr 2019
    886 KB Apr 2019
Images
file type icon C60 Hi-Res Family Image
updated: Oct 2019
    77.2 KB Oct 2019
file type icon Control 65PT Hi Res Images
updated: Apr 2019
    161 KB Apr 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: May 2023
  557 KB May 2023
Accessories
file type icon C60 Panel Cover Instructions
updated: May 2021
    710 KB May 2021
Ease Data
file type icon C60 Ease Files
version B, updated: Jan 2023
  962 KB Jan 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: Jan 2023
    377 KB Jan 2023
Faqs
file type icon C60 Frequently Asked Questions
updated: Sep 2022
    337 KB Sep 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 55 Hz – 20 kHz
Frequency Range (±3 dB) 78 Hz – 18 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 86 dB
Coverage Angle 120° conical
Directivity Factor (Q) 5.3
Directivity Index (DI) 7.2 dB
Maximum SPL (1m) 105 dB continuous pink noise, 111 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (each) 3.7 kg (8 lbs)
Shipping Weight (pair) 8.7 kg (19 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
