Control 65 P/T

Compact Full-Range Pendant Speaker

Control 65 P/T
较大的图像

Compact Full-Range Pendant Speaker

Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

特点

  • RBI Radiation Boundary Integrator Technology
  • 120° conical coverage
  • 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

下载

  Version Language Size Uploaded
Specifications
file type icon Control 65PT Spec Sheet
updated: 4月 2019
    1008.8 KB 4月 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version D, updated: 2月 2024
en  14.0 MB 2月 2024
file type icon C60 Introductory Sheet
updated: 10月 2019
    266.9 KB 10月 2019
CAD Drawings
file type icon C60 DXF Drawings
updated: 11月 2022
    4.1 MB 11月 2022
Compliances
file type icon Control 60 Series Declaration of Conformity
updated: 10月 2019
    987.4 KB 10月 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: 11月 2023
3.7     1.1 MB 11月 2023
Install Guides
file type icon Painting C60 Speakers
updated: 4月 2021
    146.4 KB 4月 2021
file type icon C60 Install Instructions
updated: 4月 2019
    886.2 KB 4月 2019
Images

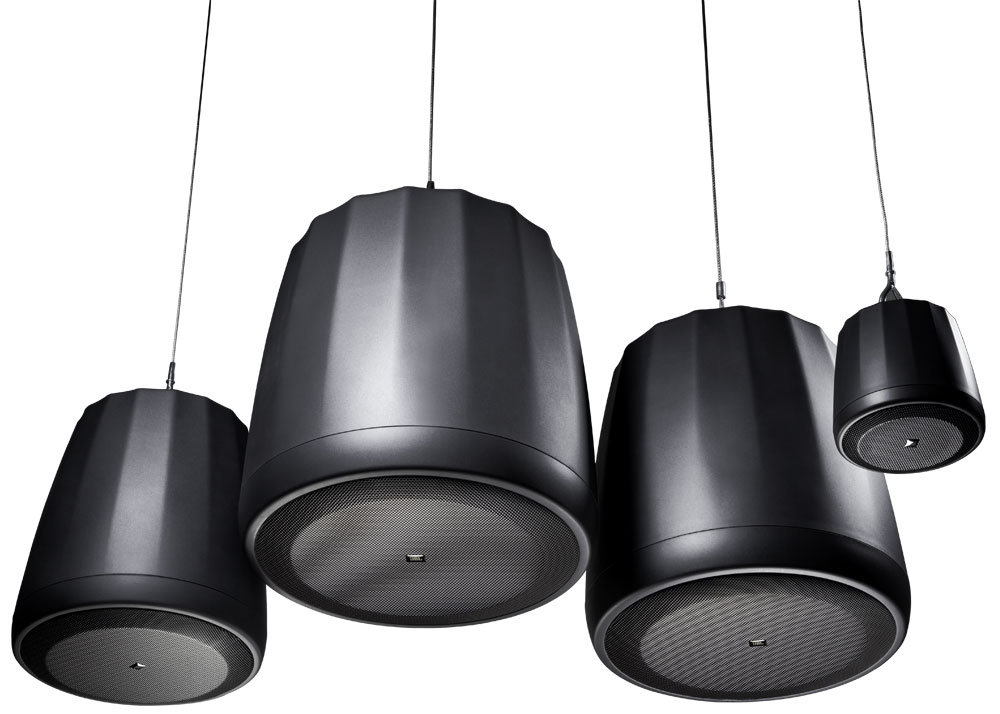

file type icon C60 Hi-Res Family Image
updated: 10月 2019
    77.2 KB 10月 2019

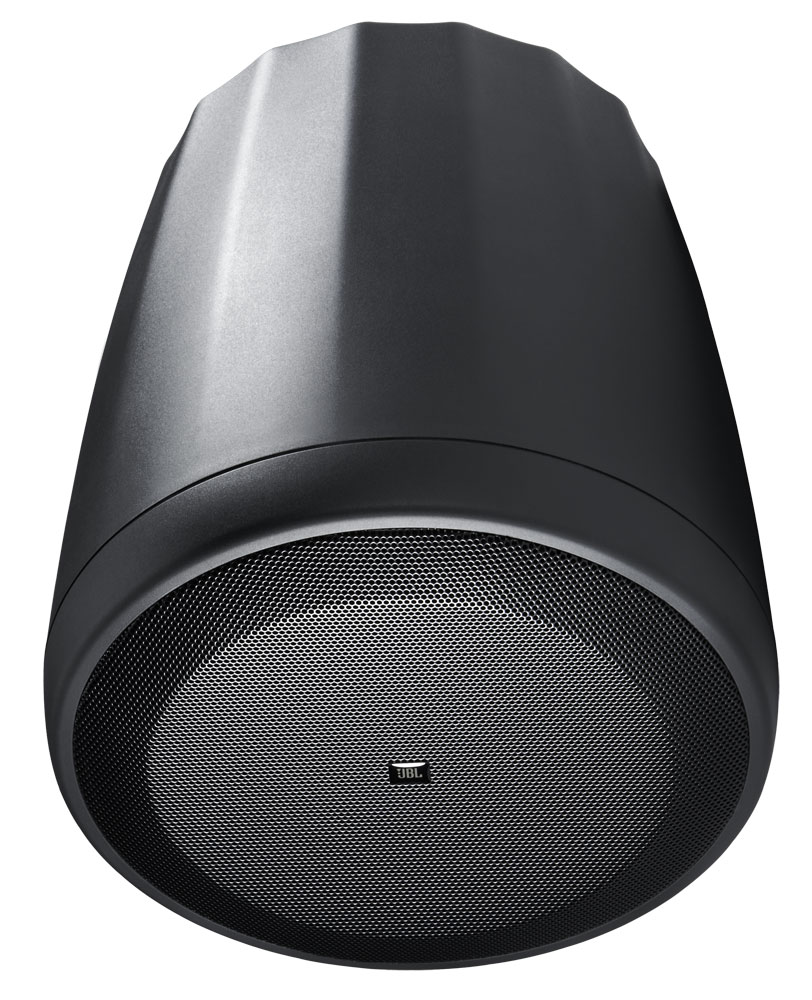

file type icon Control 65PT Hi Res Images
updated: 4月 2019
    161.2 KB 4月 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Accessories
file type icon C60 Panel Cover Instructions
updated: 5月 2021
    709.6 KB 5月 2021
Ease Data
file type icon C60 Ease Files
version B, updated: 1月 2023
  961.7 KB 1月 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: 1月 2023
    376.8 KB 1月 2023
FAQs
file type icon C60 Frequently Asked Questions
updated: 9月 2022
    337.2 KB 9月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 55 Hz – 20 kHz
频率响应(±3 dB) 78 Hz – 18 kHz
额定功率 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
标称灵敏度 86 dB
覆盖角度 120° conical
Directivity Factor (Q) 5.3
Directivity Index (DI) 7.2 dB
Maximum SPL (1m) 105 dB continuous pink noise, 111 dB peak
阻抗 8 ohms
变压器抽头 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
变压器插入损耗 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
网罩 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
输入接口 Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
尺寸(高 x 宽 x 厚) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (each) 3.7 kg (8 lbs)
Shipping Weight (pair) 8.7 kg (19 lbs)

随附配件

Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
