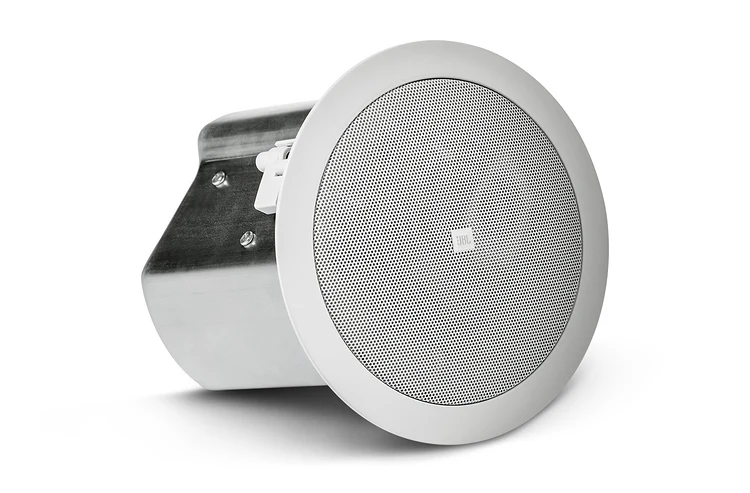

Control 14C-VA

Two-Way 4" Co-axial CeilingLoudspeaker for EN54-24 Applications / EN 54-24 Compliant for Life Safety Applications

Larger Images

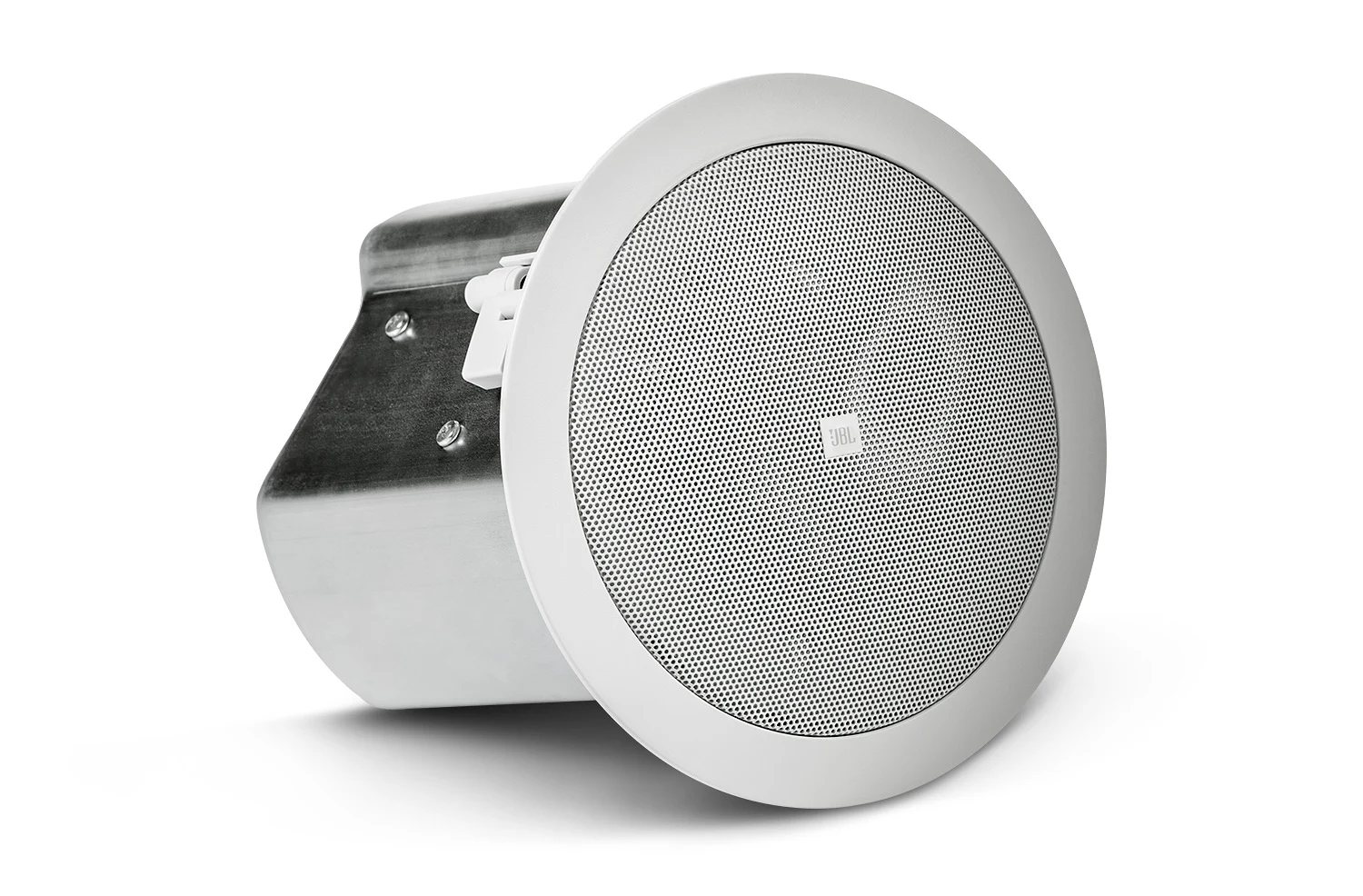

Two-Way 4" Co-axial Ceiling Loudspeaker for EN54-24 Applications

Control 14C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm softdome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis. This loudspeaker is EN 54-24 Compliant for life safety applications.



Features

  • Components:
    • 100 mm (4 in) high output driver with polypropylene cone and butyl rubber surround
    c • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • EN 54-24 Compliant for Life Safety Applications
  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    • 30 Watts at 8Ω nominal setting
    • 25W multi-tap at 70V/100V
  • 74 Hz – 20 kHz bandwidth with wide 120° coverage


Downloads

  Version Language Size Uploaded
Specifications
Control 14C-VA Spec Sheet
updated: Oct 23, 2020
    784 KB Oct 23, 2020
Compliances
    154 KB Oct 18, 2019
    179 KB Dec 17, 2019
Owner's Manuals
Control 10C-VA Series Owners Manual
updated: Oct 23, 2020
    1.04 MB Oct 23, 2020
Speaker Tunings
    557 KB Oct 22, 2020
Clf Files
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020
Certifications
C10C-VA EN54 Certification
updated: Oct 23, 2020
    3.56 MB Oct 23, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 74 Hz – 20 kHz
Frequency Response (±3 dB) 100 Hz – 15 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise, (120W peak)
Rated Noise Power 25W (25W tap)
Rated Noise Voltage 70V/100V (with 70V/100V tap settings)
Sensitivity 87 dB (1kHz - 16 kHz)
EN54 Sensitivity (@ 4m) 75 dB (per EN54-24 spectrum and measurement conditions at 4 meters.)
Coverage Angle 120° conical (1 kHz - 16 kHz)
Coverage Angles(by Frequency) Conical (Vertical & Horizontal) 500 Hz: 175°1000 Hz: 170°2000 Hz: 150°4000 Hz: 89°
Reference Axis Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane
Directivity Factor (Q) 7.6
Directivity Index (DI) 8.1 dB
Maximum SPL (1m) 102 dB (low-impedance, 108 dB peak)
101 dB (top 70V/100 tap)
EN54: 87 dB (4m, top 70/100V tap)
EN54 Max SPL (@ 4m) 87 dB (per EN54-24 spectrum and measurement 25W tap, at 4 meters)
Impedance 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz)3.2W@70V; 6.3W@100V Tap: 1600Ω 6.3W@70V; 12.5W@100V Tap: 800Ω 12.5W@70V; 25W@100V Tap: 400Ω 25W@70V; N/C@100V Tap: 200Ω
Transformer Taps 25W, 12.5W, 6.3W @ 70V or 100V (plus 3.2W @ 70V only)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Fuse Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC
Drivers LF Driver: 100 mm (4 in)
HF Driver: 19 mm (3/4 in
Connections Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.
Gland Nut/Strain Relief Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems
Dimensions 196 mm diameter x 217 mm from back of baffle to back of gland nut (7.7 in diameter x 8.6 in in depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.3 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
Net Weight 2.2 kg (4.8 lbs, one speaker)
Shipping Weight 8.2 kg (17.9 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille
Optional Accessories MTC-14WG high humidity grille MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dogears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Input Connectors Ceramic block with brass inserts
Color White
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, backcan included
