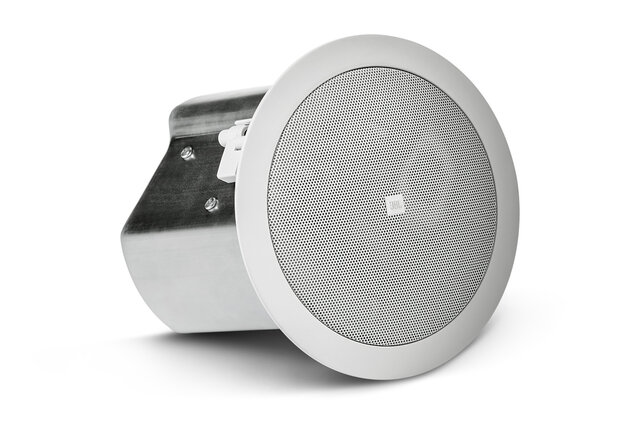

| Frequency Range (-10dB) |
74 Hz – 20 kHz |
| Frequency Response (±3 dB) |
100 Hz – 15 kHz |
| Power Rating |
IEC System Long-Term Ratings (low-Z direct):
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise, (120W peak) |
| Rated Noise Power |
25W (25W tap) |
| Rated Noise Voltage |
70V/100V (with 70V/100V tap settings) |
| Sensitivity |
87 dB (1kHz - 16 kHz) |
| EN54 Sensitivity (@ 4m) |
75 dB (per EN54-24 spectrum and measurement conditions at 4 meters.) |
| Coverage Angle |
120° conical |
| Coverage Angles(by Frequency) Conical (Vertical & Horizontal) |
500 Hz: 175°1000 Hz: 170°2000 Hz: 150°4000 Hz: 89° |
| Reference Axis |
Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane |
| Directivity Factor (Q) |
7.6 |
| Directivity Index (DI) |
8.1 dB |
| Maximum SPL (1m) |
102 dB (low-impedance, 108 dB peak)
101 dB (top 70V/100 tap)
EN54: 87 dB (4m, top 70/100V tap) |
| EN54 Max SPL (@ 4m) |
87 dB (per EN54-24 spectrum and measurement 25W tap, at 4 meters) |
| Impedance |
8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz)3.2W@70V; 6.3W@100V Tap: 1600Ω 6.3W@70V; 12.5W@100V Tap: 800Ω 12.5W@70V; 25W@100V Tap: 400Ω 25W@70V; N/C@100V Tap: 200Ω |
| Transformer Taps |
25W, 12.5W, 6.3W @ 70V or 100V (plus 3.2W @ 70V only) |
| Crossover Network |
12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| Fuse |
Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC |
| Drivers |
LF Driver: 100 mm (4 in)
HF Driver: 19 mm (3/4 in |
| Connections |
Input +, Input -, Earth (connected to backcan). Ceramic block with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire. |
| Gland Nut/Strain Relief |
Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in) |
| Materials |
ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
| Safety Agency |
EN54-24:2008 certified Type A (Certificate No. 0359-CPR-00485); Compliant with BS5839/8; UL1480, UL2043, NFPA90 & NFPA70; Suitable for use in air handling spaces, Signaling Speaker; rated IP-21 per IEC529/60529; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/ EN60849 systems |
| Dimensions |
196 mm diameter x 217 mm from back of baffle to back of gland nut (7.7 in diameter x 8.6 in in depth) |
| Ceiling Cutout Size |
Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range |
Up to 35 mm (1.3 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses |
| Safety Seismic Attachment |
One point, top surface |
| Net Weight |
2.2 kg (4.8 lbs, one speaker) |
| Shipping Weight |
8.2 kg (17.9 lbs, pair in master carton) |
| Included Accessories |
C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille |
| Optional Accessories |
MTC-14WG high humidity grille MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dogears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
| Input Connectors |
Ceramic block with brass inserts |
| Color |
White |
| Backcan |
formed steel (integrated backcan) |
| Baffle/Rim |
ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage |
Yes, backcan included |
