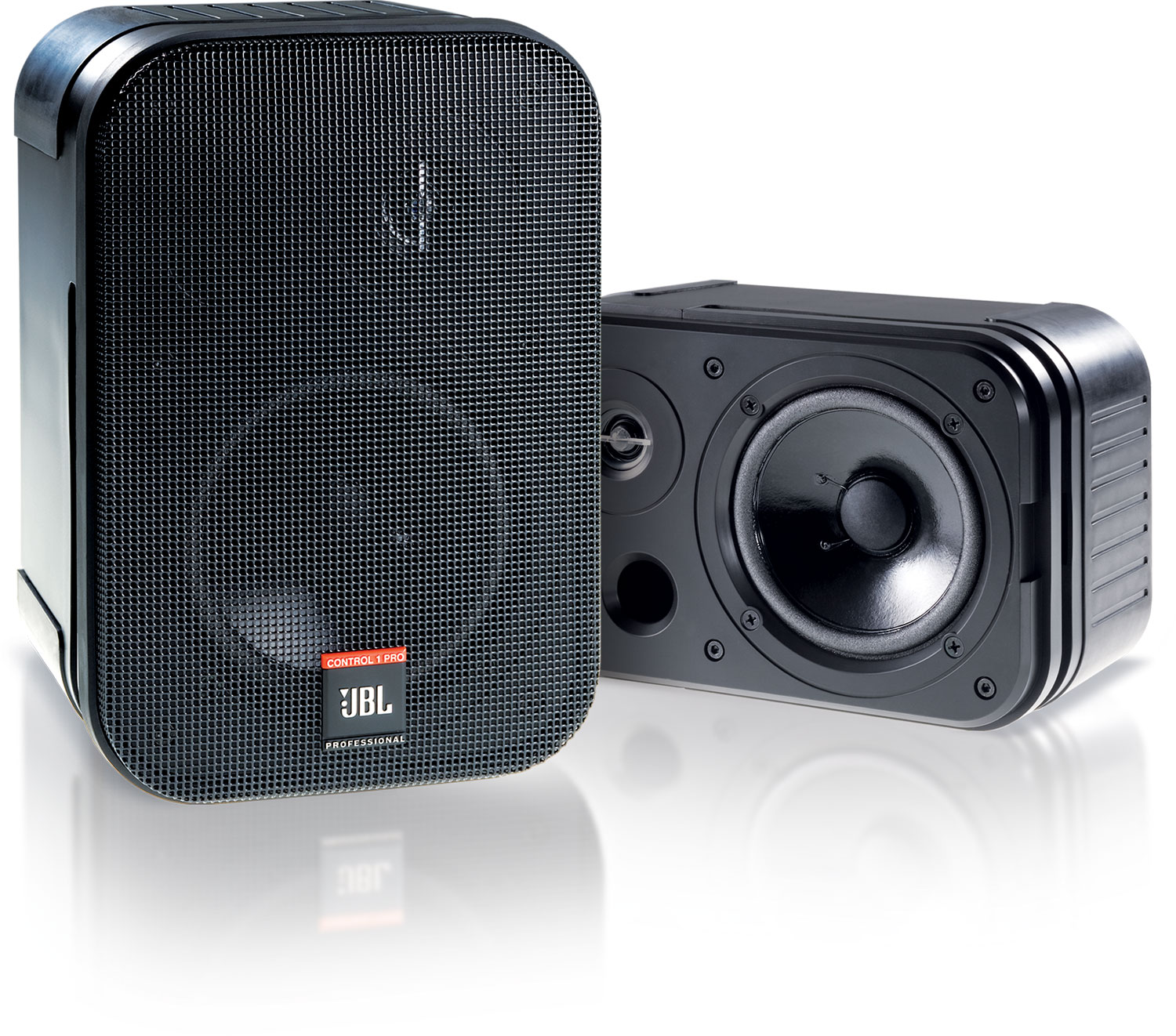

Control 1 Pro

Two-Way Professional Compact Loudspeaker System

Control 1 Pro
Larger Images

Two-Way Professional Compact Loudspeaker System

Representing the next-generation in professional high-performance, compact loudspeaker systems,
the Control® 1 Pro builds on its proud heritage while incorporating the latest innovations in JBL Professional loudspeaker systems design.


  • 150 Watts Continuous Power Handling
  • Professional Drivers and Crossover Network
  • Included Mounting Bracket
  • Transparent and Faithful Sonic Performance
  • Magnetically Shielded Transducers
  • SonicGuard™ Overload Protection
  • Available in Black or White Finishes


  Version Language Size Uploaded
Data Sheets
file type icon Control 1 Pro Spec Sheet
updated: Oct 2019
    557 KB Oct 2019
file type icon Control 1 Pro Brochure
updated: Oct 2019
    483 KB Oct 2019
file type icon Recording & Broadcast Full Line Catalog
updated: Oct 2020
    1.81 MB Oct 2020
file type icon Control Contractor Brochure (2024)
en version D, updated: Feb 2024
en  14 MB Feb 2024
file type icon Control 1Pro Declaration of Conformity
updated: Oct 2019
    90.5 KB Oct 2019
file type icon JBL Control Series Passive Speakers DoC
updated: Dec 2019
    179 KB Dec 2019
Install Guides
file type icon Control 1 Pro & CSS-1 S/T Instruction Sheet
updated: Oct 2019
    42.5 KB Oct 2019
Hi Res Images
file type icon Control 1 Pro Hi Res Image
updated: Oct 2019
    435 KB Oct 2019
User Guides
file type icon Control 1 Pro User's Guide
updated: Oct 2020
    652 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 80 Hz to 20 kHz
Frequency Response (±3 dB) 100 Hz - 18 kHz
Power Rating 150 W
Sensitivity 87 dB SPL
Maximum SPL (1m) 108 dB continuous, 114 dB peak
Directivity Factor (Q) 6.0
Directivity Index (DI) 7.8
Impedance 4 ohms
Crossover Frequency 4.2 kHz
Overload Protection Full-range SonicGuard™ power limiting to protect network and transducers
Drivers LF: 135 mm (5.25 in) low frequency loudspeaker
HF: 19 mm (.75 in) polycarbonate dome tweeter
Input Connectors Spring-loaded terminals
Enclosure Polypropylene Structural Foam
Finish Black (C1Pro) or White (C1Pro-WH)
Dimensions 235 mm x 159 mm x 143 mm (9.3 in x 6.3 in x 5.6 in)
Net Weight (each) 1.8 kg (4 lb)
Shipping Weight (pair) 4.6 kg (10 lb)
Included Accessories Mounting Bracket Assembly
Optional Accessories MTC-1A ultra-duty mount bracket MTC-8 heavy-duty mounting bracket
Grille Zinc-plated steel
Mounting Hardware Included wall swivel ball bracket
LF Driver 5.25in (135mm)
Amplifier Power Rating 150 W
Maximum Peak SPL 114 dB
Maximum Continuous SPL 108 dB
Coverage Angle 120°H x120°V
