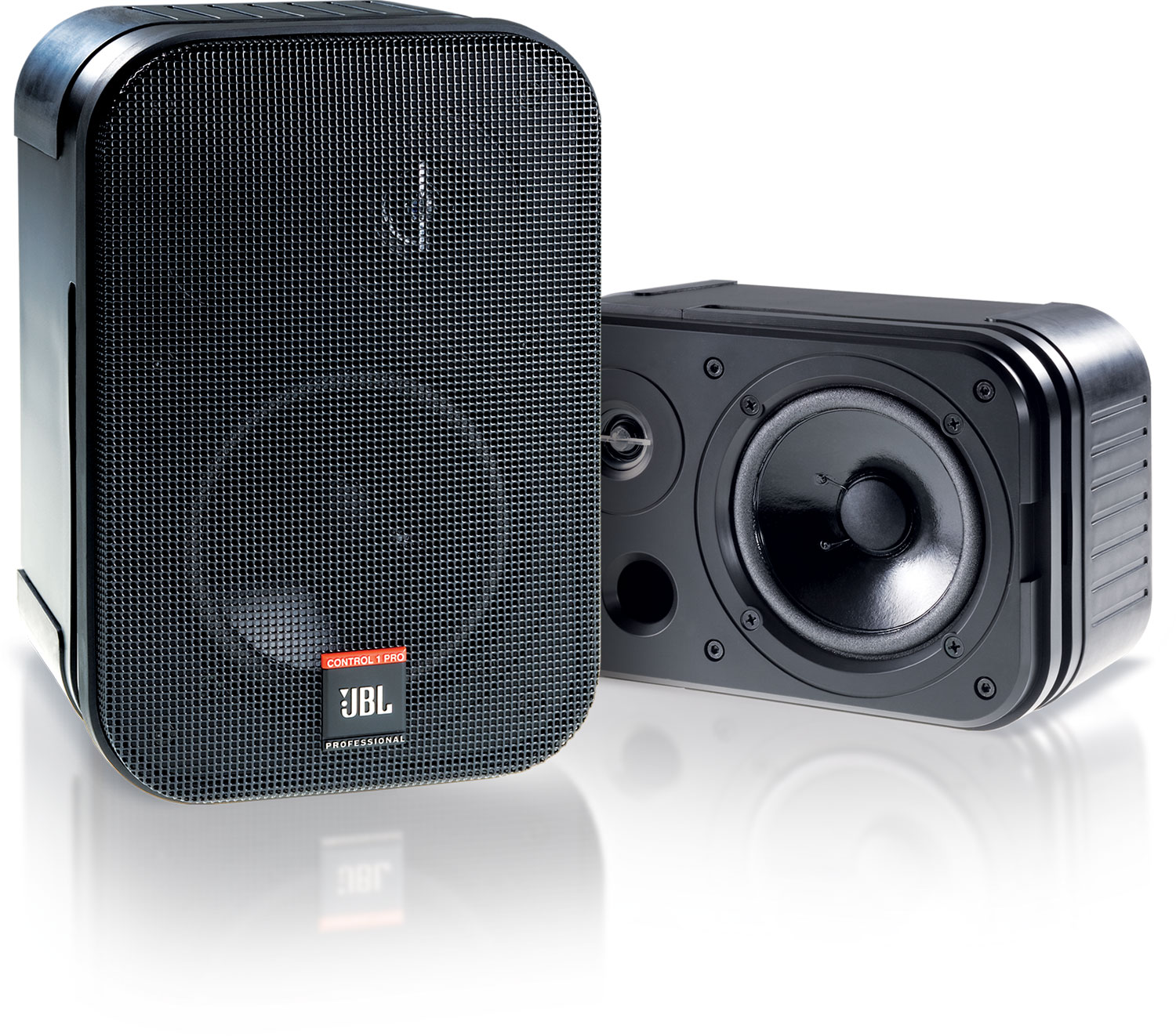

Representing the next-generation in professional high-performance, compact loudspeaker systems,
the Control® 1 Pro builds on its proud heritage while incorporating the latest innovations in JBL Professional loudspeaker systems design.
| Tamanho | |
Control 1 Pro Brochure
atualizado: abr 2026
|
500 KB |
|
Control 1 Pro Spec Sheet
atualizado: abr 2026
|
1000 KB |
| Tamanho | |
|
|
600 KB |
| Tamanho | |
|
|
500 KB |
|
|
20 MB |
|
|
10 MB |
|
|
2 MB |
|
|
20 MB |
| Tamanho | |
|
|
200 KB |
|
|
90 KB |
| Tamanho | |
|
|
700 KB |
| Tamanho | |
|
|
400 KB |
| Tamanho | |
|
|
40 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range (-10dB) | 80 Hz to 20 kHz |
| Frequency Response (±3 dB) | 100 Hz - 18 kHz |
| Power Rating | 150 W |
| Sensitivity | 87 dB SPL |
| Maximum SPL (1m) | 108 dB continuous, 114 dB peak |
| Directivity Factor (Q) | 6.0 |
| Directivity Index (DI) | 7.8 |
| Impedance | 4 ohms |
| Crossover Frequency | 4.2 kHz |
| Overload Protection | Full-range SonicGuard™ power limiting to protect network and transducers |
| Drivers | LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) polycarbonate dome tweeter |
| Input Connectors | Spring-loaded terminals |
| Enclosure | Polypropylene Structural Foam |
| Finish | Black (C1Pro) or White (C1Pro-WH) |
| Dimensions | 235 mm x 159 mm x 143 mm (9.3 in x 6.3 in x 5.6 in) |
| Net Weight (each) | 1.8 kg (4 lb) |
| Shipping Weight (pair) | 4.6 kg (10 lb) |
| Included Accessories | Mounting Bracket Assembly |
| Optional Accessories | MTC-1A ultra-duty mount bracket MTC-8 heavy-duty mounting bracket |
| Grille | Zinc-plated steel |
| Mounting Hardware | Included wall swivel ball bracket |
| LF Driver | 5.25in (135mm) |
| Amplifier Power Rating | 150 W |
| Maximum Peak SPL | 114 dB |
| Maximum Continuous SPL | 108 dB |
| Coverage Angle | 120°H x120°V |
