High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

AM7215/64
Larger Images

High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

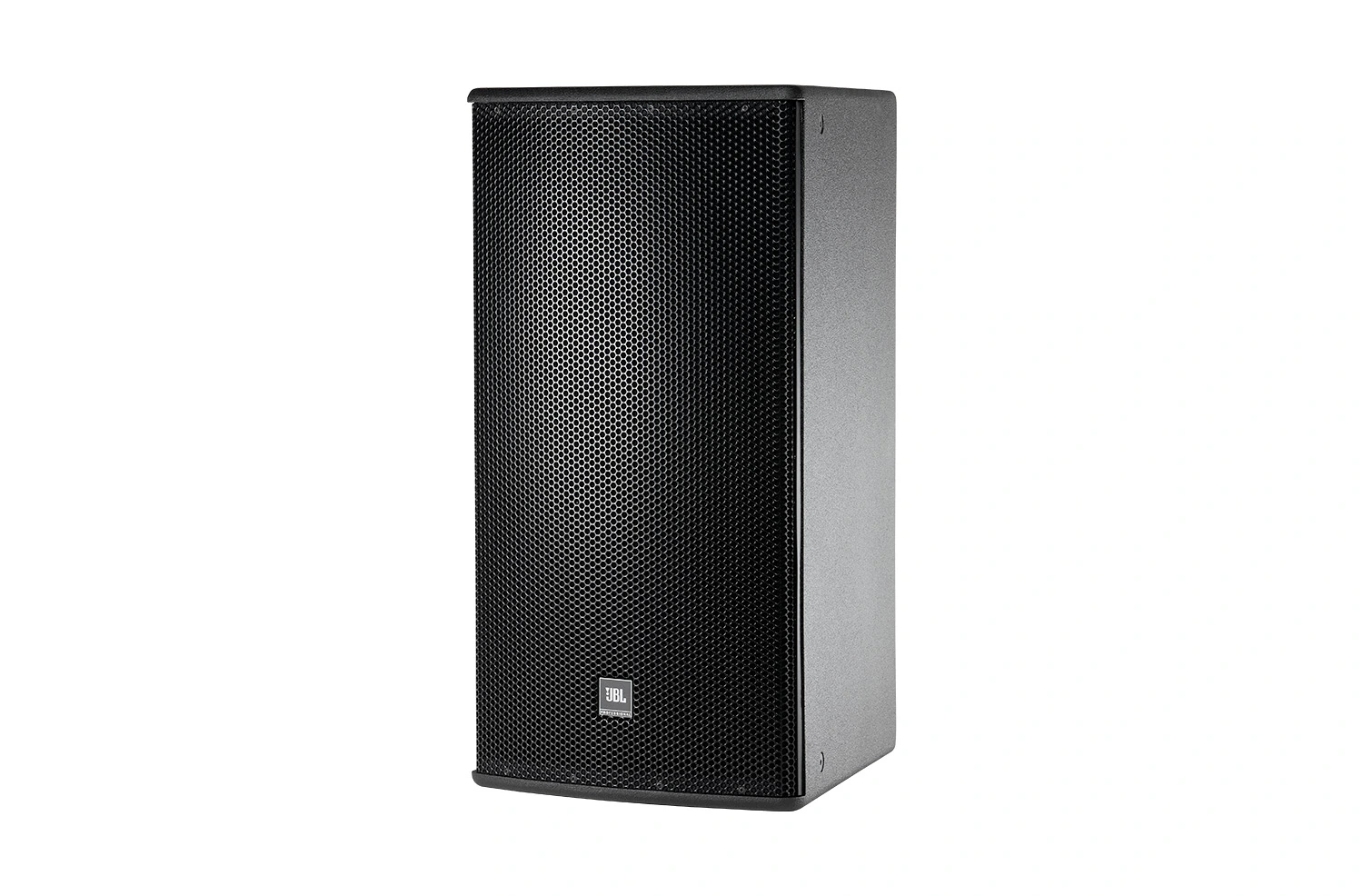

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.



Features

  • 60° x 40° Coverage
  • 2265H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Available in Black, White and WRC/WRX finishes

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues


To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.)

Downloads

  Version Language Size Uploaded
Specifications
file type icon AM7215/64 Spec Sheet
updated: Oct 2020
    550 KB Oct 2020
Manuals
file type icon AE Series Array Guide
updated: Oct 2019
    1.12 MB Oct 2019
file type icon AE/PD Connector Pinout Guide
updated: Oct 2019
    8.25 KB Oct 2019
file type icon Weather Resistant Configurations
en version A, updated: May 2023
en  86.1 KB May 2023
file type icon AE Application Data Sheets
updated: Oct 2020
    13.7 MB Oct 2020
file type icon AE Series U-Bracket Handbook
updated: Oct 2020
    597 KB Oct 2020
Brochures
file type icon AE Series Brochure
updated: Oct 2020
    4.05 MB Oct 2020
file type icon AM Brochure
updated: Oct 2020
    1.54 MB Oct 2020
CAD Drawings
file type icon AE-Powered-pdf-DWG.zip
updated: Oct 2020
    315 KB Oct 2020
file type icon AE Series 3D DXF file
updated: Oct 2019
    381 KB Oct 2019
file type icon AE-Powered-3D-DXF.zip
updated: Oct 2020
    317 KB Oct 2020
file type icon AE-Powered-2D-DXF.zip
updated: Oct 2020
    4.25 MB Oct 2020
file type icon AE Series 3D DXF
updated: Oct 2020
    381 KB Oct 2020
file type icon AE Series 2D DXF
updated: Apr 2019
    1.24 MB Apr 2019
file type icon AE Series 2D PDF
updated: Apr 2019
    1020 KB Apr 2019
file type icon AE Series WRC WRX Customer Drawings
updated: Dec 2023
    2.18 MB Dec 2023
Compliances
file type icon AE Series - AM7000 Declaration of Conformity
updated: Oct 2020
    146 KB Oct 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 2022
    21 MB Mar 2022
Speaker Tunings
file type icon AE Series DCi Series Preset Library
updated: Dec 2023
    463 KB Dec 2023
Images
file type icon AM7215/64 Hi Res Image
updated: Oct 2020
    420 KB Oct 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: May 2023
12-10-21    24 MB May 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 34 Hz - 20 kHz
Frequency Response (±3 dB) 40 Hz - 18 kHz
Coverage /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type 15" Two - Way, High Power, Full - Range
Dimensions (H x W x D) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
Net Weight (each) 27.2 kg (60 lb)
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.8 kHz
Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
Nominal Impedance 8 ohms
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
