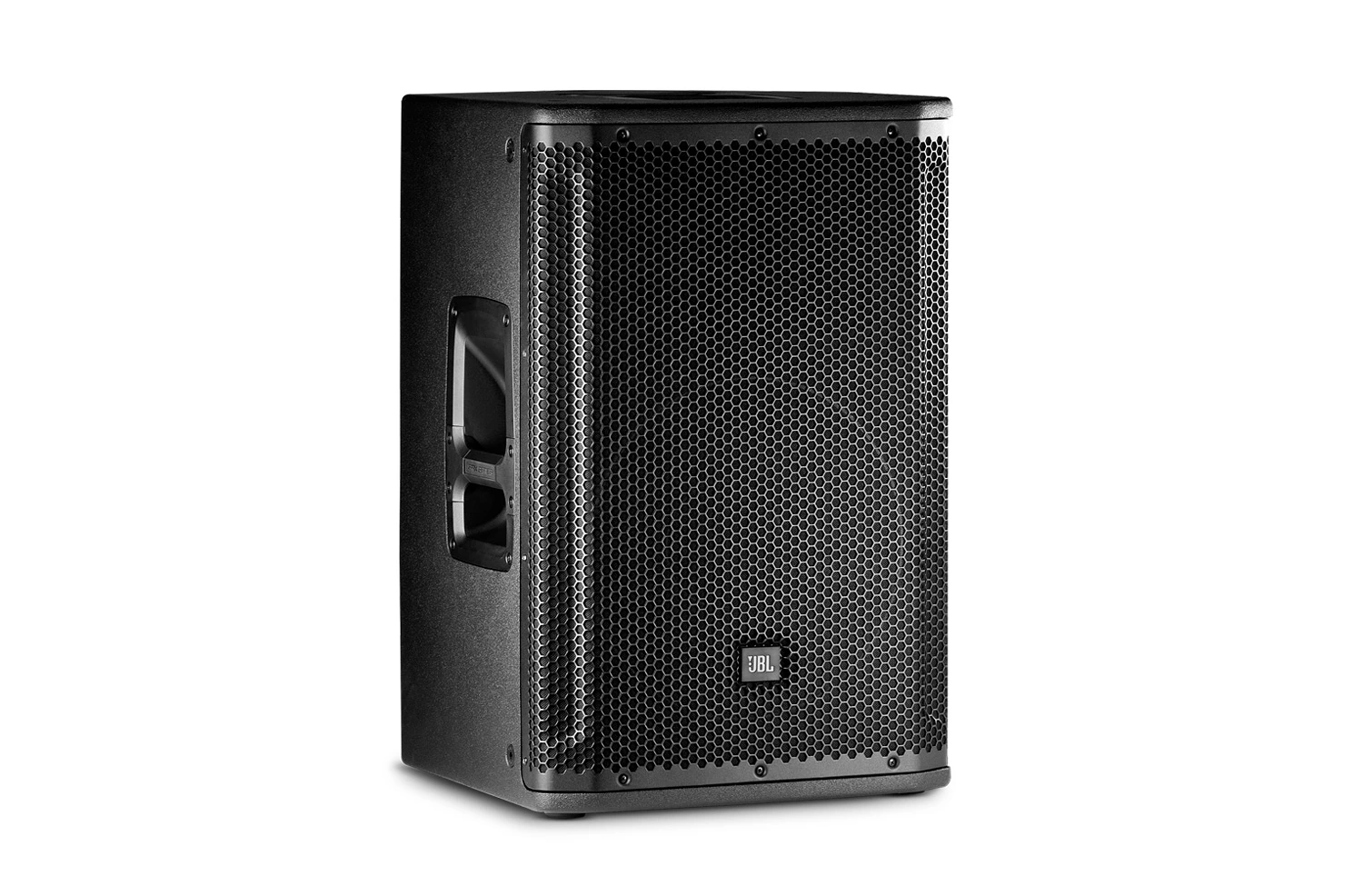

SRX812

12-inch 2-Way Multipurpose Passive Speaker

Μεγαλύτερες εικόνες

Παθητικό Ηχείο 2 Δρόμων 12 ιντσών Πολλαπλών Χρήσεων

Το SRX812 είναι ένα παθητικό φορητό ηχείο δύο δρόμων πλήρους συχνοτικού εύρους με woofer 12", σχεδιασμένο για χρήση ως κύριο σύστημα PA ελαφριάς χρήσης, monitor ή rear/side fill. Με σημεία ανάρτησης M10 και πόδια για χρήση τόσο σε στήριξη δαπέδου όσο και ως monitor, το SRX812 αποτελεί ιδανική λύση για μουσικούς, συγκροτήματα και DJs, για χρήση σε συναυλίες, ομιλίες ή εγκαταστάσεις όπως χώροι παραστάσεων, εταιρικοί χώροι, εκπαιδευτικά ιδρύματα ή χώροι λατρείας. Διατίθενται tunings και preset για το Crown ITech HD.



Χαρακτηριστικά

  • Premium JBL Transducers
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 57Hz-20kHz
  • Max SPL: 129dB (Peak)
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Περισσότερες λεπτομέρειες

ΜΕΛΕΤΗΜΕΝΗ ΣΧΕΔΙΑΣΗ

Κάθε λεπτομέρεια της σειράς SRX800 σχεδιάστηκε και μελετήθηκε με σκοπό, λαμβάνοντας πλήρως υπόψη την προβλεπόμενη χρήση. Οι εργονομικά σχεδιασμένες λαβές προσφέρουν άνετο κράτημα χωρίς κόπωση, για ευκολότερο χειρισμό. Τα σημεία ανάρτησης M10, τα πόδια με οδηγούς στοίβαξης και οι υποδοχές στήριξης σε στύλο/τρίποδο υποστηρίζουν ένα ευρύ και ευέλικτο φάσμα διαμορφώσεων.

ΤΕΧΝΟΛΟΓΙΑ ΜΕΤΑΤΡΟΠΕΩΝ

Τα μεγάφωνα φερρίτη με την πατενταρισμένη τεχνολογία Differential Drive® της JBL ενσωματώνουν πηνία φωνής 3" με μαγνήτες φερρίτη χαμηλής μάζας, για μειωμένο βάρος, αυξημένη διαχείριση ισχύος, εξαιρετικά χαμηλή παραμόρφωση και εκτεταμένη απόκριση χαμηλών συχνοτήτων. Το 2432H της JBL είναι το μόνο μεγάφωνο συμπίεσης της κατηγορίας του με πηνίο φωνής 3" νεοδυμίου, παρέχοντας πολύ υψηλά επίπεδα ισχύος και ομαλό, κρυστάλλινο ήχο.

Λήψεις

Specifications
  Έκδοση Μέγεθος Ανέβηκε
file type icon SRX812 Spec Sheet
έκδοση 11/19, ενημέρωση: Δεκ 2019
11/19  1 MB Δεκ 2019
Brochures
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon JBL 2025 PPA Brochure
en έκδοση B, ενημέρωση: Αυγ 2025
en  8 MB Αυγ 2025
Compliances
  Μέγεθος Ανέβηκε
file type icon SRX800 Passive Series Compliance
ενημέρωση: Οκτ 2020
100 KB Οκτ 2020
Software
  Μέγεθος Ανέβηκε
file type icon Audio Architect
ενημέρωση: Απρ 2019
10 KB Απρ 2019
Android download icon SRX Connect
κυκλοφορία: Αυγ 2023
Αυγ 2023
Windows download icon HiQnet Audio Architect
κυκλοφορία: Νοε 2020
Νοε 2020
iOS download icon SRX Connect
κυκλοφορία: Αυγ 2023
Αυγ 2023
Speaker Tunings
  Μέγεθος Ανέβηκε
file type icon SRX800 Passive I-Tech HD Tunings
ενημέρωση: Οκτ 2020
20 KB Οκτ 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
ενημέρωση: Οκτ 2020
40 KB Οκτ 2020
file type icon SRX Passive Bi-amp tunings Table
ενημέρωση: Οκτ 2020
3 MB Οκτ 2020
Images
  Μέγεθος Ανέβηκε
file type icon SRX800 Driver
ενημέρωση: Απρ 2019
200 KB Απρ 2019

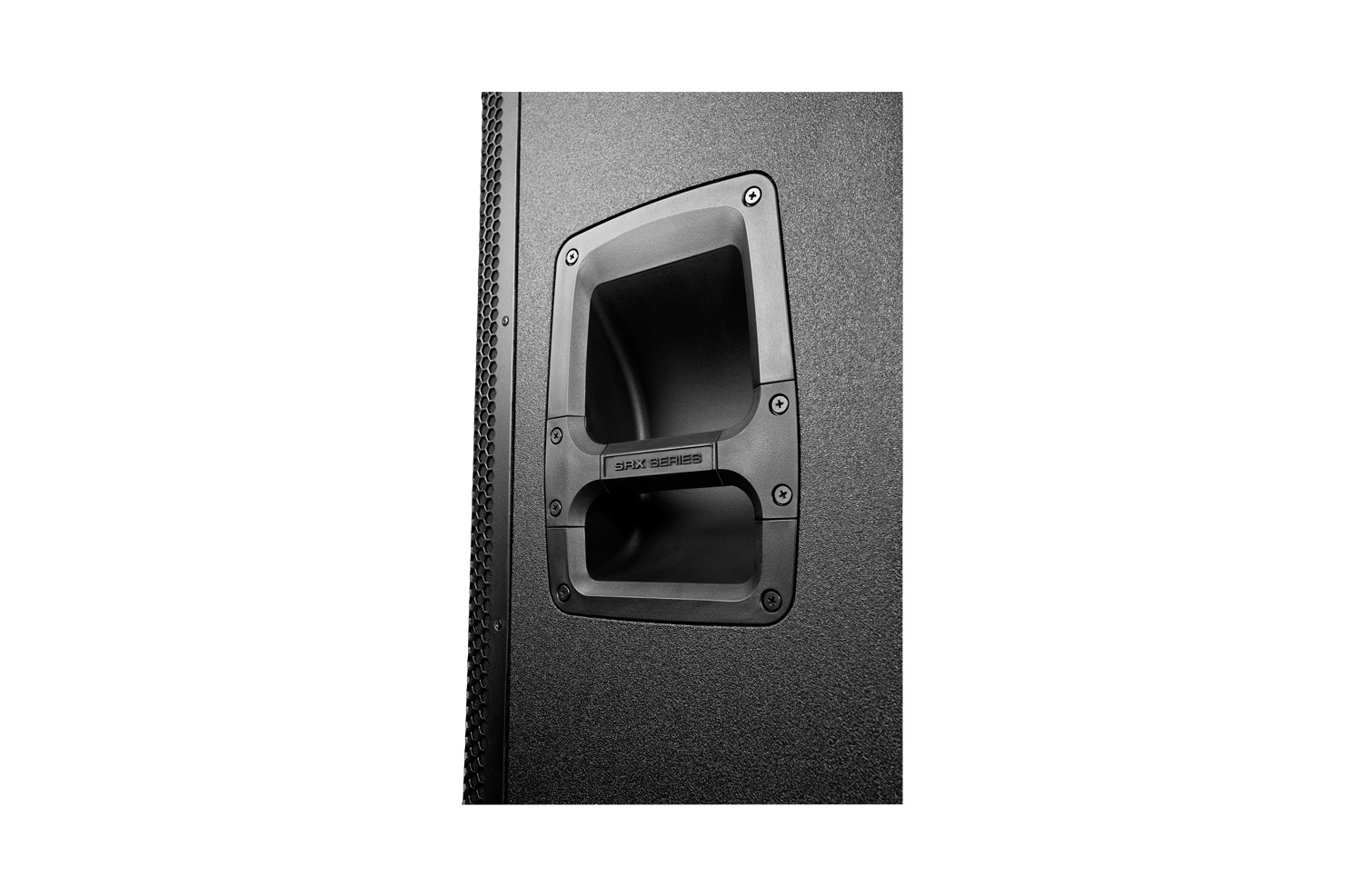

file type icon SRX800 Handle
ενημέρωση: Απρ 2019
200 KB Απρ 2019

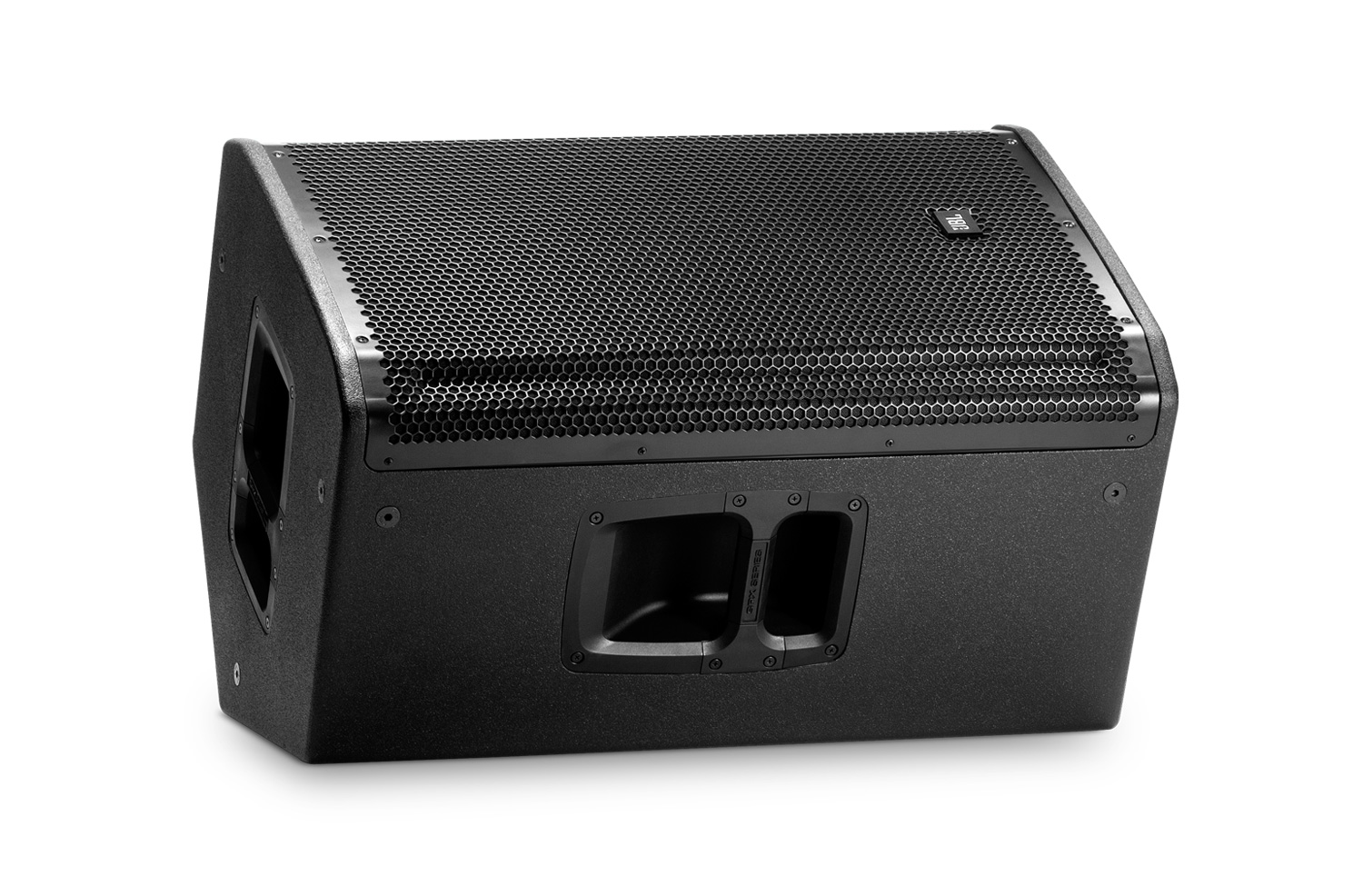

file type icon SRX812 Monitor
ενημέρωση: Οκτ 2019
300 KB Οκτ 2019

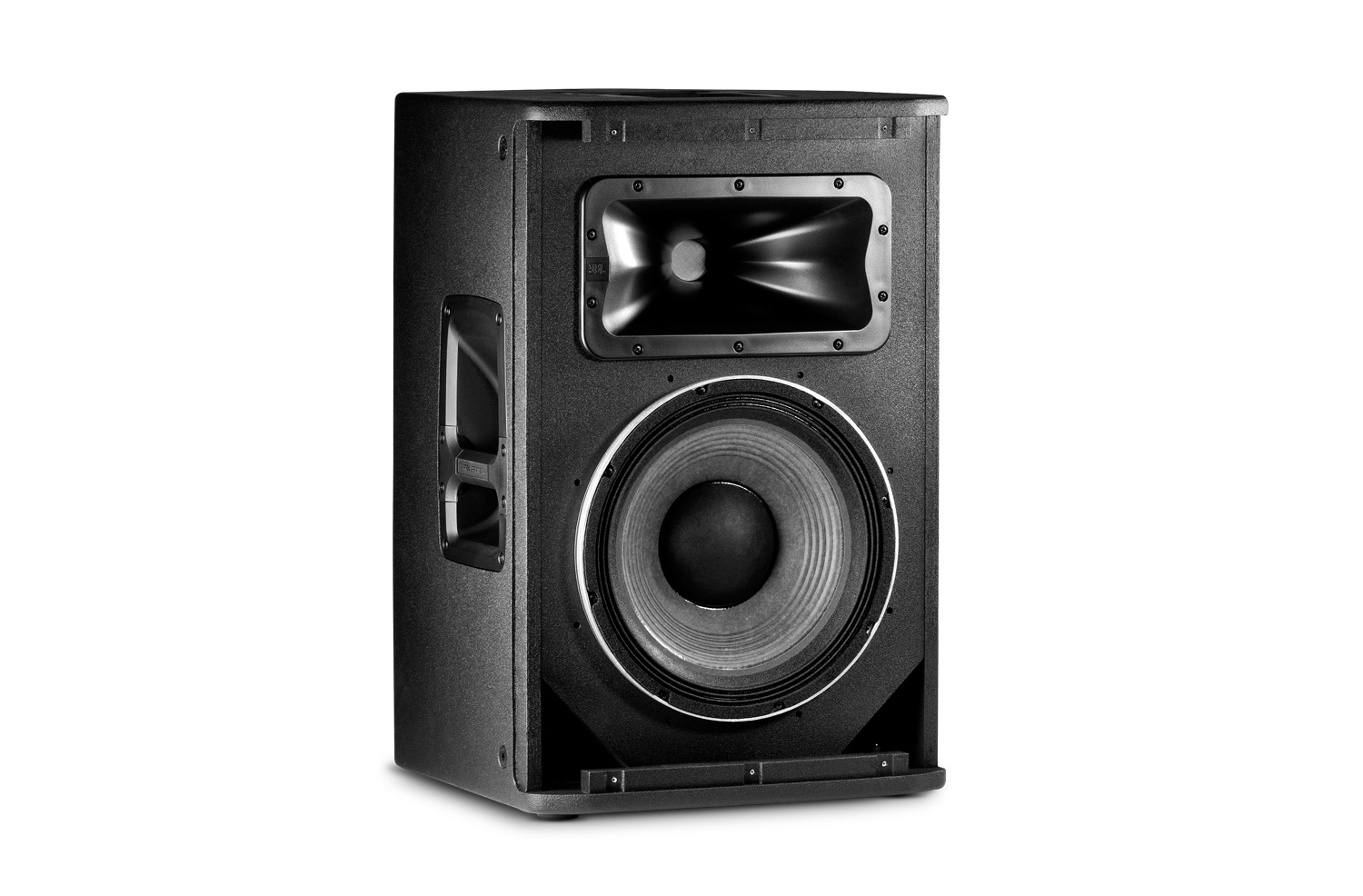

file type icon SRX812 Angle No-Grill
ενημέρωση: Οκτ 2019
200 KB Οκτ 2019

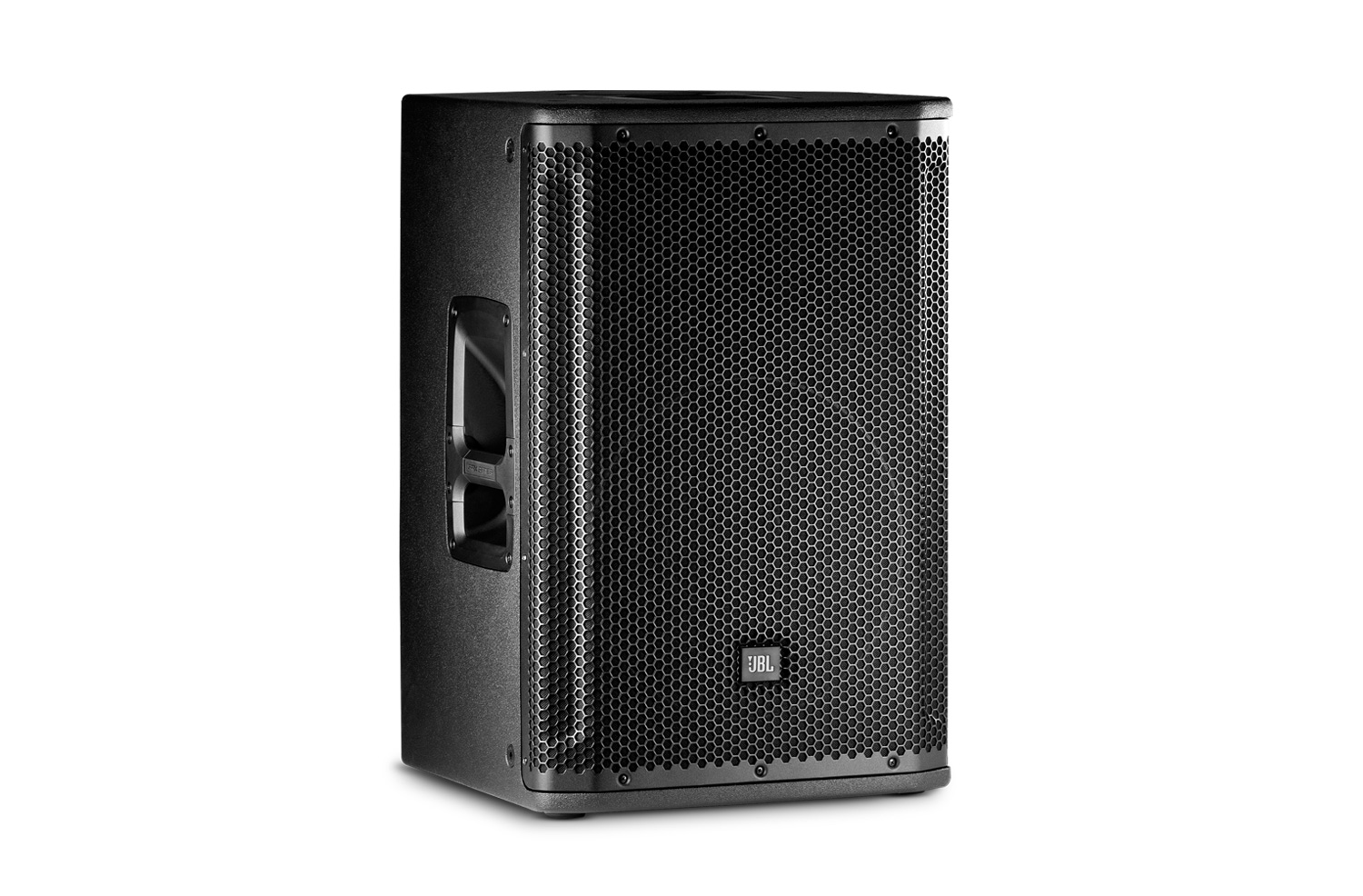

file type icon SRX812 Angle
ενημέρωση: Οκτ 2019
300 KB Οκτ 2019

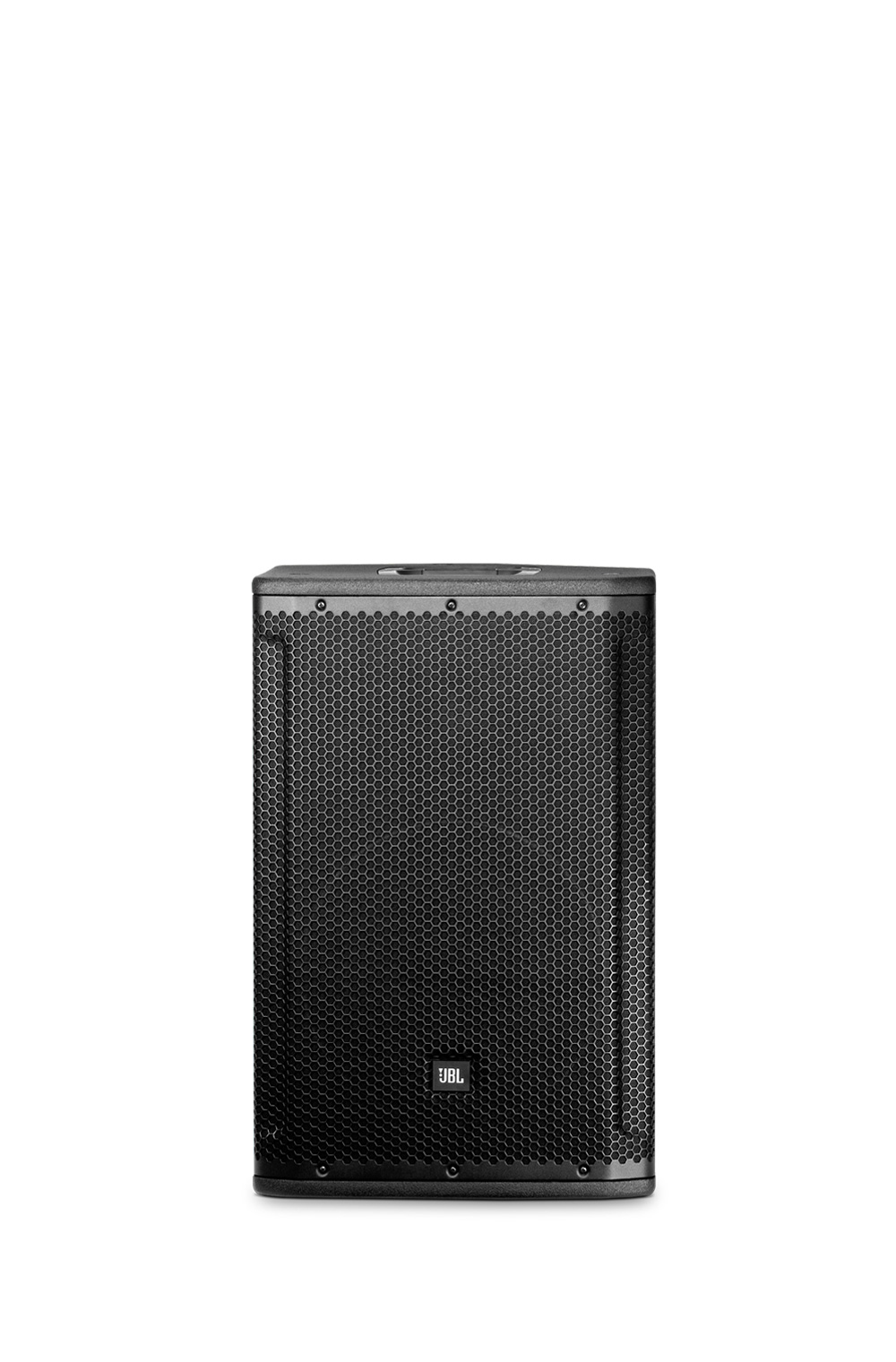

file type icon SRX812 Front
ενημέρωση: Οκτ 2019
200 KB Οκτ 2019

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

System Type Passive 12”, two-way, bass-reflex
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 57hz - 20khz
Sensitivity 94dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver JBL 2272H
HF Driver JBL 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Weight 55.0 lbs (24.9kg)
Shipping Weight 65 lbs (29.3kg)
