SRX812

12-inch 2-Way Multipurpose Passive Speaker

SRX812
Większe obrazy

12-inch 2-Way Multipurpose Passive Speaker

SRX812 is a two-way full range passive portable speaker with a 12” woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Funkcje

  • Premium JBL Transducers
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 57Hz-20kHz
  • Max SPL: 129dB (Peak)
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Więcej szczegółów

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Pobrania

Specifications
  Wersja Rozmiar Przesłano
file type icon SRX812 Spec Sheet
wersja 11/19, zaktualizowano: gru 2019
11/19  1,05 MB gru 2019
Brochures
  Wersja Język Rozmiar Przesłano
file type icon JBL 2025 PPA Brochure
en wersja B, zaktualizowano: sie 2025
en  8,45 MB sie 2025
Compliances
  Rozmiar Przesłano
file type icon SRX800 Passive Series Compliance
zaktualizowano: paź 2020
139 KB paź 2020
Software
  Rozmiar Przesłano
file type icon Audio Architect
zaktualizowano: kwi 2019
9,96 KB kwi 2019
Android download icon SRX Connect
wydano: sie 2023
sie 2023
Windows download icon HiQnet Audio Architect
wydano: lis 2020
lis 2020
iOS download icon SRX Connect
wydano: sie 2023
sie 2023
Speaker Tunings
  Rozmiar Przesłano
file type icon SRX800 Passive I-Tech HD Tunings
zaktualizowano: paź 2020
23,7 KB paź 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
zaktualizowano: paź 2020
41,3 KB paź 2020
file type icon SRX Passive Bi-amp tunings Table
zaktualizowano: paź 2020
2,69 MB paź 2020
Images
  Rozmiar Przesłano
file type icon SRX800 Driver
zaktualizowano: kwi 2019
158 KB kwi 2019
file type icon SRX800 Handle
zaktualizowano: kwi 2019
208 KB kwi 2019

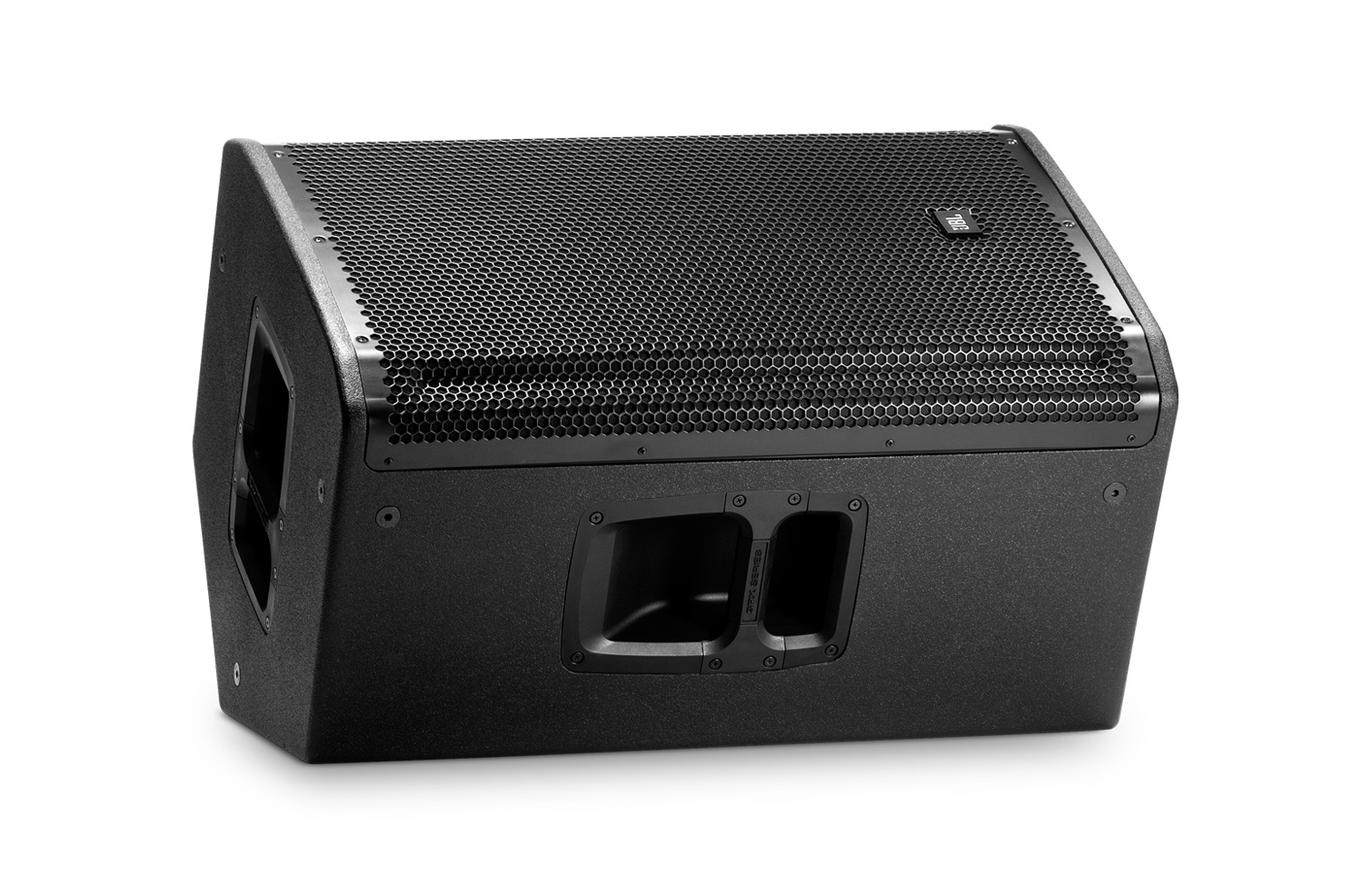

file type icon SRX812 Monitor
zaktualizowano: paź 2019
345 KB paź 2019

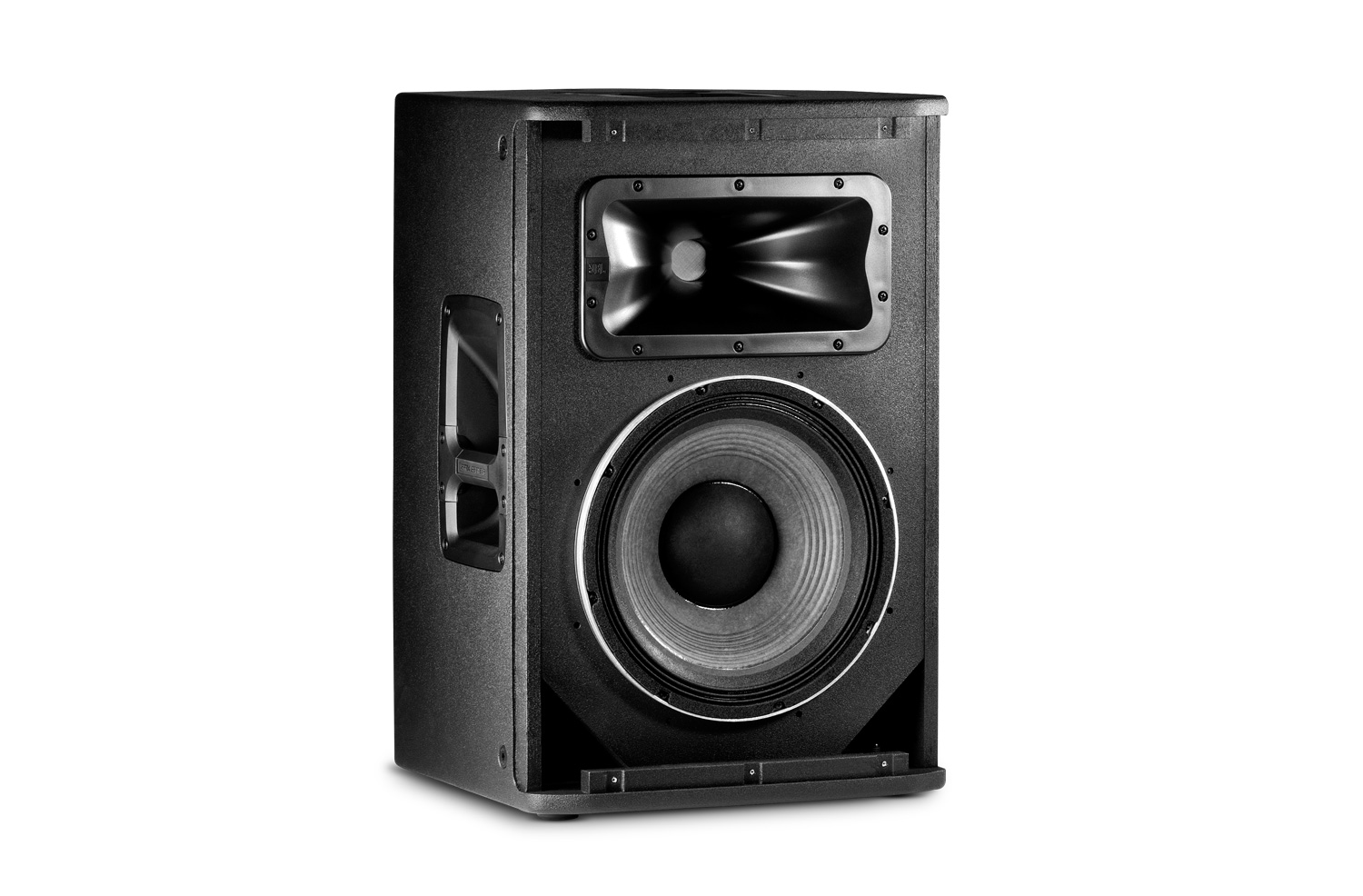

file type icon SRX812 Angle No-Grill
zaktualizowano: paź 2019
218 KB paź 2019

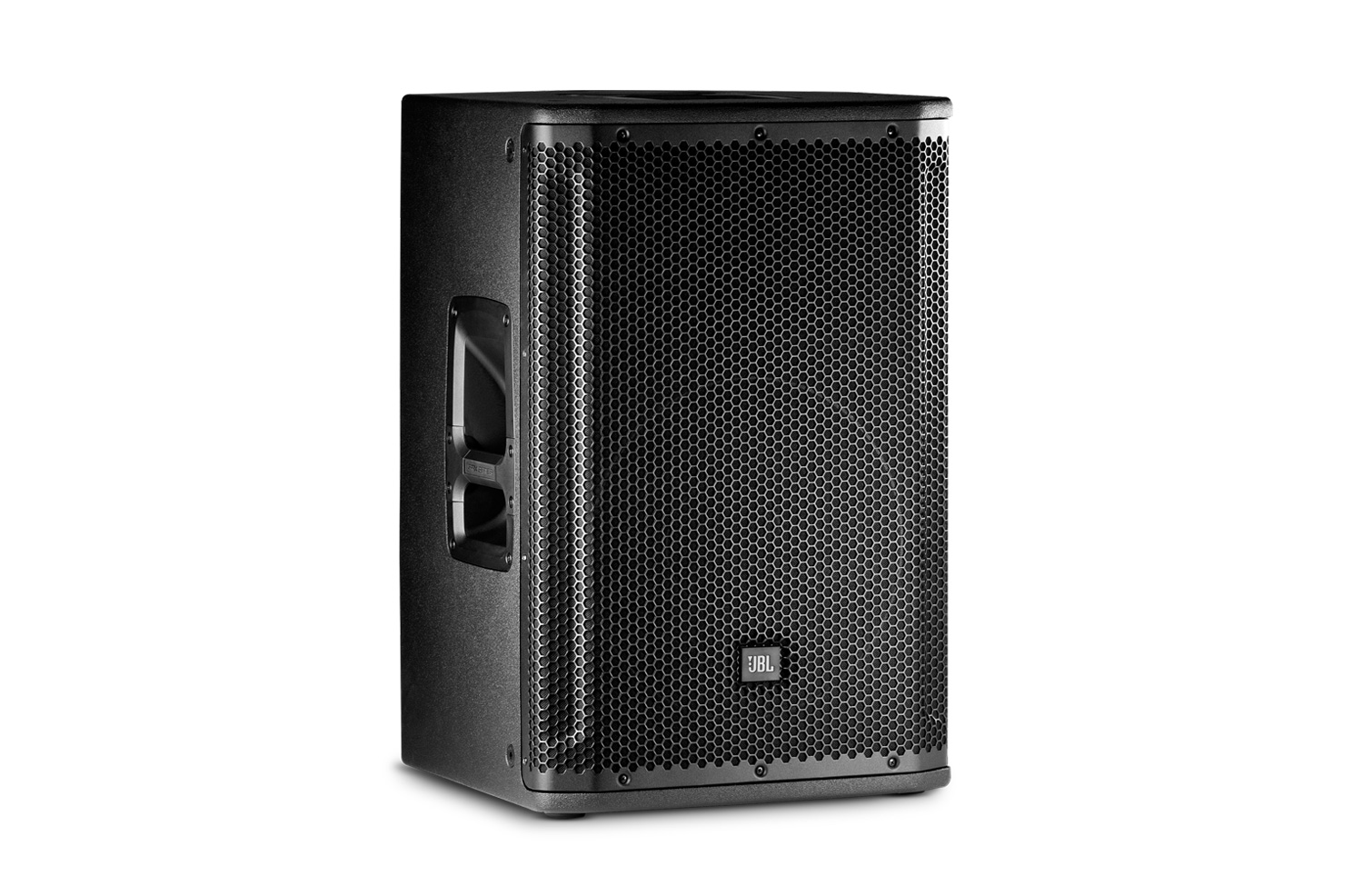

file type icon SRX812 Angle
zaktualizowano: paź 2019
291 KB paź 2019

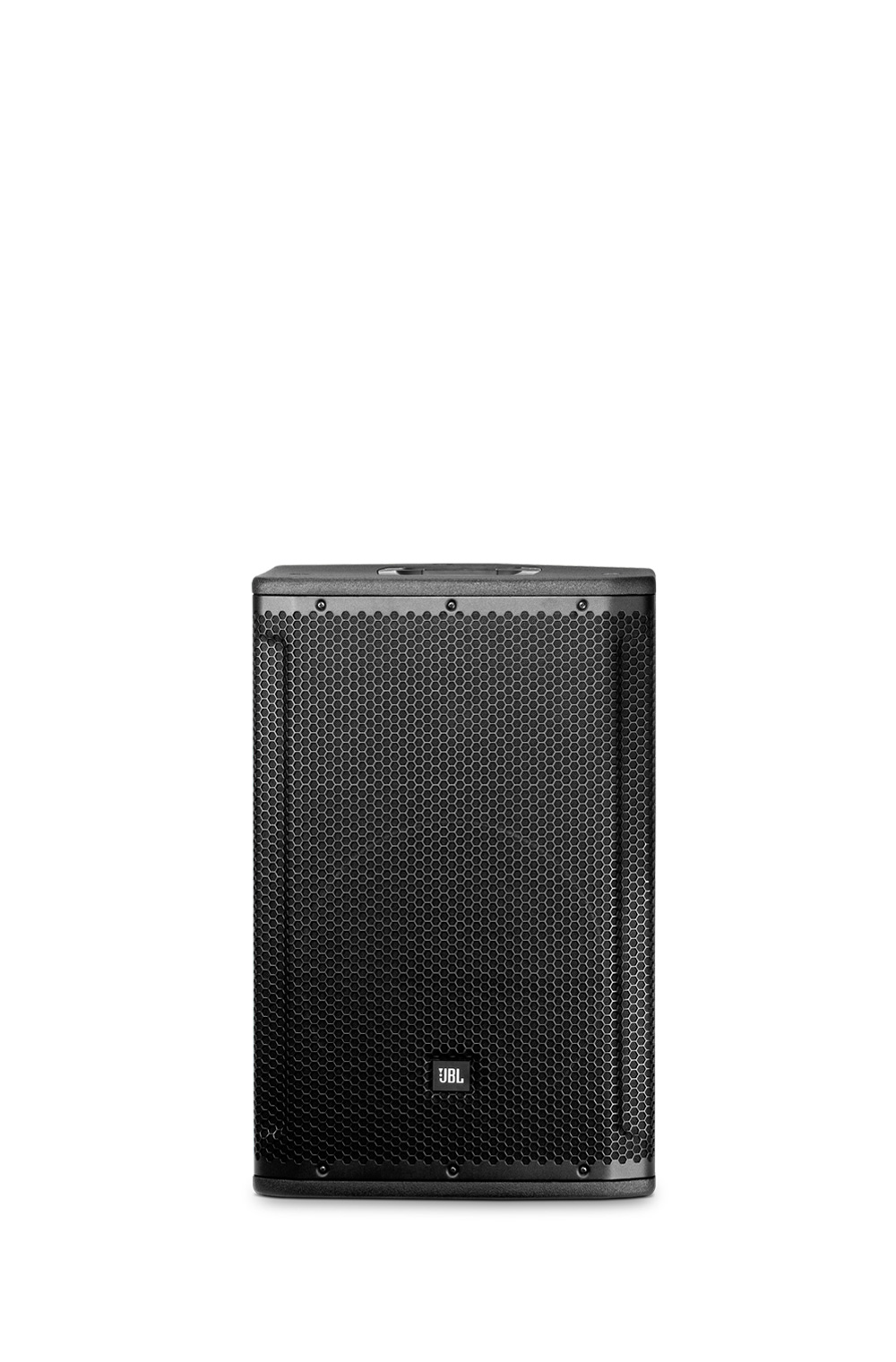

file type icon SRX812 Front
zaktualizowano: paź 2019
211 KB paź 2019

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

System Type Passive 12”, two-way, bass-reflex
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 57hz - 20khz
Sensitivity 94dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2272H
HF Driver 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
Weight 55.0 lbs (24.9kg)
Shipping Weight 65 lbs (29.3kg)
