MD3
Διακόπηκε

High Power Dual 15" Low Frequency Loudspeaker

Μεγαλύτερες εικόνες

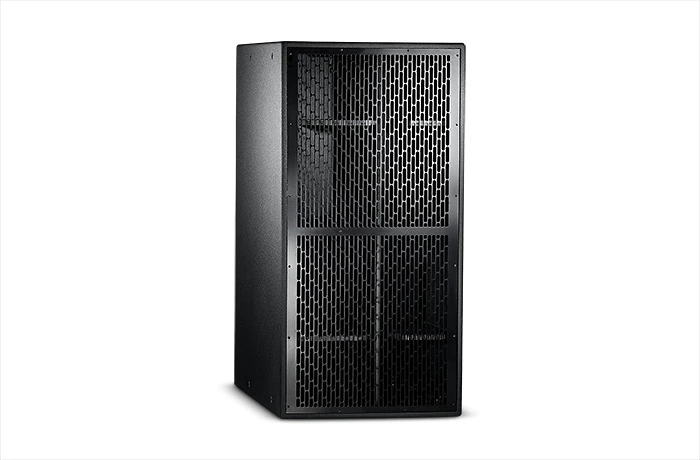

High Power Dual 15" Low Frequency Loudspeaker

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD3 is a dual 15" lowfrequency system utilizing dual 2265H Differential Drive transducers in a horn-loaded enclosure providing high-output frequency response from 300 Hz down to 80 Hz. The MD3 is intended to be used in conjunction with the MD1 super tweeter, MD2 mid-high system, and MD7 ultra high-output subwoofer system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity, and breathtaking purity.



Χαρακτηριστικά

  • Dual JBL 2265H 3” dual voice coil – dual magnetic gap Differential Drive® woofers
  • 1600 watts continuous pink noise, 6400 watts peak power handling
  • Low Distortion
  • High Fidelity

Applications

  • Sophisticated dance clubs
  • Anywhere high energy dance music is required


Λήψεις

Έγγραφα
  Γλώσσα Μέγεθος Ανέβηκε
file type icon Marquis Dance Brochure
en ενημέρωση: Απρ 2026
en  500 KB Απρ 2026
file type icon MD3 Spec Sheet
en ενημέρωση: Απρ 2026
en  500 KB Απρ 2026
Data Sheets
  Μέγεθος Ανέβηκε
file type icon MD3 Spec Sheet
ενημέρωση: Οκτ 2019
500 KB Οκτ 2019
Specifications
  Μέγεθος Ανέβηκε
file type icon Marquis Dance Club Series Spec Sheets
ενημέρωση: Ιουλ 2019
4 MB Ιουλ 2019
Brochures
  Μέγεθος Ανέβηκε
file type icon Marquis Dance Club Series Brochure
ενημέρωση: Ιουλ 2019
500 KB Ιουλ 2019
CAD Drawings
  Μέγεθος Ανέβηκε
file type icon Marquis Dance Series Customer Drawings PDF
ενημέρωση: Οκτ 2019
200 KB Οκτ 2019
file type icon Marquis Dance Series 3D DXF Drawings
ενημέρωση: Οκτ 2019
10 MB Οκτ 2019
file type icon Marquis Dance Series 2D DXF Drawings
ενημέρωση: Οκτ 2019
600 KB Οκτ 2019
Compliances
  Μέγεθος Ανέβηκε
file type icon Marquis Dance Club Series Declaration of Conformity
ενημέρωση: Οκτ 2019
100 KB Οκτ 2019
Speaker Tunings
  Μέγεθος Ανέβηκε
file type icon Marquis Dance Club Series Tunings
ενημέρωση: Οκτ 2019
1 MB Οκτ 2019
Images
  Μέγεθος Ανέβηκε

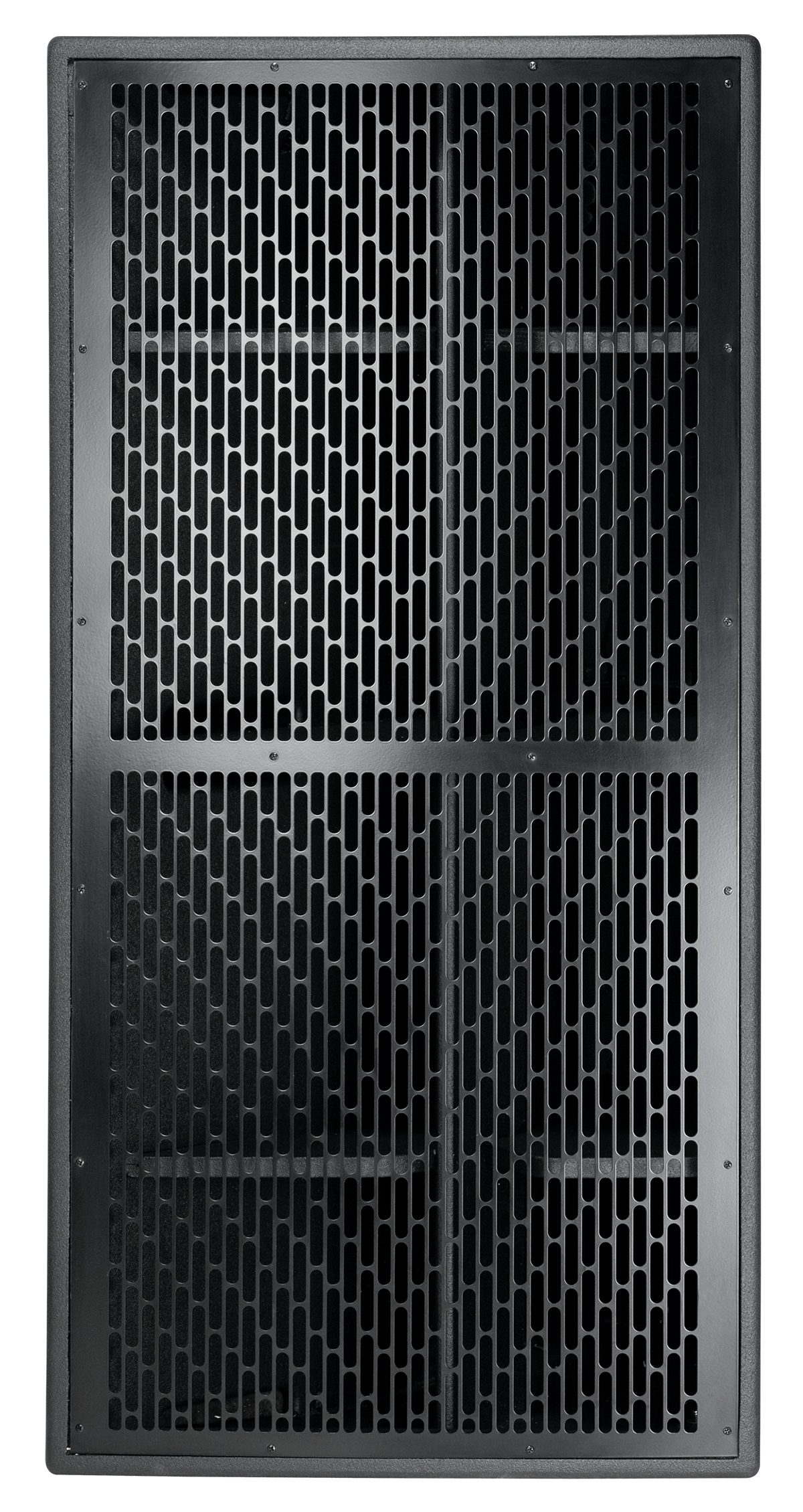

file type icon MD3 Hi-Res Image 2
ενημέρωση: Ιουλ 2019
800 KB Ιουλ 2019

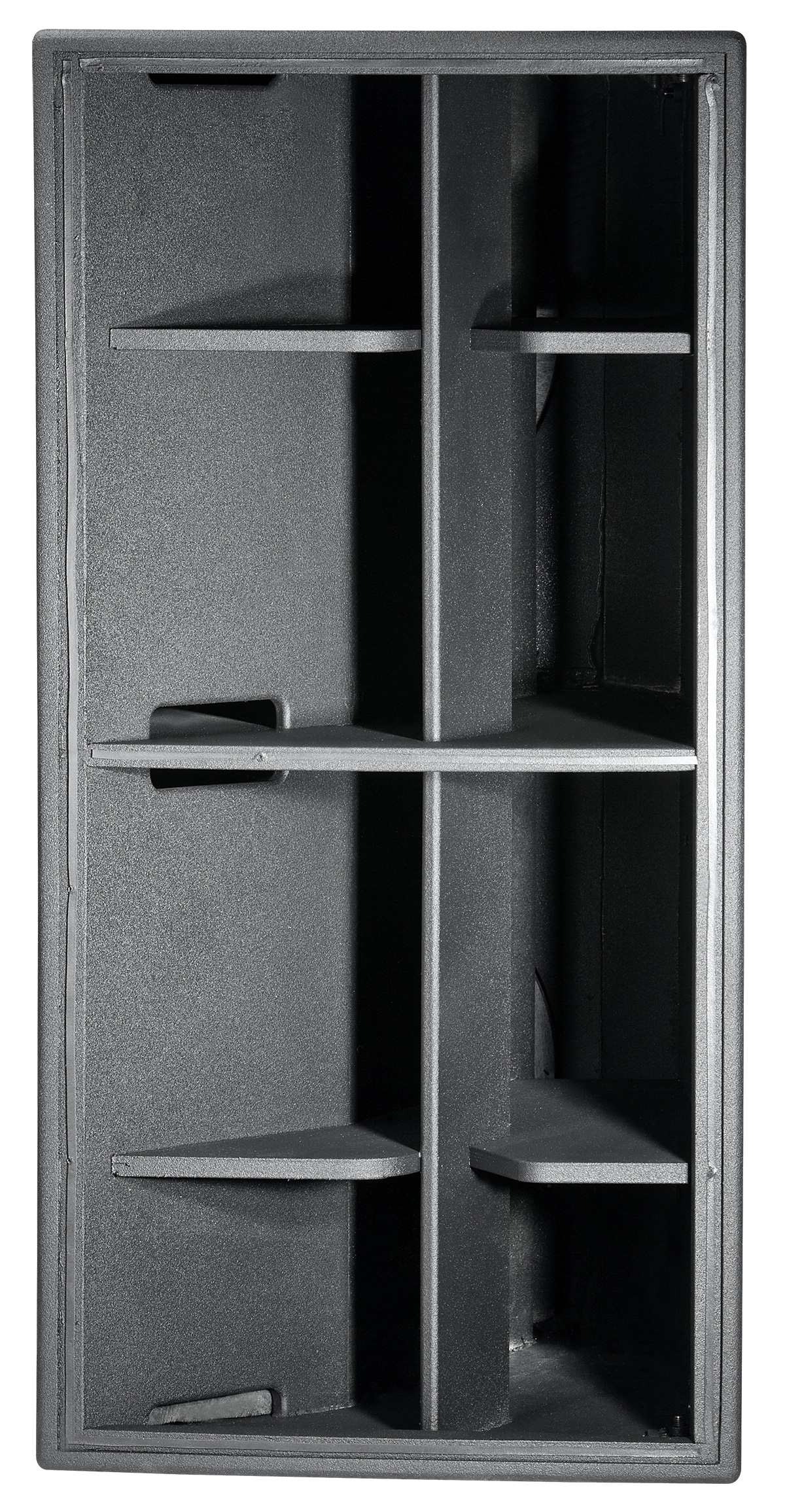

file type icon MD3 Hi-Res Image
ενημέρωση: Ιουλ 2019
1 MB Ιουλ 2019

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range (-10dB) 70 - 415 Hz
Power Rating 1600 W (6400 W peak), 2 hrs
Frequency Response (±3 dB) 50 - 310 Hz
Maximum SPL (1m) 136 dB-SPL cont av (142 dB peak)
System Sensitivity 112 dB SPL, 2.83V (2W) @ 1m (3.3 ft)
Nominal Impedance 4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode
LF Driver 2 x 2265H, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® drivers
Enclosure Cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex™ finish
Grille Powder coated 14 gauge perforated steel
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Dimensions (H x W x D in vertical orientation) 1143 x 599.8 x 762.5 mm (45 x 22 x 30 in)
Net Weight 73 kg (161 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
