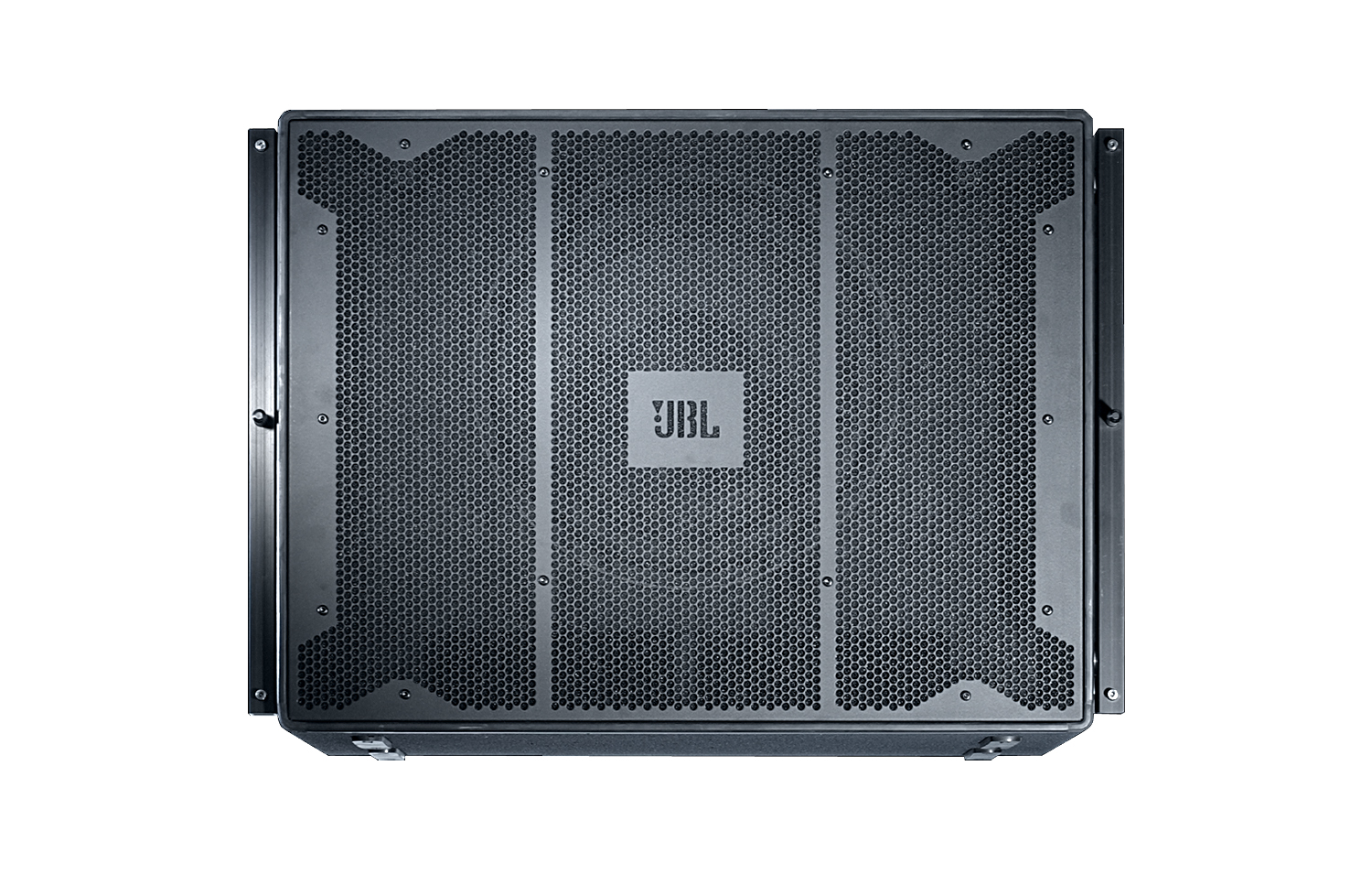

Compact Arrayable 1-18" Subwoofer
The VT4881A is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio and theatrical presentations of all types.
Større billeder
Funktioner
- Advanced technology component: Differential Drive®, dual voice coil, Direct Cooled™ cone transducer.
- Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight enclosure.
- Rugged DuraFlex™ exterior finish; weatherized components Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other VERTEC® system products.
Downloads
Specifications
| Størrelse | |
|
|
595 kB |
Brochures
| Størrelse | |
|
|
2,09 MB |
CAD Drawings
| Størrelse | |
|
|
146 kB |
|
|
1,34 MB |
|
|
195 kB |
Compliances
| Størrelse | |
|
|
144 kB |
Software
| Størrelse | |
|
|
134 MB |
|
|
18 MB |
Helpful Links
| Størrelse | |
|
|
324 kB |
|
|
518 kB |
|
|
1,12 MB |
|
|
388 kB |
|
|
856 kB |
|
|
2,94 MB |
Speaker Tunings
| Størrelse | |
|
|
96,3 MB |
|
|
3,96 MB |
|
|
3,19 MB |
|
|
404 kB |
|
|
35,1 MB |
Accessories
| Størrelse | |
|
|
7,3 MB |
Images
| Størrelse | |
|
|
749 kB |
Ease Data
| Størrelse | |
|
|
1,19 MB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
Reservedele og service
Specifikationer
| Frequency Range | 25 Hz - 160 Hz (-10dB) |
| Frequency Response | 34 Hz - 125 Hz (± 3 dB) |
| Continuous Power Rating | 2000W |
| Sensitivity | 91 dB, 1W / 1m (2.83 Vrms at 3.3 ft) |
| Nominal Impedances | 8 ohm |
| Dimensions (w x h x d) | 787 mm x 569 mm x 654 mm(31 in x 22.4 in x 25.8 in) |
| Weight | 50.4 kg (111 lb) |
