SRX818S

18-inch Passive Subwoofer

SRX818S
Større billeder

18-inch Passive Subwoofer

SRX818S is a single 18” subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.



Funktioner

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
  • Frequency Range: 28Hz-150Hz
  • Frequency Response: 45Hz-150Hz
  • Max SPL: 129dB (Peak)
  • Amplification options: Passive
  • 2279 LF 8 Ohm 18” Woofer

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Flere detaljer

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Downloads

Specifications
  Version Størrelse Uploadet
file type icon SRX818S Spec Sheet
version 11_11_19, opdateret: dec 2019
11_11_19  627 kB dec 2019
Brochures
  Version Sprog Størrelse Uploadet
file type icon JBL 2025 PPA Brochure
en version B, opdateret: aug 2025
en  8,45 MB aug 2025
Compliances
  Størrelse Uploadet
file type icon SRX800 Passive Series Compliance
opdateret: okt 2020
139 kB okt 2020
Software
  Størrelse Uploadet
file type icon Audio Architect
opdateret: apr 2019
9,96 kB apr 2019
Android download icon SRX Connect
udgivet: aug 2023
aug 2023
Windows download icon HiQnet Audio Architect
udgivet: nov 2020
nov 2020
iOS download icon SRX Connect
udgivet: aug 2023
aug 2023
Speaker Tunings
  Størrelse Uploadet
file type icon SRX800 Passive I-Tech HD Tunings
opdateret: okt 2020
23,7 kB okt 2020
41,3 kB okt 2020
file type icon SRX Passive Bi-amp tunings Table
opdateret: okt 2020
2,69 MB okt 2020
Images
  Størrelse Uploadet
file type icon SRX800 Driver
opdateret: apr 2019
158 kB apr 2019
file type icon SRX800 Handle
opdateret: apr 2019
208 kB apr 2019

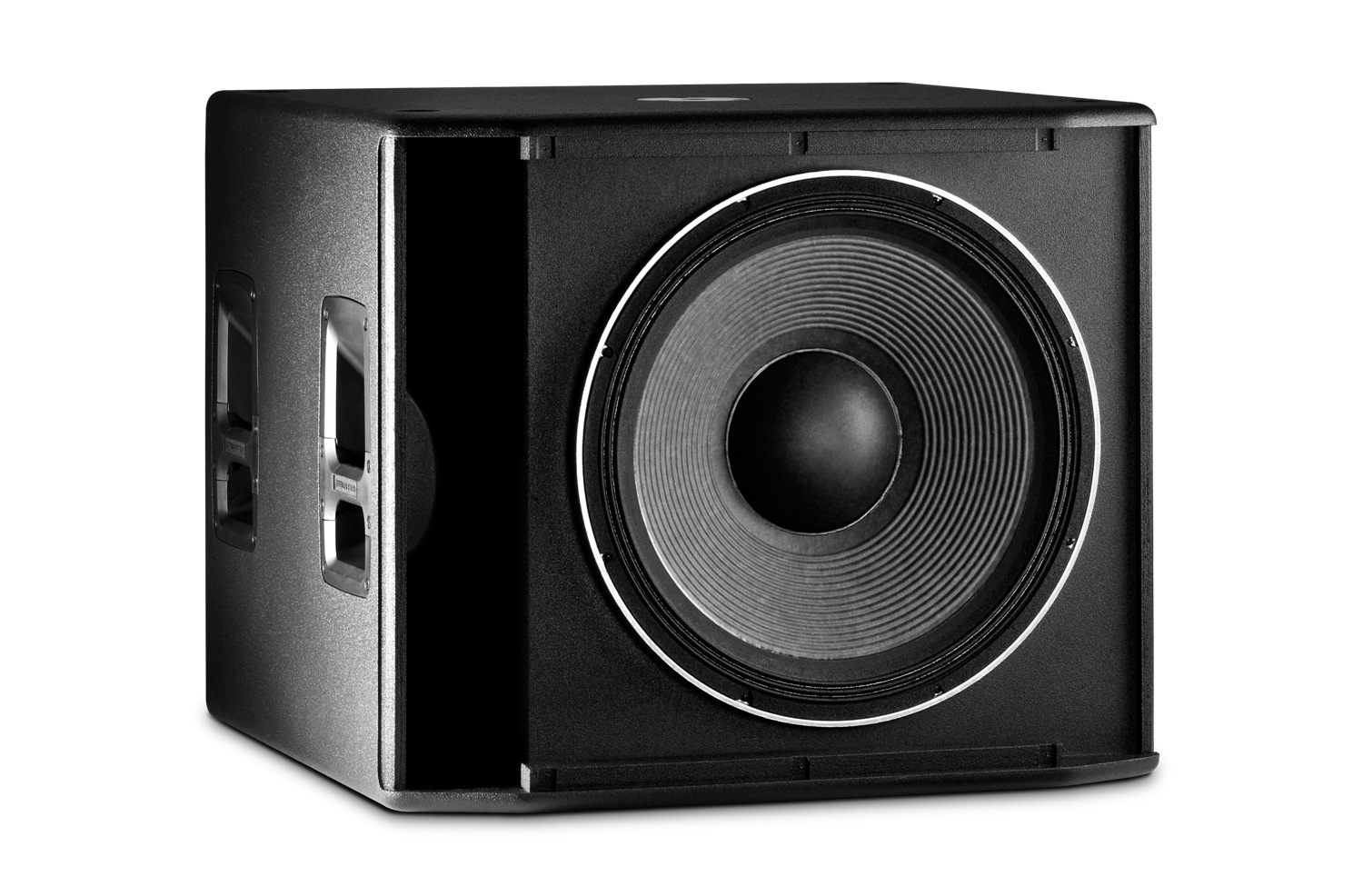

file type icon SRX818S Angle No-Grill
opdateret: jul 2019
314 kB jul 2019

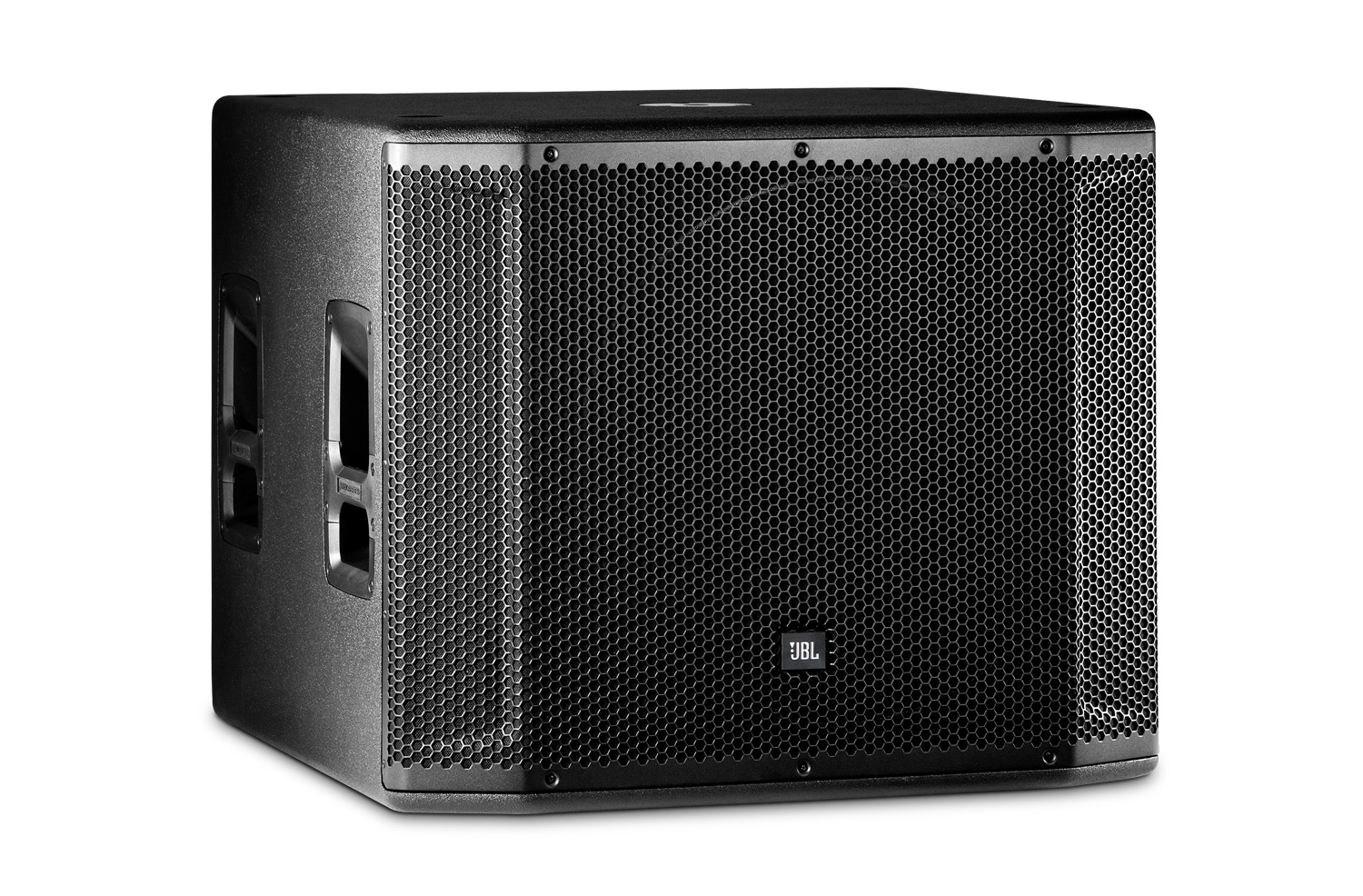

file type icon SRX818S Angle
opdateret: jul 2019
498 kB jul 2019

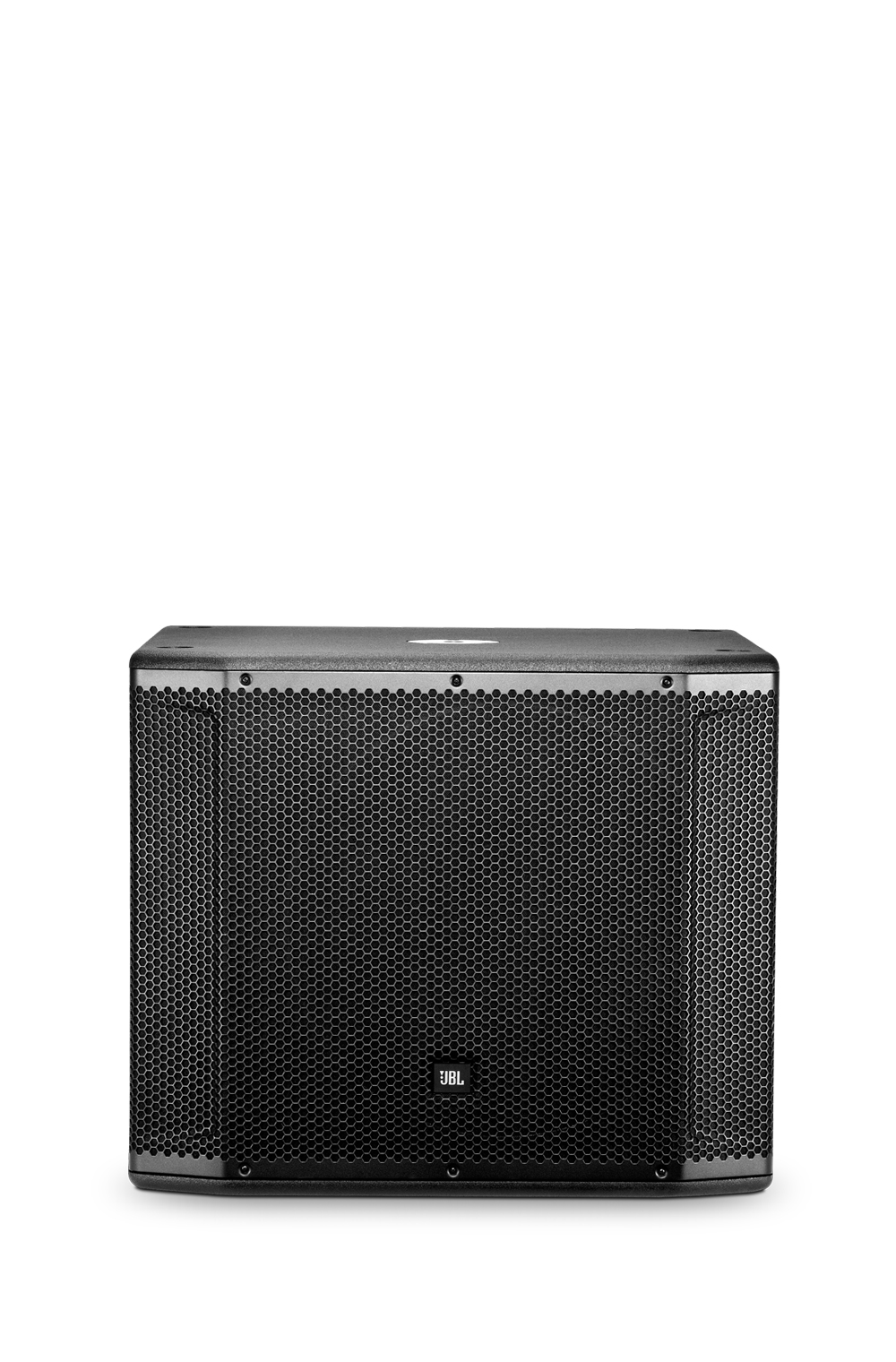

file type icon SRX818S Front
opdateret: jul 2019
429 kB jul 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type Passive 18”, subwoofer system
Maximum SPL Output 123dB (Continuous), 129dB (Peak)
Frequency Range (-10dB) 28hz - 150hz
Frequency Response (-3 dB) 45hz - 150hz
Sensitivity 95dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver 2279H
Crossover Frequency 80hz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Weight 78.0 lbs (35.4kg)
Shipping Weight 88 lbs (40.2kg)

Tilbehør

SRX818SP-CVR-DLX | Deluxe padded cover for SRX818SP
SRX818SP-CVR-DLX Main photo
Større billeder
SRX818SP-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo


SRX818SP-CVR-DLX-WK4 | Deluxe padded cover for SRX818SP w/ Casters
SRX818SP-CVR-DLX-WK4 Main photo
Større billeder
SRX818SP-CVR-DLX-WK4 detail thumbnail #1

Deluxe padded cover for SRX818SP, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo. Designed to accommodate WK-4S rear-mounted caster kit (sold separately)


JBLPOLE-GA | JBL gasassisteret højttalerstander
JBLPOLE-GA Main photo
Større billeder
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole med M20 gevind i nedre ende, 38 mm stang og 35 mm adapter. JBLPOLE-GA er det nemmeste højttalerstativ at bruge takket være det interne pneumatiske stød, som bogstaveligt talt løfter højttaleren for dig. Stavens interne stød løfter let højttalere på 35 pund eller mindre uden anstrengelse fra brugeren.

  • Hæv og sænk højttaleren med lethed!
  • Stærk og brugervenlig "Z"-knap
  • Utrolig robust stang
  • M20-gevindstilet stangmontering
  • Passer til de fleste subwoofere med standard M20-polegevind (JBL PRX, VRX, STX og SRX818) - Se venligst individuelle produkter

Dokumentation
JBLPOLE-MA | JBL Manuel justerbar højttalerstativ
JBLPOLE-MA Main photo
Større billeder
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manuel justerbar højttalerstang med M20-gevindunderende, 38 mm stang og 35 mm. JBLPOLE-MA har en fantastisk højdeindstillingskrave, der er udstyret med en ergonomisk "Z"-knap, som giver behagelig justering. Den stærkeste konstruktion, højdeindstillingskraven forhindrer overtilspænding og brudproblemer forbundet med alle plastikdesign.

  • Letvægt
  • Metal støbte påsætninger
  • M20 Gevindhulle
  • Passer på alle subwoofere med standard M20 paalgevindsystem (JBL PRX, VRX, STX og SRX818) - Se venligst de individuelle produkter for at bekræfte

Dokumentation
JBLTRIPOD-GA | JBL gasassisteret højttalerstativ
JBLTRIPOD-GA Main photo
Større billeder
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist aluminiumstativ til højttalere med integreret højttalereradapter. JBLTRIPOD-GA er et utrolig let stativ at bruge takket være det interne pneumatiske stød, der bogstavelig talt løfter højttaleren for dig. Stavets interne stød løfter nemt højttalere på 35 pund og derunder uden indsats fra brugeren.
  • Gasassistance justerbar fra 3'8" (1118MM) til 6'7" (2007MM)
  • Gasassistance stativ, der løfter højttaleren for dig ved hjælp af en intern luftdrevet stød
  • Designet til brug med følgende JBL-modeller; JRX200, PRX400, STX800, EON, PRX700, VRX900

Dokumentation
JBLTRIPOD-MA | JBL Manuel Justerbar Højttalerstativ
JBLTRIPOD-MA Main photo
Større billeder
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminiums tripod højttalerstativ med sikker låsestift og 150 lbs bærekapacitet. For at hjælpe dig med at løfte din højttaler har vi tilføjet en holdbar løftebøjle på teleskoprøret, så du får noget at skubbe mod når højtaleren løftes til ønsket højde.

  • Justerbar fra 4'2" (1270MM) til 6'5" (1956MM)
  • Manuel justerbar højttaler-stativ
  • Designet til brug med følgende JBL-modeller; JRX200, PRX400, STX800, EON, PRX700, VRX900

Dokumentation
