LSR2325P
Udgået

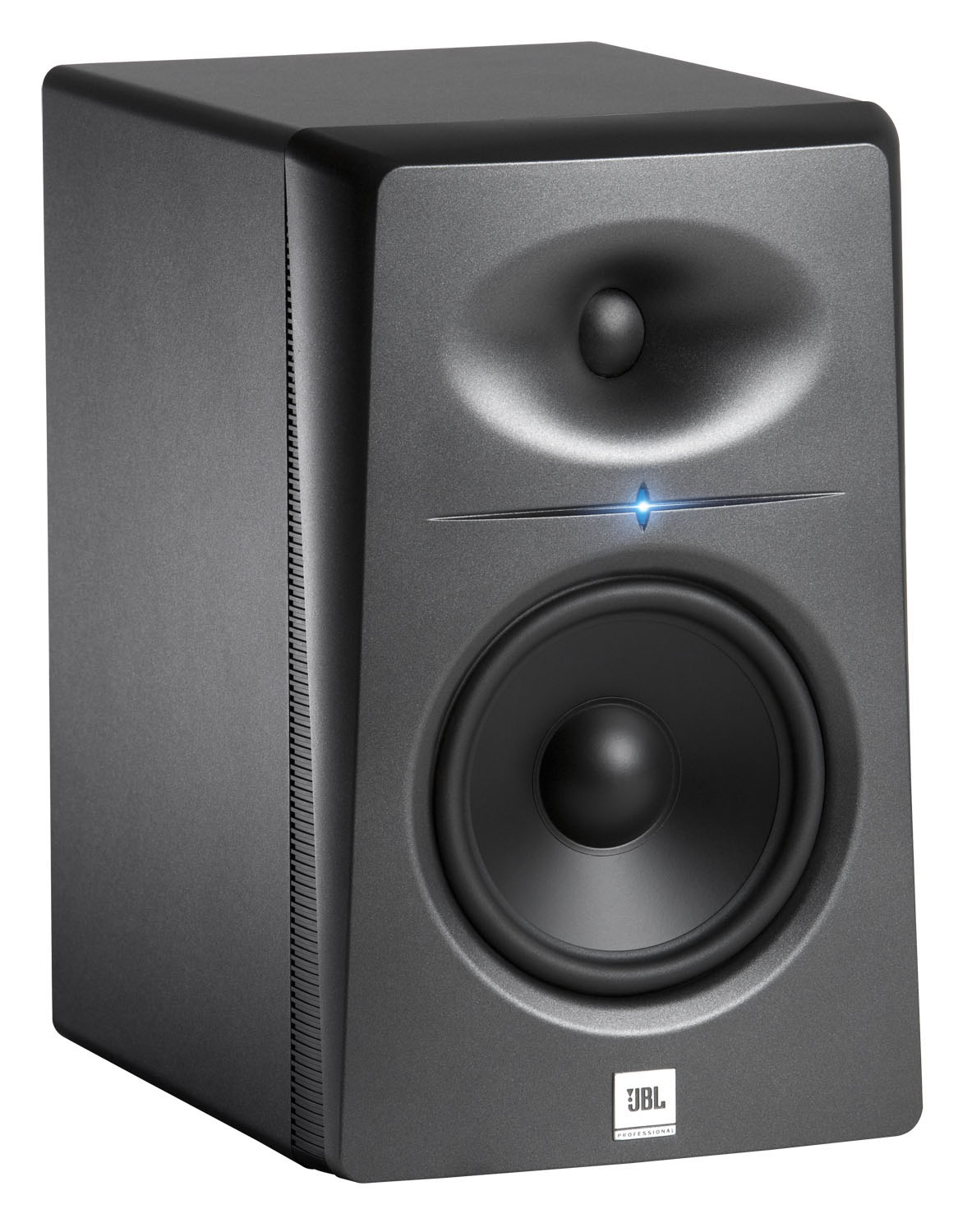

5" Two-Way Bi-Amplified Powered Studio Monitor

LSR2325P
Større billeder

5" Two-Way Bi-Amplified Powered Studio Monitor

The LSR2325P Bi-Amplified Two-Way Model is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems. A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker’s response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

Funktioner

  • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors
  • Level Control
  • Magnetic Shielding
  • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads.

Downloads

Manuals
  Sprog Størrelse Uploadet
file type icon LSR2300 User's Guide French
fr opdateret: okt 2019
fr  5,92 MB okt 2019
file type icon LSR2300 User's Guide German
de opdateret: okt 2019
de  5,82 MB okt 2019
file type icon LSR2300 User's Guide Spanish
es opdateret: okt 2019
es  5,92 MB okt 2019
Brochures
  Størrelse Uploadet
file type icon LSR2300 Brochure
opdateret: okt 2020
1,37 MB okt 2020
Compliances
  Størrelse Uploadet
127 kB okt 2019
User Guides
  Størrelse Uploadet
file type icon LSR2300 Users Guide
opdateret: okt 2020
5,91 MB okt 2020
Images
  Størrelse Uploadet
file type icon LSR2325P Hi Res photo
opdateret: okt 2020
218 kB okt 2020
Install Guides
  Størrelse Uploadet
file type icon R&B Mounting Brackets
opdateret: okt 2020
26,2 kB okt 2020

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range 43 Hz - 20 kHz
Max SPL Continous Each / Pair: > 101 dB / > 107 dB
Max SPKL Peak Each / Pair: > 112 dB / > 118 dB
Drivers (LF / HF) 5” (132 mm) 235G1” (25 mm) 231H
LF Trim + 2 dB / -3 dB
HF trim + 2.5 dB / - 2.5 dB
Input Connectors Balanced XLR, 1/4" TRS, RCA
Amplifier Power Rating LF/HF: 55 W / 35 W
Input Sensitivity 92 dB SPL / 1m @ -10dBV Balanced Input
Crossover Frequency 1.7 kHz 4th-order Acoustic Linkwitz-Riley
Enclosure 15 mm (5/8 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 303 mm x 187 mm x 258 mm (11.9 in x 7.4 in x 10 in)
Net Weight 7.7 Kg (16 lb)
