Control 416C/T-VA

6,5" tohejs koaksial loftshøjtaler til livssikringsapplikationer (EN54-24)

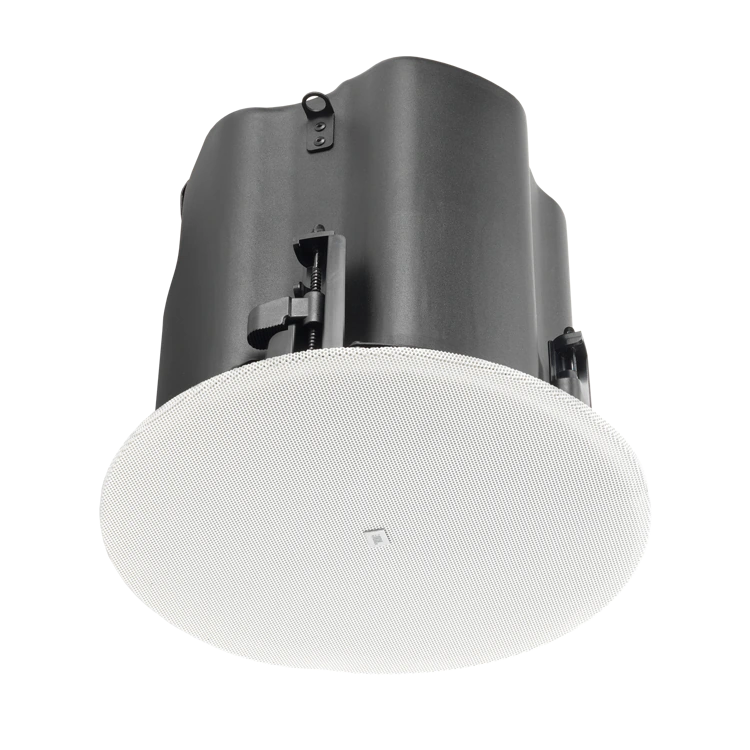

Control 416C/T-VA
Større billeder

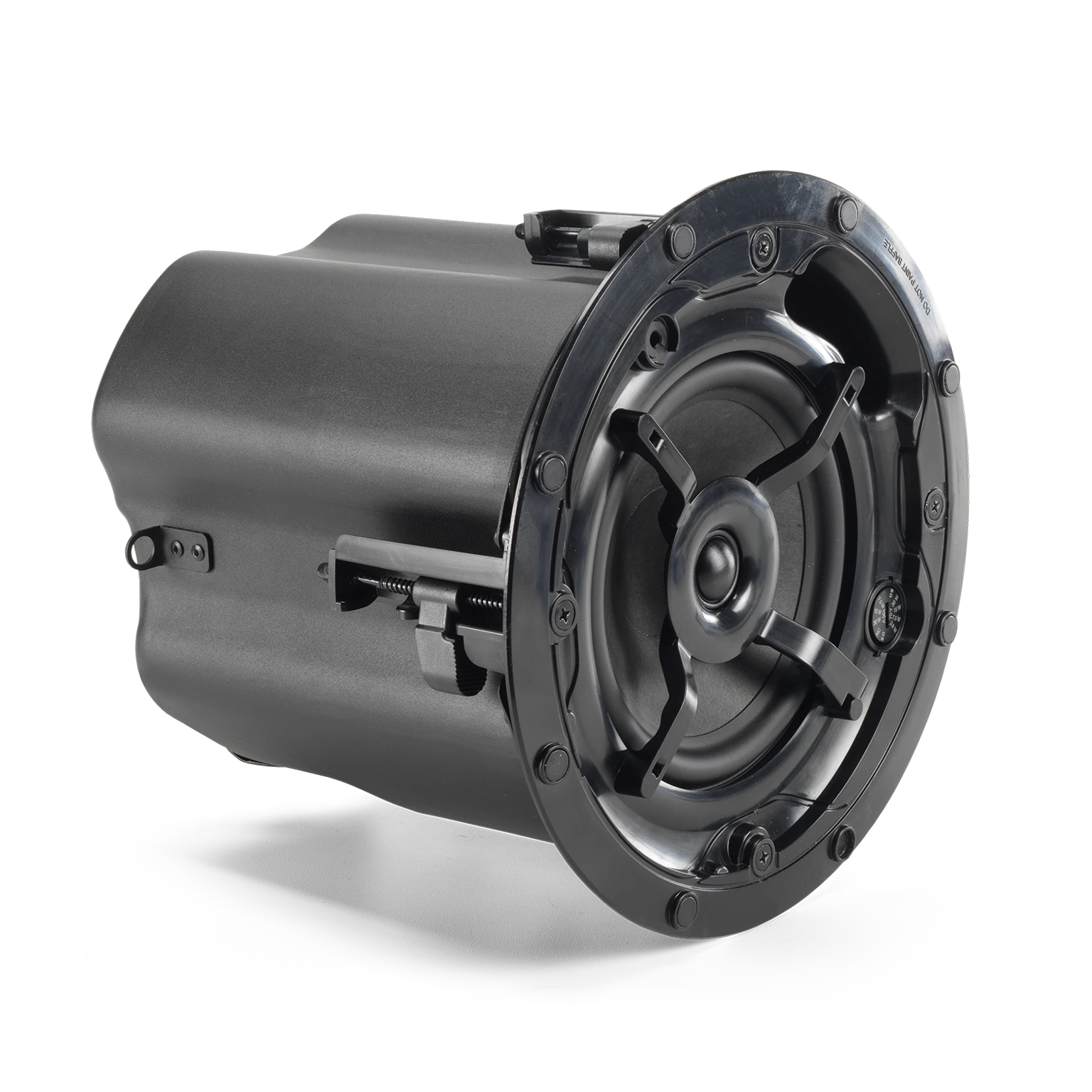

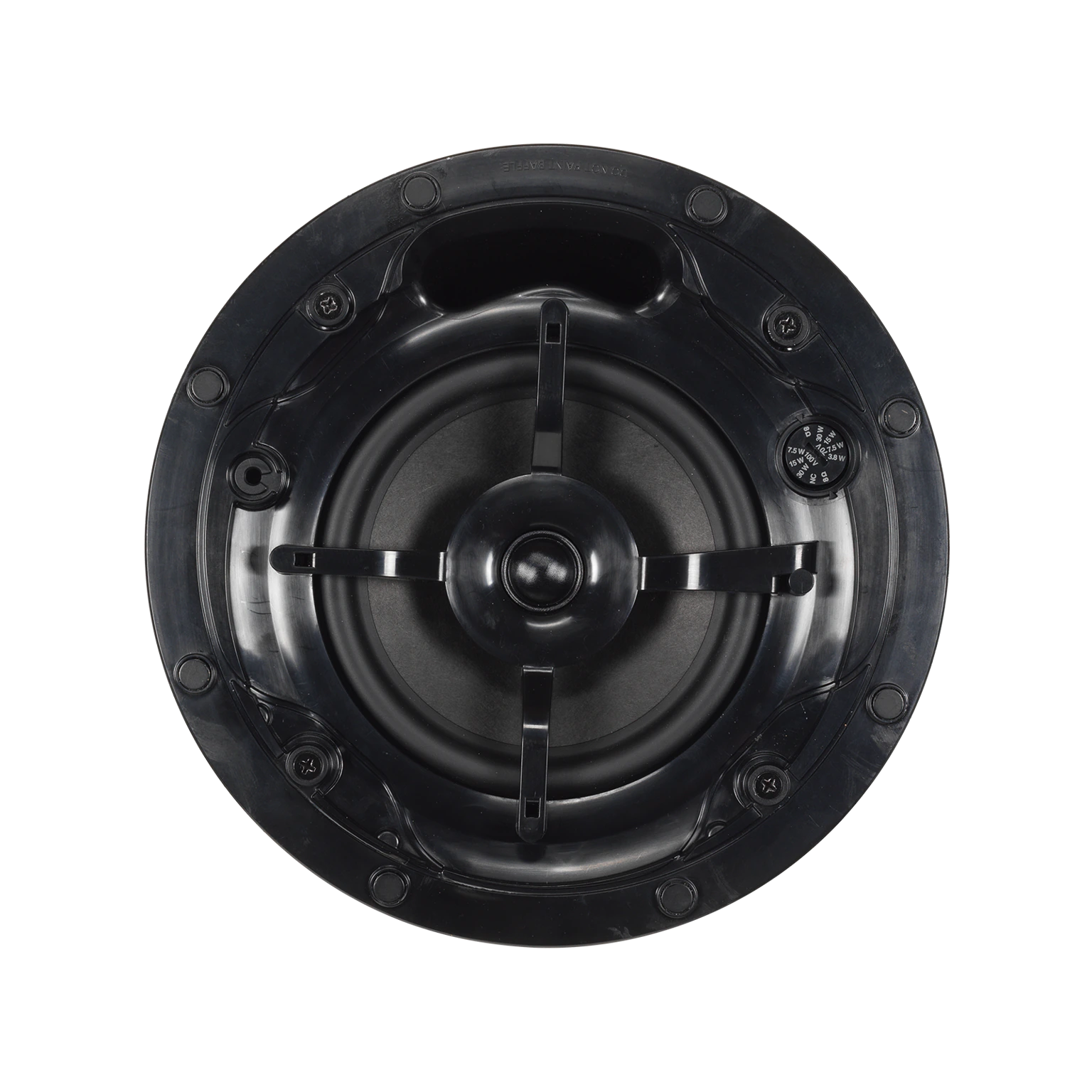

JBL Control 416C/T-VA, som er en del af Control 400 Standard Coverage Series, er en tovejs koaksial loftshøjttaler, der har en 6,5” woofer og et integreret kabinet, der er ideelt til installation i de fleste loftsplenumrum. Denne model er EN54-24 certificeret, hvilket gør den velegnet til livsafety-anvendelser.

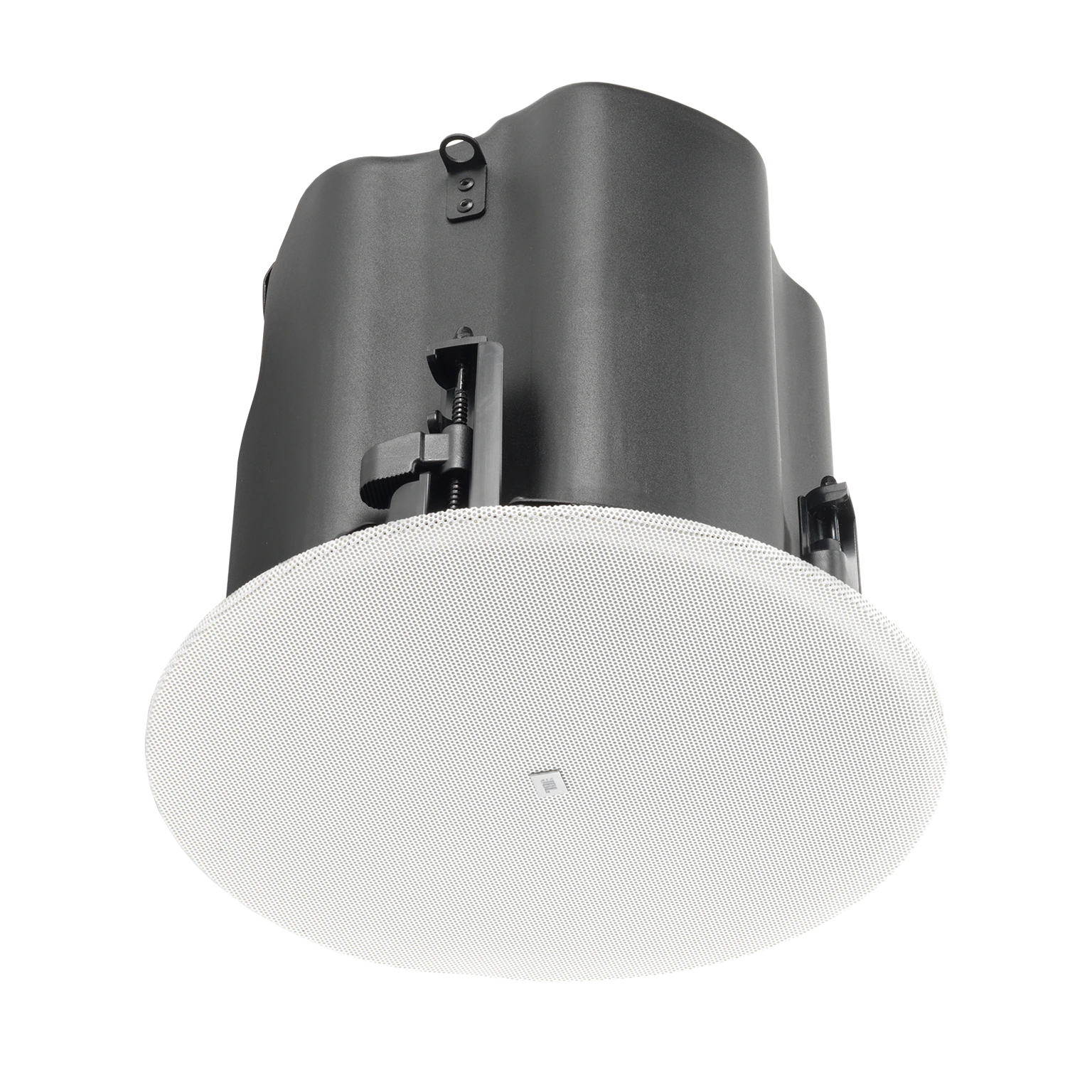

Alle modeller i Control 400 Series er designet til at smelte perfekt ind i moderne interiører. Den medfølgende magnetgitter i fuld ansigtsoverflade kan males for integration i enhver indretning, mens de tilgængelige sorte runde og hvide firkantede gitre giver ekstra tilpasningsmuligheder.

Control 416C/T-VA inkluderer gennemtænkte installationsfunktioner for at forbedre sikkerhed, effektivitet og gentagelighed. Terminaldækslet muliggør bekvem kabelindgang fra toppen eller siden, og det pålidelige fangede dogear-design imødekommer en række forskellige lofttykkelser, hvilket sikrer alsidighed til ethvert miljø. Derudover understøtter Control 416C/T-VA både 70V/100V og lavimpedans applikationer.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Funktioner

  • 165 mm (6.5 in) woofer and 19 mm (0.75 in) soft-dome tweeter
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated
  • EN54-24 Certified for Standard for Life Safety applications

Downloads

Specifications
  Sprog Størrelse Uploadet
file type icon Control 416C/T-VA Spec Sheet
en opdateret: feb 2026
en  1,4 MB feb 2026
Manuals
  Version Størrelse Uploadet
6,81 MB aug 2025
Brochures
  Størrelse Uploadet
file type icon 2025 Control 400 Family Brochure
opdateret: aug 2025
3,9 MB aug 2025
CAD Drawings
  Størrelse Uploadet
15,5 MB aug 2025
Compliances
  Størrelse Uploadet
286 kB jan 2026
298 kB jan 2026
298 kB jan 2026
466 kB jan 2026
537 kB jan 2026
419 kB dec 2025
Software
  Version Størrelse Uploadet
Windows download icon Distributed System Design (DSD)
version 3.9, opdateret: nov 2025
3.9   612 kB nov 2025
Speaker Tunings
  Størrelse Uploadet
441 kB aug 2025
Technical Papers
  Størrelse Uploadet
768 kB nov 2025
Ease Data
  Størrelse Uploadet
file type icon Control 416C/T – CLF File
opdateret: okt 2025
326 kB okt 2025
file type icon Control 416C/T-VA - EASE GLL
opdateret: aug 2025
701 kB aug 2025
Accessories
  Version Størrelse Uploadet
file type icon Ceiling Speaker Accessory Guide
version 2026-04, opdateret: maj 2026
2026-04  570 kB maj 2026

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10 dB) 61Hz - 20kHz
Power Capacity 75W (300W Peak) Cont. Pink Noise (2 hrs)
50W (200W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W) 89dB
Coverage Angle 120° conical
Maximum SPL (1m) 108 dB continuous pink noise (114 dB peak)
Nominal Impedance
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.8 W
100 V: 30 W, 15 W, 7.5 W
Drivers LF: 165 mm (6.5 in) with paper cone, SBR surround.
HF: 20 mm (0.75 in) soft dome
Ceiling Cutout Size 223 mm (8.8 in)
Dimensions 249 mm (9.9 in) H x 261 mm (10.4 in) dia.
238 mm (9.5 in) from bottom of ceiling tile to top of gland nut.
Safety Agency Rating EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-416BG black (RAL9004) round grille
JBL-MTC-416SG white (RAL9003) square grille
JBL-MTC-416WG weather grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea) 3.76 kg (8.29 lbs)
Shipping Weight (pair) 12.66 kg (27.91 lbs)
SKU Numbers JBL-C416C/T-VA

Tilbehør

MTC-416WG | Weatherized Grille for Control 416
Større billeder
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
  • Weatherized Grille provides protection for high humidity installations

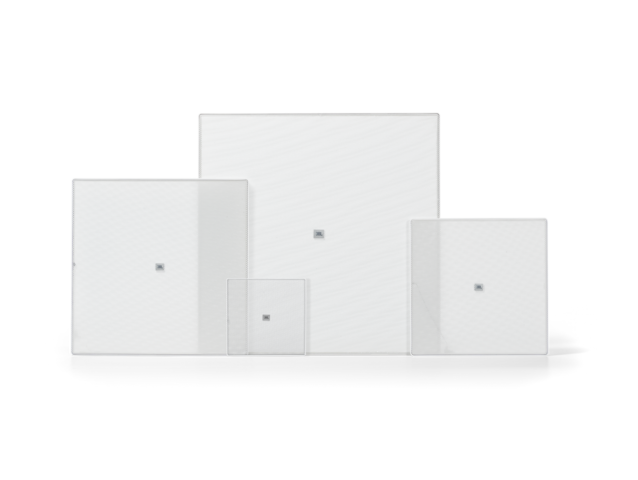

MTC-416SG | Square Grille for Control 416
MTC-416SG  Main photo
Større billeder
MTC-416SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

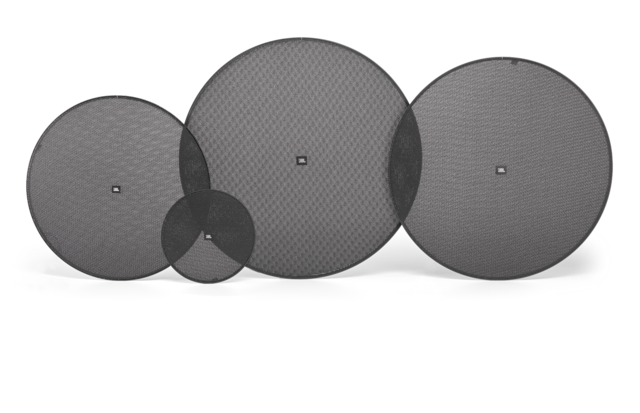

MTC-416BG | Round Black Grille for Control 416
MTC-416BG  Main photo
Større billeder
MTC-416BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
