Control 416C/T-VA

Alto-falante Coaxial de Teto Bidirecional de 6,5" para Aplicações de Segurança Patrimonial (EN54-24)

Control 416C/T-VA
Imagens Grandes

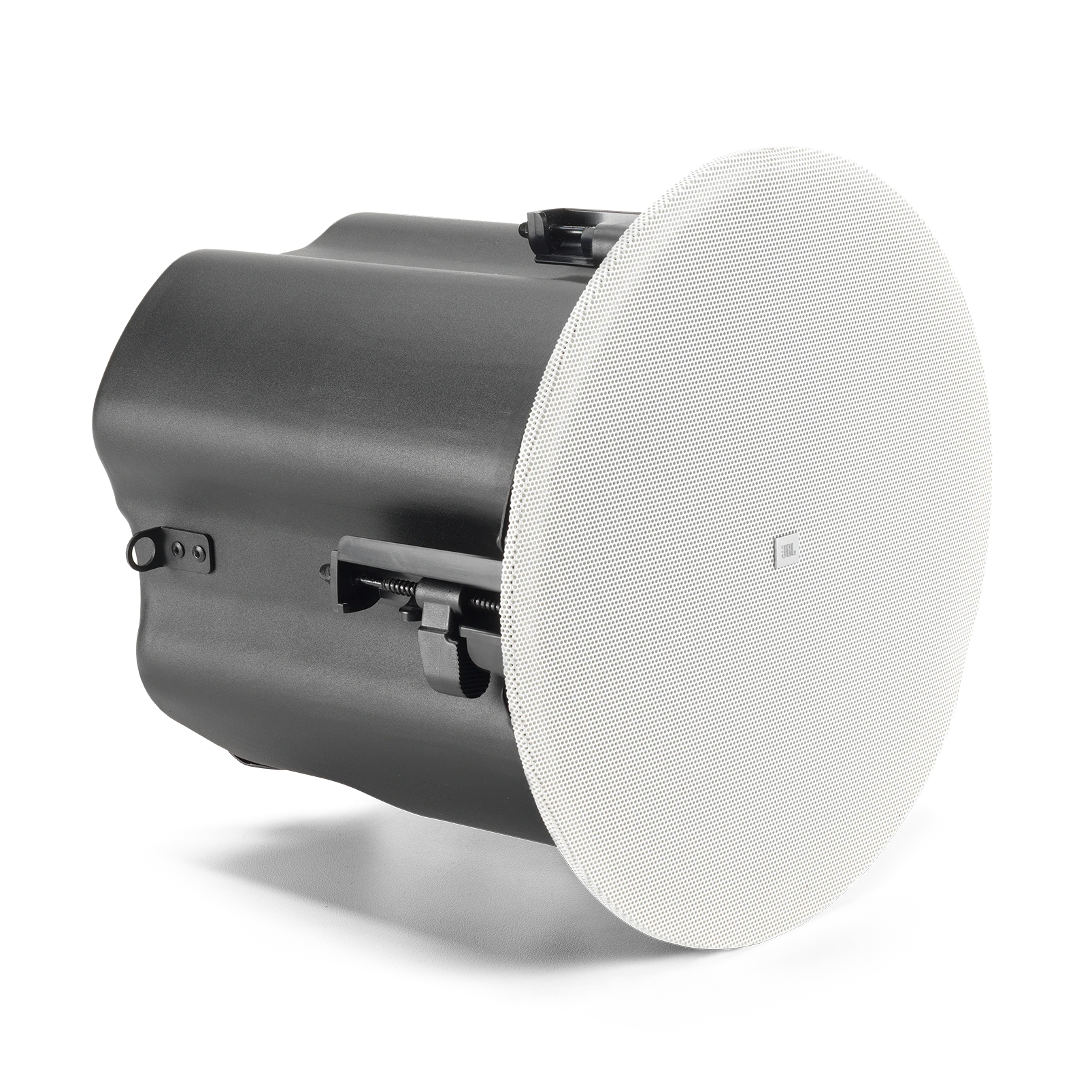

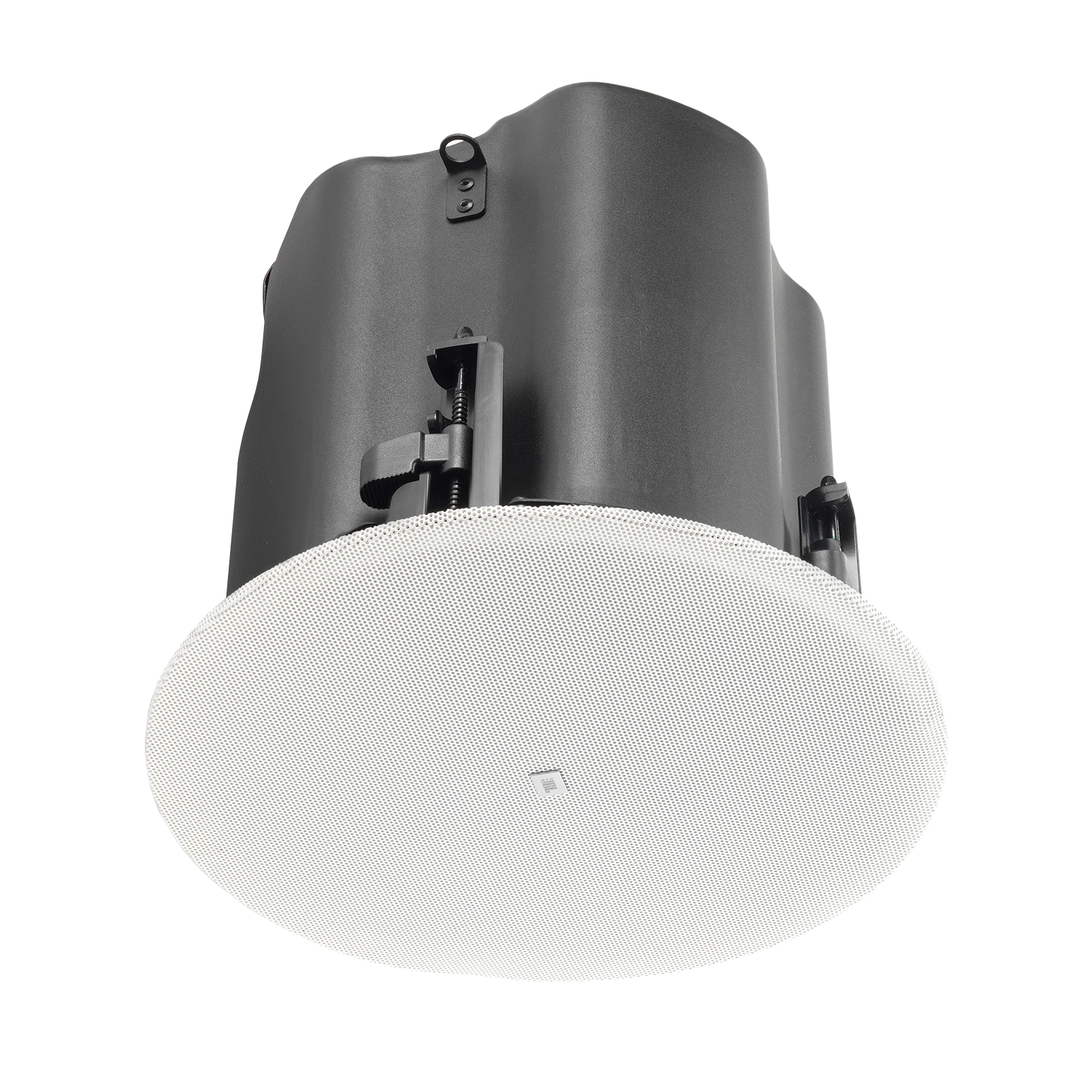

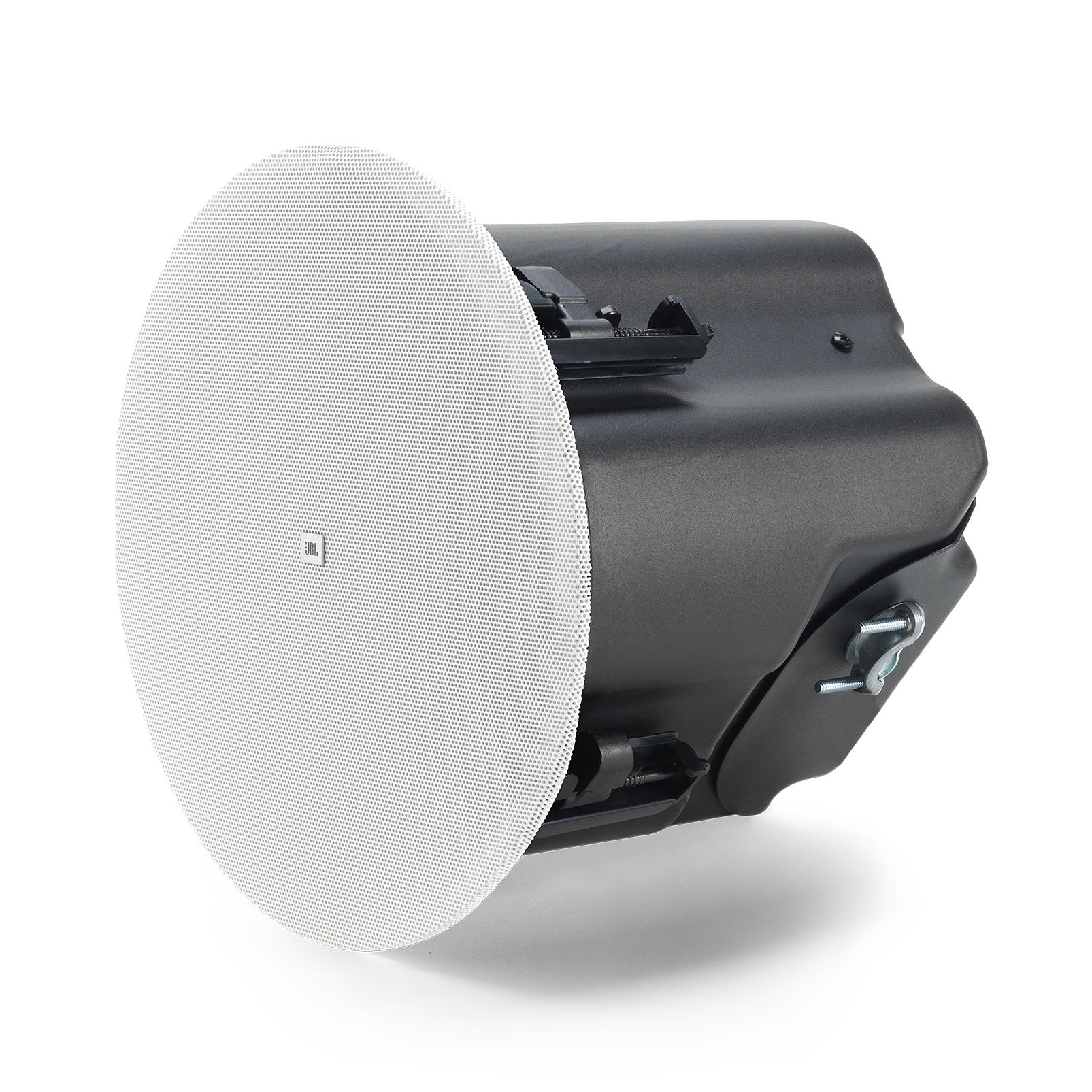

O JBL Control 416C/T-VA, integrante da série Control 400 Standard Coverage, é um alto-falante de teto coaxial de duas vias, apresentando um woofer de 6,5" e um gabinete integrado, ideal para instalação na maioria dos espaços de plenum de teto. Este modelo é certificado EN54-24, o que o torna adequado para aplicações de segurança contra incêndio.

Todos os modelos da série Control 400 foram projetados para se integrar perfeitamente aos interiores modernos. A grade magnética frontal completa incluída é pintável para adaptação a qualquer decoração, enquanto as grades redondas pretas e quadradas brancas disponíveis oferecem maior personalização.

O Control 416C/T-VA inclui recursos de instalação cuidadosamente elaborados para aprimorar a segurança, eficiência e repetibilidade. A cobertura do terminal permite entrada de cabos conveniente pela parte superior ou lateral, e o confiável design com parafusos cativos acomoda uma variedade de espessuras de teto, garantindo versatilidade para qualquer ambiente. Além disso, o Control 416C/T-VA suporta aplicações em 70V/100V e baixa impedância.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Recursos

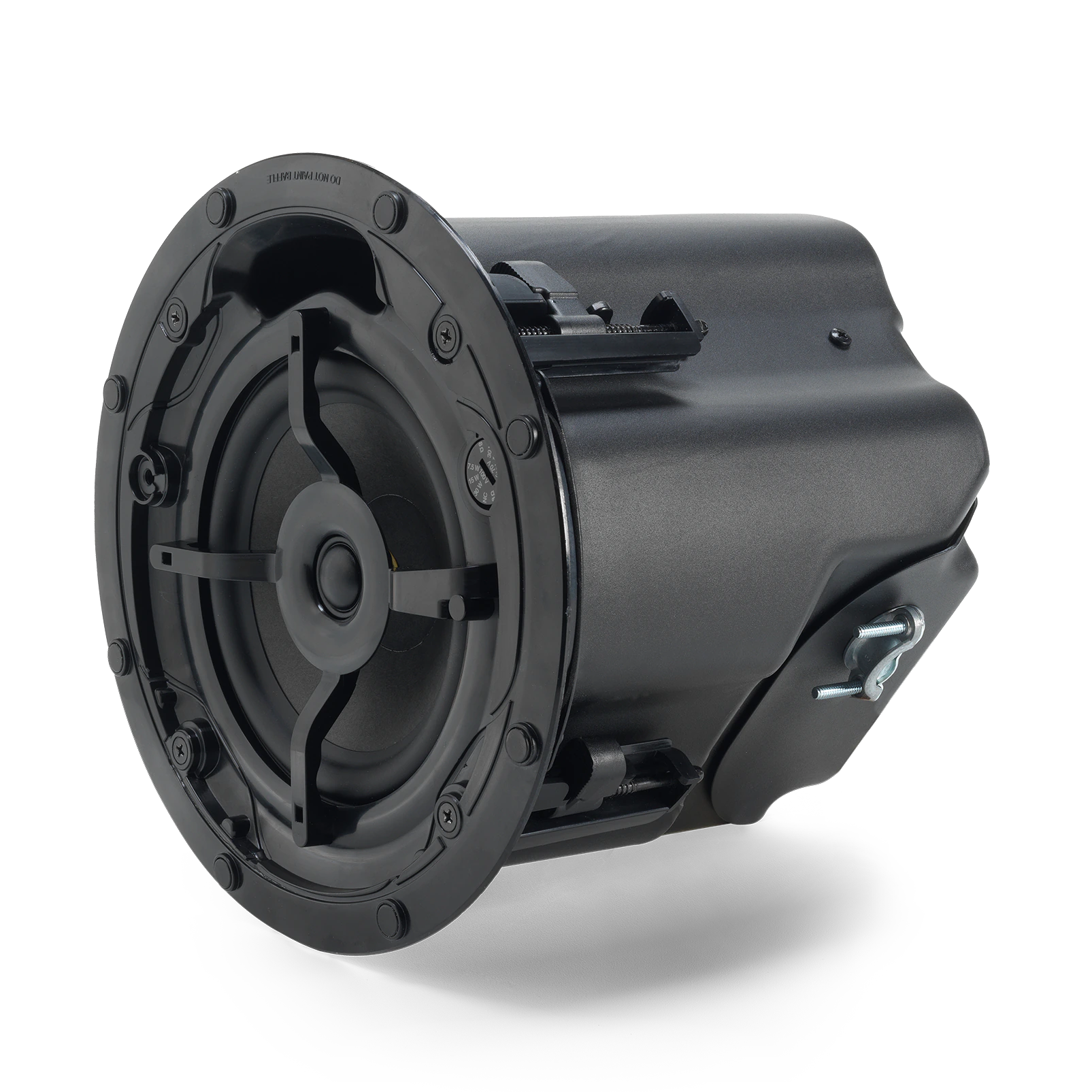

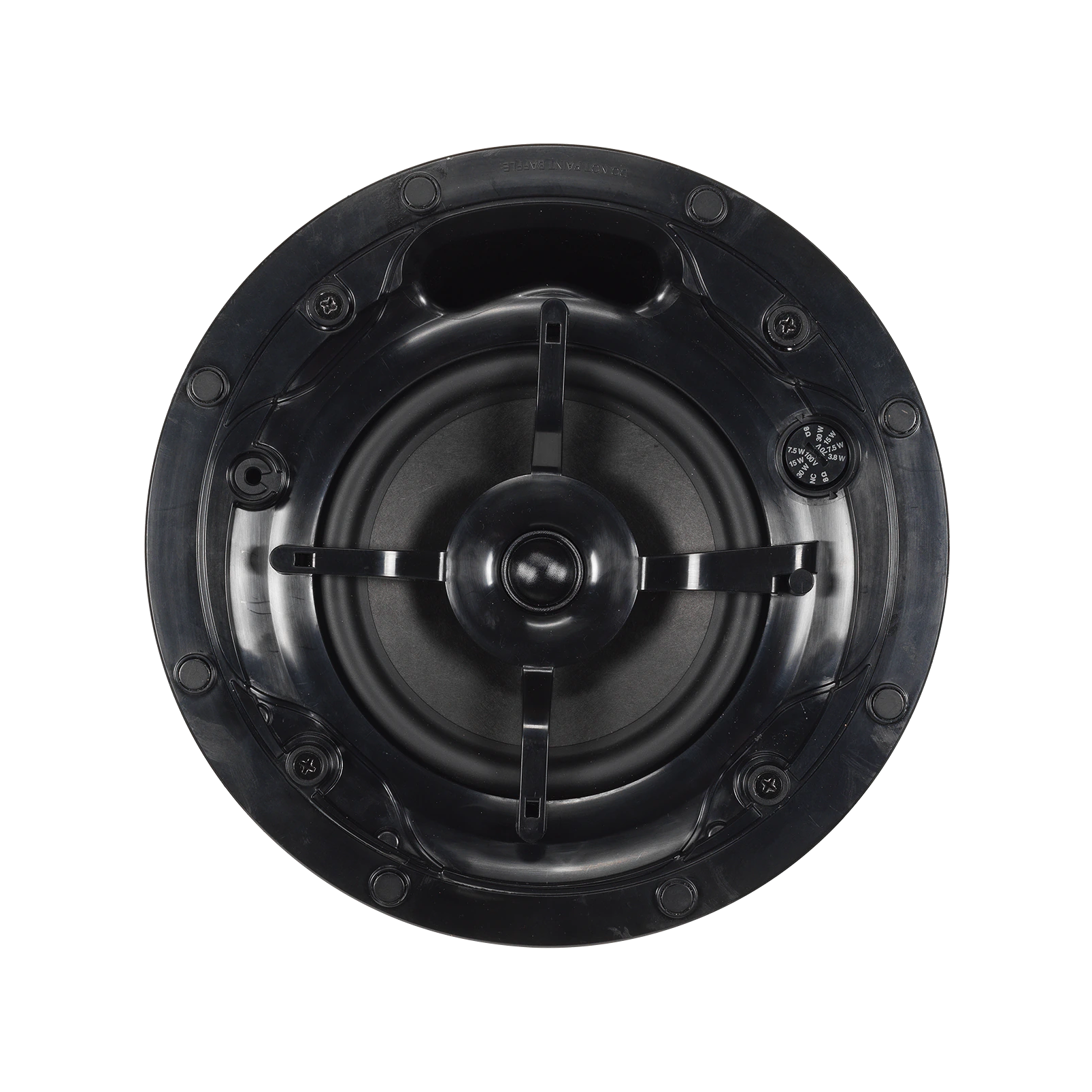

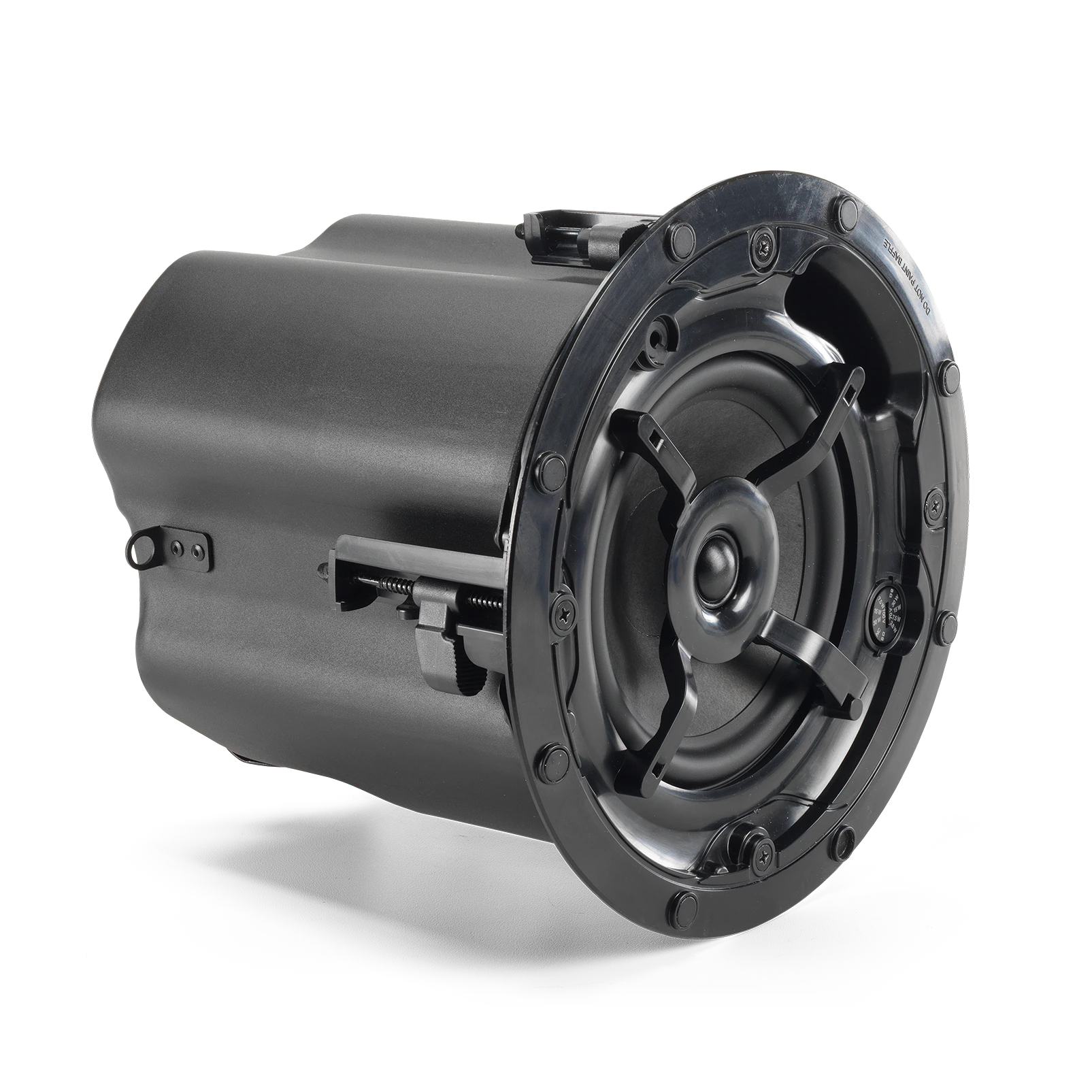

  • 165 mm (6.5 in) woofer and 19 mm (0.75 in) soft-dome tweeter
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles

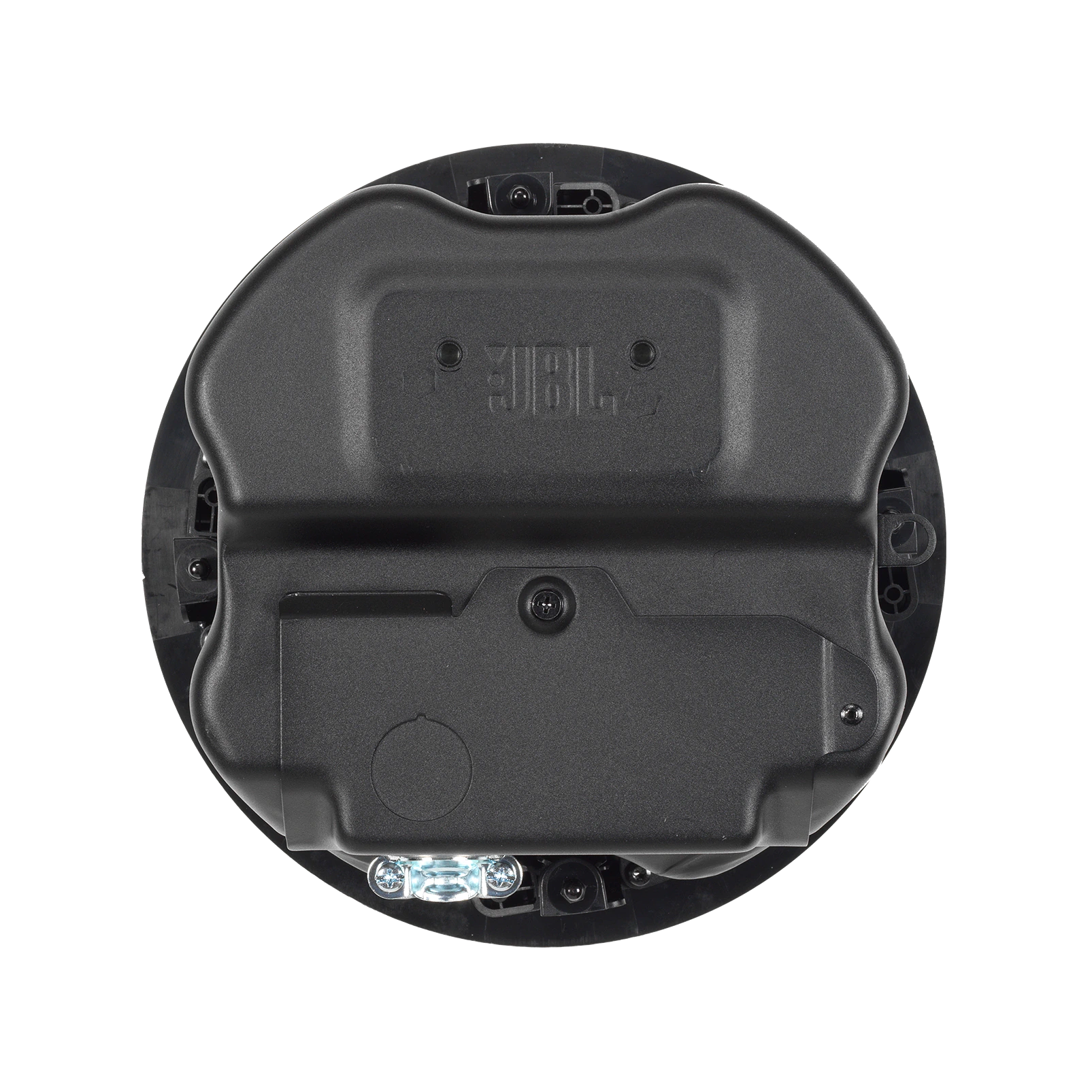

  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated
  • EN54-24 Certified for Standard for Life Safety applications

Downloads

Specifications
  Idioma Tamanho Enviado
file type icon Control 416C/T-VA Spec Sheet
en atualizado: fev 2026
en  1,4 MB fev 2026
Manuals
  Versão Tamanho Enviado
6,81 MB ago 2025
Brochures
  Tamanho Enviado
file type icon 2025 Control 400 Family Brochure
atualizado: ago 2025
3,9 MB ago 2025
CAD Drawings
  Tamanho Enviado
15,5 MB ago 2025
Compliances
  Tamanho Enviado
286 KB jan 2026
298 KB jan 2026
298 KB jan 2026
466 KB jan 2026
537 KB jan 2026
419 KB dez 2025
Software
  Versão Tamanho Enviado
Windows download icon Distributed System Design (DSD)
versão 3.9, atualizado: nov 2025
3.9   612 KB nov 2025
Speaker Tunings
  Tamanho Enviado
441 KB ago 2025
Technical Papers
  Tamanho Enviado
768 KB nov 2025
Ease Data
  Tamanho Enviado
file type icon Control 416C/T – CLF File
atualizado: out 2025
326 KB out 2025
file type icon Control 416C/T-VA - EASE GLL
atualizado: ago 2025
701 KB ago 2025
Accessories
  Versão Tamanho Enviado
file type icon Ceiling Speaker Accessory Guide
versão 2026-04, atualizado: mai 2026
2026-04  570 KB mai 2026

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Alcance de frequência (-10dB) 61Hz - 20kHz
Power Capacity 75W (300W Peak) Cont. Pink Noise (2 hrs)
50W (200W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W) 89dB
Coverage Angle 120° conical
Maximum SPL (1m) 108 dB continuous pink noise (114 dB peak)
Impedância nominal
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.8 W
100 V: 30 W, 15 W, 7.5 W
Drivers LF: 165 mm (6.5 in) with paper cone, SBR surround.
HF: 20 mm (0.75 in) soft dome
Ceiling Cutout Size 223 mm (8.8 in)

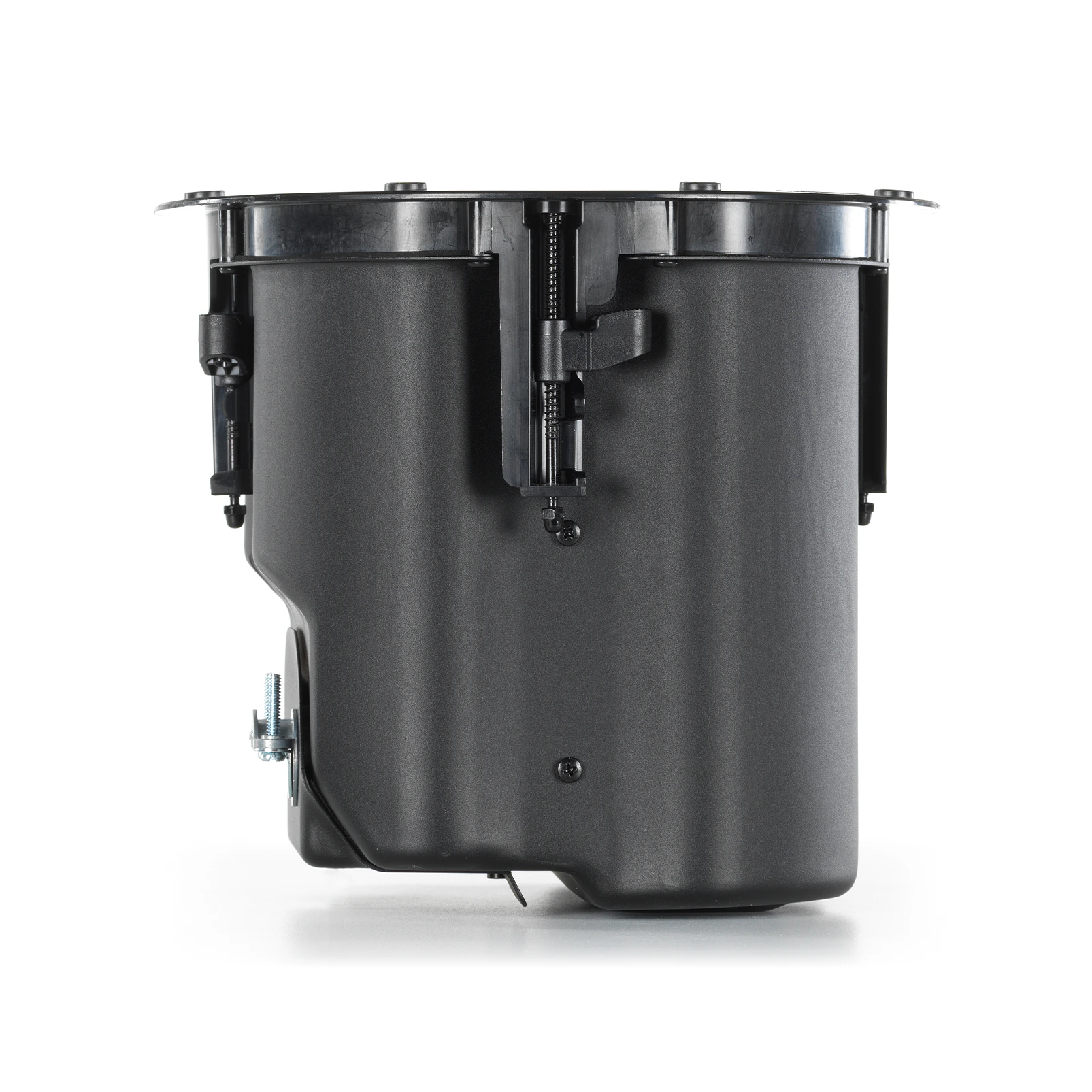

Dimensões 249 mm (9.9 in) H x 261 mm (10.4 in) dia.
238 mm (9.5 in) from bottom of ceiling tile to top of gland nut.
Safety Agency Rating EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-416BG black (RAL9004) round grille
JBL-MTC-416SG white (RAL9003) square grille
JBL-MTC-416WG weather grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Cor Stock grille is White (RAL9003), paintable (please read the user manual before painting)
Net Weight (ea) 3.76 kg (8.29 lbs)
Shipping Weight (pair) 12.66 kg (27.91 lbs)
SKU Numbers JBL-C416C/T-VA

Acessórios

MTC-416WG | Weatherized Grille for Control 416
Imagens Grandes
  • Grelha magnética de cobertura total com correia de segurança
  • Aspeto elegante e refinado que se adequa à estética que os designers modernos exigem
  • Grelha com proteção contra intempéries oferece proteção para instalações em ambientes húmidos

MTC-416SG | Square Grille for Control 416
MTC-416SG  Main photo
Imagens Grandes
MTC-416SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

MTC-416BG | Round Black Grille for Control 416
MTC-416BG  Main photo
Imagens Grandes
MTC-416BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
