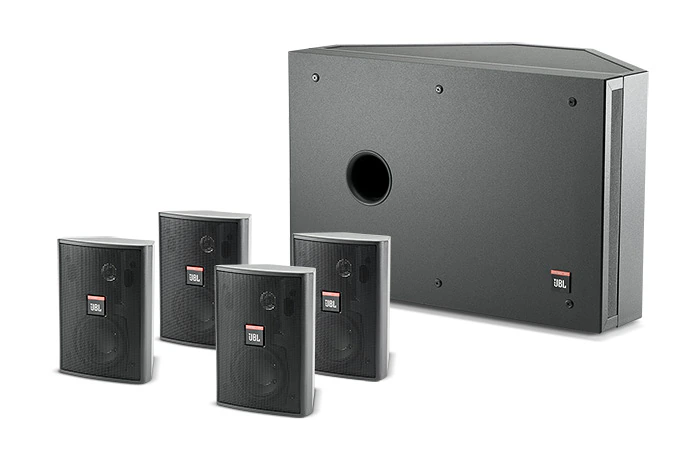

JBL CCS6000-systemet består af fire Control 23-højttalere som satelitter og en Control SB-2 subwoofer. Subwooferen gengiver lave frekvenser under 160 Hz, og de 2-vejs bredbåndssatellithøjttalere håndterer mellemtoner og høje frekvenser, hvilket resulterer i rig fuldlydkvalitet med jævn dækning.
| Størrelse | |
Control Contractor Brochure
opdateret: apr 2026
|
1,71 MB |
|
CCS6000 Spec Sheet
opdateret: apr 2026
|
137 kB |
| Størrelse | |
|
|
137 kB |
| Størrelse | |
|
|
65 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
| Frequency Range | 38 Hz - 22 kHz (-10 dB) |
| System Sensitivity | Control 23's : 86 dB (1 W, 1m) each speaker.Control SB-2 : 100dB (1 W, 1m) each input |
| Crossover Network | 12dB /oct Low Pass to subwoofer @ 160 Hz.6 dB / oct High Pass to satellite @ 160 Hz. 12 dB / oct Low Pass to midrange driver satellite. 12 dB / oct High Pass tweeter in satellite. |
| Acoustic Filtering | 6 dB / oct low-pass to subwoofer @ 80Hz, resulting in dual-slope low pass. |
| Drivers | Control 23: 3.5 in midrange drivers with polypropylene cone, .5 in titanium coated horn-loaded tweeters (x4 speakers) Control SB-2: One 250mm (10 in.) |
| Enclosure Material | Control 23: High impact polystyrene. Control SB-2: Particle board. |
| Environmental | Control 23: Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV. Control SB-2 Not outdoor capable |
| Included Accessories | LF: 275 W (1100 W peak), 2 hrs Four Invisible assemblies and four 4mm x 80mm hex keys for installing Control 23's Note: Speaker wire and SB-2 installation bracket are not included. |
| Optional Accessories | MTC-23C M Ceiling-mount adapters for Control 23 speakers MTC-SB2 W Wall/ corner installation bracket for Control SB-2 sub woofer. |
